What Is a Lockable Isolator Switch?
Definition and Basic Function
A standard isolator switch may provide the same basic electrical separation, but a lockable isolator switch adds a built-in feature that allows the OFF position to be secured with a padlock (and in many cases, multiple padlocks using accessories). Because real-world safety failures often come from people, not components: shift changes, contractors, rushed restarts, miscommunication between teams, or a well-meaning operator who wants to restore production.
A lockable isolator switch changes the human factors. It turns OFF from a temporary state into a controlled state. The lock provides a physical barrier to re-energization, and it supports formal lockout/tagout workflows where authorized personnel must maintain control of the energy state while work is in progress.
Main Components of a Lockable Isolator switch
A lockable isolator switch is a mechanical and electrical system. Typical components include:
Operating handle or rotary actuator that moves the switch between ON and OFF
Switching contacts that create the open gap when the switch is OFF
Mechanism and spring geometry that delivers consistent contact pressure and separation
Enclosure (for many industrial and outdoor models) providing mechanical protection and environmental sealing
Terminals or lugs for line and load connections
Clear position marking and indication so OFF is unambiguous
Locking provision integrated into the handle or a locking plate
For OEM panels, the enclosure, handle robustness, and terminal design often drive real reliability. In harsh duty cycles, failures are frequently mechanical: loose handles, damaged seals, cracked housings, or degraded internal alignment. That is why component-level evaluation should include the mechanical feel, enclosure integrity, and whether the isolator maintains consistent operation after vibration, temperature cycling, and repeated switching.
How the Locking Mechanism Works
Most lockable isolator switches are designed so a padlock can be applied only when the switch is in the OFF position. Mechanically, the handle aligns a hole or slot with a fixed feature on the housing or lock plate. Once the padlock shackle passes through, the handle cannot be rotated back to ON without removing the lock.
In team settings, the mechanism supports personal control of safety. A single lock prevents unauthorized switching; a multi-lock approach (via hasps or lockout accessories) allows each authorized worker to apply their own padlock so no one else can restore energy while that individual is still exposed.
When evaluating designs, do not treat lockability as a checkbox. Confirm the lock point is durable, the alignment is consistent, and the lock remains secure without excessive play. A lock that jams, binds, or is difficult to apply will lead to bypass behavior in the field.
Why Electrical Isolation Is Critical for Workplace Safety
Common Electrical Hazards During Maintenance
Maintenance work creates exposure pathways that are not present during normal operation. Panels are opened, covers removed, conductors approached, and tools introduced into spaces that were not intended for routine access. Electrical hazards can include contact with live parts, arc events during incorrect switching, unexpected motor starts, stored energy in capacitors, and backfeed from interconnected sources.
A frequent hazard is assuming that a control action equals an energy-isolated state. A stop button, HMI command, or PLC state can stop motion, but it does not necessarily remove electrical energy. Control circuits may remain energized, and multiple feeders may supply different parts of the same asset. For OEMs and facility engineers, the lesson is that “stopped” is not a safety condition; isolation is.
Isolation must be deliberate and physical. A clearly defined isolating device reduces the chance that a technician relies on a software state or on informal communication. It also reduces the chance that a second person unknowingly restores energy while maintenance is in progress.
Risks of Accidental Re-Energization
Accidental re-energization is one of the most dangerous scenarios during service. It can occur when a job is paused, a shift changes, a contractor leaves site, or troubleshooting requires multiple starts and stops. An operator may reset a fault, a supervisor may attempt a functional test, or someone may restore power simply because production pressure is high.
The engineering countermeasure is to create a controlled energy state. Lockable isolator switches support that by physically preventing the switch from being turned back on. They also integrate cleanly with tagout, so the reason for the lockout is visible and tied to an accountable owner.
In multi-source systems, accidental re-energization can also mean unintended backfeed. Even if the main feeder is isolated, auxiliary supplies, generators, UPS outputs, or PV circuits can energize parts of the system. A good isolation strategy therefore requires both correct devices and correct procedures.
The Importance of Visible Isolation
Visible isolation is about verification and confidence. Many protective devices have enclosed contacts, so personnel cannot see whether separation exists. An isolator is intended to create a defined open condition and a clearly indicated OFF state that supports verification as part of a safe work process.
In practical maintenance terms, a visible or clearly indicated isolating device reduces ambiguity. Technicians can confirm they are working on the correct circuit, and supervisors can confirm isolation steps have been performed before work begins. This is particularly important for complex panels where multiple feeders and subcircuits are present.
Visible isolation also improves standardization. When every machine platform uses a consistent isolation interface, the workforce builds reliable habits. That consistency reduces both safety incidents and maintenance delays.
How a Lockable Isolator Switch Improves Electrical Safety
Preventing Unauthorized Switching
A lockable isolator switch reduces the chance of unauthorized or unintentional switching by turning the OFF state into a secured state. Without a lock, any person with physical access can rotate a handle and restore energy. With a lock, energization requires a key and authorization.
This is especially important in environments where equipment is accessible to multiple roles: operators, maintenance technicians, contractors, cleaning crews, and supervisors. The longer a job runs, the higher the probability that someone else will interact with the equipment. Lockability creates a physical control point that supports disciplined maintenance, not informal agreements.
From an OEM viewpoint, including a lockable isolator switch at the correct location can reduce commissioning disputes, because the customer can implement their hazardous energy program without retrofitting hardware.
Supporting Lockout/Tagout (LOTO) Procedures
Lockout/tagout procedures require an energy-isolating device that can be locked in a safe position. Lockable isolator switches are purpose-built for this role. They provide a direct, mechanical interface for applying a padlock and tag at the correct isolation point.
In specification, evaluate the real usability details that determine whether LOTO will be followed: whether the lock point is reachable, whether the shackle diameter fits standard padlocks, whether the handle is clearly in OFF, and whether multi-person lockout can be supported when multiple technicians are exposed.
A lockable device that is difficult to lock will be bypassed. A lockable device that is easy to lock becomes the default safety habit.
Creating a Verifiable Safe Working Condition
A verifiable safe working condition is the result of a sequence: shut down, isolate, lock, tag, release stored energy, and verify absence of voltage. The lockable isolator switch supports the isolation and lock steps by providing a stable mechanical state that does not depend on software, interlocks, or remote controls.
It also improves verification because the isolation point is clear and typically accessible. Technicians can identify the correct device, confirm its state, and then perform testing at the correct location. That reduces mistakes like isolating the wrong feeder or assuming a circuit is dead because motion stopped.
For consideration-stage buyers, this is a key selection criterion: a lockable isolator switch should make the safe state easy to create and hard to accidentally defeat.
Reducing Electric Shock Risks
Electric shock risk is reduced when exposure to energized conductors is reduced and when the circuit state remains stable while work is performed. A lockable isolator switch contributes by preventing the system from being re-energized during service.
However, a lockable isolator switch is not a substitute for verification. The safest practice is to treat the isolator as the mechanism that prevents the state from changing, while testing is the mechanism that proves the state is safe. When both are used together, shock risk drops significantly because both the probability of energization and the probability of incorrect assumptions are reduced.
In design reviews, include how technicians will test, where they will test, and whether the isolator location supports that workflow.
Enhancing Emergency Shutdown Capability
Emergency shutdown and maintenance isolation are different functions, but good systems connect them intelligently. In some designs, a local isolator provides a fast method to disconnect equipment in a non-routine event, then supports lockout for inspection and corrective maintenance.
For OEMs, consider handle placement, visibility, and robustness under stress. A device that is clearly labeled and accessible enables safer response. After shutdown, the same device can be locked to prevent restart until the root cause is understood and corrective actions are complete.
How Lockable Isolator Switches Improve Maintenance Efficiency
Faster Equipment Servicing
Maintenance speed improves when safe isolation can be achieved quickly and consistently. A lockable isolator switch installed at the equipment or in a predictable panel location reduces time spent tracing circuits, searching for the correct upstream breaker, or coordinating shutdown of unrelated loads.
It also reduces the administrative friction of maintenance. Instead of waiting for another team to open a remote distribution panel, the technician can isolate locally, apply lock and tag, and proceed with testing and work according to procedure.
Reduced Downtime During Repairs
Downtime is often driven by how targeted the isolation can be. If isolation requires opening a main breaker that feeds multiple assets, operations may delay maintenance to avoid broader disruption. A dedicated isolator can allow a narrow shutdown scope, taking only the affected asset offline.
This can shorten repair windows and reduce production impact. It also reduces rework and repeated shutdown cycles caused by incomplete isolation, miscommunication, or premature energization.
Simplified Troubleshooting and Inspection
Troubleshooting frequently requires controlled transitions between de-energized and energized states. A lockable isolator switch makes these transitions more deliberate and auditable, especially when more than one person is involved.
For example, a team may isolate and lock for inspection, remove locks under an agreed process for functional checks, then isolate again for adjustments. With a clear isolation point, each transition is visible, and the risk of someone energizing at the wrong time is reduced.
This is particularly relevant for control panels where diagnostics may involve drives, PLC I/O checks, sensor replacements, and terminal inspections. A stable isolation interface simplifies the workflow.
Improved Maintenance Workflow Management
Maintenance managers need predictability: how long lockout takes, who is involved, and how a job is handed over between shifts. Lockable isolator switches improve workflow management by making the equipment state visible and standardized.
A locked isolator is a clear signal that work is in progress. Combined with tagging and job documentation, it helps teams avoid duplicate work, avoid energizing equipment prematurely, and manage multiple concurrent tasks across a facility.
Better Coordination Between Maintenance Teams
Large facilities often have electrical, mechanical, automation, and contractor teams working on the same asset. Lockable isolator switches support coordination because they can be locked by individuals or multiple workers using multi-lock methods.
When each worker can apply their own lock, no single person becomes the safety bottleneck. That allows teams to work in parallel while maintaining controlled energy states. It also reduces negotiation and informal “trust me” steps.
Common Applications of Lockable Isolator Switches

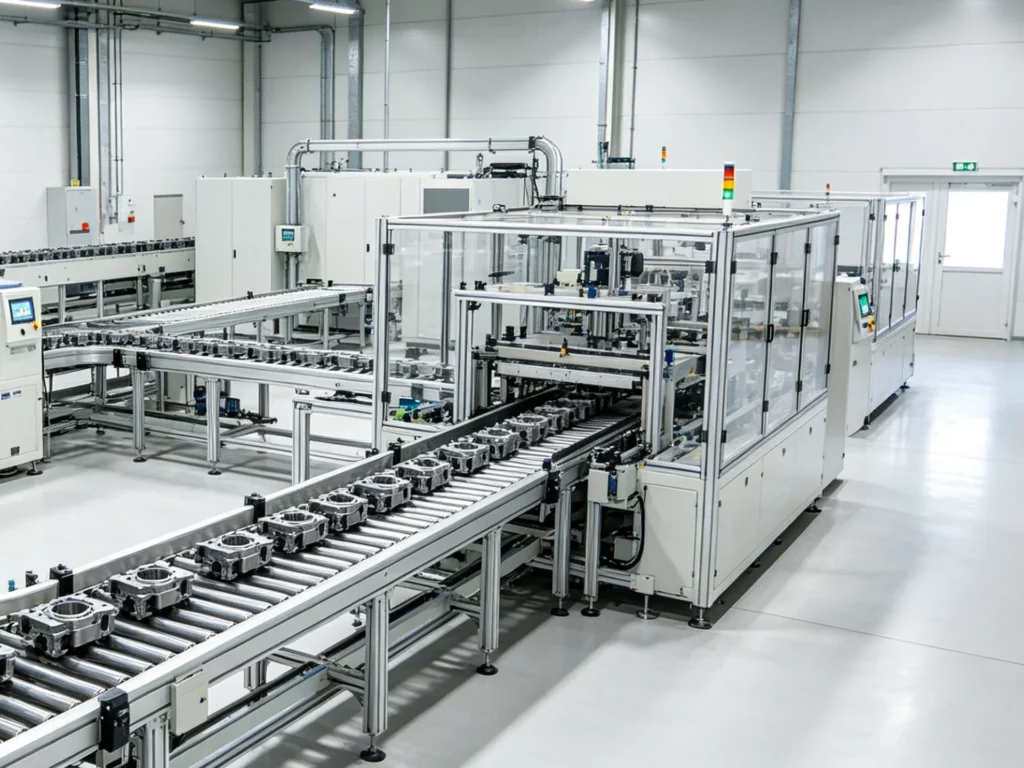

Industrial Machinery
Industrial machinery often requires local disconnects so maintenance can be performed without shutting down broader distribution. Lockable isolator switches are commonly used for motors, conveyors, pumps, and machine feeders.
For OEM builds, the isolator location and labeling are as important as the rating. A local, clearly identified isolator reduces commissioning confusion and reduces the chance that service technicians isolate the wrong circuit. It also supports maintenance contracts and reduces downtime during field service.
Solar PV Systems
Solar PV systems add complexity because PV strings can remain energized under sunlight. DC isolation is therefore central to safe service. Lockable isolator switches are used to isolate PV strings, inverter inputs, and combiner circuits.
Selection for PV must consider DC voltage ratings, correct pole configuration, enclosure sealing, and environmental exposure such as UV, temperature cycling, and moisture. Lockability matters because multiple parties may be present: installers, O&M providers, and facility staff.
HVAC Equipment
HVAC equipment is often serviced in rooftop or mechanical room locations where local isolation is essential. Lockable isolator switches allow technicians to isolate near the unit without depending on distant distribution panels.
Because HVAC service often involves contractors and repeated interventions, lockability reduces the chance of accidental restart during filter changes, motor replacement, or control troubleshooting. It also improves service speed because the isolation point is standardized and accessible.
Water Treatment Facilities
Water treatment facilities combine critical uptime needs with wet, corrosive, and washdown conditions. Pumps, blowers, drives, and instrumentation require safe isolation for service while other parts of the plant remain operational.
Lockable isolator switches with appropriate environmental protection reduce risk and improve maintainability. They support coordination between teams and reduce the chance of isolating the wrong feeder in complex plant layouts.
EV Charging Stations
EV charging stations include power electronics and control systems that can be sensitive to improper maintenance practices. Lockable isolator switches can provide a clear isolation interface for feeder circuits and local equipment enclosures.
For field service operations, accessible isolation points reduce downtime and improve safety for technicians working in public or semi-public environments. Lockability also helps ensure that a unit remains de-energized while service is in progress.
Commercial Buildings and Distribution Panels
Commercial buildings often require targeted isolation for equipment feeders, tenant systems, or distribution panel sections. Lockable isolator switches can help facility teams perform maintenance while minimizing disruption to unrelated loads.
They also improve clarity: a clearly labeled isolator can be a better maintenance interface than a crowded panel with multiple similar breakers. In a consideration-stage context, the goal is to choose devices that support reliable operation and safe maintenance over many service cycles.
Table: Application-driven selection considerations
Application | Typical priorities | Common selection focus |
|---|---|---|
Industrial machinery | Fast, local isolation; multi-team work | Handle robustness, multi-lock support, clear labeling |
Solar PV systems | DC safety; outdoor exposure | DC rating, enclosure IP, UV resistance, lock in OFF |
HVAC equipment | Contractor servicing; rooftop access | Accessibility, corrosion resistance, durable enclosure |
Water treatment | Wet/corrosive; washdown | High IP rating, sealing quality, maintenance visibility |
EV charging stations | Field service; public access | Clear isolation interface, lock usability, labeling |
Commercial buildings | Targeted shutdown; mixed loads | Correct poles, panel integration, identification |
How to Choose the Right Lockable Isolator Switch
AC vs DC Isolator Switches
AC and DC Isolator Switch are not interchangeable. DC circuits can sustain arcs differently and often require isolators specifically designed and rated for DC duty. For applications like PV strings, battery systems, and DC buses, select a device with the correct DC voltage rating and configuration.
For AC feeders, motor circuits, and general distribution, select an AC-rated isolator that fits the load characteristics and installation conditions. If your product line includes both AC and DC variants, avoid simplifying selection for customers; instead, provide clear application mapping so misapplication risk is reduced.
Voltage and Current Ratings
Voltage and current ratings must match the system design and expected duty. Consider continuous current, ambient temperature, enclosure derating, and expected operational cycles. Also consider utilization categories and how the device is intended to be operated.
Under-specification can lead to overheating and contact degradation. Over-specification can increase size and cost. The best approach is to define the operating envelope and select a device with appropriate margin.
Number of Poles
Pole count must match the conductors that require isolation. Three-phase systems commonly use 3-pole isolators. Some systems require switching the neutral, which may require 4-pole devices.
Correct pole selection improves safety by avoiding partial isolation where one conductor remains energized. It also improves troubleshooting clarity because technicians can assume all intended conductors are opened together.
Indoor vs Outdoor Installation
The installation environment determines mechanical and enclosure requirements. Indoor panel-integrated isolators may prioritize compactness and ease of wiring. Outdoor installations must handle UV exposure, temperature cycling, rain, dust, and possible vandalism.
For outdoor use, consider not only the isolator body but also cable entries, glands, and mounting practices. Environmental degradation is a common failure mode, so the enclosure system should be selected as an integrated solution.
IP Ratings and Environmental Protection
Ingress protection is a practical reliability factor. Dust and moisture ingress can degrade insulation, corrode terminals, and interfere with mechanical operation. Select an IP rating appropriate to the real site exposure.
In washdown or exposed outdoor environments, higher ingress protection and durable gasket materials can significantly improve service life. In dusty indoor environments, sealing prevents contamination that can affect operation.
Locking Options and Security Features
Locking features must match your LOTO practice. Some devices accept one padlock directly; others support multi-locking through accessories. Evaluate whether the lock point is visible, whether it can be applied without removing covers, and whether it remains reliable under environmental stress.
Also confirm padlock compatibility. If your facility standardizes padlocks, confirm shackle diameter and clearance. If multiple teams work on the same equipment, multi-lock capability can be essential to avoid unsafe lock removal practices.
Table: Quick selection checklist for engineers
Selection factor | What to confirm | Why it matters |
|---|---|---|
Circuit type | AC or DC, actual system voltage | Prevents misapplication and unsafe switching |
Duty and load | Continuous current, duty cycle, derating | Avoids overheating and premature wear |
Pole count | 1P/2P/3P/4P as required | Ensures complete intended isolation |
Environment | Indoor, outdoor, washdown, corrosive | Drives enclosure and material choices |
IP rating | Sealing level and gasket durability | Improves long-term reliability |
Locking method | Padlock fit, multi-lock support, visibility | Enables real LOTO execution |
Why Choose LSP Lockable Isolator Switches
At LSP, we understand that electrical safety starts with reliable isolation. Since 2010, we have been committed to developing and manufacturing high-quality isolator switches that help protect personnel, equipment, and electrical systems during maintenance and emergency shutdown situations. Whether used in solar PV systems, industrial facilities, commercial buildings, or EV charging infrastructure, our isolator switches are designed to provide dependable disconnection when it matters most.
Safety is at the core of every LSP isolator switch. Engineered with robust contact systems and high-quality materials, our switches ensure fast and reliable circuit isolation under demanding operating conditions. Available in both AC and DC versions, they are suitable for a wide range of applications, including photovoltaic systems up to 1500V DC. Lockable handle designs support Lockout/Tagout (LOTO) procedures, helping prevent accidental re-energization and creating a safer working environment for maintenance personnel.
Reliability extends beyond product design. LSP isolator switches are built to withstand harsh outdoor environments with durable enclosures and high IP-rated protection. UV-resistant materials, excellent mechanical durability, and long electrical life ensure consistent performance over years of operation. Every product undergoes rigorous quality inspections to meet international standards and provide customers with confidence in system safety and reliability.
Beyond manufacturing, LSP acts as a trusted partner throughout your project. We offer OEM and ODM services, customized branding, technical support, and responsive customer service to help customers bring products to market faster. From product selection to after-sales assistance, our experienced team is committed to delivering value at every stage.
Frequently Asked Questions (FAQ)
Can a Lockable Isolator Switch Replace a Circuit Breaker?
No. A lockable isolator is for isolation and lockout, while a circuit breaker is for protection. Breakers interrupt overload and fault currents; isolators are typically operated after the circuit is unloaded. In many designs, isolators do not have the duty to clear faults. Use a breaker or fused device upstream for protection, then use the isolator to create a visible, padlockable open point for maintenance.
Is a Lockable Isolator Switch Mandatory?
Not always by law for every circuit, but often required by site policy, risk assessments, and hazardous energy control programs. Many industrial facilities mandate lockable energy-isolating devices to support consistent lockout/tagout. Even when not explicitly mandated, lockability is a strong engineering control against human error, shift changes, and contractors.
How Often Should a Lockable Isolator Switch Be Inspected?
A lockable isolator switch should be inspected regularly, typically every 6 to 12 months, depending on the operating environment and local regulations. Inspections should check for mechanical wear, secure electrical connections, corrosion, and proper locking function. More frequent inspections may be required in harsh environments such as outdoor, industrial, or coastal installations to ensure reliable operation and safety.
Are lockable isolator switches suitable for solar PV systems?
Yes. Lockable isolator switches are widely used in solar PV systems to safely disconnect DC or AC circuits during maintenance, inspection, or emergency situations. Their lockable design prevents accidental reconnection, improving safety for technicians and ensuring compliance with electrical safety standards.
