The Growing Need for Surge Protection in Modern Electrical Systems
Surge protection is now essential because modern electronics are increasingly sensitive to power disturbances. Smartphones, laptops, smart appliances, and entertainment systems dominate homes and workplaces, yet they remain highly vulnerable to sudden voltage spikes caused by lightning, grid switching, or internal electrical faults. As device ownership continues to rise and extreme weather events become more frequent, surge-related damage is occurring more often, leading to costly equipment failures and downtime.
Importance of Layered Surge Protection with Type 1, 2, and 3 Devices
The most reliable surge protection strategy uses a coordinated, layered defense approach. High-energy surges are managed at the service entrance, residual surges are reduced within distribution panels, and Type 3 SPD devices provide point-of-use protection directly at sensitive equipment. By progressively reducing surge energy, this multi-level system significantly lowers the risk of damage across residential, commercial, and industrial environments.

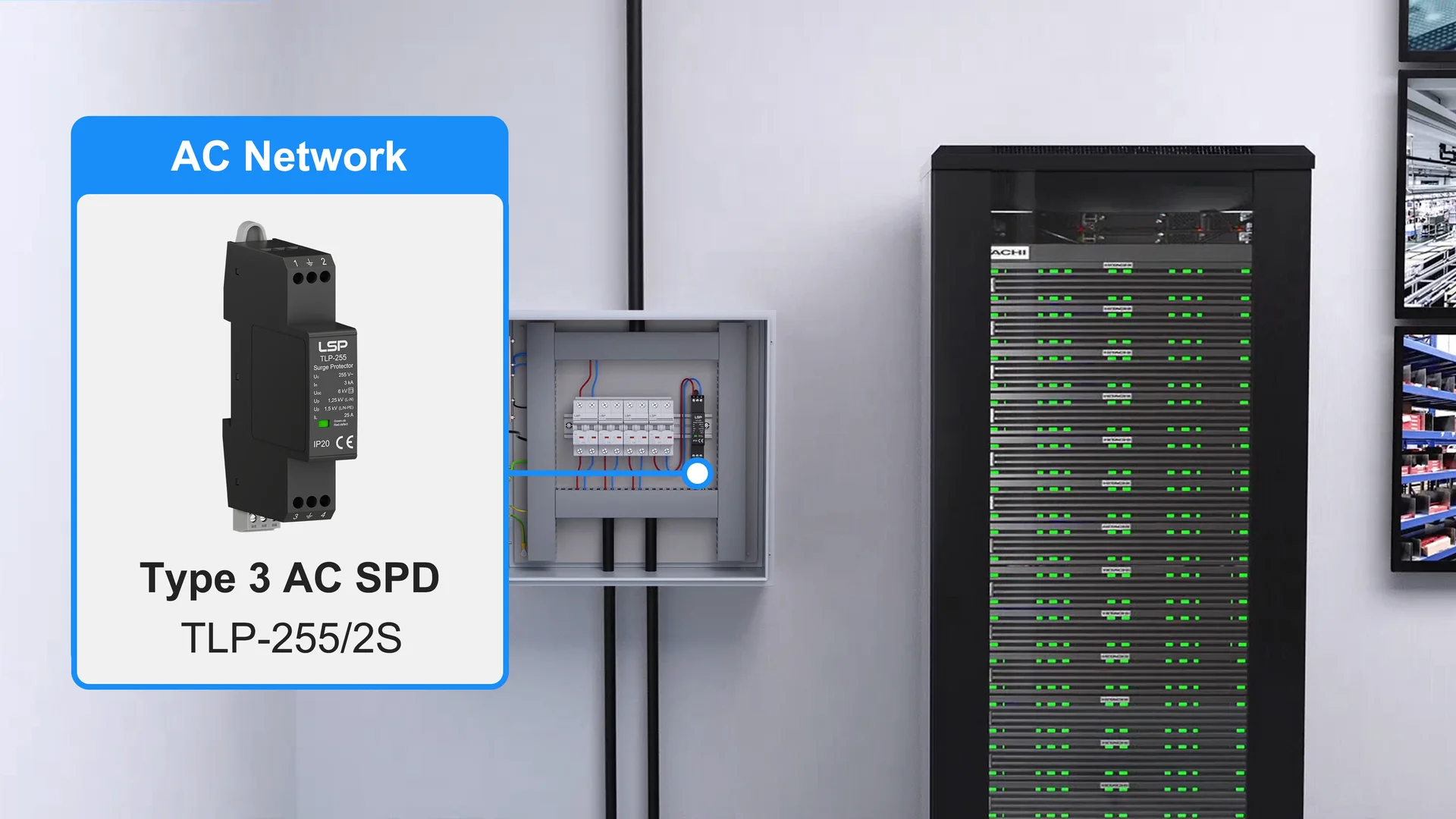

Role of Type 3 SPD as the Final Line of Defense Against Residual Surges
Type 3 SPD acts as the final line of defense by protecting electronics from residual overvoltage at the point of use. Installed close to end devices, these compact protectors respond rapidly to transient surges and help prevent excessive voltage stress on internal components. As the last protective stage, they play a critical role in safeguarding sensitive electronics when earlier protection layers are no longer sufficient.
What is a Type 3 SPD? A Simple Guide to Its Purpose and Features
Defining Type 3 SPD: Meaning and Key Components (MOVs and GDTs)
A Type 3 surge protector is a point-of-use device that serves as the last line of defense against residual surges for sensitive electronics, per IEC 61643-11 standards. Installed directly at or near protected equipment (wall outlets, power strips, or load points), it intercepts overvoltage bypassing upstream SPD layers. Core components include MOVs for rapid voltage clamping and GDTs for discharging high-energy transients, safely routing current to grounding.
What Makes Type 3 SPD Special: Fast Response, Point-of-Use Design, and Waveform Handling (1.2/50 μs + 8/20 μs)
Type 3 surge protectors stand out with fast response (nanoseconds to milliseconds), clamping surges before damage to delicate equipment. The point-of-use design allows simple installation at outlets or directly upstream of sensitive devices, providing localized protection without rewiring. Tested with the 1.2/50 μs + 8/20 μs combination waveform, they effectively handle low-amplitude, high-speed residual transients reaching end-user electronics.
How Type 3 SPDs Differ from Type 1 and Type 2: Comparison Table (Capacity, Installation Location, Waveform Standards)
Type 3 SPDs are positioned as the final layer of surge protection, featuring lower surge current capacity, point-of-use installation, and specialized waveform testing that distinguish them from Type 1 and Type 2.
Comparison of Type 1, Type 2, and Type 3 Surge Protective Devices (SPDs)
| Type | Installation Location | Typical Test Waveform | Protection Level |
| Type 1 | Main service entrance / incoming panel | 10/350 μs | External surges (high) |
| Type 2 | Distribution / sub-distribution panels | 8/20 μs | Residual surges after Type 1 (medium) |
| Type 3 | Point-of-use, near sensitive equipment (≥10 m from Type 2) | 1.2/50 μs + 8/20 μs combination | Last line of defense for residual surges (local / point-of-use) |
This comparison highlights why Type 3 surge protectors are essential: they provide the last line of defense against residual transients that upstream devices may not fully suppress, delivering critical localized protection for sensitive electronics.
Can You Install Type 3 SPD? Essential Rules and Safety Tips
How to Install Type 3 SPD: Step-by-Step Guide Including Minimum 10 Meters Distance
Type 3 surge protectors are designed for easy point-of-use installation downstream of circuit breakers and close to protected equipment. Follow these steps for optimal surge protection:
- Step 1: Turn off power at the breaker for safety.
- Step 2: Choose a location near sensitive devices.
- Step 3: Maintain a minimum 10 meters (about 30 feet) conductor length from the main distribution panel or upstream Type 2 SPD — this distance ensures proper surge coordination and effective dissipation of residual surges.
- Step 4: Plug in the device or hard-wire according to manufacturer instructions, securing all connections.
- Step 5: Restore power and verify indicators/test functionality.
Always consult the product manual to maximize protection performance and ensure compliance.

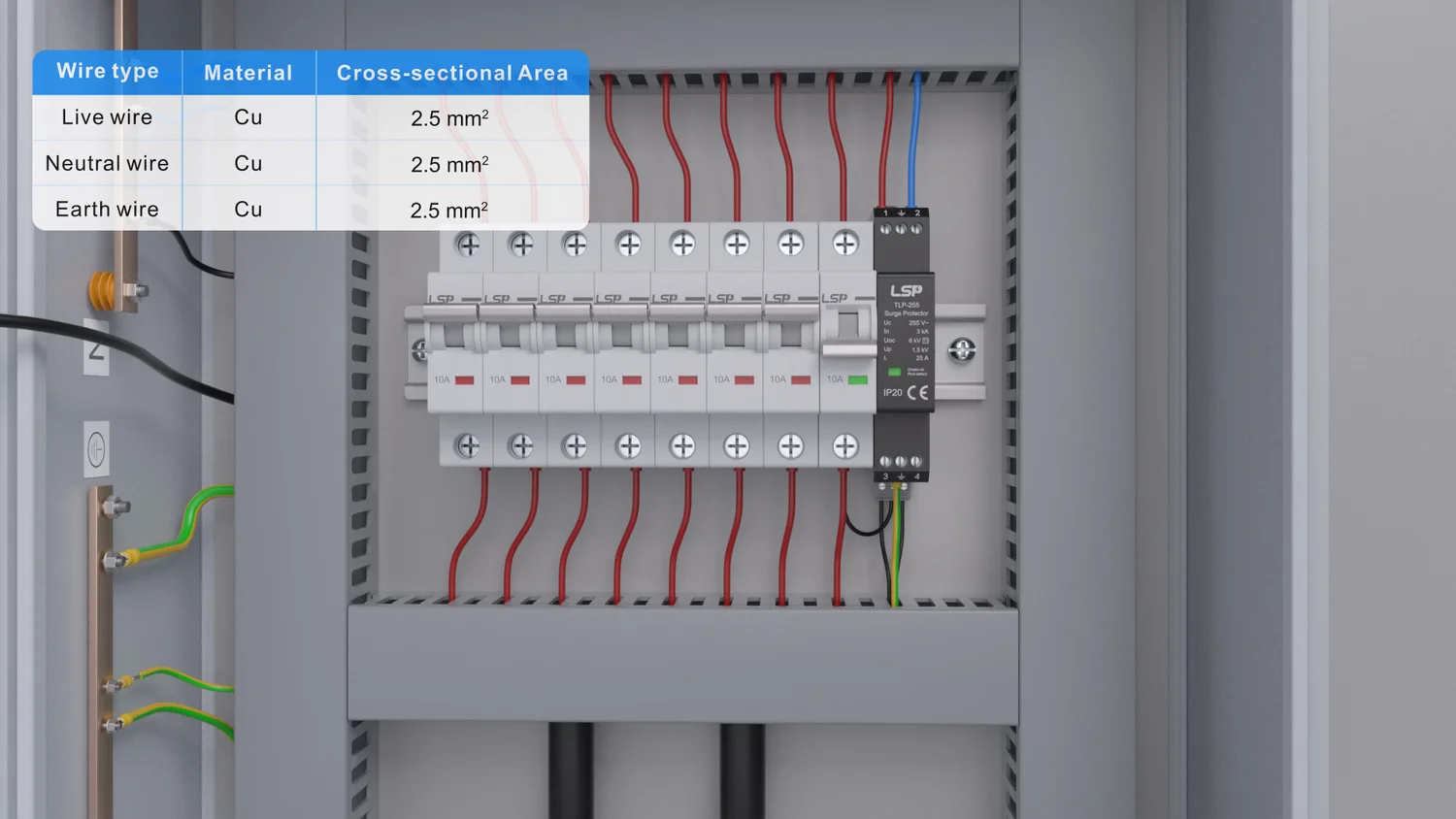

Tips for Safe and Legal Installation: Grounding, Plug-in vs. Hard-Wired Options
Correct installation ensures a Type 3 SPD provides reliable point-of-use surge protection for sensitive electronics. Proper grounding enables surge energy to dissipate safely, reducing the risk of equipment damage, fire, and electric shock.
Plug-in Type 3 SPDs are ideal for homes and offices, offering fast, flexible protection at wall outlets or power strips. Hard-wired models are better suited for industrial or fixed installations where long-term stability is required.
For best results, install the Type 3 SPD as close as possible to the protected equipment. Before purchase, confirm compliance with IEC 61643-11 and applicable local electrical codes, and consult a qualified electrician for complex installations.
Why Choose Type 3 SPD? Key Benefits That Set It Apart
MOV/GDT Component Insights: How Internal Technology Improves Protection
Type 3 SPD leverages advanced internal technology with MOVs (metal oxide varistors) and GDTs (gas discharge tubes) working synergistically to enhance surge protection. MOVs provide rapid clamping of lower-level voltage spikes for fast response, while GDTs handle higher-energy transients with high discharge capacity. This combination ensures comprehensive handling of diverse surge types, improving durability, speed, and overall effectiveness as the last line of defense for sensitive electronics at point-of-use.
Quick Action Against Sudden Surges: Millisecond/Nanosecond Response Times
Type 3 SPD excels with its exceptionally fast response times — often in nanoseconds to milliseconds — enabling it to clamp and divert surges before they damage sensitive electronics. This speed is crucial for high-speed transients from lightning or grid switching, where slower components like standalone GDTs may lag. Installed as the last line of defense, Type 3 surge protectors provide immediate protection in homes, offices, and surge-prone environments, acting faster than a blink to neutralize sudden voltage spikes.
Protecting Your Sensitive Electronics: Safeguarding Devices from Overvoltage and Residual Surges
Type 3 surge protectors serve as the last line of defense, installed at the point of use to shield sensitive electronics — such as laptops, gaming consoles, smart home devices, and TVs — from overvoltage and residual surges that escape upstream protectors. By absorbing and diverting excess voltage close to the load, they prevent data loss, component failure, and costly repairs. In an era of delicate modern devices, Type 3 SPD delivers essential localized protection, offering peace of mind against unexpected electrical spikes that could otherwise ruin valuable equipment.
Small Size, Easy to Use: The Convenience of Compact, Plug-in Type 3 SPD
Type 3 SPDs are easy to install, providing reliable point-of-use surge protection close to sensitive equipment. Their design allows quick setup with minimal wiring, making them suitable for residential, commercial, and industrial environments where space is limited but effective protection is essential.
Installing Type 3 SPD: Easy Tips for Optimal Protection
Getting Ready to Install a Type 3 SPD: Tools, Preparation Checklist, and Placement Near Sensitive Devices
Type 3 SPD installation starts with thorough preparation to ensure it functions as the last line of defense at the point of use.
Preparation checklist:
- Gather basic tools (screwdriver, voltage tester, wire strippers if hard-wired).
- Select placement close to sensitive electronics (e.g., computers, TVs, servers) for targeted protection against residual surges.
- Inspect wiring for safety and integrity — outdated or damaged wiring reduces effectiveness.
- Verify grounding is proper and consult a licensed electrician if unsure.
This careful setup maximizes surge protection reliability and prevents common errors.
Simple Steps to Install a Type 3 SPD
Type 3 surge protectors offer simple point-of-use installation — follow these steps for optimal protection performance:
- Turn off the power at the breaker or main switch for complete safety.
- Identify the installation point near sensitive equipment.
- Maintain a minimum 10 meters (about 30 feet) conductor length from the main panel or upstream Type 2 SPD to enable proper surge coordination.
- For plug-in models: Insert directly into the outlet. For hard-wired: Follow manufacturer wiring instructions precisely and secure connections.
- Restore power and test the device (check indicator lights or status signals).
Regular inspection in surge-prone areas and timely replacement ensure continued effectiveness as the final line of defense.
Coordinating with Other Protection Devices: Multi-Level Strategy with Type 1 and Type 2 SPDs
Type 3 SPD must coordinate with Type 1 and Type 2 SPDs in a multi-level surge protection strategy to distribute surge energy effectively and prevent overloads. Type 1 handles large external surges at the main panel, Type 2 manages residual surges at distribution levels, and Type 3 provides localized final defense at point-of-use. Proper coordination (e.g., minimum 10 meters spacing between levels) ensures progressive surge reduction. For different systems:
- TN-S: Connect between phases (L1, L2, L3) and neutral (N) for common-mode protection.
- TN-C: Connect to PEN conductor with strong grounding.
- TT: Connect to protective earth (PE) relying on local grounding.
Always consult a professional for verification in complex setups to achieve comprehensive protection for sensitive electronics.
Applications of Type 3 SPD: How It Protects Your Devices in Real-World Scenarios
Residential Applications: Protecting Home Appliances and Electronics
Type 3 SPD provides essential point-of-use protection in residential settings, where homes are packed with sensitive electronics like TVs, gaming consoles, smart appliances, and home automation systems. , Type 3 surge protectors act as the last line of defense, absorbing and diverting residual surges from lightning, grid switching, or internal faults. This prevents costly damage, data loss, and replacements, offering reliable surge protection for everyday essentials and delivering homeowners long-term peace of mind in surge-prone environments.
Commercial Applications: Safeguarding Servers, Medical Equipment, and Office Devices
Type 3 SPD is vital in commercial environments, where surges can disrupt operations, cause data corruption, and lead to expensive downtime for servers, POS systems, medical equipment, and office computers. Positioned at point-of-use near critical devices, Type 3 surge protectors serve as the final line of defense, blocking residual overvoltage to maintain business continuity and protect investments. With projected market growth at a CAGR of over 5% through 2034, increasing adoption in offices, data centers, and healthcare facilities highlights the growing demand for localized protection that reduces repair costs and ensures uninterrupted productivity.
Industrial Applications: Defending Machinery and Control Systems from Surge Damage
Type 3 SPD defends industrial machinery and control systems in factories, where heavy equipment and automated processes are highly vulnerable to surges that can cause production halts, safety risks, and major downtime. Installed close to key machinery as the last line of defense, Type 3 surge protectors divert residual transients, working in coordination with upstream Type 1 and Type 2 SPDs for comprehensive surge protection. This integration minimizes equipment failure in manufacturing plants and automated facilities, ensuring operational reliability and reducing costly interruptions in demanding industrial settings.
Conclusion: Why Type 3 SPD is a Must-Have for Protecting Your Electronics
Recap of Benefits and Key Takeaways
Type 3 SPD is a must-have for protecting sensitive electronics from residual surges and overvoltage, serving as the last line of defense at point-of-use. Key benefits include nanosecond-to-millisecond response times, compact plug-in design for easy installation, and seamless coordination with Type 1 and Type 2 SPDs in layered surge protection systems. These devices shield computers, TVs, gaming consoles, and smart appliances from minor voltage spikes that cause data loss or permanent damage. Affordable, user-friendly, and highly effective, Type 3 surge protectors integrate easily into homes and offices, reducing repair costs and providing peace of mind — install near devices and check indicators regularly for reliable performance.
Future Trends: Smart Monitoring, Enhanced MOV/GDT Performance, and Next-Generation SPD Solutions
Surge protection technology is advancing quickly, with Type 3 SPD leading innovations for smarter and more efficient safeguarding of sensitive electronics. Emerging trends include smart monitoring with internet connectivity for real-time surge alerts, remote diagnostics, and predictive maintenance. Enhanced MOV and GDT components will offer faster responses, higher energy-handling capacity, and greater durability against repeated transients.
Next-generation SPDs feature energy-efficient modular designs for easy upgrades and integration with renewable systems like solar and wind installations. Stricter safety standards and broader industrial adoption will drive robust, heavy-duty solutions, ensuring reliable protection in increasingly connected environments. Investing in these developments keeps devices safe, sustainable, and prepared for the future.
Choose LSP: Your Trusted Partner for Reliable Type 3 SPD Solutions
Overview of LSP Products: TLP-255/2S Series
LSP offers a comprehensive range of Type 3 SPD solutions, designed for reliable point-of-use protection. The popular TLP-255/2S series stands out for its compact design and fast-acting performance, installed near sensitive electronics to serve as the last line of defense against residual surges. It effectively handles low-level overvoltage from lightning or grid fluctuations, safeguarding devices like laptops, gaming consoles, smart appliances, and office equipment.
Other models in the series (TLP-60/2S, TLP-30/2S, TLP-150/2S, TLP-75/2S) provide tailored options for various load demands, ensuring strong localized surge protection for both residential and commercial applications.
Customer Support and Why LSP Stands Out
LSP combines high-quality Type 3 surge protectors with expert customer support to ensure reliable, long-term protection. Their team provides guidance on product selection, installation, and maintenance, helping residential and commercial users implement effective surge protection solutions. With responsive support available by phone or email, LSP ensures sensitive electronics remain protected while simplifying complex setups.
Type 3 SPD FAQ: Answers to Your Most Common Questions About Point-of-Use Surge Protection
Can Type 3 SPD be Used Alone or Only with Type 1/2 SPDs?
Type 3 SPD can be used alone for basic point-of-use protection against residual surges. For best results and full surge protection, pair it with Type 1 and Type 2 SPDs in a layered system – Type 3 acts as the last line of defense near sensitive electronics.
What Devices Benefit Most from Type 3 SPD Protection?
Type 3 surge protectors benefit sensitive electronics most: laptops, gaming consoles, TVs, computers, smart home devices, servers, and office equipment. Installed at the point of use, they provide the last line of defense against residual surges that can cause data loss or damage.
How Does a Minimum 10 Meters Distance Between SPDs Affect Performance?
The minimum 10 meters conductor length between Type 3 SPD and upstream SPDs allows proper surge coordination — upstream devices absorb large surges first, leaving residuals that Type 3 can safely handle. This distance improves protection performance and prevents overload.
What Are the Typical Response Times and Waveform Ratings (1.2/50 μs + 8/20 μs) of Type 3 SPDs?
Type 3 SPD typically responds in nanoseconds to milliseconds and is tested with the 1.2/50 μs voltage + 8/20 μs current combination waveform, making it effective against low-amplitude, fast-rising residual surges as the last line of defense.
How Do MOV and GDT Components Work Together to Enhance Protection?
In Type 3 SPD, MOV clamps low-to-medium surges quickly, while GDT handles higher-energy transients. Together, they provide fast, comprehensive protection against diverse residual surges for sensitive electronics.
How Long Do Type 3 SPDs Typically Last and What Maintenance Is Needed?
Type 3 surge protectors typically last 3–5 years. Check indicator lights regularly; replace if dim/off, after major surges, or at end of life. Inspect for damage and test periodically — minimal maintenance keeps them reliable as the last line of defense.
