You want to keep your electrical system safe from voltage spikes and power surges. Installing an AC surge protector in your electric distributor box or cabinet helps protect your devices and equipment. Surge protection keeps your home or business working well and stops sudden damage. You will find different surge protectors. Type 1 is for outdoor lightning strikes. Type 2 is for indoor protection. Hard-wired models give permanent safety. Here is a quick look at the most common types:
IEC Type | Name | Installation Location | Function / Protection Target | Common Installation Method | Notes |
|---|---|---|---|---|---|
Type 1 (Class I) | Type 1 Surge Protector | Main building incoming line / Outdoor distribution box | Withstands direct lightning strikes, protects the main distribution system | Hard-wired (permanent connection) or DIN rail mounting | Installed outdoors or at the building’s main incoming line |
Type 2 (Class II) | Type 2 Surge Protector | Indoor distribution system | Prevents indirect lightning or surge from switching operations | Hard-wired or DIN rail mounting | Protects the equipment-side electrical system |
Type 3 (Class III) | Type 3 Surge Protector | Device end / Near outlets | Protects sensitive end devices, low voltage protection level | Plug-in / Module / DIN rail mounting | Usually used together with Type 2 SPD for multi-level protection |
Always follow safety steps when you work with electricity. Let’s start with a step-by-step guide.
Key Takeaways
Putting in an AC surge protector keeps your electrical system safe from sudden voltage jumps and power surges.
Type 2 surge protectors work best inside, while Type 1 is good for outside and protects against lightning.
Always switch off the main power before you install a surge protector to stay safe.
Use short and straight wires when you connect things so the surge protector can act fast during surges.
Check your surge protector every three months for warning lights and any damage you can see.
Change your surge protector every 3 to 5 years, or sooner if you find problems.
Read and follow the manufacturer’s instructions closely so you do not make mistakes and your surge protector works right.
Pick a trusted brand like LSP for strong surge protection and good results.
AC Surge Protectors: The First Line of Defense for Your Electrical Infrastructure
Why are AC Surge Protective Devices (AC SPD) Indispensable?
You want your electrical system to work safely. An ac surge protector acts like a shield. It stops sudden spikes from hurting your equipment. Surges can break electronics, start fires, or stop your business. Surge protection saves money and keeps you safe. It also helps you follow safety rules.
Function and Application Scenarios of SPD
A surge protection device guards against voltage spikes. These spikes come from lightning, switching, or grid faults. You see these devices in homes, offices, factories, and solar farms. They work best inside electric distributor boxes and cabinets. This way, surges get stopped before reaching your equipment.
Tip: If you do not install a protector, your equipment can get damaged. You may face downtime, safety risks, and shorter life for electronics.
Risk Category | Description |
|---|---|
Equipment Damage | Sudden high voltage can break insulation or damage electronics. |
Downtime and Repair Costs | One big surge can stop important equipment and cost more to fix. |
Safety Hazards | Without an SPD, a strong surge can cause a fire. |
Equipment Lifespan | Small surges can make electronics wear out faster. |
Compliance Issues | Using an SPD helps you meet safety standards and may help with insurance. |
Classification and Positioning
There are different surge protectors. Type 2 is most common for indoor use. It goes inside the distributor box or cabinet. It blocks indirect lightning and grid surges. Type 1 is for outdoor use and handles direct lightning. Type 2 works best for homes and businesses. Type 3 is for plugging into sensitive devices.
Golden Rules for Selection AC SPDs: Key Parameters and System Compatibility
To select the right Type 1, 2, or 3 surge protector, you need to check a few critical parameters. Each type has its own role in protecting your electrical system, but some basic rules apply to all.
Key Performance Parameters for AC SPDs (Type 1 / 2 / 3)
Parameter | Description | Notes by SPD Type |
|---|---|---|
Maximum Continuous Operating Voltage (Uc) | Maximum AC or DC voltage that can be continuously applied without triggering the SPD or causing damage. | All Types: Uc must exceed the system nominal voltage to avoid false trips or damage. Common values: 385V or 440V for 220V/380V systems. |
Voltage Protection Level (Up) | Maximum voltage let-through across the SPD; lower values provide better protection. | Type 2/3: Must ensure low Up, typically ≤1.5 kV (often ≤1.2 kV) to protect sensitive devices. Type 1: Can tolerate slightly higher values. |
Rated Discharge Current (In) | Peak current the SPD can safely discharge under an 8/20 µs standard waveform. | Type 2: Common values 5 kA, 10 kA, 15 kA; protects against indirect lightning and switching surges. Type 3: Lower, for sensitive devices. Type 1: Typically not used for this parameter. |
Maximum Discharge Current (Imax) | Peak current the SPD can discharge once under an 8/20 µs waveform (usually 2 × In). | Type 2: 10 kA–40 kA; assesses maximum withstand capability. Type 3: Lower values for device protection. Type 1: Can be higher depending on expected surges. |
Maximum Impulse Current (Iimp) | Peak current the SPD can safely discharge under a 10/350 µs standard waveform. | Type 1: Highest, designed to handle direct lightning strikes. Type 2/3: Not applicable; mainly handle 8/20 µs surges. |
Short-Circuit Current Rating (Isccr) | Maximum short-circuit current the SPD can safely withstand at the connection point. | All Types: Ensures SPD works safely with backup fuses without creating hazards. |
Response Time (Ta) | Time taken for the SPD to react to a surge, measured in nanoseconds (ns). | All Types: Faster is better; typically MOV < 25 ns, GDT < 100 ns. Critical for Type 3 to protect sensitive devices. |
Grounding System Compatibility
Your AC surge protector must match your system’s voltage and wiring. The device needs to fit your grounding setup, like TN, TT, or IT. Short, straight wires help the protector work faster and keep things safe.
Factor | Description |
|---|---|
Voltage Rating | Make sure the SPD voltage matches your system’s voltage. |
Surge Current Capacity | Shows the biggest surge current the SPD can take. Pick based on location and system. |
Protection Mode | Protection depends on the surges and wiring setup. |
IEC/EN Certification | Meeting IEC/EN standards means the SPD passed safety and performance tests. |
Type of SPD | Choose based on your system and needed protection level. |
Response Time | Faster response gives better protection for sensitive equipment. |
Wiring | Short, straight wires improve SPD performance. |
Key Takeaways
Type 1 SPD: First line of defense, installed at building incoming lines, withstands direct lightning.
Type 2 SPD: Installed in indoor distribution, protects against indirect surges.
Type 3 SPD: Device-end protection, sensitive equipment, very low voltage let-through.
This approach ensures multi-level surge protection, with each SPD type working in harmony to safeguard your electrical system.
Pre-Installation Checklist and Safety Guidelines for AC SPD Installation
Safety First: Execution by Qualified Electricians and Shutting Down Main Power
You must think about safety before working with electrical equipment. Always ask a qualified electrician to do the installation. The first thing to do is turn off the main power. This keeps you safe from electric shock. It also protects your equipment from damage.
Tip: Never install an AC surge protector with the power on. You could get hurt or start a fire.
Safe Operating Procedures
You should follow safe steps every time you work. Here is a simple checklist to help you:
Turn off the main power before opening the distributor box or cabinet.
Use insulated tools and wear gloves for protection.
Look for damage or moisture inside the cabinet.
Make sure you have the right surge protector for your system.
Check that your electrician has the right certifications.
You can use the table below to see which safety certifications are needed in different places:
Region | Standard |
|---|---|
Global | IEC/EN 61643-11, -311, -321, -331, IEC 61643-31, IEC 61051 |
United States | UL 1449 |
Canada | CSA C22.2 NO. 269 Series of SPD Standards |
Mexico | NOM-003-SCFI (NMX-J-515-ANCE) |
SPD Hardware and Backup Protection: Coordinating Fuses and Isolator Switches
You need to check backup protection before installing the surge protector. Backup fuses or isolator switches help keep your system safe. They stop too much current from hurting the surge protector or your equipment.
Backup Protection Configuration
Here is why backup protection is important:
Backup fuses or isolator switches keep the surge protector safe from overloads.
They help stop fires and equipment damage.
Good backup protection makes sure your surge protector works well.
You should know about different coordination types for backup protection. The table below shows the differences:
Coordination Type | Description | Impact on System |
|---|---|---|
Type 1 | Needs repair or replacement of the contactor, which causes downtime. | May cause a lot of downtime because you need to inspect and fix things. |
Type 2 | Lets the contactor keep working during faults. | Very important for places where downtime can cause big problems. |
Note: Always read the manufacturer’s instructions for backup protection. This helps you avoid mistakes and keeps your installation safe.
Practical Installation Guide: AC SPD Installation Steps and DIN rail mounted Wiring
Locate Main Distribution Panel
First, find your main distribution panel. This is where your electrical system starts. Inside, you will see circuit breakers and wires. Sometimes, surge protectors are already there. Look for a space big enough for your new type 2 surge protector. If you want to protect your whole house, this is the best spot. You can also put surge protectors near important devices like computers or air conditioners. This gives extra protection.
Tip: Make sure the panel is dry and clean before you start.
Mounting the Surge Protector
Next, get ready to mount the surge protector. Most surge protectors use DIN rail mounting. This makes it easy and safe to install. Here’s what you do:
Turn off the main power before you begin.
Hold the surge protector over the DIN rail inside the panel.
Snap the surge protector onto the rail. Make sure it is tight and does not move.
Put the surge protector close to the power lines. This helps stop surges before they reach your equipment.
You should also put surge protectors in sub-distribution boards. This protects important equipment. If you want to protect sensitive devices, put the surge protector near those devices. Always make sure you install everything the right way for good protection.
Wiring and Grounding
Wiring and grounding are very important steps. You need to follow the manufacturer’s instructions and local rules. Good installation keeps your system safe and helps the surge protector work well.
Single-phase application Wiring
If you have a single-phase system, you will see three wires: live (L), neutral (N), and ground (PE). Here’s what you do:
Connect the live wire to the L terminal on the surge protector.
Connect the neutral wire to the N terminal.
Connect the ground wire to the PE terminal. Use a grounding bus bar for a strong connection.
Keep all wires short and straight. This helps the surge protector react fast.
Make sure the wire size matches what the manufacturer says. This stops overheating and keeps resistance low.
Note: Do not twist wires together or use twist-on connectors for grounding. Always use a bus bar for grounding.
Three-phase application Core Points
For three-phase systems, you will see four or five wires: L1, L2, L3, N, and PE. Follow these steps:
Connect each phase wire (L1, L2, L3) to its terminal on the surge protector.
Connect the neutral wire to the N terminal if your system uses one.
Connect the ground wire to the PE terminal. Use a grounding bus bar for best results.
Keep the wires short and straight. Try to keep them less than three feet long between the surge protector and the equipment.
Put protected and unprotected wires in different conduits. This stops surge energy from jumping to other wires.
Pick the right wire size for each wire. This helps stop overheating and keeps the surge protector working well.
Ensuring Proper Grounding
Grounding is very important for surge protection. You want a path with low resistance to the earth. This lets the surge protector send surge energy away from your equipment. Here’s what you should do:
Use a grounding bus bar for all ground wires.
Make sure the ground wire is short and straight. Long wires slow down how fast the surge protector works.
Test the ground source. You want less than 5 Ohms resistance for good protection.
Do not share ground wires with other devices. Each surge protector needs its own ground wire.
Alert: Bad grounding can let voltage spikes reach your equipment. Always check your grounding before you finish.
Always follow the manufacturer’s instructions for installation. This helps you avoid mistakes and keeps your surge protectors working well. If you want to install surge protectors for outlets or for your whole house, use these steps for each one.
By following these steps, you make sure your surge protector is installed safely and works well. You protect your equipment from surges and spikes. You also help your system run smoothly.
Following Manufacturer Instructions
You want your surge protector to work right and keep things safe. You must follow the manufacturer instructions for every job. These steps help you avoid mistakes and make sure you install it the right way.
When you open the box, you will see a guide from the maker. Read this guide before you start. It tells you how to mount the protector, connect wires, and test the surge protection. If you skip these steps, your equipment might not be safe.
Here are some important things to remember:
Get all your tools ready before you begin. You need a voltage tester, screwdrivers, wire strippers, and electrical tape.
Turn off the main power before you start. Use a multimeter to check that there is no current. This keeps you safe from electric shock.
Mount the surge protector close to the main disconnect box or inside the distribution panel. This helps stop surges before they reach your equipment.
Use short, straight wires for all connections. Keep wires less than 0.5 meters long. Short wires help the surge protector react fast.
Follow the manufacturer’s instructions for wire size.
Connect the grounding terminal to the local ground plane. Use copper wire with at least 4 mm² cross-section. This gives a good path to earth.
Do not double lug wires. Each wire should have its own terminal. Double lugging can make loose connections and lower surge protection.
Check the indicator lights after you finish. These lights show if the protector is working. If you see a warning light, check the wiring and grounding again.
Inspect your surge protector often. Look for damage or loose wires. Good installation and regular checks help your surge protector last longer.
Tip: Always follow local electrical codes when you install. Codes help you do the job right and keep your system safe.
Here is a simple table to help you remember the most important steps for proper installation:
Step | What You Should Do |
|---|---|
Read Manufacturer Guide | Check all instructions before starting installation |
Turn Off Main Power | Use a multimeter to confirm no current |
Use Correct Wire Size | Follow guide, usually 10 AWG for installation |
Keep Wires Short | Less than 0.5 meters for best surge protection |
Grounding | Use copper wire, minimum 4 mm² cross-section |
Check Indicator Lights | Make sure protector works after installation |
Inspect Regularly | Look for damage or loose wires |
If you follow these steps, your surge protector will be installed the right way. Your equipment will be safe from surges and your system will work well. Manufacturer instructions help you avoid mistakes and make sure your surge protector does its job.
Comprehensive Testing and Verification Procedures After AC Surge Protector Installation
You finished putting in the surge protector, but you are not done yet. You need to check your work to make sure everything is right. Testing helps you find problems before they cause damage. Let’s go over what you should do after you install your surge protectors.
Avoiding Installation Mistakes
You want your surge protector to work every time there is a surge. If you make mistakes during installation, it might not protect your stuff. Here are some problems you should watch for:
Common Wiring Errors
Wiring mistakes happen a lot. You might put a wire in the wrong spot or use wires that are too long. Long wires make the surge protector slower. If you put two wires in one terminal, they can get loose. Always check that each wire has its own spot. Use short, straight wires for the best protection.
Grounding Problems
Bad grounding is a big problem. If the surge protector does not have a good path to the earth, surges can reach your equipment. Make sure the ground wire is short and goes to a bus bar. Test the ground resistance. You want less than 5 Ohms for strong protection.
Skipping Safety Steps
Some people skip safety steps to save time. Never do this. Always turn off the main power before you touch any wires. Wear gloves and use tools with insulation. Check for water inside the cabinet. Safety keeps you and your equipment safe from voltage spikes and surges.
Restoring Power
After you finish installing and checking your wires, you can turn the power back on. Flip the main breaker to restore power. Watch for warning lights or alarms on your surge protector. If you see a problem, turn off the power and check your work again.
Verifying Functionality
You want to be sure your surge protector works. Use the right tools to test your setup. Here are some tools you should use:
Multimeter: Checks voltage, current, and resistance.
Insulation Tester: Finds leaks or faults in your device.
Professional SPD Tester: Checks if your surge protector is healthy.
Surge Generator: Sends voltage spikes to test your protector.
Clamp Meter: Measures current without taking things apart.
Thermal Imaging Camera: Finds hot spots in your protector.
Oscilloscope: Shows how your protector reacts to surges.
After testing, look for signs that your surge protector works. Most protectors have lights to show if they are working. A green light means your device is good. If the light is off, you need to change the protector. Some models make a sound if there is a problem.
Indicator Type | Description |
|---|---|
LED Diagnostic Light | Light on means it works; no light means you need a new one. |
Alarm Type | Functionality |
|---|---|
Built-in Buzzer | Makes a sound if there is a problem and you need a new surge protector. |
Application | Indicator Type |
|---|---|
Home Offices | Look for ‘Protected’, ‘Grounded’, and ‘Wiring Fault’ lights. |
Entertainment Centers | Pick units with EMI/RFI filtering and easy-to-see lights. |
Critical Equipment | Choose models with auto shutdown and alarms you can hear. |
If you do these steps, your surge protector will keep your equipment safe from surges. You will know your setup is good, and your surge protectors are ready to work.

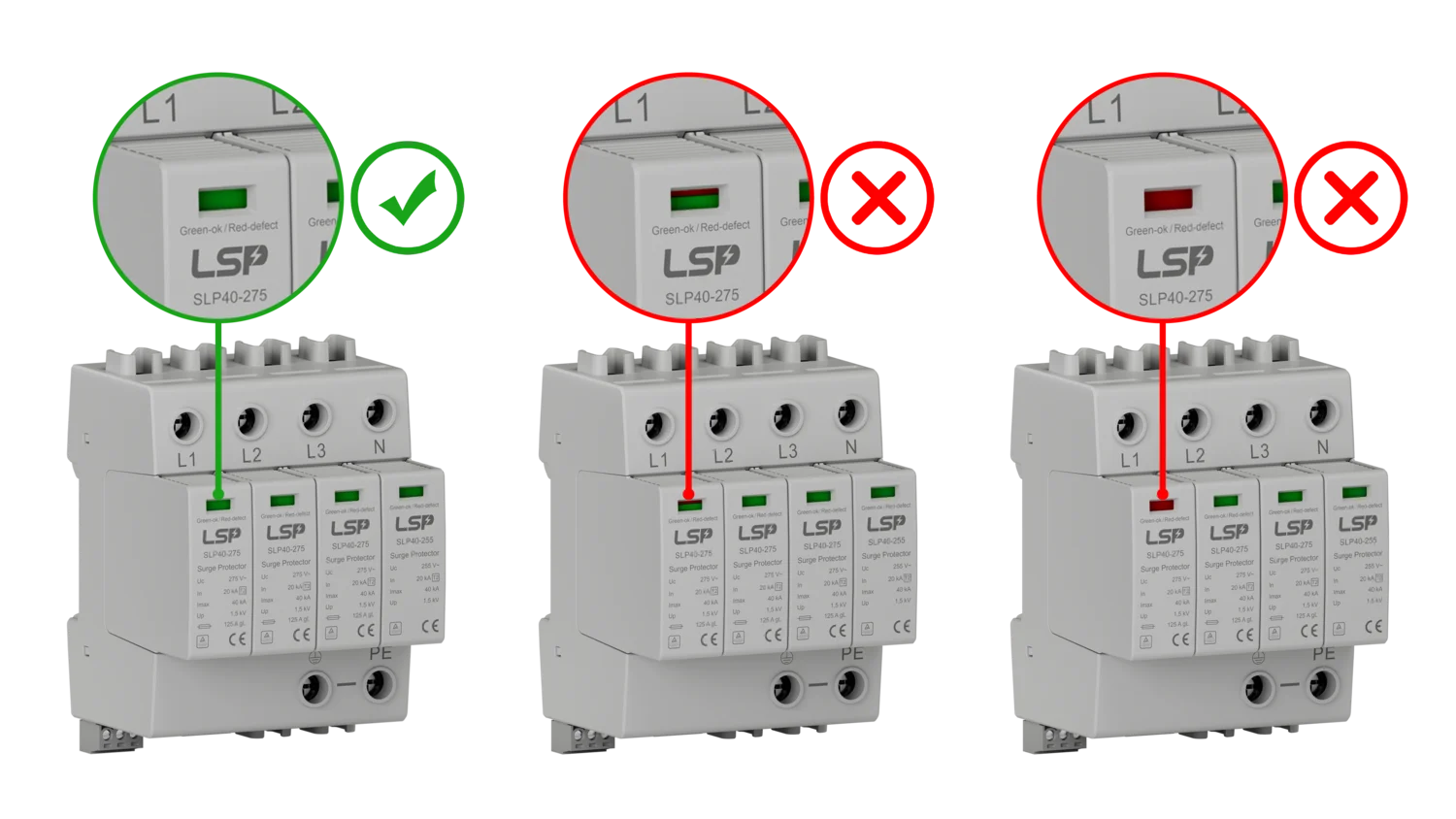

AC SPD Maintenance, Lifespan, and Status indicator Status
Maintenance, Testing, and Replacement Cycle: Keeping Your Surge Protector Working
You want your surge protector to work when a surge happens. Regular checks help keep your equipment safe. If you forget about your surge protector, your devices could get damaged.
Here’s how to keep your surge protector working well:
Check your surge protector every three months. Look at the status lights or diagnostic indicators. If the green light is off, your protection might not work.
Replace your surge protector every 3 to 5 years if things are normal. If you live somewhere hot or humid, you may need to change it sooner.
If you see damage or the indicator shows a problem, replace your surge protector right away.
Watch for lots of surges. If your area gets many surges, your surge protector can wear out faster.
Inspection and Replacement Threshold
You need to know when it’s time to replace your surge protector. Most surge protectors in distributor boxes and cabinets last 8 to 12 years. In hot or humid places, they last only 3 to 5 years. Lots of surges can also make them wear out faster.
Here’s a simple checklist for inspection:
Inspection Point | What to Look For |
|---|---|
Status Indicator Light | Green means good; no light means replace |
Physical Damage | Cracks, burn marks, or frayed cords |
Smell | Burning smell means danger |
Audible Sounds | Clicking or buzzing means trouble |
Performance | Electronics act up or trip breakers |
If you see any of these signs, get a new surge protector. Don’t wait for a surge to test your protection.
Troubleshooting
Sometimes your surge protector has problems. You might see flickering lights, hear clicking, or smell burning. Here’s what you should do:
Turn off the power and look at the surge protector.
Check for damage, frayed cords, or cracked insulation.
Look at the status indicator. If it’s off or red, your protection is gone.
If breakers trip a lot or electronics stop working, your surge protector may be failing.
Alert: Never ignore warning signs. A broken surge protector can’t stop surges and might cause a fire.
When to Replace Surge Protectors
You should get a new surge protector if you notice any of these signs:
The power indicator light is off or changes color.
Operation lights flicker or act strange.
You smell burning or feel heat from the surge protector.
You hear clicking or buzzing sounds.
You see cracks, scorch marks, or frayed cords.
Surges happen more often and your protection seems weak.
Your surge protector is older than 5 years.
Circuit breakers trip often.
Electronics stop working right after a surge.
If you see any of these, get a new surge protector. Don’t wait for a surge to break your equipment.
Note: Regular checks and fast action help you avoid expensive repairs and keep your system safe from surges.
LSP Surge Protective Device Overview
LSP Brand Highlights
You want a surge protector that is safe and reliable. LSP gives you strong protection for your electrical system. The brand helps keep your equipment safe from surges. LSP tests each AC surge protector to IEC/EN 61643-11 standards. You get products with global certifications, so you can trust them.
LSP surge protectors offer reliable protection for homes, industrial sites, factories, and solar farms. Compatible with both single-phase and three-phase systems, they come with expert advice and fast, responsive service.
LSP Product Series and Technology Advantages
You want a surge protector that lasts and works in tough places. LSP uses high-performance MOVs and strong materials. Each protector gets tested with surge current and long-term stress checks. You get a device that can handle lightning and keeps working for years.
Check out some of the technology advantages:
Feature | Description |
|---|---|
Rigorous Testing | Devices get tested to handle lightning surges. |
Thermal Stability | Long-term tests make sure the device stays safe and stable. |
Quality Assurance | Each device is checked for alpha value, leakage current, and voltage before shipping. |
Material Selection | Good soldering materials help the device last longer. |
Quick Response | Service requests get answered in 12 hours for fast help. |
You can order what you need. LSP does not make you buy a minimum amount. You can get a surge protector for a small or big job. The company lets you customize your protector. You can work with their team to make a protector that fits your needs. LSP surge protectors work in harsh places and keep your system safe.
Smart O&M and Visual Design
You want a surge protector that is easy to use and take care of. LSP makes protectors with clear status lights. You can see right away if your surge protector is working. The design helps you find problems fast. You get smart features, so you spend less time checking your system.
LSP surge protectors have built-in lights and alarms. You can put them in any distributor box or cabinet. The design makes wiring easy and safe. If you need help, LSP answers quickly. You get support in 12 hours, so your system stays safe.
When you choose LSP, you get a surge protector with safety, smart design, and strong technology. You keep your equipment safe from surges and your business runs smoothly.
Frequently Asked Questions (FAQ) about AC Surge Protection
Why is the SPD Grounding Wire Length Critical for Low protection level (Up)?
Your surge protector needs to work fast during a surge. The grounding wire length is very important. Short wires help send surge energy to the ground quickly. Long wires slow down the surge energy. This can let more voltage reach your equipment. Always use short, straight grounding wires for the best safety.
How to choose the right SPD type and size based on IEC/EN 61643-11 compliance?
To pick the right surge protector, you need to check a few things. IEC/EN 61643-11 gives rules to follow. First, do a risk check before you install anything. Next, sort surge protectors by where they go and what they protect. Check the voltage protection rating. This tells how much voltage the protector can block. Look at the maximum continuous operating voltage. Make sure it matches your system. Find the nominal discharge current and the biggest surge current. These numbers show how much surge the protector can handle. If you follow these steps, you will get the right surge protector for your needs.
Why is a Backup fuse / Backup protection required for AC Surge Protection Device installation?
Backup fuses are very important for surge protection. They help keep your equipment safe from surges. Fuses make sure your surge protector works well and stays safe. International rules say you should use a fuse or breaker. Backup fuses add extra safety. They help stop damage and keep bad parts from causing more problems.
What is the difference between whole-house surge protectors and point-of-use surge protectors?
Whole-house surge protectors protect your whole electrical system. You put them at the main panel. Point-of-use surge protectors work at the outlet. You plug them in near important devices. Both types help stop voltage spikes. Whole-house protectors cover everything. Point-of-use protectors focus on single devices.
How often should you check or replace your surge protectors?
Check your surge protector every three months. Look at the lights and check for damage. Replace it every 3 to 5 years, or sooner if you see problems. If you get lots of surges, you may need to replace it faster.
Can surge protection devices stop all types of surges?
Surge protection devices can block most surges, like lightning or switching surges. Some very strong surges might still get through. Using both whole-house and point-of-use protectors gives better safety.
What signs show your surge protector needs replacement?
Look for these signs:
The status light is off or changes color.
You smell burning or hear buzzing sounds.
The protector feels hot or looks broken.
Electronics act strange after a surge.
If you see any of these, get a new protector right away.
Do surge-protected outlets offer enough protection for sensitive electronics?
Surge-protected outlets help protect devices from small surges. For big surges, you need a whole-house surge protector. Using both gives your electronics strong protection.
Tip: Always follow local rules and the maker’s instructions when you install. This keeps your surge protection working well and your system safe.
FAQ Topic | Best Practice |
|---|---|
Grounding | Use short, straight wires |
SPD Selection | Check ratings and compliance |
Backup Fuse | Always install with surge protector |
Maintenance | Inspect and replace regularly |
Outlet Protection | Use point-of-use surge protectors |
You need your ac surge protector to work during a surge. Good installation and regular checks help keep your equipment safe. Always follow safety rules and read the instructions from the manufacturer. Pick a trusted brand like LSP for strong protection. Here are some tips: check your surge protector often, change it when needed, and use the right tools. Stay safe and make sure your system works well!
