How to Wire a PV Combiner Box

What is a PV Combiner Box?

Solar power systems are widely used for their clean and efficient energy generation, powering applications such as solar street lights, water pumping systems, residential and industrial electricity supply, and even entire city energy grids. The complexity and component configurations vary depending on the application. Besides well-known components like solar panels, controllers, and inverters, the PV combiner box is essential to ensure normal system operation.

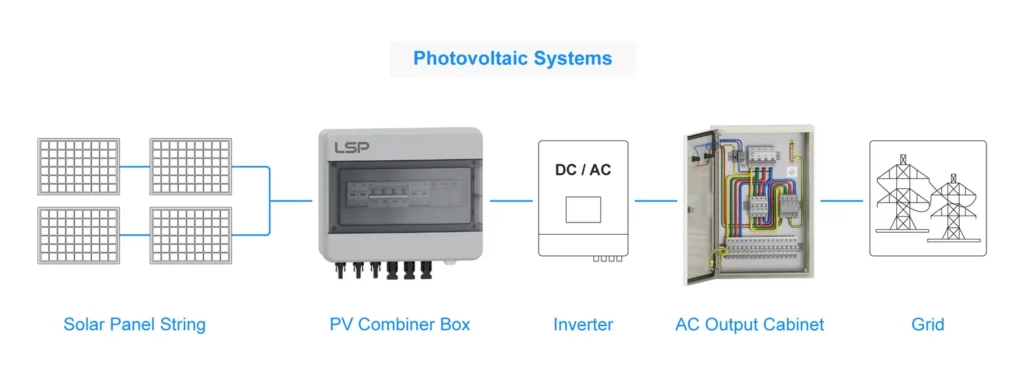

A PV combiner box is a device used to manage and connect multiple solar panel strings centrally. It aggregates the DC outputs from multiple solar strings and delivers the combined power through a main line to the inverter. The device can be designed for AC or DC input, but not both simultaneously.

It not only organizes wiring but also houses essential protective components such as overcurrent protection devices (fuses), miniature circuit breakers (MCBs), and surge protective devices (SPDs) to enhance system safety. Installed at the DC input side of the solar system, it consolidates multiple solar panel strings into a single output, simplifying and securing DC output circuit management and the connection to the inverter. Some combiner boxes also include monitoring devices to alert users of faults. Maintenance is simple, usually involving periodic checks for loose or disconnected wiring.

Is a PV Combiner Box Necessary?

In a solar system, the PV combiner box plays a critical role.

You might wonder whether it’s necessary or if solar panels can be connected directly to the downstream components. While possible in very small systems with three or fewer strings, it is still necessary to install fuses, breakers, and surge protectors to prevent damage from overcurrent, overvoltage, or lightning surges. These small protective devices often prevent costly damage and inconvenient system failures.

For example, in a solar power plant with 100 panels each producing 10 A under ideal conditions, connecting each panel directly to the inverter would be complex, costly, and risk-prone. Using combiner boxes to group every 20 panels into a sub-array managed by one combiner box (five boxes total) greatly simplifies wiring.

Benefits of using PV combiner boxes include:

1. Centralized current management: Multiple strings combined efficiently.

2. Safety protection: Fuses, breakers, and SPDs protect against faults.

3. Ease of maintenance and monitoring: Quick fuse replacement and real-time parameter monitoring.

4. Optimized cable layout: Reduced cable quantity and length lowers costs and power loss.

5. Improved system efficiency: Reduced resistance and voltage drop.

6. Facilitated system expansion: Easy to add panels without major rewiring.

Thus, PV combiner boxes simplify installation, enhance safety and reliability, reduce maintenance costs, and improve overall system performance, making them indispensable in PV systems.

Types of PV Combiner Boxes

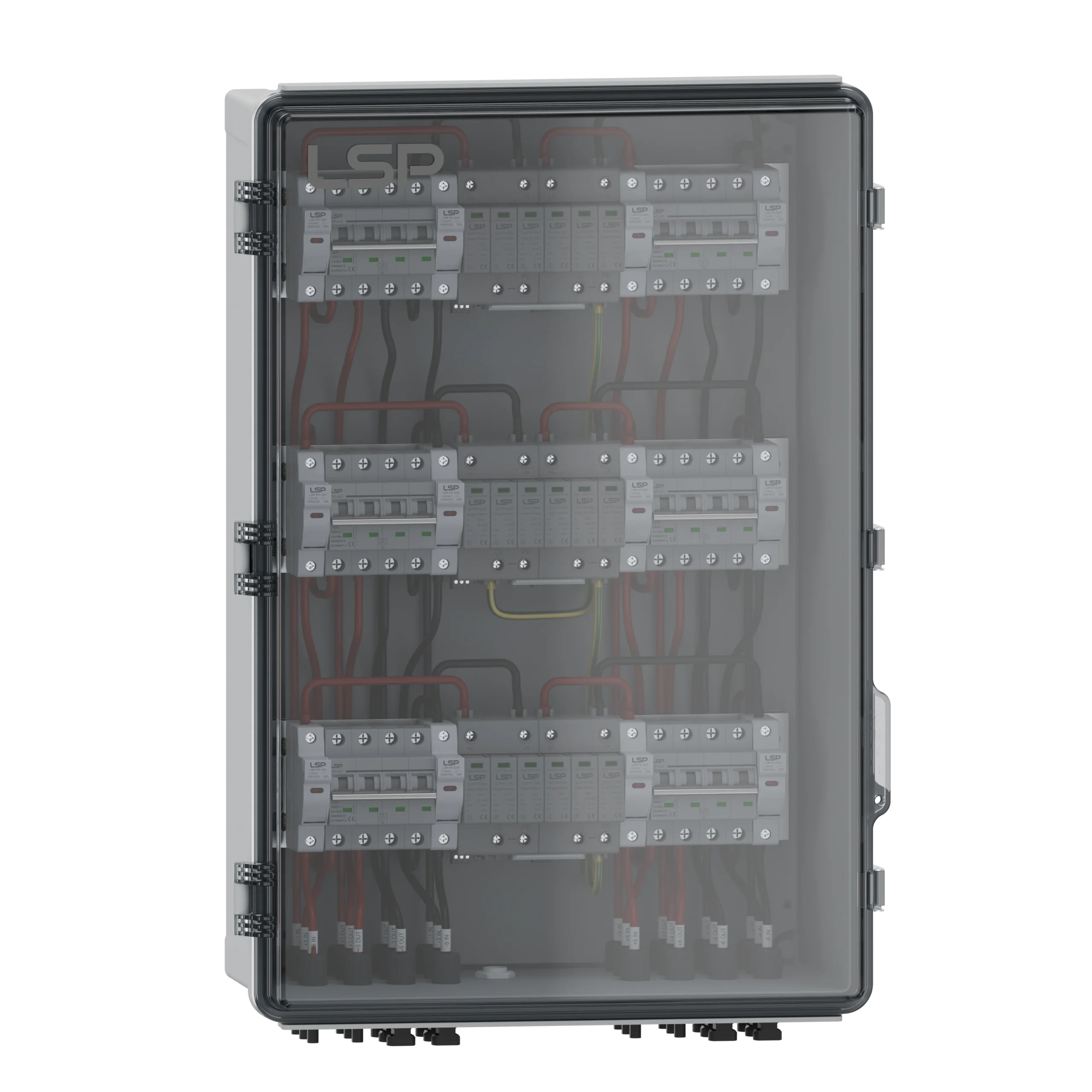

1. By number of input/output ports:

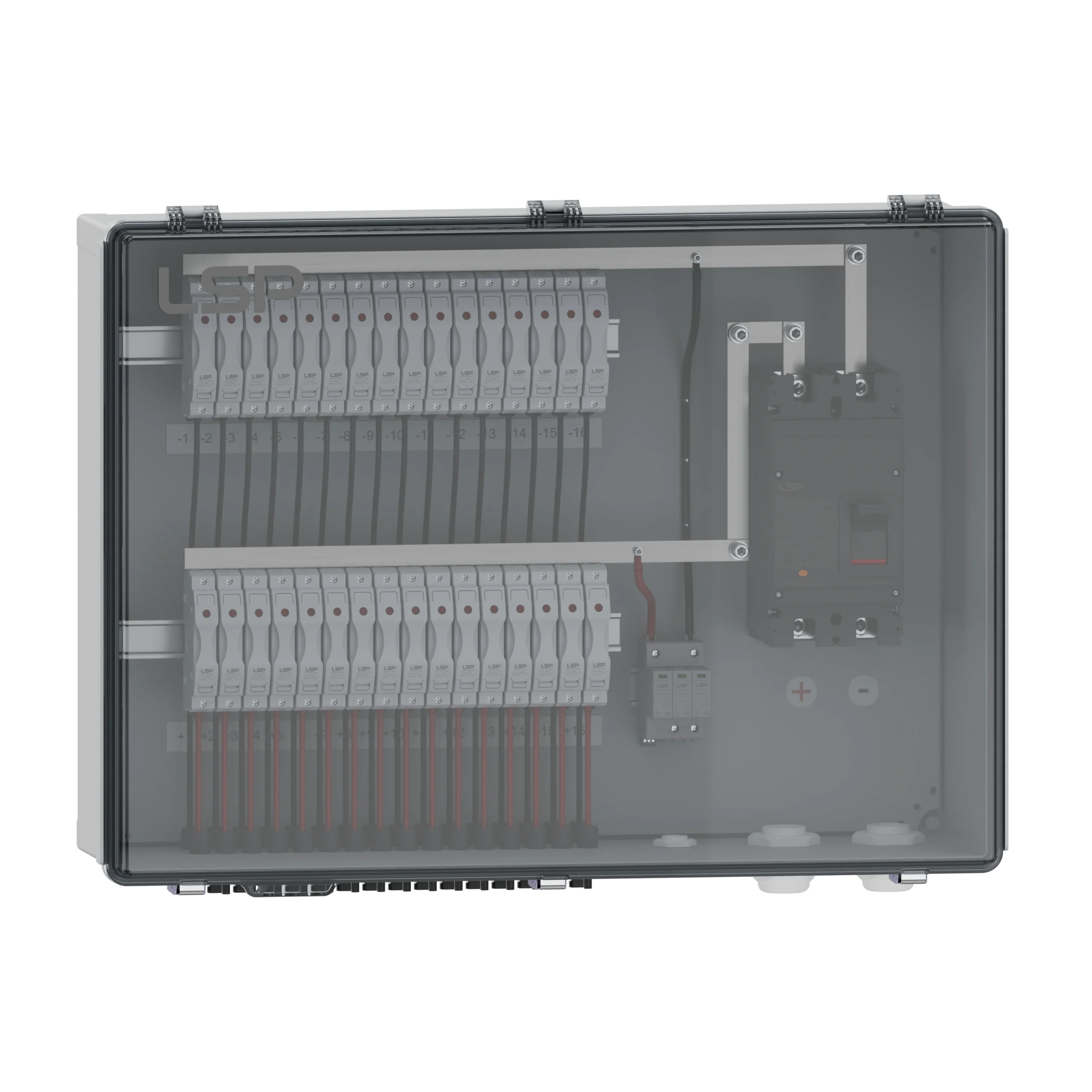

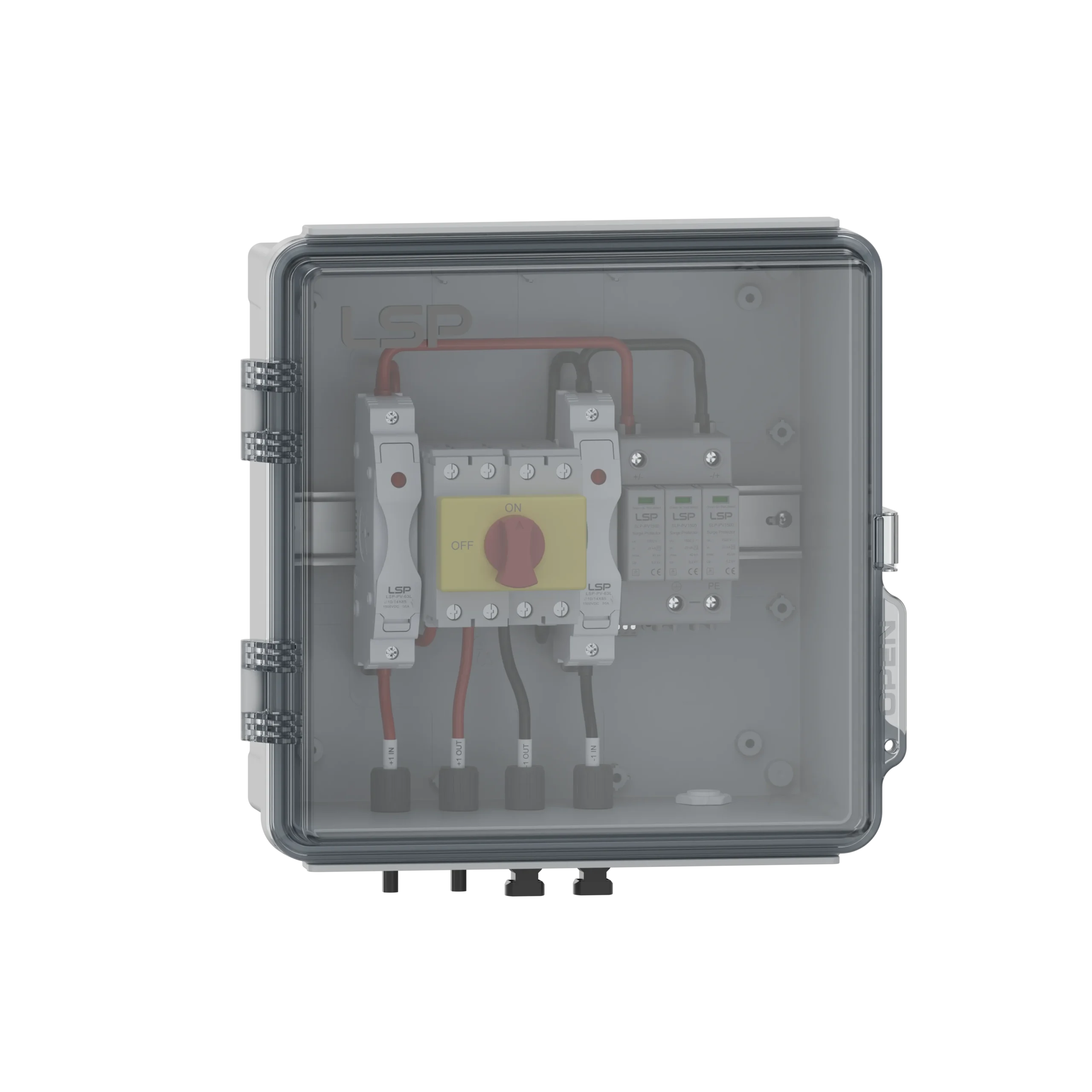

Typical models include 1 in 1 out, 2 in 1 out, 2 in 2 out, 3 in 1 out, 3 in 3 out, 4 in 2 out, and 16 in 1 out.

2. By system voltage rating:

Common system voltages under 1500V DC are 600V, 1000V, and 1500V. Voltage rating affects key component selection, such as SPDs, fuses, and breakers.

3. By enclosure material:

Plastic (usually polycarbonate or fiberglass) and metal (usually steel or aluminum).

Installation and Wiring Steps for PV Combiner Boxes

Step 1: Prepare Wiring Tools and Materials

• Precision wire cutters

• Wire strippers (to trim cables to the proper length without damaging conductors)

• Insulated screwdrivers (to securely fix wires to terminals and reduce electric shock risk)

• Multimeter (for voltage and continuity testing)

• Insulating gloves (for personal safety)

Step 2: Plan System Layout and Select Components

Example: A 5 kW solar system with 10 panels (each 500 W), arranged as 2 strings of 5 panels each. Each panel’s open-circuit voltage (V_oc) is 40V, and short-circuit current (I_sc) is 10A.

1. Determine the number of strings:

2 strings → select a 2-in-2-out combiner box.

2. Calculate cable size:

• Per string current:
  • 10 A × 1.25 = 12.5 A → recommend 4 mm² PV cable (PV1-F).

• Output current: 2 strings × 10 A = 20 A; 20 A × 1.25 = 25 A → copper cable size depends on distance:
  • ≤15 m: 4–6 mm² DC cable
  • 15–30 m: 6–10 mm² DC cable
  • 30m: ≥10 mm² (consider voltage drop)

3. Select fuses:

Fuse rating ≥ 1.25 × I_sc = 12.5A → use DC 1000 V / 16 A or 32 A PV fuses, 1 per string (2 total).

4. Select DC circuit breaker:

Output current 20 A × 1.25 = 25 A → use DC 1000 V / 32 A or 40 A breaker (must be DC-rated).

5. Select SPD:

Voltage rating ≥ system max voltage (Voc string = 200 V), recommend DC 600 V or 1000 V, Type 2 PV SPD, Imax ≥ 40 kA, installed at output busbar.

Step 3: Internal Wiring of the PV Combiner Box

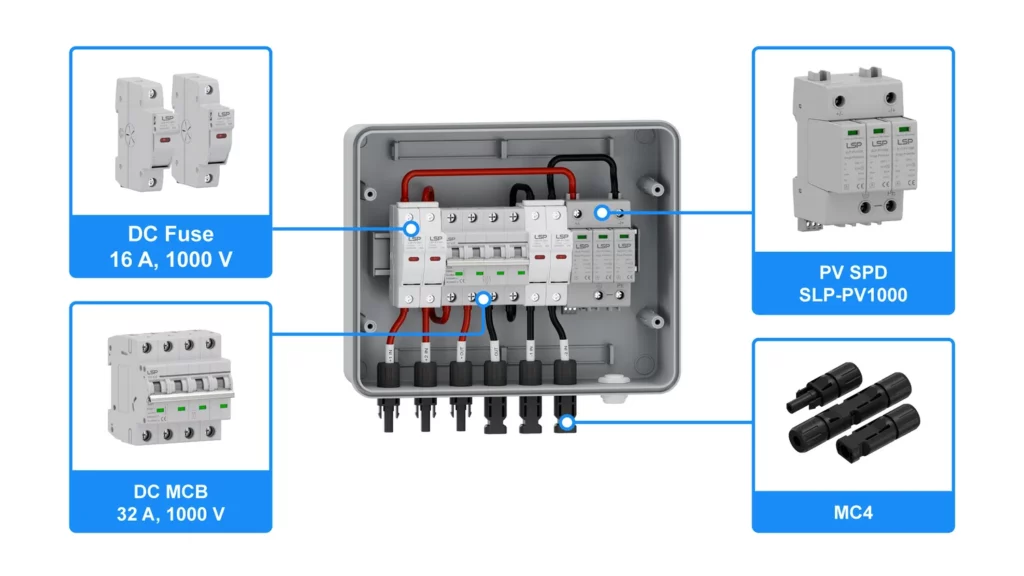

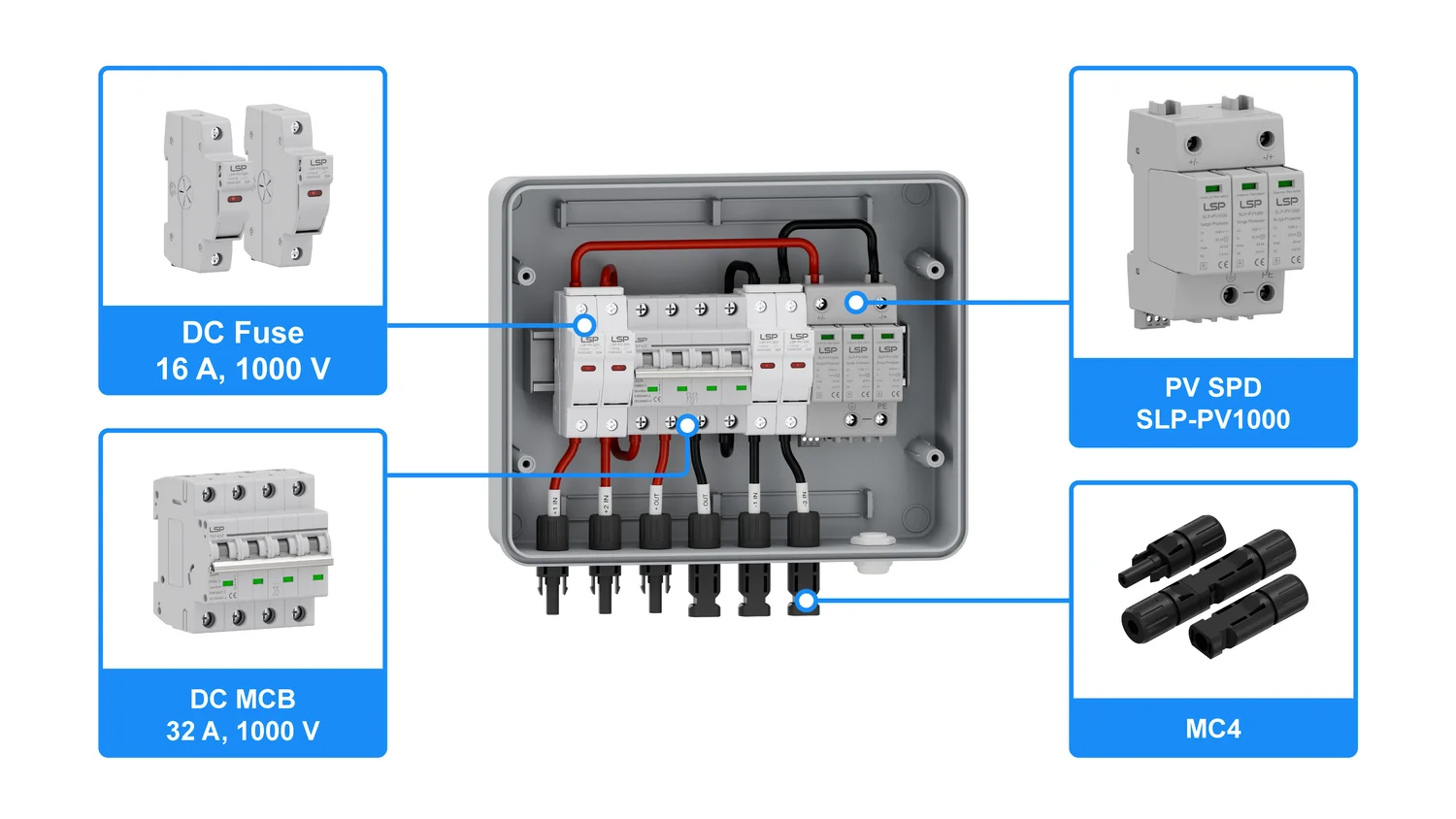

Components include enclosure, SPD, breaker, fuses, pre-selected cables (e.g., 4 mm²), MC4 connectors, etc.

• Number of fuses = 2 × number of strings (e.g., 4 fuses for 2 strings).

• The number of SPDs and breakers equals the number of strings.

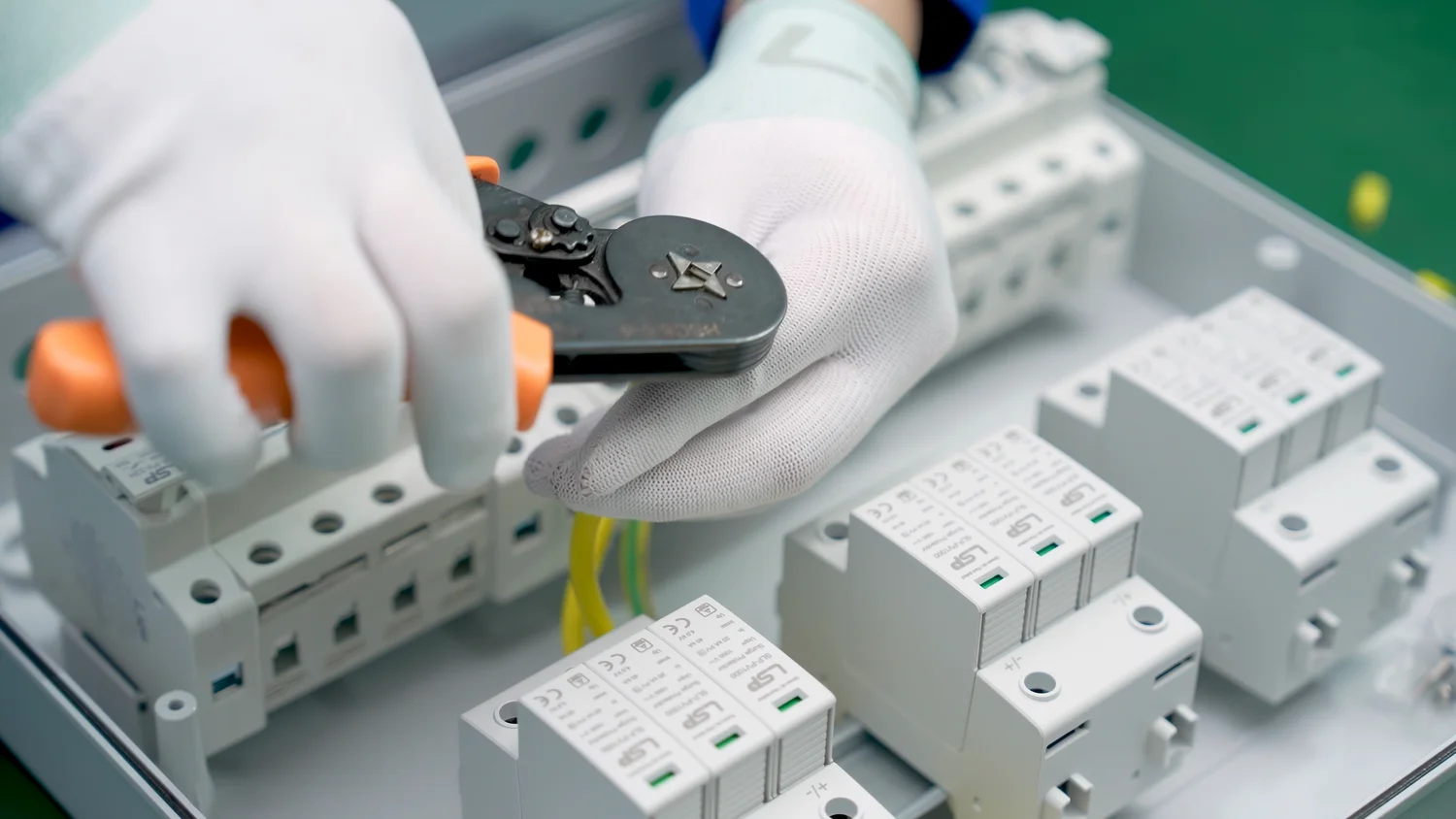

Wiring Steps:

1. Mount fuses, breakers, and SPDs on the DIN rail; check the positions for reasonable mounting.

2. Connect the ground wire to each SPD.

3. Proceed to connect the fuse to the MCB and SPD; remember that the fuse requires two wires to be connected.

4. Connect the MC4 input connectors to the fuses, the fuses to the breakers, and the breakers to the output terminals.

5. Connect the negative lines in the same manner.

6. Securely tighten all screws and terminals.

Tips: LSP’s DC combiner boxes are robust, suitable for systems of all sizes, and come pre-installed with fuses, circuit breakers, and surge protection devices to streamline installation.

Step 4: Mount the PV Combiner Box

1. Identify input (from solar strings) and output (to inverter) terminals.

2. Install near the solar array to minimize voltage drop.

3. Securely fix the box vertically on a sturdy surface; ensure weatherproof sealing.

4. Check internal components for loose connections or damage.

5. Test cable insulation and grounding continuity with a multimeter.

Step 5: Connect Solar Panel Strings

1. Route positive and negative cables from each string to the DC combiner box via conduit or cable trays.

2. Strip insulation (~0.5 inch) and connect cables to corresponding input terminals, ensuring firm, correct polarity connections.

3. Ensure each string has fuse or breaker protection.

4. Connect the solar array grounding wire to the combiner box grounding busbar.

Step 6: Connect Output to Inverter

1. Connect the combiner box’s positive and negative output cables to the inverter input.

2. Use appropriately sized cables per calculated current and distance.

3. Use secure, weatherproof connectors.

Step 7: Test Connections

1. Use a multimeter to check continuity and correct polarity.

2. Measure open-circuit voltage (Voc) and compare with expected values.

3. Perform load testing with the inverter connected to confirm normal operation.

Safety Tips

• Always shut off the power before connecting

• Use PPE and follow electrical codes

• Use rated components only to ensure safety and durability

Why Choose LSP PV Combiner Boxes?

LSP specializes in the design, manufacturing, and solution provision of surge protective devices. Leveraging years of experience in power system integration and overvoltage protection, LSP provides high-quality combiner box solutions to the global photovoltaic market, earning broad customer trust. Our knowledgeable mold designers and UG CAD team support your business needs from product development to marketing.

1. Outstanding Reliability and Quality Assurance

• High-level protection design: LSP combiner boxes feature IP65/IP66 ratings, offering excellent dust and water resistance, suitable for harsh outdoor environments including high temperature, humidity, sand, and salt spray.

• Industrial-grade materials: Enclosures are made from UV-resistant, flame-retardant polycarbonate or corrosion-resistant metals, ensuring long-term durability without deformation or aging.

• Strict quality control system: Every product undergoes rigorous testing before shipment, including high/low temperature, withstand voltage, insulation, continuity, and functional tests to guarantee stability and safety.

2. Comprehensive Electrical Protection for Safety

• Fuses on each input string: Effectively prevent overcurrent faults in photovoltaic strings.

• Output circuit breakers: Allow quick disconnection of system circuits for easy maintenance.

• Built-in surge protective devices (SPD): Protect equipment from transient voltages caused by lightning or grid disturbances.

• Standardized grounding system design: Fully ensures system and operator safety.

3. Intelligent Monitoring and Remote Management

Some LSP smart PV combiner boxes are equipped with multi-parameter monitoring modules for current, voltage, temperature, and humidity. They support data acquisition and remote transmission, enabling real-time system status monitoring, early fault detection, and improved operation and maintenance efficiency.

4. Easy Installation and Efficient Maintenance

• Factory pre-assembled, ready to use: LSP PV combiner boxes come pre-installed with fuses, breakers, SPDs, and other key components. Clear wiring and standardized terminal numbering greatly reduce onsite installation and commissioning time.

• Modular design: Supports flexible configurations with multiple input/output circuits (e.g., 4-in-1-out, 8-in-2-out), meeting diverse project requirements.

• Fast and secure wiring: Standard MC4 connectors or crimp terminals ensure reliable connections and simplify wiring processes.

5. Strong Technical Capability and Responsive Service

• Independent R&D: LSP has in-house product design and manufacturing capabilities, offering both standard models and customized solutions.

• International certifications: Products hold IEC, UL, TUV, CE, and other authoritative certifications, meeting global market access standards.

6. Wide Applicability and High Industry Recognition

• Compatible with multiple voltage levels: 600V / 1000V / 1500V systems.

• Suitable for distributed rooftop projects, centralized ground-mounted power plants, commercial and industrial systems, and energy storage systems.

• Years of service experience with large domestic and international photovoltaic EPCs, integrators, and power plant investors, with rich case studies and stable performance.

Choosing LSP photovoltaic combiner boxes means choosing safety, efficiency, and long-term value. It is not just an electrical junction box but a key guarantee for the stable operation of the entire photovoltaic system. With professionalism and quality, LSP helps every unit of clean energy safely connect to the grid and continuously generate power.

Frequently Asked Questions

What is the purpose of a solar combiner box?

It consolidates multiple solar panel strings’ outputs into one, simplifies wiring, and provides overcurrent and surge protection.

How to choose the right solar combiner box?

Based on system voltage, current, and number of strings, ensure compliance with standards and outdoor protection requirements.

Can I wire a combiner box myself?

Yes, if you have electrical experience and follow safety protocols; otherwise, hire a certified electrician.

Why is grounding important?

It prevents electrical faults, reduces shock risk, and protects equipment from surges.

How to test wiring after installation?

Use a multimeter to verify voltage, current, continuity, and correct polarity.

Common wiring mistakes to avoid?

Loose connections, reversed polarity, and improper grounding.

Is a weatherproof enclosure necessary for outdoor installation?

Yes, an IP65 or higher rating is recommended to protect against moisture and dust.

How often should the solar combiner box be inspected?

At least twice a year to check for loose connections, corrosion, and dust accumulation.

Summary

PV combiner boxes are vital for simplifying wiring, enhancing safety, improving efficiency, and facilitating maintenance and expansion of solar power systems. Proper selection, wiring, installation, and regular inspection ensure the reliable and safe operation of your solar installation.
