The Role of MOV in Surge Protection Device
MOV is a crucial component in Surge Protection Devices because it absorbs and diverts transient voltages that could damage sensitive equipment. It acts as the first line of defense against electrical surges, ensuring the longevity of connected devices.
MOV protects electronic circuits by rapidly changing its resistance when a surge occurs. This quick response prevents voltage spikes from reaching downstream equipment, maintaining system stability.
Zinc oxide (ZnO) is commonly used for MOVs due to its nonlinear voltage-current characteristics. ZnO-based MOVs can handle repeated surges while maintaining reliable performance, making them ideal for home and industrial surge protection devices.
Selecting the right MOV involves considering voltage rating, energy absorption capability, and operational lifespan. Proper selection ensures the SPD performs effectively under various surge conditions.
Raw Material Preparation for MOV in Surge Protection Device
High-quality raw materials are the foundation of reliable MOVs in surge protection devices. Zinc oxide (ZnO) powder serves as the core material, providing the non-linear voltage-current characteristics essential for absorbing electrical surges.
MOV performance depends on blending ZnO with other metal oxides like manganese (Mn), iron (Fe), and nickel (Ni) to form a composite with tailored electrical properties. Binders hold powders together before sintering, and conductive materials such as silver (Ag) or copper (Cu) are added to enable electrode formation.
Mixing High-Purity ZnO Powder with Metal Oxide Additives
The mixing process is critical to optimize voltage-current behavior and energy absorption. High-purity ZnO powder is combined with selected metal oxides in controlled ratios to produce consistent electrical properties for MOVs used in surge protection devices.
Ball Milling and Spray Drying for Uniform Granulation
After mixing, the powders are ball-milled to achieve uniform homogenization. Spray drying then forms granules suitable for pressing and sintering, ensuring consistent density and electrical performance in the final MOV.
MOV Pressing and Green Body Forming Process for Surge Protection Device
Pressing and forming are critical steps in producing MOVs for surge protection devices, as they determine the varistor’s shape, density, and overall performance.
Granulation

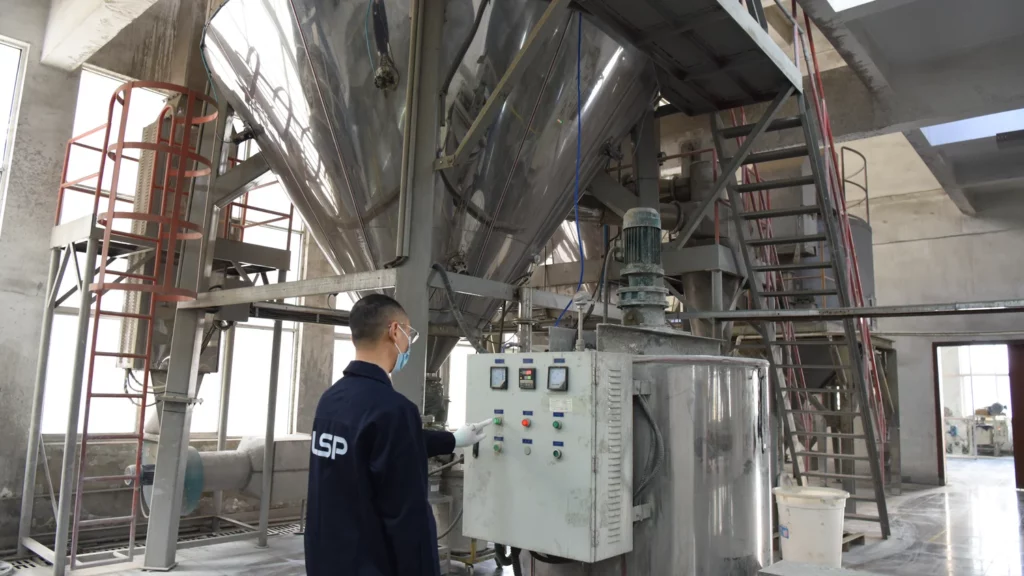

Granulation is an essential preliminary step. After mixing ZnO and other metal oxides, a binder such as polyvinyl alcohol is added to create a paste with suitable viscosity. This ensures the powder can be molded effectively.
Measurement and testing during granulation include random sampling of powders to ensure uniform particle size and consistent distribution, which directly affects the final MOV performance.
Molded — High-Pressure Molding Technology (10-50 MPa)

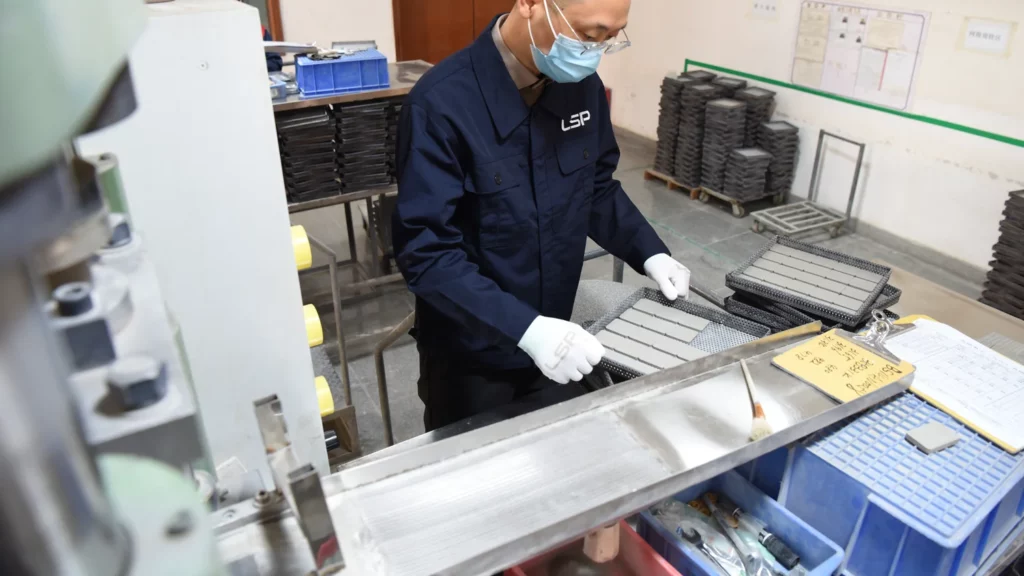

The mixed powder paste is placed into molds and pressed under high pressure, typically 10-50 MPa, to form discs, cylinders, or sheet-like shapes. High-pressure molding ensures mechanical stability and uniform electrical performance in surge protection devices.
Density Control Ensuring Consistency in Surge Protection
Accurate control of molding density is essential to prevent loose or overly compact particle accumulation. Regular inspection and testing, such as visual checks of sampled pieces and lightning strike simulations, maintain MOV quality and reliability.
Advanced Sintering and Heat Treatment for Surge Protection Device Components
Sintering and heat treatment are essential for MOVs in surge protection devices because they determine the mechanical strength and electrical stability of the final product.
Debinding — Binder Removal

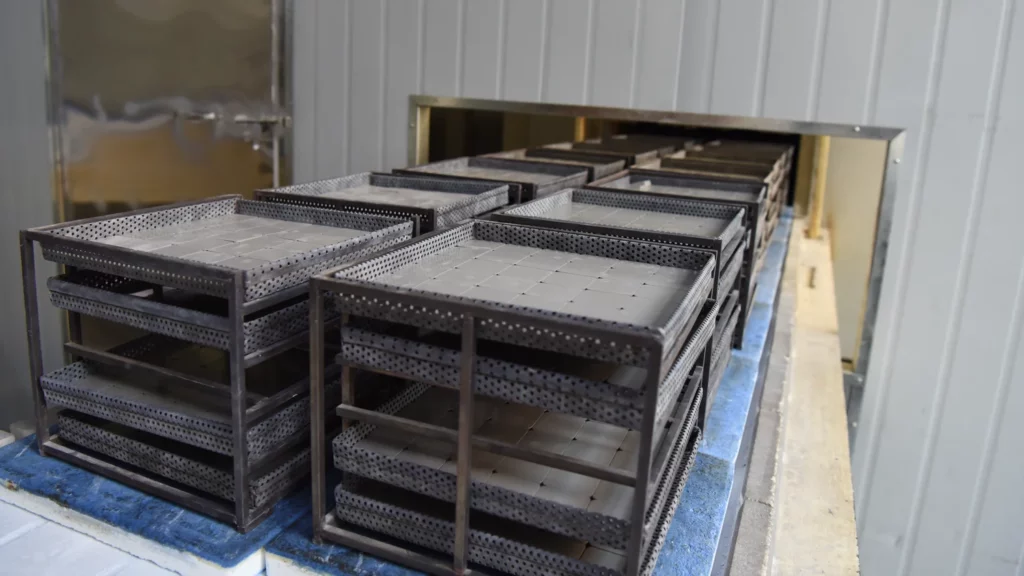

Binder removal is the first step in sintering. Binders added during raw material preparation help maintain shape during pressing but must be removed to ensure proper electrical and mechanical properties. Continuous visual inspections verify that no defects are present.
Pre-heating & Scheduling

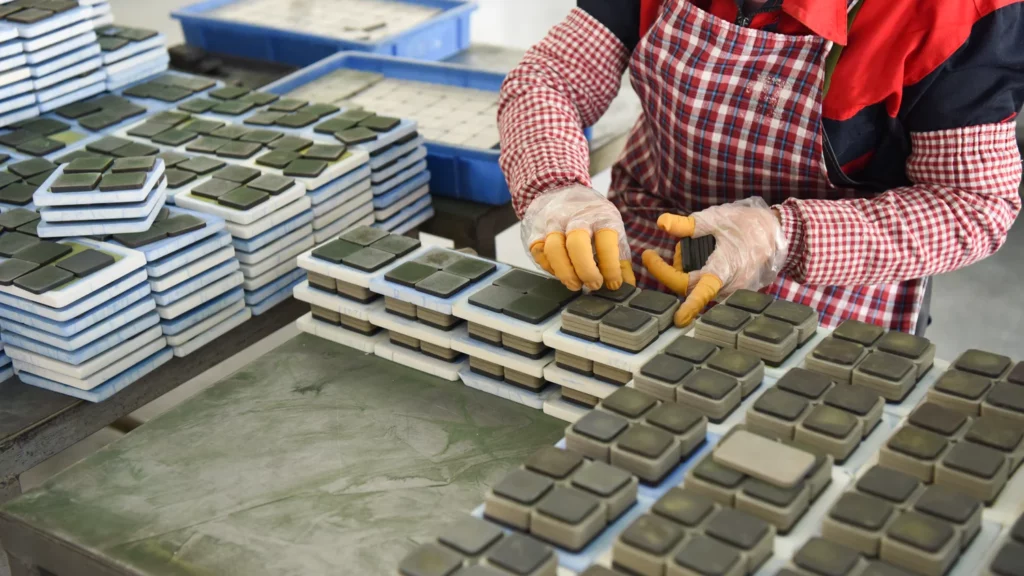

Scheduling ensures uniform heating. MOVs are gradually heated in boxes that absorb heat evenly, preventing cracks caused by rapid or uneven temperature changes. Visual inspection confirms that packaging and products remain intact.
Sintering

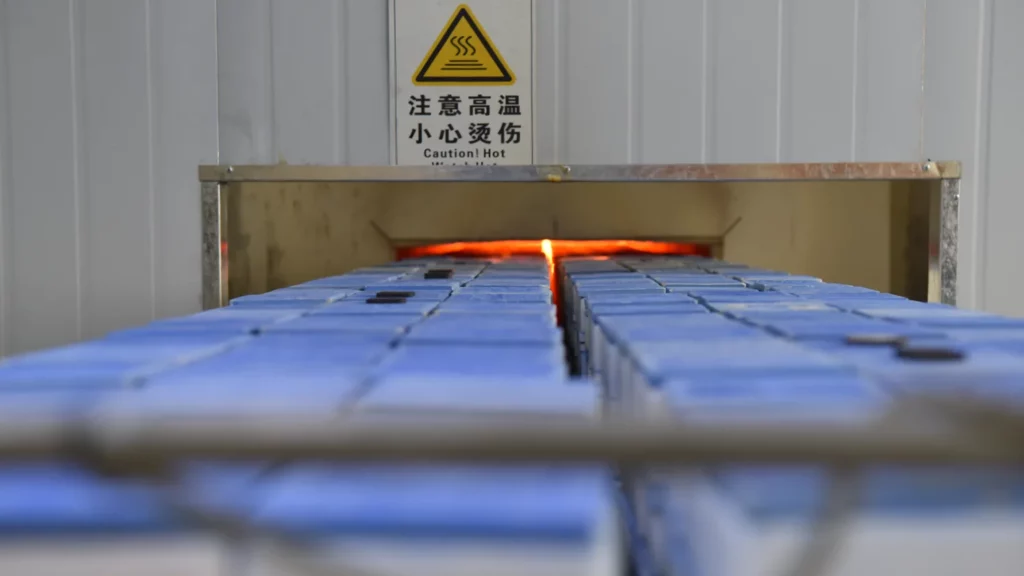

Sintering occurs under high temperatures (900–1100°C), allowing ZnO and additives to form stable crystal phases. This strengthens bonding between particles, improving mechanical stability and resistivity characteristics. Each batch undergoes random inspection for defects.
Surface Cleaning
After sintering, controlled cooling prevents cracks or deformation caused by rapid temperature changes. Impurities are removed, and surfaces are polished to enhance adhesion for electrodes. Continuous inspection ensures the MOV is free from cracks, fractures, or distortion.
MOV Electrode Manufacturing and Metallization Technology for Surge Protection Device
Silver Paste Coating
Applying a silver paste layer on the sintered MOV surface forms a reliable electrical connection with the external circuit.

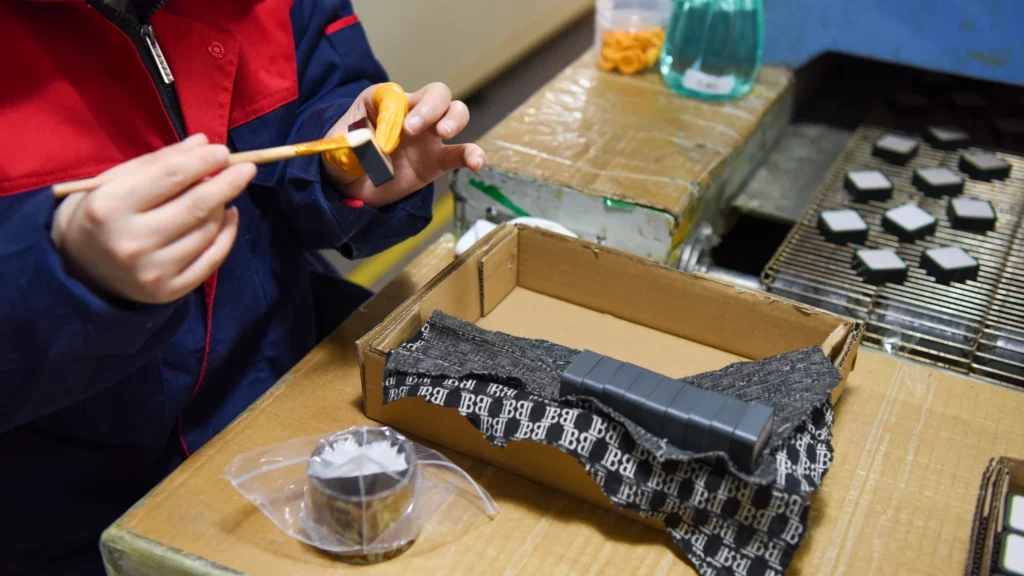

A screen is used to brush the silver paste on one side of the MOV, typically in circular or rectangular shapes. After heating and drying, the process is repeated on the other side to ensure full coverage and conductivity.
Measurement and Testing for Silver Coating
Regular inspections ensure consistent quality and performance:
- Randomly extract 10 pieces to check size specifications of the silver layer.
- Inspect another 10 pieces for clear edges, no misalignment, uniform color, no stains or scratches.
- Electrical testing using TTK MOV-168EP tester is performed on 20 pieces before each batch.
- Impact testing on 6 pieces per batch using an impact generator.
- Thermal stability testing on 10 pieces per batch.
Silver Reduction

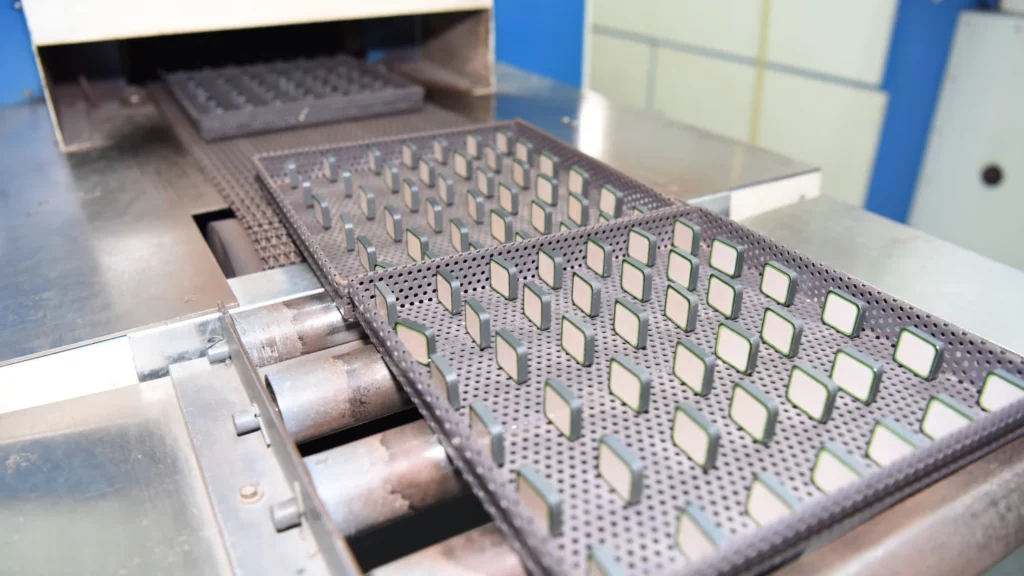

During reduction in a furnace, silver ions on the MOV surface gradually convert to metallic silver, filling gaps between particles. This enhances the density, adhesion, and conductivity of the silver layer.
Measurement and Testing for Silver Reduction
Quality is ensured through continuous inspection and adhesion tests:
- All products undergo visual inspection to confirm clear edges, uniform silver layer, no double-layer misalignment, stains, scratches, stacking, overturned edges, cracking, or defects.
- Three samples per batch are tested for adhesion.
Electric Sorting and Final Testing
After silver reduction, MOVs are visually inspected and tested with a TTK MOV-168EP tester. Randomly selected samples undergo lightning surge generator testing to ensure proper conductivity and leakage current.
Measurement and Testing
- Continuous visual inspection ensures clear margins, smooth and uniform silver layer, and no defects.
- TTK MOV-168EP testing verifies leakage current and voltage for all MOVs.
Encapsulation and Final Assembly for Surge Protection Device
Precision Lead Welding and Insulation Coating
Precision lead welding ensures strong mechanical and electrical connections between the MOV and its electrodes. Insulation coating protects against moisture, short circuits, and electrical leakage.

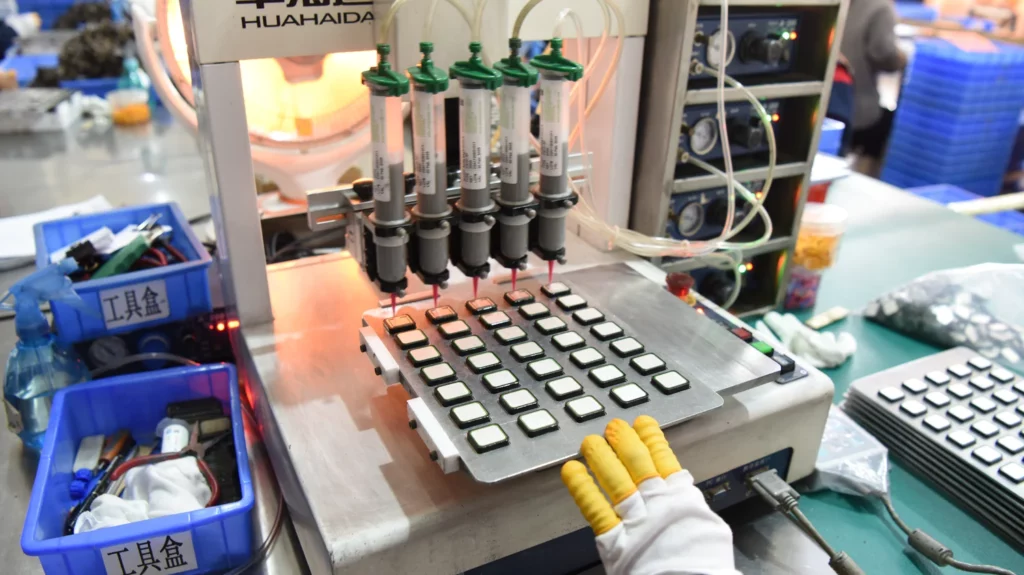

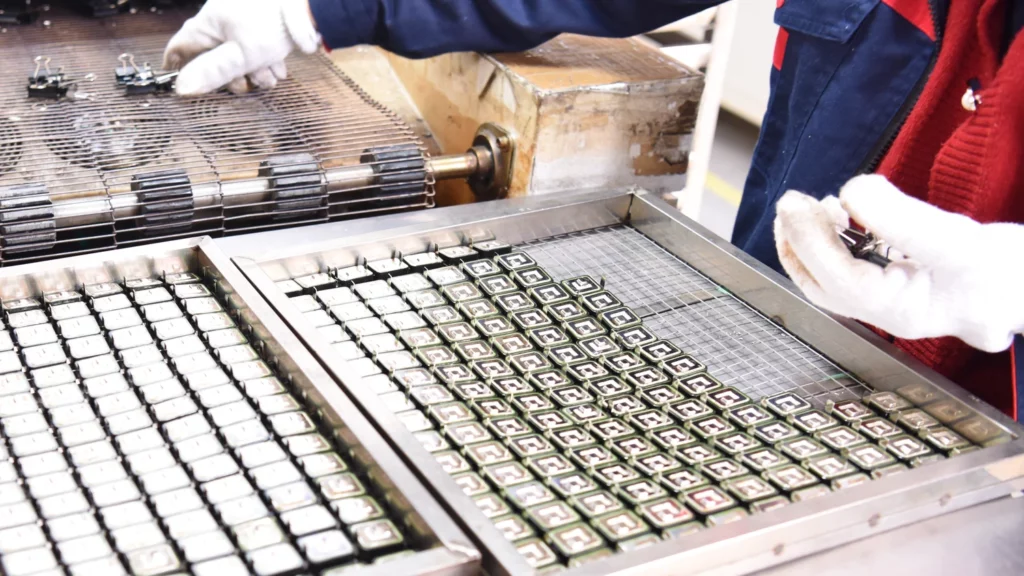

After electrical sorting, solder paste is applied to improve electrode welding. MOVs are clipped with long tail clips to fix electrodes in place, then reflow soldered for secure bonding.
Continuous inspection verifies proper soldering, no tin hanging, stacking, or defects, and three samples per batch are tested for adhesion.
Epoxy Powder Spraying and Curing Details

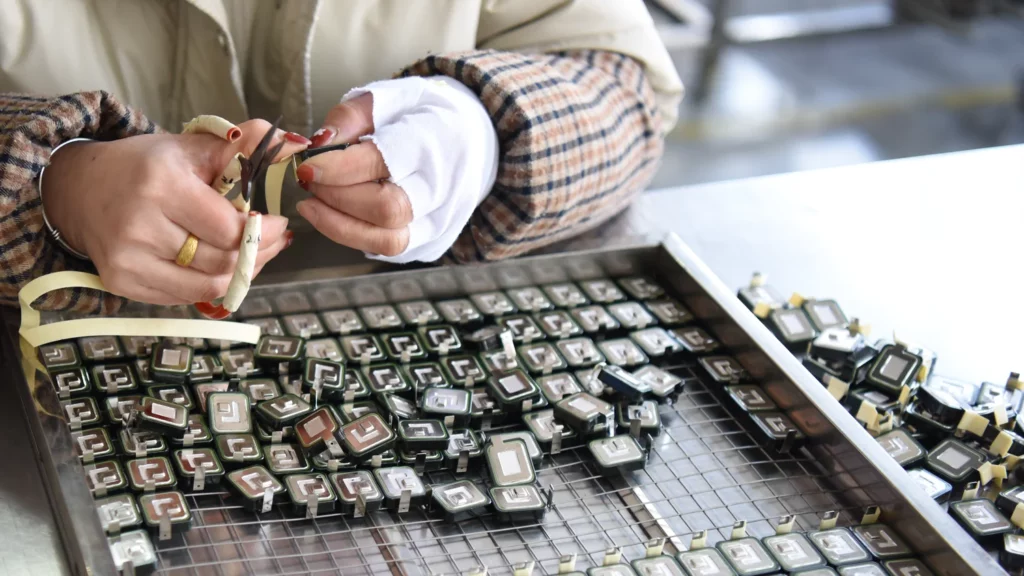

After soldering, MOV surfaces are cleaned with ultrasonic machines and dried to remove flux, tin ash, and other debris. Surface coating and encapsulation provide waterproofing, insulation, and mechanical protection.

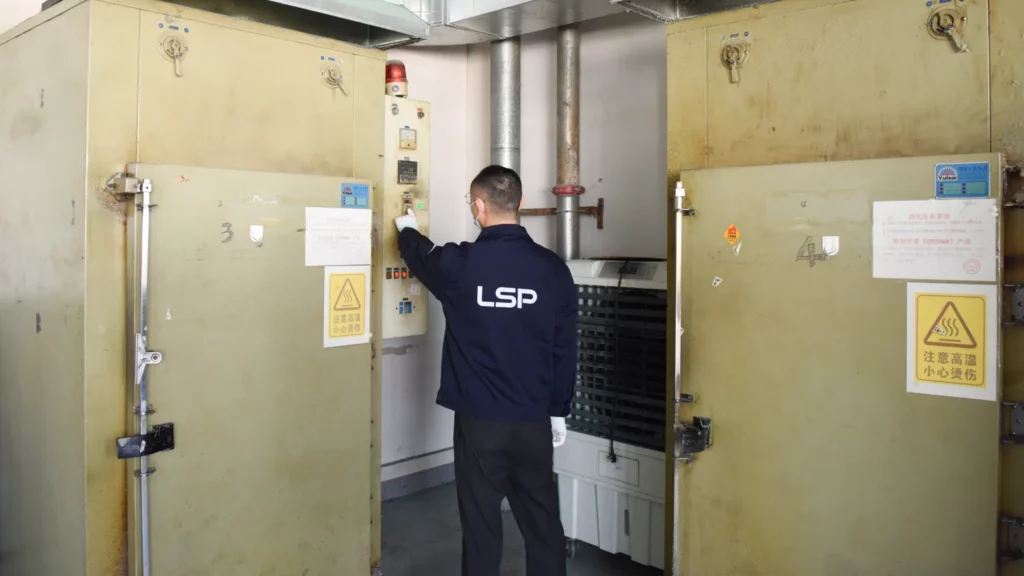

The MOV is preheated, powder is sprayed evenly, and then cured in a high-temperature oven to solidify the encapsulation. This ensures smooth surfaces and eliminates pinholes, exposed porcelain, coating gradients, or defects.
Measurement and Testing for Encapsulation
- Continuous visual inspection confirms appearance integrity and absence of defects.
- Ten samples per batch are measured for package dimensions.
- Electrical performance testing is conducted using TTK MOV-168EP tester.

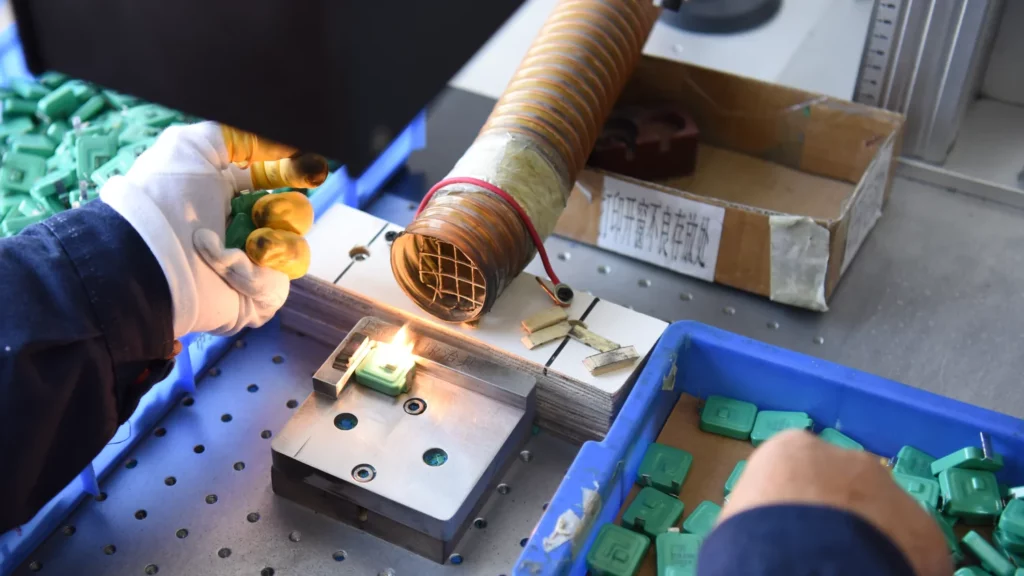

- Laser marking prints logo, model, and date, with visual verification to prevent missing or unclear text.
Appearance Inspection
After packaging, excess materials and electrodes are removed, and a final visual check ensures complete and clean assembly.
Rigorous Testing of MOV for Surge Protection Device
Electrical Performance Leakage Current and Varistor Voltage (V₁mA)
Electrical performance testing ensures that each MOV meets leakage current and varistor voltage specifications, critical for reliable surge protection.

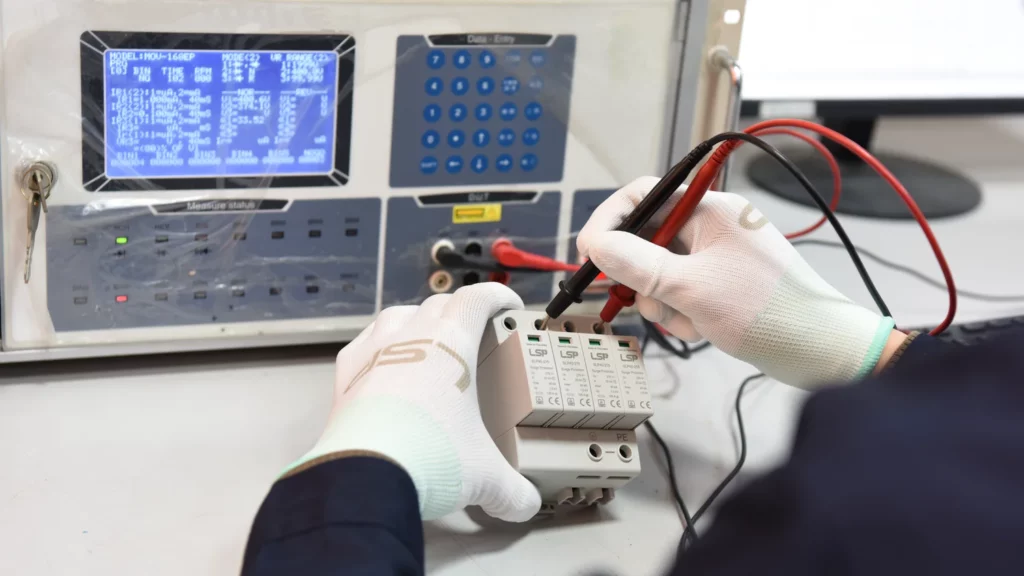

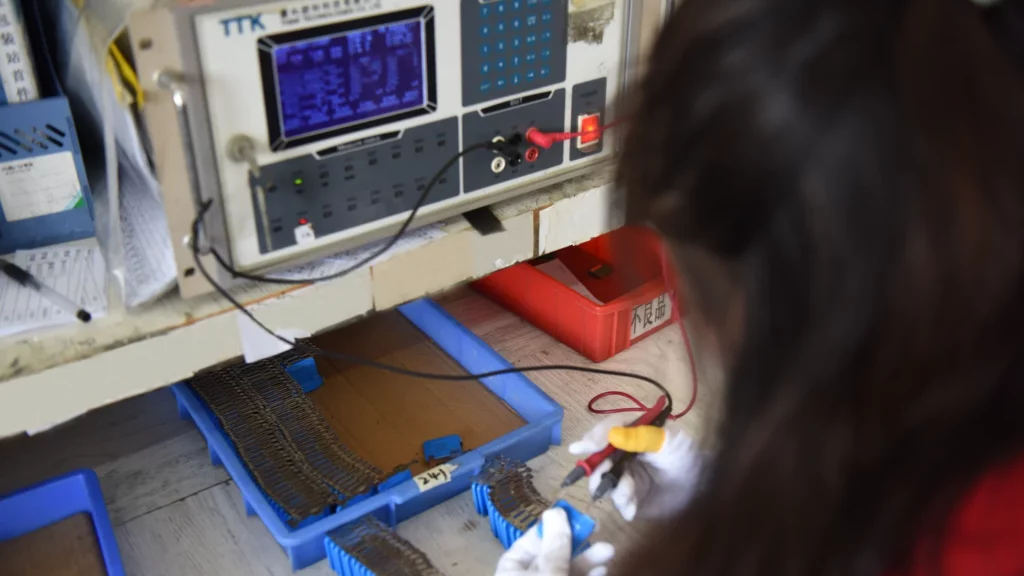

MOVs are tested in batches using TTK MOV-168EP testers, measuring leakage current, varistor voltage (V₁mA), and dimensional conformity. Visual inspection confirms appearance integrity and absence of defects.
Surge Endurance Verification (8/20μs & 10/350μs Waveforms)
Surge endurance testing verifies MOV’s ability to withstand high-current transients generated by lightning or switching events.
Testing equipment includes:
- Impulse generator (10/350µs 60 kA, 8/20µs 160 kA, combination wave 8/20µs & 1.2/50µs, square wave 2 ms 3000 A)
- High temperature electric aging equipment
- Programmable constant temperature and humidity chamber
- Rapid temperature change chamber
- ICTS 2ms-3 test system
Measurement and Testing
- Each batch undergoes sampling inspection for appearance, dimension, and electrical performance.
- Surge testing confirms endurance for 8/20µs and 10/350µs waveforms.
- High temperature aging, humidity, and rapid temperature change tests ensure MOV stability under harsh conditions.
Quality Certification and Compliance Standards
Quality certification guarantees that MOVs conform to international and industry standards, ensuring safe and reliable operation in surge protection devices.
MOVs undergo rigorous testing and inspection before shipment to meet IEC requirements.
Why Choose LSP Surge Protection Device Solutions
LSP ensures every MOV is manufactured with high precision and strict consistency, guaranteeing reliable performance in surge protection devices. Advanced process control, precision molding, sintering, and electrode application maintain uniform electrical and mechanical properties across all production batches.
LSP invests in state-of-the-art laboratories and R&D facilities to develop high-performance MOVs that meet evolving industry demands. Continuous testing, simulation, and material innovation support product optimization and long-term reliability of surge protection devices.
LSP MOVs comply with international IEC standards, assuring quality, safety, and regulatory compliance. Rigorous quality control and certification processes ensure MOVs perform safely under high-voltage surges and extreme environmental conditions worldwide.
Frequently Asked Questions about MOV for Surge Protection Device
What is the typical lifespan of an MOV in an SPD
The typical lifespan of an MOV in a surge protection device depends on the frequency and magnitude of surges it absorbs. Properly rated MOVs can last 5–10 years under normal operating conditions.
How does temperature affect MOV performance
High ambient temperatures accelerate MOV degradation by increasing leakage current and reducing energy absorption capability. Proper thermal management ensures long-term reliability of the SPD.
Why do MOVs eventually fail or degrade
MOVs degrade due to repeated surge absorption, thermal stress, and aging of internal materials. Electrical overstress or mechanical damage can accelerate failure.
How to choose the right MOV rating for your SPD
Selecting the correct MOV rating involves considering system voltage, maximum surge current, and residual voltage. Proper selection prevents premature failure and ensures effective surge protection.
What maintenance or inspection is recommended for MOVs in SPDs
Regular visual inspection and electrical testing help detect early signs of MOV degradation, such as increased leakage current or discoloration, allowing timely replacement.
