A Type 2 surge protector helps protect your electrical systems. It stops voltage spikes caused by switching loads inside your home. Installed in the distribution box, it adds extra protection for your devices. This keeps your appliances safe and helps them last longer.
The more electrical devices there are, the more critical it is to protect their safety. This makes strong surge protection very important for homes and businesses. Safety rules around the world also stress the need for these devices.
LSP is a trusted company for surge protection products. They make devices like the SLP40 series, mostly for residential and commercial buildings. These tools protect single-phase and three-phase SPD systems, keeping them safe and working smoothly.
Key Takeaways
- A Type 2 surge protector keeps your devices safe from voltage spikes. It protects equipment like computers and refrigerators.
- Proper installation is critical. For optimal performance, install it on the main distribution panel.
- Ensure the surge protector is properly grounded. This enables it to safely handle excess current.
- Inspect regularly. Check the status indicators and grounding condition to confirm proper operation.
- During installation, use the correct tools and follow the instructions. This prevents errors such as incorrect wiring.
- Choose a trusted brand like LSP for safe and reliable protection.
- Test the surge protective device type 2 after installation to verify it functions correctly and protects your equipment.
The Invisible Threat of Surges: Protect Your Devices with a Type 2 SPD
Many people do not fully understand what voltage surges are. They are not sustained overvoltage events but occur in microseconds, carrying high energy. Surges can be caused by natural phenomena like lightning or by everyday electrical activities inside your facility. Even lightning strikes that are far from your building can induce surges on power, telephone, and data lines, which may reach sensitive equipment.
Internal electrical events are also major contributors to surges. Switching heavy inductive loads such as motors, transformers, or industrial machinery releases stored energy, causing transient overvoltage. Power grid issues, including short circuits or ground faults, can also generate sudden voltage spikes.
Without proper protection from a Type 2 surge protector or other surge protective devices (SPDs), critical equipment is at risk. Repeated surges over time damage insulation, weaken key components, and can lead to premature equipment failure. The slow, hidden damage from these surges can be more dangerous than a sudden, noticeable failure. In reality, it’s not a question of if your equipment will encounter a surge, but when and how frequently.
What Is a Type 2 Surge Protector & How It Works
A Type 2 surge protector helps ensure the safety of your electrical system. It blocks sudden voltage spikes caused by lightning or switching equipment. Installed in the main distribution panel, it prevents overvoltages from damaging your devices.
How a Type 2 Surge Protector Works
When a power surge occurs, the Type 2 SPD detects the voltage rise and safely diverts the extra energy to the ground. This keeps your appliances safe and your power steady.

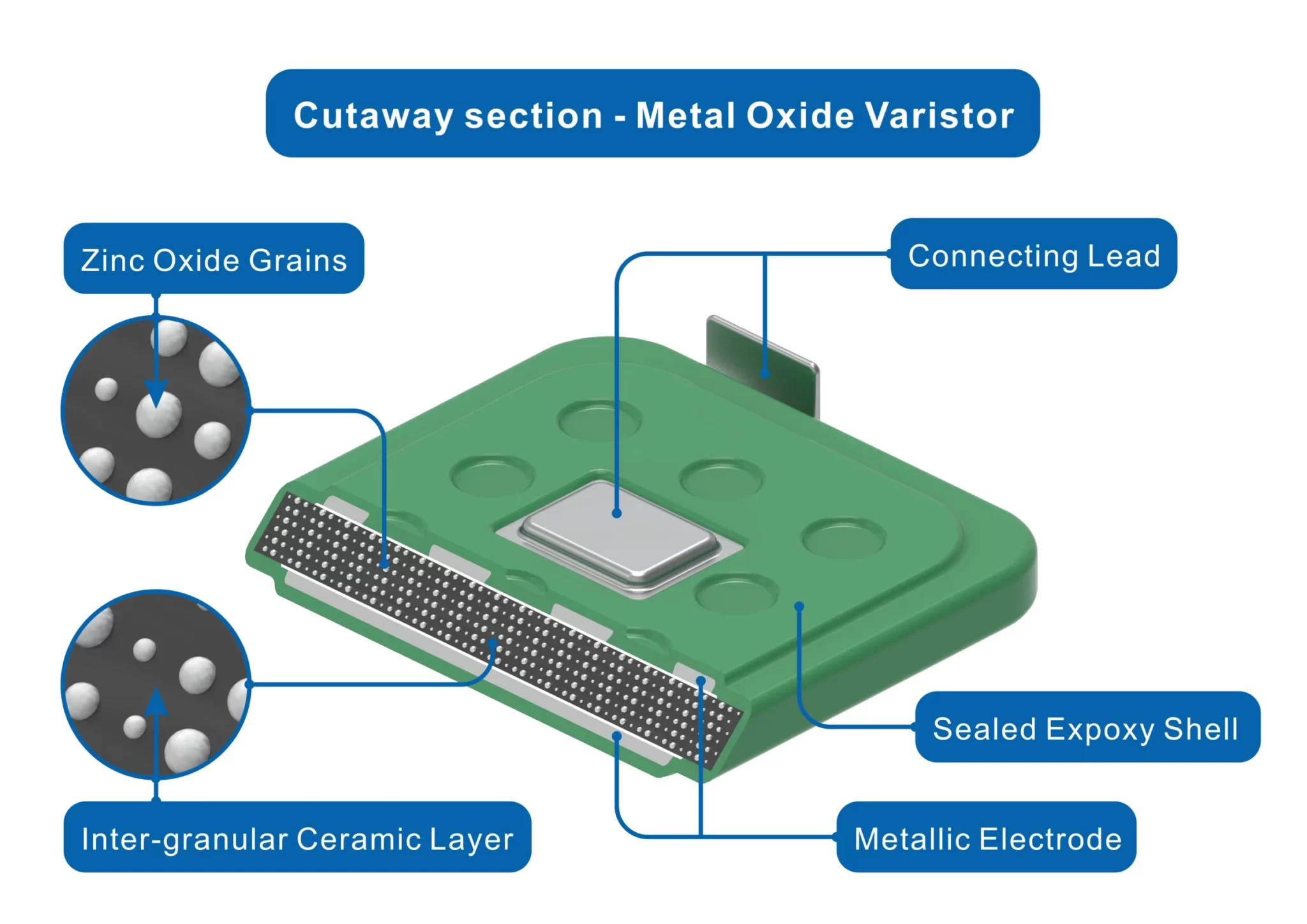

Inside the surge protector are components such as MOVs (Metal Oxide Varistors) or GDTs (Gas Discharge Tubes), which absorb and reduce surge energy. MOVs change their resistance dynamically to handle high voltage without damage.
Tip: Check that your surge protective device type 2 is properly grounded, as grounding is essential for its operation.
Key Features & Benefits of a Type 2 Surge Protector
- Middle Level Protection: Acts as an intermediary between Type 1 and Type 3 devices, providing additional defense against surges.
- High Surge Handling Capacity: Capable of withstanding surge currents up to 40 kA, ensuring robust protection against high-energy transients.
- Compatibility with Various Systems: Suitable for TN-S, TN-C, and TT earthing systems, offering versatile integration across different electrical network configurations.

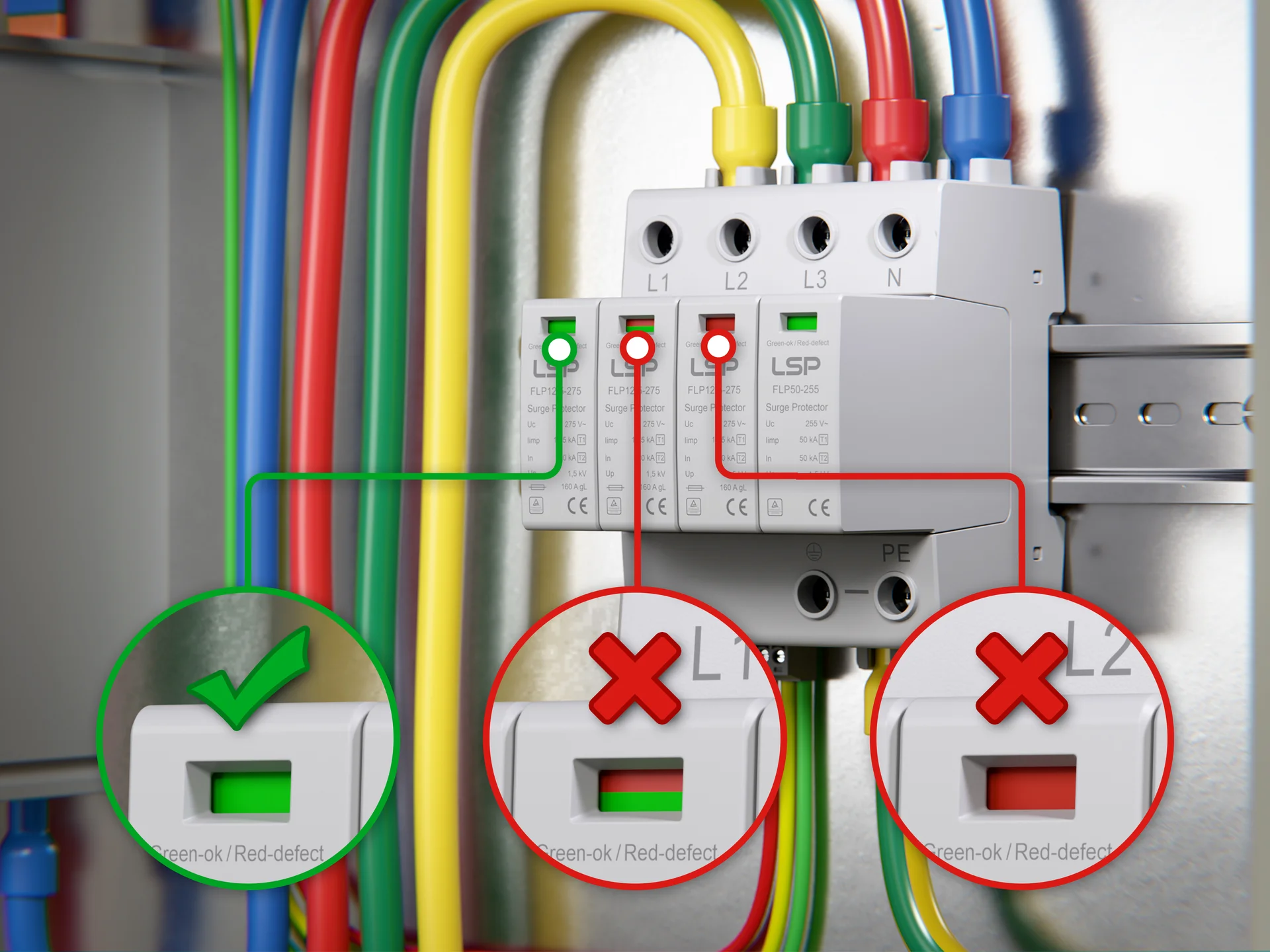

- Status Indicator: Equipped with a status indicator that displays operational status and alerts when attention or maintenance is required.
Why a Type 2 Surge Protector Matters for Your Electrical System
Power surges can damage your devices and cause financial losses. A Type 2 surge protector blocks voltage spikes, preventing this from happening. It safeguards your equipment and enhances the safety of your system.
Type 2 surge protectors, such as LSP SLP40 series, comply with safety standards and perform reliably even under harsh conditions.
Note: Regular testing and maintenance of your Type 2 SPD is essential to ensure proper operation and long-term protection.
Diving Deeper: The Core of Type 2 SPDs
A Type 2 SPD is a key element of a complete surge protection strategy. Unlike Type 1 SPDs, which handle lightning currents at the point of entry, Type 2 SPDs are installed in the main distribution panel to protect sensitive devices from surges and switching transients inside the building.
When operating normally, a Type 2 SPD acts as an open circuit, allowing electricity to flow to connected devices. If voltage rises above the clamping voltage, internal components like MOVs or silicon avalanche diodes switch to a low-resistance state. This diverts the surge current safely to the ground without damaging connected equipment. Once the surge ends, the SPD returns to its high-impedance state, letting the system operate normally again.
The performance of a Type 2 SPD is determined by key specifications:
- Nominal Discharge Current (In): Maximum surge current the device can handle repeatedly.
- Maximum Discharge Current (Imax): Highest surge current the device can withstand once.
- Voltage Protection Level (Up): Voltage remaining on SPD terminals after surge; lower values provide better protection.
- Maximum Continuous Operating Voltage (Uc): Highest RMS voltage the SPD can tolerate without conducting.
Understanding these specifications helps select the right Type 2 SPD for your electrical installation, ensuring robust defense against both visible and hidden voltage surges.

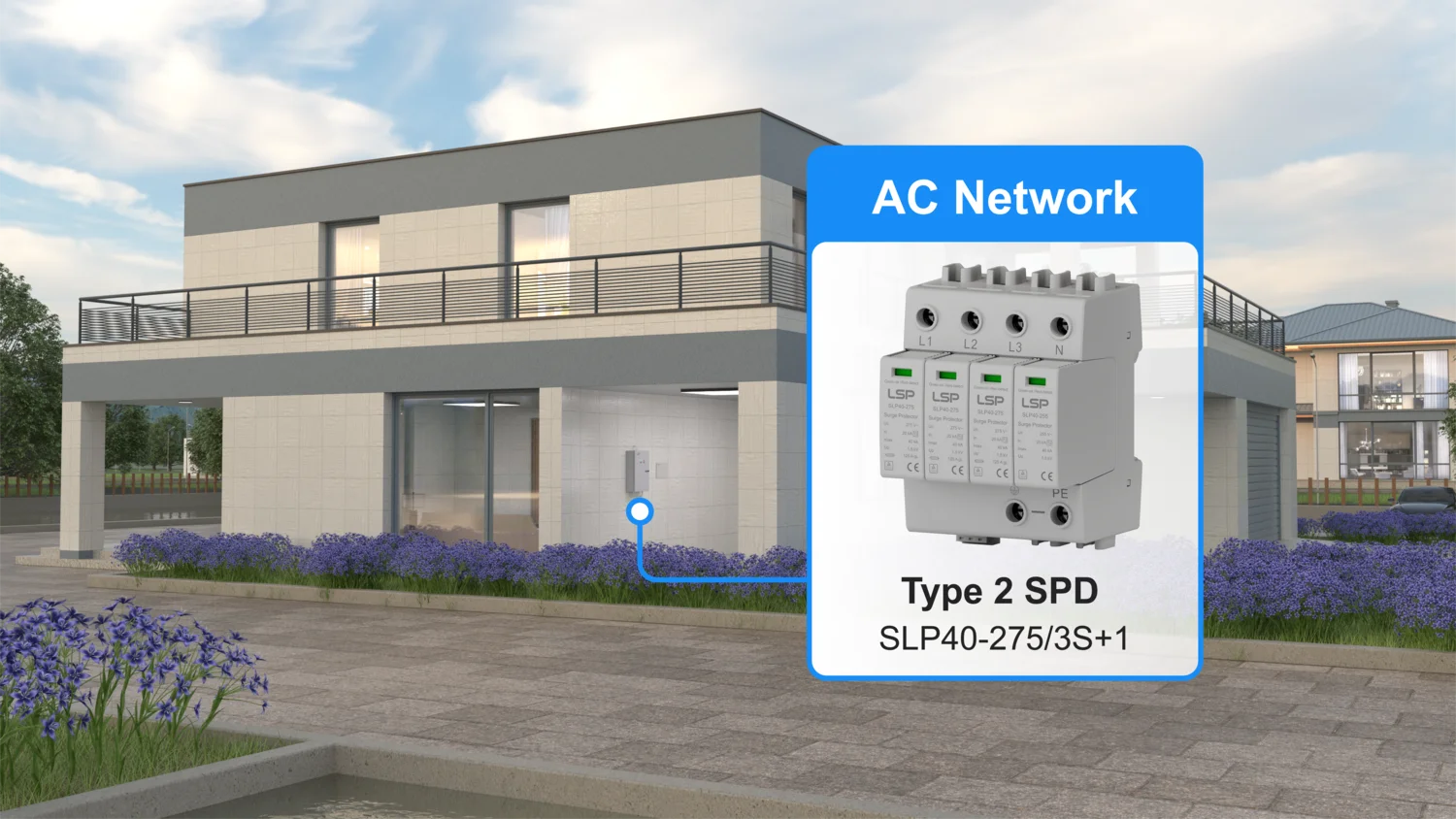

Best Locations to Install a Type 2 SPD
Installing a Type 2 surge protector (SPD) in the right location is critical. Proper placement ensures that your electrical system and connected devices are protected from voltage spikes, improving reliability and extending equipment lifespan.
Installing a Type 2 SPD at the Main Distribution Board (MDB)
The primary location for a Type 2 SPD is the Main Distribution Board (MDB), which distributes power to all circuits in your home or business. Installing the SPD here prevents surges from damaging connected devices and ensures proper operation and long-term durability.
Sub-Distribution Boards
If you have sub-distribution boards, add more Type 2 surge protectors there. These boards supply power, especially for workshops or offices. Adding SPDs here provides extra protection to important or valuable equipment.
Near Sensitive Equipment
For high-value or sensitive devices, such as computers, refrigerators, or air conditioners, place a Type 2 SPD nearby. While the MDB offers general protection, local placement further safeguards critical equipment and prevents potential damage from secondary surges.
Important Installation Tips
- Network Compatibility: Ensure the SPD is compatible with your electrical network type (e.g., TN-S, TN-C, or TT).
- Proper Grounding: Essential for the Type 2 surge protector to function effectively. Without grounding, overvoltages cannot be safely diverted.
- Professional Installation: Always hire a qualified electrician. Improper installation may cause equipment failure and void the warranty.
Tip: Regularly check and test your Type 2 SPDs. Replace any that are damaged or worn out to maintain reliable protection.
Critical Placement Considerations
For Type 2 SPDs to work well, they must be placed in key locations along the surge protection chain. These devices are typically installed at the service entrance of a building, just after the main overcurrent protective device (circuit breaker or fuse), or inside distribution panels that supply important loads. Proper placement ensures that the Type 2 SPD intercepts surges before they propagate throughout the electrical network; it helps the SPD stop surges before they spread far into the electrical network.
| Application Scenario | Recommended Installation Location | Purpose / Benefit |
| Residential and Small Commercial Buildings | Main electrical panel | Prevents utility grid surges from reaching branch circuits and appliances; offers facility-wide protection. |
| Large Commercial and Industrial Facilities | Main service entrance; Important sub-panels (e.g., server rooms, data centers, specialized machinery panels) | Multi-tier protection; ensures sensitive equipment is protected even if main SPD doesn’t fully suppress a surge. |
| Modern Factory Floor | Main incoming supply; Distribution panels for each production line or control system | Better localized protection; reduces inductive coupling and shortens surge paths to key equipment. |
Think about a modern factory floor, where machines and control systems are constantly active. All types of equipment, including robotic arms and PLCs, can fail if they experience surges. A Type 2 SPD at the main incoming supply protects the entire facility. Adding more Type 2 SPDs at distribution panels for each production line or key control system provides even better protection. The aim is to shorten the path between the SPD and protected equipment, reducing inductive coupling and preventing surges after the first diversion.
Best Practice: Plan your electrical layout, identify key loads, and analyze surge paths to guide SPD placement effectively. Proper positioning of Type 2 surge protectors is essential to maximize their performance and safeguard your equipment.
How to Install a Type 2 SPD: Step-by-Step Guide
Step 1 – Preparing for Type 2 SPD Installation
Preparation is a critical component of safe and effective Type 2 SPD installation. Proper pre-installation work ensures safety, compliance, and long-term surge protection performance. Before beginning any work, gather all required information, tools, and safety equipment.
1. Verify System Requirements
Start by checking the electrical system’s voltage and grounding type. The surge protector must match the system’s specifications, including:
- Uc (Maximum Continuous Operating Voltage)
- In (Nominal Discharge Current)
- Imax (Maximum Discharge Current)
Example: Never install a 275V SPD in a 400V AC system. Models like the LSP SLP40 series support 120V, 230V, and 400V AC networks.
Conduct a brief site assessment:
- Identify the Main Distribution Board (MDB)
- Confirm available installation space
- Locate key distribution panels
- Ensure the environment is clean, dry, and free from dust or moisture
2. Follow Strict Safety Procedures
Before installation:
- Disconnect the main power supply to eliminate the risk of electric shock.
- Use a multimeter to confirm the circuit is de-energized.
- Apply lockout/tagout (LOTO) procedures to prevent accidental power restoration.
Wear appropriate PPE:
- Insulated gloves
- Safety glasses
- Flame-retardant clothing
Avoid working near live electrical panels at all times.
3. Prepare Tools and Materials
Have all necessary tools ready to ensure efficient installation:
- Screwdrivers
- Wire stripper
- Torque wrench
- Multimeter
- Proper mounting fasteners
- Type 2 surge protector (correct voltage rating)
Inspect the SPD and surrounding wiring to ensure there is no physical damage.
4. Minimize Wiring Impedance
Correct wiring is essential for SPD performance:
- Use the shortest and straightest possible cable runs
- Avoid sharp bends to reduce inductive impedance
- Ensure grounding conductors are properly installed and securely fastened
- Verify grounding resistance is within acceptable limits
5. Follow Manufacturer Instructions
Always review the SPD manufacturer’s installation manual:
- Follow the step-by-step mounting and wiring guidance
- Ensure torque settings for terminals meet specifications
- Proper installation maintains product warranty and ensures safe operation
Tip: Thorough preparation ensures that the Type 2 SPD performs at its highest level, providing reliable surge protection for years. Never rush through the preparation stage—it is the foundation of a safe and compliant installation.

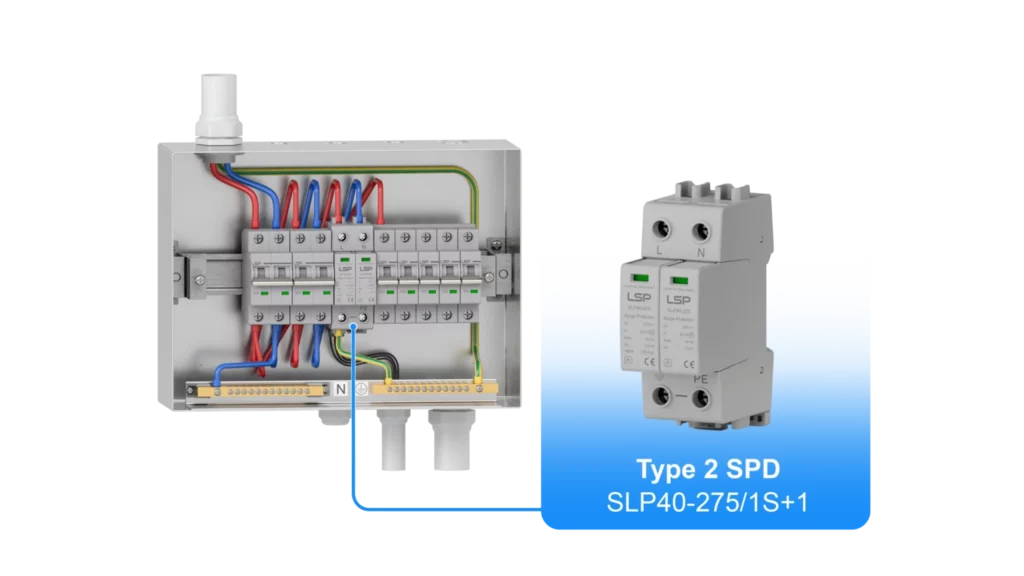

Step 2 – Connecting Wires for Type 2 SPD
Properly connecting the wiring is critical. Firstly, find the labeled terminals on the surge protector. Most devices, like the LSP SLP40 series, have terminals marked for phase (L), neutral (N), and ground (PE).
Follow these steps to connect the wiring:
1.Strip approximately 10-12 mm of insulation from the wires.
2.Connect the phase wire to the “L” terminal, the neutral wire to the “N” terminal, and the ground wire to the “PE” terminal.
3.Tighten the screws to secure the wires. Loose connections can cause overheating or failure.
Use this table to understand key technical terms for wiring:
| Specification | Description |
| Uc | Maximum continuous operating voltage |
| Up | Voltage protection level |
| In | Nominal discharge current (8/20 μs) |
| Imax | Maximum discharge current (8/20 μs) |
Note: Check all connections carefully before operation. Incorrect wiring can stop the surge protector from working.
Step 3 – Grounding Your Type 2 SPD
Grounding is crucial for surge protection. It safely conducts excess voltage, protecting your system and equipment. Without grounding, the surge protector cannot function properly.
Grounding the surge protector:
- Connect the grounding terminal to the local ground plane.
- Use a copper wire with a minimum cross-section of 4 mm² for the connection. This ensures a robust path for surge currents.
- Ensure the grounding system complies with safety standards. This enhances the surge protector’s performance and safety.
Tip: Regularly inspect the grounding connection for damage or corrosion. Proper grounding ensures the reliable operation of the surge protector.
By following these steps, you can correctly install a Type 2 surge protector. Thorough preparation, proper wiring, and secure grounding provide long-term protection for your electrical system.
Step 4 – Testing Your Type 2 SPD After Installation
Testing ensures the surge protector works properly. It checks if the device is connected, grounded, and ready to block voltage surges. Follow these steps to perform a proper test.
- Inspect Connections
Carefully examine the surge protector and its wiring. Ensure all wires are securely connected to the correct terminals (L, N, and PE). Loose wires may cause equipment failure. Additionally, verify that the ground wire is firmly connected to the grounding system.
Tip: Use a flashlight to inspect hidden areas. Look for exposed wires or signs of damage.
- Power On
Turn on the main power to activate the surge protector. Check the status indicators on the device. Many surge protectors, such as the LSP SLP40 series, have LED indicators. A green light indicates normal operation. A red light or no light suggests a potential issue.
- Test Grounding
Use a multimeter to check grounding. Set it to measure resistance. Place one probe on the surge protector’s grounding terminal and the other on the ground rod. Resistance should be below 5 ohms. High resistance indicates inadequate grounding.
- Optional Surge Test
If needed, use a surge generator to simulate a surge. Only trained electricians should perform this test. This verifies whether the surge protector can safely handle voltage spikes.
- Record Results
Document the test results. Note the status indicators, grounding resistance, and any issues. This helps track the surge protector’s long-term performance.
Note: If the surge protector fails the test, consult the manual or contact an electrician for assistance.
Testing your surge protector ensures it is ready to protect your system. This step safeguards your equipment and extends its lifespan.
Common Mistakes in Type 2 Surge Protector Installation and How to Avoid
Installing a Type 2 surge protector requires precision and care. Errors during installation can reduce its effectiveness, potentially compromising the safety of your electrical system. Understanding common mistakes helps you avoid them and ensures the protector functions optimally.
- Incorrect Wiring
A frequent mistake is wiring errors. Connecting the phase (L), neutral (N), or ground (PE) wires to the wrong terminals can render the device inoperative. Always refer to the wiring guide in the manual. Verify each wire is securely connected to the correct terminal.
Tip: Loose wires may cause overheating or damage. Tighten the screws to prevent this.
- Poor Grounding
Proper grounding is essential for safely diverting excess voltage. Using a thin wire or an incorrect grounding terminal connection reduces efficiency. Use a grounding wire with a minimum cross-section of 4 mm². Ensure the grounding system complies with safety standards.
- Skipping Pre-Installation Checks
Failing to inspect the installation area can lead to issues. Dust, moisture, or insufficient space in the distribution panel can affect performance. Before installing, clean the area and confirm adequate space.
- Ignoring Voltage Compatibility
Using a surge protector with an incompatible voltage rating can cause hazards. Check the device’s specifications to ensure compatibility with your system
- Neglecting Regular Maintenance
Many overlook testing and maintaining surge protectors. Over time, wear can impair functionality. Regularly inspect the device, checking status indicators and grounding resistance.
Note: If the surge protector is damaged or fails a test, replace it.
- DIY Installation Without Expertise
Attempting to install a surge protector without proper training can lead to errors. Qualified electricians are trained to install safely. Unless you are skilled and familiar with the installation steps, do not attempt a DIY installation.
Avoiding these mistakes extends the surge protector’s lifespan and enhances its performance. Proper installation ensures system safety and protects equipment from voltage surges.
Maintenance Tips for Type 2 Surge Protector
Maintaining your Type 2 surge protector ensures it functions effectively. Regular inspections can reduce risks such as overheating or failure. Follow these simple tips to keep it in optimal condition.
- Inspect MOVs Regularly
Metal Oxide Varistors (MOVs) are critical components of surge protectors. They absorb excess voltage during surges but degrade over time. Check their condition frequently to ensure proper operation. Many surge protectors have indicator lights to show MOV status. If MOVs appear heavily worn, replace the surge protector.
- Monitor Failure Indicators
Modern surge protectors feature indicator lights or signals to alert you to faults. These warn when the device stops protecting your system. Check these indicators regularly. If a fault light is on, replace the surge protector immediately to ensure safety.
- Test the Grounding System
Proper grounding is essential for surge protector performance. Poor grounding can lead to overheating or even fires. Use a multimeter to measure grounding resistance, which should be below 5 ohms. If resistance exceeds 5 ohms, contact a professional for repairs.
- Perform Regular Maintenance
Inspect the surge protector periodically. Clean the device and its surrounding area to prevent dust buildup, which can impair performance. Ensure all wires are secure and free of corrosion.
- Replace Old Surge Protectors
Surge protectors are not permanent, especially in areas with frequent surges. Replace them every 3-5 years, or sooner if they handle significant surges. Using an outdated protector poses risks.
Data-Driven Maintenance Practices
| Maintenance Practice | Why It Matters |
| Inspect MOV status | After surges, MOVs degrade, reducing their protective capacity. |
| Check Fault Indicators | Lights illuminate when components fail, enabling quick action. |
| Ensure Protective Components Function | Failure to inspect may lead to overheating or fire risks. |
Tip: Log the dates of inspections or surge protector replacements. This helps you stay on schedule and ensures proper operation.
By following these recommendations, your surge protector will have a longer lifespan and keep your system safe. Regular maintenance protects your equipment and provides peace of mind.
Conclusion: Protecting Your Electrical System with a Type 2 Surge Protector
Installing a Type 2 surge protector is a smart and reliable way to safeguard your electrical system from transient overvoltages. With proper installation and grounding, a Surge Protection Device (SPD) can effectively divert harmful voltage spikes—whether caused by lightning, grid fluctuations, or switching surges—away from your appliances and equipment. This ensures stable operation, reduces the risk of equipment failure, and minimizes costly repairs.
A properly installed Type 2 SPD serves as a crucial barrier within your distribution panel. It protects essential devices such as computers, refrigerators, air conditioners, servers, and other sensitive electronics. Without a surge protector, voltage spikes may lead to hidden damage, shorten equipment lifespan, or result in unexpected downtime.
Why Proper Installation of Type 2 SPD Matters
The effectiveness of a surge protector depends on its installation. Poor wiring or inadequate grounding can lead to failure. When installed correctly, it ensures system reliability even during voltage issues. The table below highlights the importance of proper installation:
| Evidence Description | Key Point |
| Surge protectors safely divert lightning surges to the ground. | Proper installation ensures the surge protector functions during voltage spikes. |
| Voltage issues underscore the need for surge protection. | Protecting valuable equipment from surges enhances system safety. |
| Choosing the right surge protector improves insulation performance under stress. | It helps maintain system safety and reduces damage during voltage events. |
| Selecting an optimal surge protector enhances system safety and reliability. | A quality surge proctector provides superior protection and maintains system performance. |
A Layered Protection Strategy
For best results, Type 2 SPDs are often part of a coordinated multi-level surge protection system, working together with:
- Type 1 SPD — Lightning current protection at the service entrance
- Type 2 SPD — Main overvoltage protection at distribution boards
- Type 3 SPD — Point-of-use protection near sensitive equipment
Understanding the differences between these devices is crucial. When considering SPD type 1 vs type 2 surge protector, Type 1 handles high-energy lightning currents at the service entrance, while Type 2 protects sensitive equipment within distribution panels. This layered approach ensures comprehensive electrical safety across residential, commercial, and industrial applications.
A Type 2 surge protector is a simple but powerful investment that protects your home or business, enhances electrical reliability, and ensures peace of mind.
Trusted Type 2 SPD Products: Why LSP Stands Out
Since 2010, LSP has specialized in the development and production of Surge Protection Devices (SPDs). With over a decade of industry experience, advanced automated manufacturing lines, and strict adherence to ISO9001, TUV, CE, and CB standards, LSP has become a trusted global supplier. Today, our factory produces more than 300,000 units annually, supplying customers in over 10 countries with consistently high-quality surge protection solutions.
Premium Materials & Advanced Protection Technology
LSP’s Type 2 SPDs are engineered using high-performance components trusted by industry leaders:
- LKD MOVs (Metal Oxide Varistors) — high stability and long lifetime
- Vactech GDTs (Gas Discharge Tubes) — reliable spark-over and surge handling
Our SPDs feature advanced internal disconnection mechanisms designed to automatically isolate and extinguish arcs, preventing potential fire hazards. The moisture-resistant housing ensures durable performance even in harsh or humid environments.
LSP Type 2 SPDs are built to withstand:
- 20 kA nominal discharge current (In)
- 40 kA maximum discharge current (Imax)
This ensures long-lasting, repeatable surge protection for residential, commercial, and industrial systems.
Customer-Centric Service & Global Support
Beyond product quality, LSP provides comprehensive technical and customer support, including:
- Expert engineering assistance for model selection and customization
- Free sample trials (customers only cover shipping costs)
- Fast production lead times:
- 10–15 days for standard models
- Up to 30 days for custom solutions
- 5-year warranty for long-term reliability
- 12-hour response time for technical support
- 7-day no-questions-asked return policy
This customer-first approach ensures dependable service from product selection to after-sales support.
Selecting the Proper Surge Protector
Choosing the right surge protector is just as important as installing it correctly. High-quality devices such as the LSP SLP40 Series meet international safety standards and provide robust protection for modern electrical systems. Their pluggable design, MOV/GDT hybrid technology, status indicators, and high discharge capability make them suitable for homes, businesses, and industrial facilities.
Type 2 Surge Protection Device SLP40-275/3S+1
Main Features:
- Location of Use: Sub-Distribution Boards
- Three Phase
- Housing: Pluggable Design
- Mode of Protection: L-PE, N-PE
- High discharge capacity due to zinc oxide varistor and GDT combination
Specification
| Nominal voltage Un | 230V |
| Max. continuous operating voltage Uc | 275V |
| Type | Type 2 / Class II / Class C |
| Nominal discharge current (8/20 μs) In | 20kA @ Type 2 |
| Maximum discharge current (8/20 μs) Imax | 50kA @ Type 2 |
| Voltage protection level (L-N) / (N-PE) Up | 1.5KV / 1.5KV |
| Protective elements | Metal Oxide Varistor (MOV) and Gas Discharge Tube (GDT) |
Type 2 Surge Protection Device SLP40-275/1S
Main Features:
- Location of Use: Sub-distribution boards
- Three Phase
- Pluggable housing design
- Modes of Protection: L-PE, N-PE
- High discharge capacity using MOV + GDT combination
Specification
| Nominal voltage Un | 230V |
| Max. continuous operating voltage Uc | 275V |
| Type | Type 2 / Class II / Class C |
| Nominal discharge current (8/20 μs) In | 20kA @ Type 2 |
| Maximum discharge current (8/20 μs) Imax | 50kA @ Type 2 |
| Voltage protection level (L-N) / (N-PE) Up | 1.5KV / 1.5KV |
| Protective elements | Metal Oxide Varistor (MOV) |
Tip:
Always hire a qualified electrician for installation. This ensures compliance with safety regulations and guarantees optimal SPD performance.
When installed correctly, a Type 2 Surge Protector safeguards your home or business, protects your critical equipment, and provides long-term peace of mind. For reliable performance and proven safety, trust reputable brands like LSP.
