AC vs DC Surge Protectors: Can You Mix Them?
Risks of Using Wrong Type
Some people think one surge protection device works for both ac and dc systems. But mixing these surge protectors can cause big problems. Each system works in its own way. If you use the wrong surge protection device, it might not stop the extra voltage or send the surge current to the grounding system. This mistake can leave your equipment open to damage from surges.
If you put an AC Surge Protector in a dc system, it may not work right during a surge. Voltage and current act differently in dc circuits than in ac circuits. The wrong surge protectors might not turn on at the right time. They might not protect your system at all. This can lead to broken equipment, fire risks, and expensive downtime.
Tip: Always read the label and technical details before you install any surge protection device. Make sure the voltage rating and system type are correct.
Key Differences in AC and DC Surge Protection
Knowing how ac and dc surge protection are different helps you pick the right surge protectors. Here is a table that shows the main differences:
Feature | AC Surge Protection | DC Surge Protection |
|---|---|---|
System Type | Alternating Current (ac) | Direct Current (dc) |
Voltage Behavior | Changes direction and value | Constant direction/value |
SPD Activation | Responds to ac surges | Responds to dc surges |
Common Applications | Industrial, residential | Solar, battery, PV |
SPD Parameters | Type 1: Iimp, Type 2: In/Imax | Type 1+2: Iimp, Type 2: In/Imax |
Status Window | Green = normal, non-green = abnormal/failure | Green = normal, non-green = abnormal/failure |
ac surge protectors are made for alternating current systems. In these systems, voltage changes direction. DC Surge Protectors are for direct current systems. In these systems, voltage stays the same. Surge protectors for ac and dc systems use different parts inside, like Metal Oxide Varistors (MOVs) and Gas Discharge Tubes (GDTs). These parts help handle surges in each system.
The surge protection device must fit the system voltage and type. For example, ac systems often use Type 1, Type 2, or Type 3 SPDs. dc systems use Type 1+2 or Type 2 SPDs. Each type is tested by IEC standards. They check things like Iimp for Type 1 and In/Imax for Type 2. The status window on the SPD shows green when it works right. If the window is not green, the SPD may be broken and needs to be replaced.
Note: Using the right surge protectors helps your system stop extra voltage and send surge current to the grounding system. This keeps your equipment safe.
You should always choose surge protection devices that are rated for your system. This step protects your equipment and helps your work go smoothly.
What Are Surge Protection Devices (SPDs)?
SPD Function and Importance
Surge protection devices keep electrical systems safe from spikes. They clamp high voltage and send extra current to the ground. Using ac or dc surge protection devices protects your equipment. These devices act like shields for your system. They react fast to voltage spikes and help your system work well. You can find them in homes, factories, solar stations, and battery setups.
Surge protection devices watch for sudden voltage changes. If a surge happens, the device acts quickly. It moves extra energy away from your equipment. This keeps your system safe and stops expensive repairs. Always use the right surge protection devices for ac and dc systems. This helps you stay safe and makes your equipment last longer.
Surge protection devices stop downtime and keep your business working. They are important for safety and protection.
Common Surge Causes in AC and DC Systems
Both ac and dc systems can have surges and spikes. Many things can cause these problems. Here are some common causes:
Induced lightning surge: Lightning near your building can cause surges.
Switching events: Turning big machines on or off can make spikes.
Faults in the grid: Power supply problems can send surges.
Short circuits: These can make sudden voltage spikes.
Ground faults: These can also cause surges.
Solar panel switching: In dc systems, switching panels can make spikes.
Battery charging and discharging: Fast changes in dc systems can cause surges.
You need to protect ac and dc systems from these events. Surge protection devices help you handle spikes and surges. They keep your equipment safe and working.
Cause | AC Systems | DC Systems |
|---|---|---|
Induced lightning surge | Yes | Yes |
Switching events | Yes | Yes |
Grid faults | Yes | No |
Solar panel switching | No | Yes |
Battery charging | No | Yes |
Effects of Surges on Equipment
Surges and spikes can hurt your equipment. You might see broken wires or burned parts. In ac systems, surges can stop motors and lights. In dc systems, spikes can damage solar panels and batteries. You may lose data or have downtime. Surge protection devices help you avoid these problems.
If you do not use surge protection devices, you can lose money and time. Your equipment may break, and you may need to buy new parts. You also face safety risks. Surges can cause fires or electric shocks. You must use ac and dc surge protection devices to keep your system safe.
Surge protection devices help you save money, stay safe, and keep your system working.
AC and DC System Basics
AC System Characteristics
AC systems are found in homes and factories. They use alternating current. The voltage changes direction and value quickly. This is called frequency. Most ac systems run at 50 or 60 hertz. You see ac in lights and motors.
AC systems can have high voltage. Some places use up to 400 volts. Surge protection is needed for safety. Switching events and lightning can cause spikes. Surge protection devices stop overvoltage and send surge current to the ground. This keeps your equipment safe.

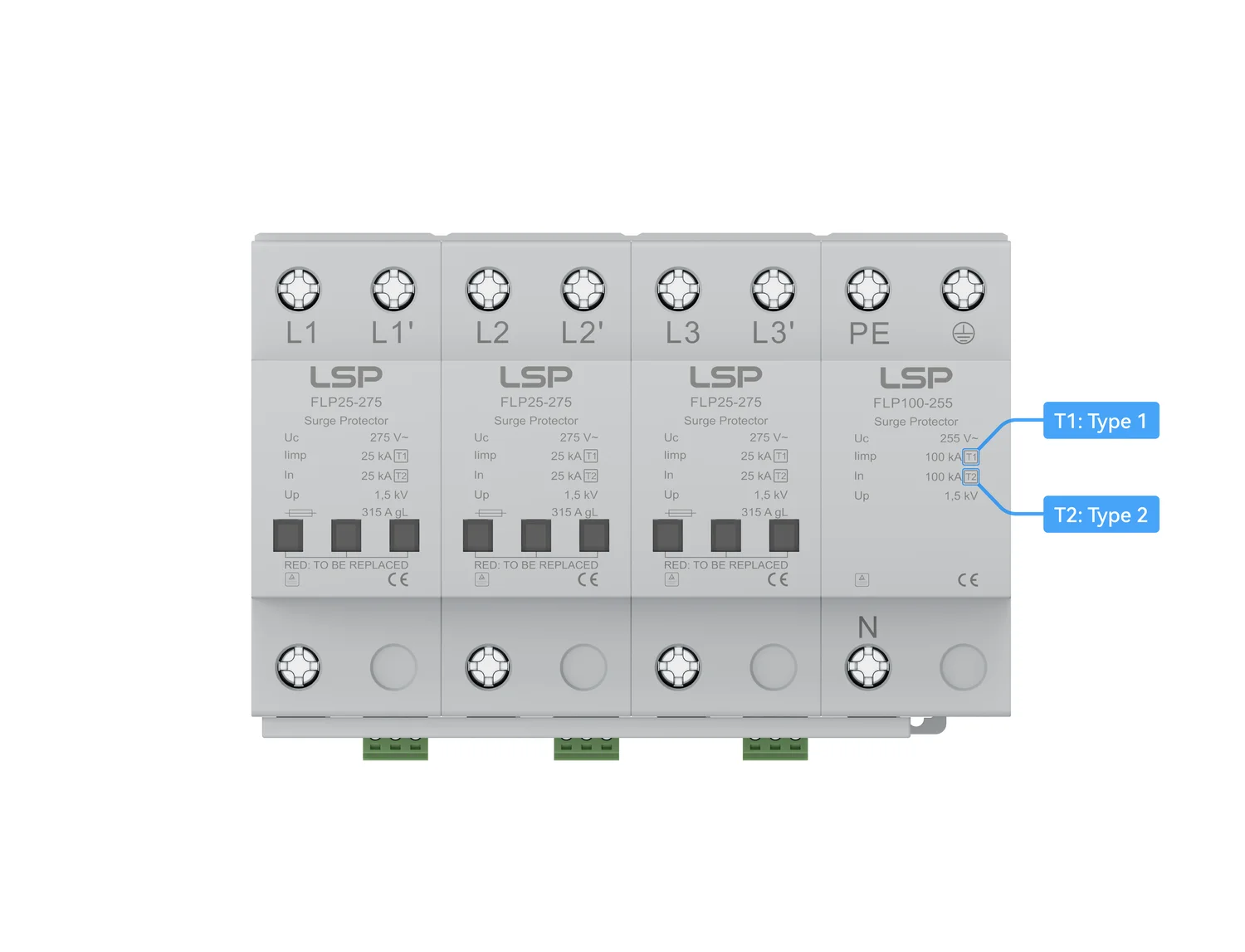

AC systems use Type 1, Type 2, and Type 3 surge protection devices. Type 1 SPDs use Iimp. Type 2 SPDs use In and Imax. Type 3 SPDs use Uoc for testing. You must match the SPD to your ac system voltage.
DC System Characteristics
DC systems use direct current. The voltage stays the same and moves one way. You find dc in solar panels and batteries. DC systems power LED lights and control panels.
DC systems often run at lower voltage. Some can reach up to 1500 volts. Surge protection is needed for safety. Switching solar panels and battery charging can cause spikes. Surge protection devices stop overvoltage and send surge current to the ground. This protects your dc equipment.
DC systems use Type 1+2 and Type 2 surge protection devices. Type 1+2 SPDs use Iimp. Type 2 SPDs use In and Imax. You must check the voltage rating for your dc system.
Impact on Surge Protection Devices
AC and dc systems affect surge protection devices differently. You must pick the right SPD for your system. AC systems need SPDs for changing voltage and frequency. DC systems need SPDs for steady voltage and one-way current.
If you use the wrong SPD, it may not work right. It might not stop overvoltage or send surge current to the ground. This can damage your equipment. Always check SPD ratings for voltage and current.
System Type | Common Applications | SPD Types | Key Parameters |
|---|---|---|---|
AC | Homes, factories | Type 1, 2, 3 | Iimp, In/Imax, Uoc (testing) |
DC | Solar, batteries | Type 1+2, 2 | Iimp, In/Imax |
Look for surge protection devices tested to IEC standards. The status window shows green when the device works. If it is not green, the SPD may be broken and needs to be replaced.
Tip: Always match your surge protection device to your ac or dc system. This helps keep your equipment safe and working.
How to Choose a Surge Protector for AC and DC Systems
Identify System Type (AC or DC)
First, you need to know your system type. AC and DC systems are not the same. AC systems use alternating current. The voltage goes up and down and changes direction. DC systems use direct current. The voltage stays the same and moves one way. AC systems are found in homes and factories. You see DC systems in solar panels and batteries.
To choose a surge protector, check your power source. Look at the labels on your equipment. If you see “~” or “AC,” it is an AC system. If you see “+” and “-” or “DC,” it is a DC system. This step keeps your equipment safe. Using the wrong surge protection devices can be risky.
Tip: Always check your system type before picking surge protection devices. This helps you avoid mistakes and keeps your equipment safe.
Determine Voltage and Application
Next, find out the voltage and what you want to protect. AC systems often use 230V or 400V. DC systems can be as low as 12V or as high as 1500V. Knowing the voltage helps you pick the right surge protector.
Think about what you want to protect. Is it a whole-house surge protectors setup, solar panels, or an HVAC unit? Each thing needs different protection. For example, an ac unit needs different surge protection than a solar inverter. If you want to protect sensitive equipment, use surge protection devices with low clamping voltage. For big setups, you may need Type 1 or Type 2 SPDs.
Here is a table to help you match voltage and application:
Application | System Type | Typical Voltage | Recommended SPD Type |
|---|---|---|---|
Whole-house surge protectors | AC | 230V-400V | Type 1, Type 2 |
HVAC unit | AC | 230V-400V | Type 1, Type 2 |

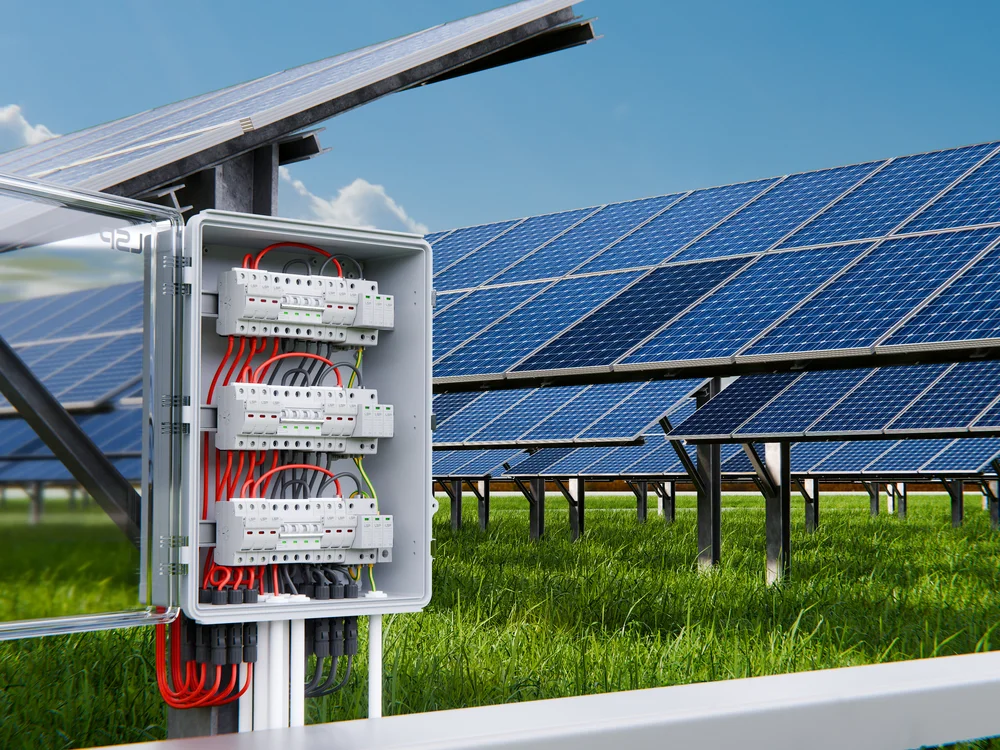

Solar panel array | DC | 600V-1500V | Type 1+2, Type 2 |
Battery storage | DC | 48V-1500V | Type 2 |
Always check the voltage rating on the SPD label. The SPD should match or be higher than your system voltage. This keeps your equipment safe from surges.
Check SPD Ratings and Standards
When picking surge protection devices, look at the ratings and standards. Important ratings are maximum continuous operating voltage (Uc), clamping voltage, and surge current capacity. For Type 1 SPDs, check Iimp. For Type 2 SPDs, look for In and Imax. For Type 3 SPDs, Uoc is used for testing. These ratings show how much surge the device can handle.
Choose surge protection devices tested to IEC 61643-11 standards. This means the SPD is safe and works well. Always pick devices with clear ratings and IEC certification.
Here is a checklist to help you:
Know your system type (AC or DC).
Make sure the voltage rating matches your system.
Check the SPD type (Type 1, Type 2, Type 1+2, or Type 3).
Look for Uc, clamping voltage, and surge current capacity (Iimp, In/Imax).
Make sure the SPD is tested to IEC standards.
Check that the status window is green for normal use.
Note: Good ratings and standards help you get strong protection. If you want to protect your HVAC, solar, or whole-house surge protectors setup, always use surge protection devices that meet IEC rules.
If you follow these steps, you will know how to choose a surge protector that fits your system and keeps it safe from surges.
Consider Installation and Maintenance
When you pick a surge protector, think about how to install and take care of it. These steps help keep your equipment safe. They also make sure your surge protection works for a long time.
What to Consider for Installation:
Look at where your system is. Put the surge protective device near where power comes in. This helps stop overvoltage fast and sends surge current to the grounding system.
Keep wires short and straight. Long wires slow down the SPD and give less protection.
Pick the right SPD type for your system. For AC systems, use Type 1, Type 2, or Type 3. For DC systems, use Type 1+2 or Type 2.
Follow IEC standards when you install. These rules show you how to place SPDs safely.
Make sure the SPD fits your system’s voltage and current. This stops damage and helps your system work well.
Tip: Always read the installation guide from the manufacturer. This helps you avoid mistakes and keeps your system safe.
What to Consider for Maintenance:

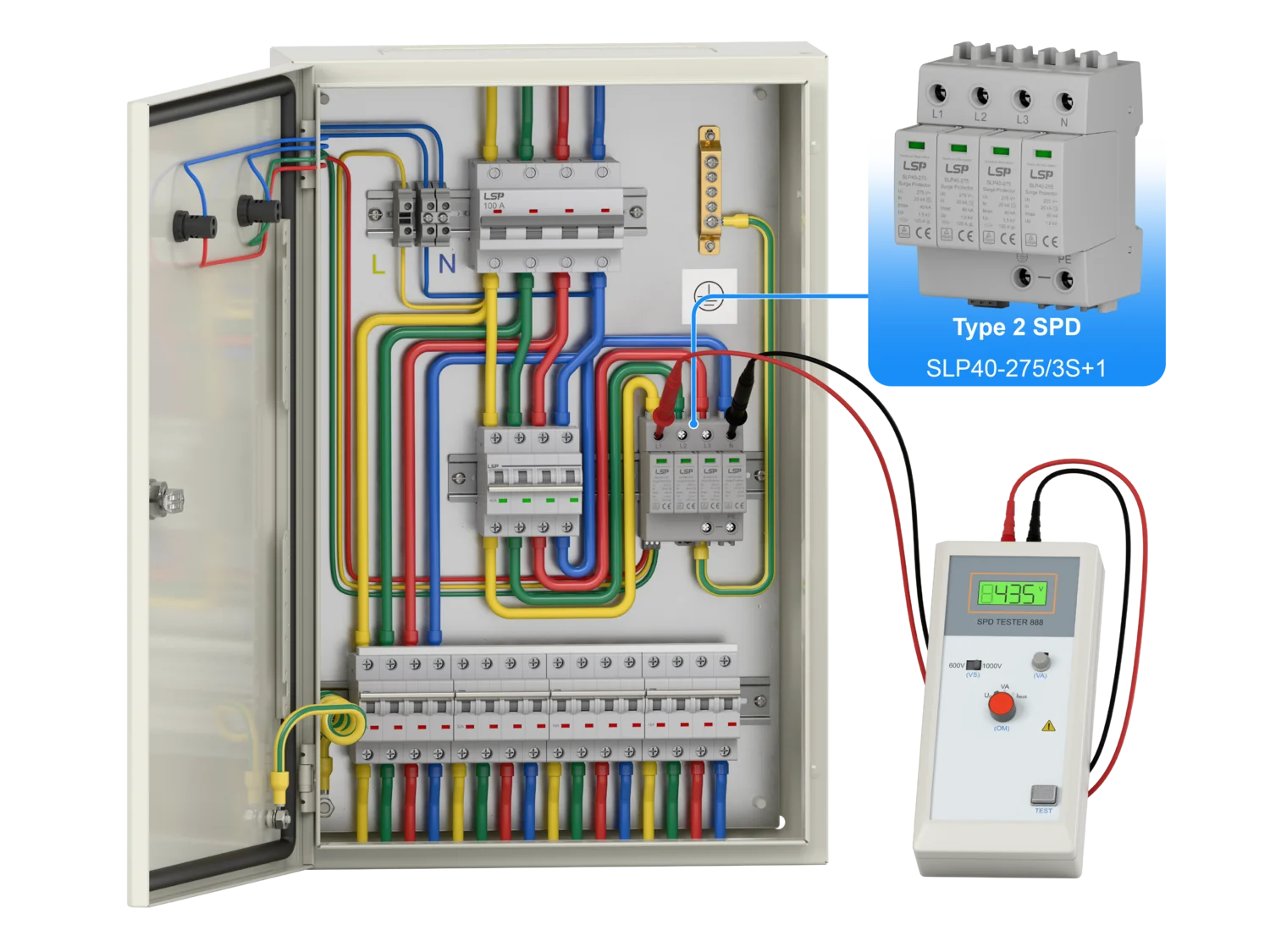

Check the SPD often. Look for damage or signs of wear.
Look at the status window. If it is green, the SPD works fine. If it is not green, change the device to keep your system safe.
Plan regular checks. Set reminders to look at your surge protection devices every few months.
Write down when you check and what you find. Keeping notes helps you know your system’s health and plan for new parts.
Change SPDs after a big surge event. Even if it looks okay, a strong surge can make it weaker.
Maintenance Task | What to Do | How Often |
|---|---|---|
Visual inspection | Look for damage or wear | Every 3 months |
Status window check | Confirm green for normal operation | Every 3 months |
Log maintenance | Write down inspection results | Every visit |
Replace after surge | Install new SPD if needed | After event |
You need to keep your surge protection devices working well. Good installation and regular checks help your system stay safe from induced lightning surges and switching events. If you follow these steps, you protect your equipment and avoid losing money from downtime.
Install a Surge Protector: Step-by-Step
Preparing for Installation
You need to get ready before you install a surge protector. Start by turning off the power to your system. This keeps you safe from electric shock. Gather your tools, such as a screwdriver, wire cutter, and voltage tester. Check your system type and voltage. Make sure you have the right surge protective device for your AC or DC system. Look at the SPD label to confirm the voltage rating matches your system.
Review the installation guide from LSP. The guide shows you where to place the SPD and how to connect it. Choose a spot close to the main power entry. This helps clamp the overvoltage and divert surge current to the grounding system quickly. Keep wires short and straight. Long wires slow down the SPD response and reduce protection against surge events.
Tip: Always wear safety gloves and use insulated tools when you install a surge protector.
Selecting the Right SPD
You must select the correct SPD for your system. First, identify if your system is AC or DC. Next, check the voltage level. For AC systems, you often use Type 1 or Type 2 SPDs. For DC systems, Type 1+2 or Type 2 SPDs work best. Look at the surge parameters. Type 1 SPDs use Iimp. Type 2 SPDs use In and Imax. For Type 3, Uoc is used in testing.
Choose an SPD tested to IEC 61643-11 standards. This ensures the device can handle surge events and keeps your equipment safe. Make sure the SPD’s clamping voltage is suitable for your equipment. If you protect sensitive electronics, select an SPD with a lower clamping voltage. Always match the SPD’s maximum continuous operating voltage (Uc) to your system.
SPD Type | System Type | Surge Parameter | Application |
|---|---|---|---|
Type 1 | AC | Iimp | Main power entry |
Type 2 | AC/DC | In/Imax | Distribution panel |
Type 1+2 | DC | Iimp | Solar PV systems |
Type 3 | AC | Uoc (testing) | Sensitive devices |
Note: The status window on the SPD shows green for normal operation. If it is not green, replace the device to maintain surge protection.
Installation Best Practices
Follow these steps to install a surge protector correctly:
Turn off all power sources before you begin.
Mount the SPD near the main power entry or distribution panel.
Use short, straight wires to connect the SPD. This improves response time during a surge.
Connect the SPD’s ground terminal to the grounding system. This helps divert surge current safely.
Double-check the voltage rating and surge parameters on the SPD label.
Secure all connections tightly. Loose wires can cause poor surge protection.
Restore power and test the system. Make sure the SPD is working and the status window is green.
Plan regular inspections after you install a surge protector. Check for signs of wear or damage. Replace the SPD after a strong surge event, even if it looks fine. Keep a log of maintenance checks to track the health of your surge protection.
Reminder: Good installation and regular checks help your SPD clamp the overvoltage and protect your system from surge events.
By following these steps, you make sure your system stays safe from surge risks. You protect your equipment and avoid costly downtime.
LSP Surge Protection Devices for AC and DC
LSP Brand Overview
LSP helps keep your electrical systems safe from surges. The company started in 2010. LSP quickly became a top name in surge protection. They focus on research and making new products. LSP uses advanced testing and strict rules in their factories. Their products meet high standards and work well.
LSP offers help from risk checks to installation. You can ask for special solutions if you need them. LSP’s surge protection devices have TUV, CB, and CE certifications. These show the products meet IEC standards. You can trust LSP for quality and safety.
LSP makes surge protection devices for both AC and DC systems. You find solutions for solar panels, batteries, and factories. LSP wants to protect your equipment from sudden overvoltages. Their goal is to help your equipment last longer.

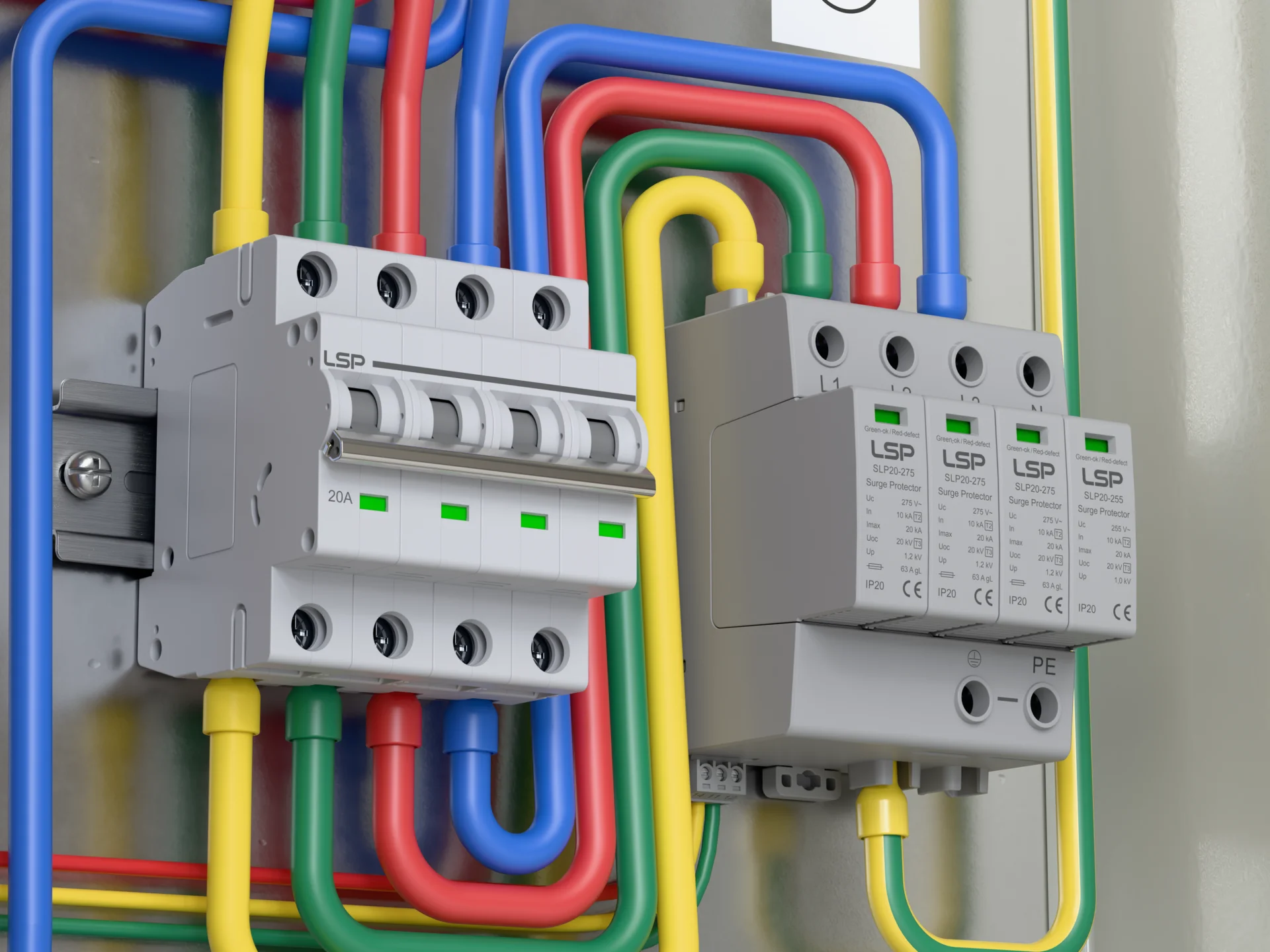

LSP AC Surge Protectors
AC surge protection devices keep homes and factories safe. LSP designs these for alternating current systems. In AC systems, voltage changes direction and value. LSP’s AC surge protection devices clamp extra voltage and send surge current to the ground.
You can pick Type 1, Type 2, or Type 3 surge protection devices. Type 1 uses Iimp for big surges from indirect lightning. Type 2 uses In and Imax for switching events and smaller surges. Type 3 is for sensitive electronics and uses Uoc in tests. Each device matches the voltage and what you need.
LSP’s AC surge protection devices work in homes, factories, and public places. You get strong protection and easy setup. The status window is green when the device works right. If it is not green, you should replace the device.
SPD Type | Surge Parameter | Application |
|---|---|---|
Type 1 | Iimp | Main power entry |
Type 2 | In/Imax | Distribution panel |
Type 3 | Uoc (testing) | Sensitive devices |
LSP DC Surge Protectors
DC surge protection devices are for solar panels, batteries, and energy storage. LSP makes these for direct current systems. In DC systems, voltage stays the same and moves one way. LSP’s DC surge protection devices clamp extra voltage and send surge current to the ground.
You can choose Type 1+2 or Type 2 surge protection devices for DC systems. Type 1+2 uses Iimp for big surges from induced lightning. Type 2 uses In and Imax for switching events and smaller spikes. LSP’s DC surge protection devices work in solar power plants, battery storage, and control panels.
You get devices that match your system voltage and needs. LSP’s DC surge protection devices help keep your solar and battery systems safe and working well.
SPD Type | Surge Parameter | Application |
|---|---|---|

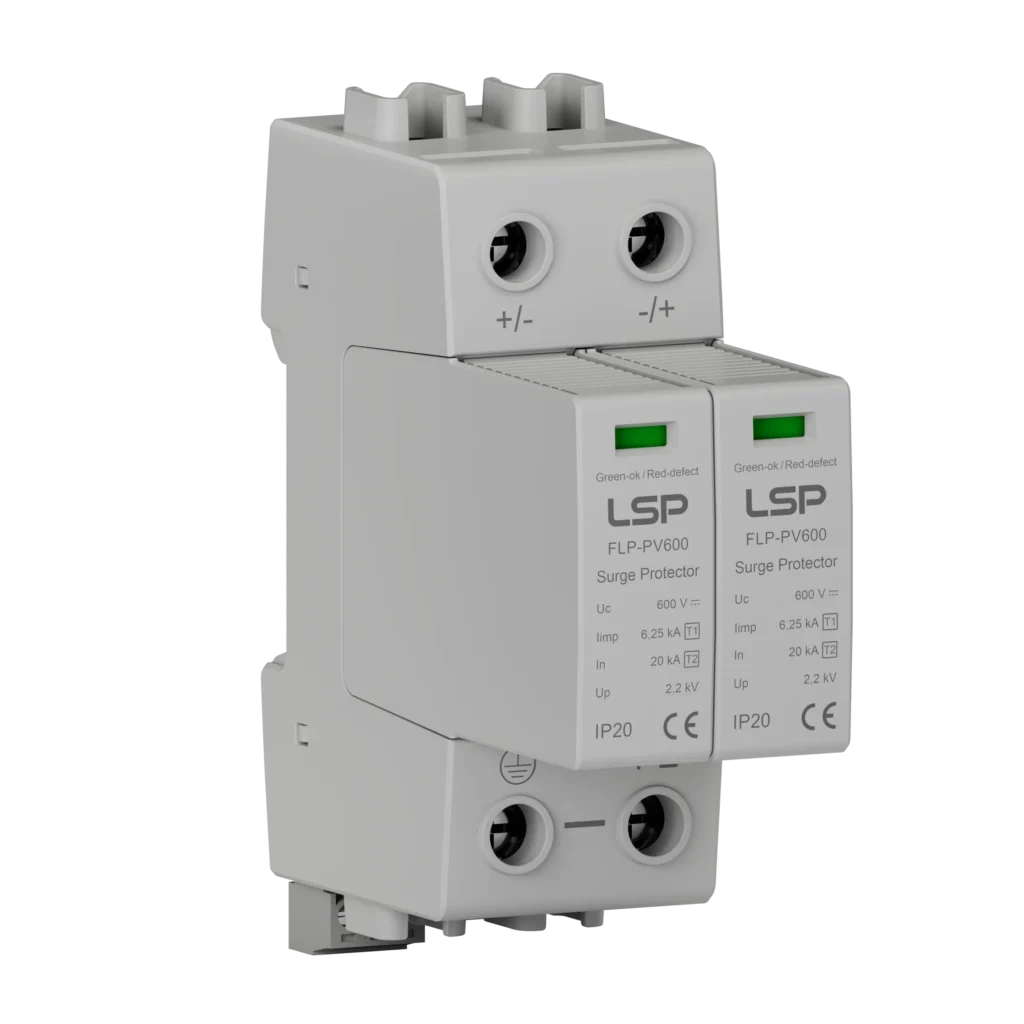

Type 1+2 | Iimp | Solar PV systems |
Type 2 | In/Imax | Battery storage |
LSP gives you strong surge protection devices for AC and DC systems. You protect your equipment and avoid losing money from downtime.
LSP Support and Custom Solutions
When you pick LSP surge protective devices (SPDs), you get more than a product. You also get help and can ask for custom solutions that fit your needs. LSP knows every electrical system is different. You might have solar panels, batteries, or a factory. Each place has its own surge risks. LSP helps you protect your equipment with the right SPD.
LSP Support Services:
Expert Guidance: You can talk to LSP’s technical team for help. They answer questions about your system, voltage, and which SPD to use. You get advice that follows IEC rules and real-life experience.
Installation Assistance: LSP gives clear steps for putting in SPDs. You learn where to put the device, how to keep wires short, and how to connect to the ground. This helps stop overvoltage and sends surge current to the ground fast.
Performance Testing: LSP shares tips for checking your SPD after you install it. You learn how to look at the device and make sure it works right.
Custom Solutions for Your Needs:
Sometimes, regular SPDs do not work for your system. LSP can make custom solutions for special voltages, unique jobs, or tough places. You can ask for SPDs for big solar setups, large batteries, or sensitive control panels. LSP engineers help you get a device that fits your needs.
Tip: If your project is tricky, contact LSP early. Their team can help you plan the best surge protection from the start.
Why Choose LSP for Support and Customization?
You get help from a worldwide support team. LSP helps people in more than 35 countries.
All SPDs follow strict IEC rules and have TUV, CB, and CE certificates.
LSP uses advanced labs to test every device so it works well.
You can trust LSP’s experience with over 1200 companies around the world.
LSP Support Feature | What You Get |
|---|---|
Technical guidance | Answers for SPD selection |
Installation help | Step-by-step instructions |
Custom solutions | Tailored SPDs for your system |
Global support | Service in 35+ countries |
When you work with LSP, your equipment is safer and you feel calm. You know your surge protection fits your system and meets top standards. If you need help or a custom SPD, LSP is ready to help you at every step.
You must pick the right surge protector for your system. If you skip this step, your equipment can get damaged. Your system might stop working if you do not use a surge protector. Always check what kind of system you have. Look at the voltage and SPD ratings before you choose. Following IEC standards helps keep your system safe. Ask experts if you need help. Check your surge protection now and upgrade if you need to.
FAQ
What is a surge protective device (SPD)?
A surge protective device keeps your electrical system safe from too much voltage. It stops the extra voltage and sends the surge current to the ground. You use SPDs in AC and DC systems to stay safe.
How do I know if I need an AC or DC SPD?
First, check what kind of system you have. AC systems use alternating current. DC systems use direct current. Look at the labels on your equipment. Pick the SPD that matches your system for good protection.
What parameters should I check when choosing an SPD?
Check the maximum continuous operating voltage, called Uc. Look at surge current capacity, like Iimp for Type 1 and In/Imax for Type 2. Make sure the SPD has IEC certification. These things help you pick the right SPD.
Can I use an AC SPD in a DC system?
Do not use an AC SPD in a DC system. AC and DC SPDs are made differently. Using the wrong type will not protect your equipment. It can also be unsafe.
How often should I inspect my SPD?
Inspect your SPD every three months. Look for damage or signs of wear. Check the status window to see if it works right. Replace the SPD after a big surge event.
What causes surges in electrical systems?
Surges can happen from lightning near your building. Switching big machines on or off can cause spikes. Problems in the power grid, solar panel switching, or battery charging can also make surges. These things can hurt your equipment if you do not use surge protection.
How does an SPD protect my equipment?
An SPD stops extra voltage and sends surge current to the ground. This keeps your equipment safe and helps you avoid losing money from downtime.
Why is a surge protection strategy important?
A surge protection strategy helps you plan how to keep your system safe from too much voltage. You pick the right SPDs, check them often, and follow IEC rules for safety over time.
