A 3 phase surge protector keeps the system safe. He must pick one that matches the system’s voltage and setup. This makes sure the protection works well. When lightning strikes or causes surges, the device stops extra voltage. It sends the surge current safely to the ground. If you do not install it right, problems can happen. Three-phase systems can break or stop working. This can cost a lot of money. She should always use the installation guide to get the best results.
3 Phase Surge Protector Basics and Importance
What Is a 3 Phase Surge Protector
A 3 phase surge protector is made for three-phase electrical systems. These devices stop too much voltage and send extra current to the ground. This happens when lightning or switching causes a surge. He can see these devices at main boards or near important equipment. The device checks voltage all the time. It acts fast if there is a surge. Most have a window that shows their status. Green means it works fine. If it is not green, it needs fixing.
Tip: Always look at the status window to make sure the device works right.
A surge protection device for three-phase systems must fit the system’s voltage and setup. IEC rules say to use Type 1 for places with lots of lightning surge. Type 2 is for more protection farther down the line. Type 3 is for very sensitive equipment. Type 1 uses Iimp as its main number. Type 2 uses In or Imax. Type 3 uses Uoc.
Why Surge Protection Matters
Surge protection is very important for safety. Lightning surge and switching surges can hurt systems and devices. She must put in surge protection devices to stop costly problems and broken equipment. Without good surge protection, systems can get too much voltage. This can make things break or even cause a fire.
Surge protection devices keep systems safe by:
Sending surge current to the ground
Stopping too much voltage
Helping the system work well
Note: IEC rules say you need surge protection in places with lots of lightning surge or switching.
Key Benefits for Electrical Systems
Surge protection devices give many good things to electrical systems. He can make things safer and spend less on repairs by using the right device. The main good things are:
Enhanced safety: Surge protection devices stop dangers from surges.
Equipment protection: Devices keep important equipment safe from too much voltage.
System reliability: Surge protection helps three-phase systems work well.
Reduced downtime: Good surge protection means fewer stops and fixes.
Benefit | Description |
|---|---|
Enhanced safety | Stops dangers from surges |
Equipment protection | Keeps devices safe from too much voltage |
System reliability | Helps the system work well |
Reduced downtime | Fewer stops and less fixing |
Surge protection devices help keep electrical systems safe from lightning surge and switching surges. She should pick surge protection devices that fit the system’s voltage and setup for the best safety.
Identifying Your Electrical System for 3 Phase Surge Protection
System Type: Wye vs Delta
He needs to know what kind of system he has. Three-phase systems can be Wye or Delta. In a Wye system, each phase connects to one neutral spot. This lets you have phase-to-neutral and phase-to-phase links. In a Delta system, the phases make a triangle. There is no neutral spot in Delta. The system type changes how 3 phase surge protection works.
System Type | Neutral Point | Typical Use | Surge Protection Needs |
|---|---|---|---|
Wye | Yes | Buildings, factories | Protect phase and neutral lines |
Delta | No | Motors, heavy equipment | Protect only phase lines |
Tip: She should look at the wiring diagram or ask an electrician to find out the system type.
Checking System Voltage
He should check the voltage before picking 3 phase surge protection. Voltage can be different in each place. Some common voltages are 208V, 400V, and 480V. The device must match the system voltage. If it does not match, the device may not work right. It might not stop overvoltage or send surge current to the ground.
To check the voltage:
Look at the main electrical panel.
Find the voltage label.
Use a multimeter to check if needed.
Note: IEC rules say the device must match the system voltage to be safe.
Ensuring Compatibility with Surge Protection Devices
She must make sure the device fits the system. This depends on system type, voltage, and wiring. For Wye, the device must protect all phases and the neutral. For Delta, the device must protect all phases. The device should have the right SPD numbers. Type 1 uses Iimp for lightning surge. Type 2 uses In or Imax for switching surges. Type 3 uses Uoc for sensitive things.
A checklist for compatibility:
System type matches device design
Voltage rating matches system voltage
SPD numbers fit the risk
Device can stop overvoltage and send surge current to ground
Compatibility Factor | What to Check |
|---|---|
System type | Wye or Delta |
Voltage rating | Matches system |
SPD parameters | Iimp, In/Imax, Uoc |
Wiring | All lines protected |
Callout: They should always follow IEC rules when picking 3 phase surge protection for electrical systems.
3 phase surge protection works best when the device fits the system. He should check the system type, voltage, and SPD numbers. She can keep systems safe from lightning surge and switching surges by doing these steps.
Key Selection Factors for 3 Phase Surge Protection Devices
SPD Types and Categories
He needs to pick the right surge protection device for each system. IEC standards put surge protection devices into three main types. Each type is made for a certain job and place in the system.
Type 1 SPD: This device stops lightning surge. It goes at the main board. It uses Iimp as its main number. Type 1 blocks too much voltage and sends surge current to the ground.
Type 2 SPD: This device stops switching surges. It goes after the main board. It uses In or Imax as its main number. Type 2 gives extra help for sensitive things.
Type 3 SPD: This device protects very sensitive things. It goes close to the equipment. It uses Uoc as its main number. Type 3 gives fine protection for electronics.
SPD Type | Main Parameter | Installation Location | Protection Purpose |
|---|---|---|---|
Type 1 | Iimp | Main board | Lightning surge |
Type 2 | In/Imax | Sub-distribution | Switching surge |
Type 3 | Uoc | Near equipment | Sensitive devices |
Tip: She should pick the SPD type that fits the risk and where it goes in the system.
Maximum Continuous Operating Voltage (Uc)
He should check the maximum continuous operating voltage, called Uc, before picking a device. Uc is the highest voltage the device can take without breaking. If Uc does not match the system voltage, the device may not work right. It might not block too much voltage or send surge current to the ground.
To pick the right Uc:
Find out the system voltage.
Pick a device with Uc the same or higher than the system voltage.
Look at IEC rules for the best Uc numbers.
System Voltage | Recommended Uc (SPD) |
|---|---|
230V | ≥ 255V |
400V | ≥ 440V |
480V | ≥ 550V |
Note: She should never use a device with Uc lower than the system voltage.
Surge Current Rating (kA)
Surge current rating shows how much surge current the device can send to the ground. He should pick a device with a rating that fits the risk in the system. IEC rules say to use higher ratings if there is a lot of lightning surge or heavy switching.
Type 1 SPD uses Iimp to show surge current rating for lightning surge.
Type 2 SPD uses In or Imax for switching surges.
Type 3 SPD uses Uoc for sensitive things.
SPD Type | Surge Current Rating | Typical Range (kA) | Protection Level |
|---|---|---|---|
Type 1 | Iimp | 10–50 | High |
Type 2 | In/Imax | 5–40 | Medium |
Type 3 | Uoc | 1–10 | Low |
Callout: They should always pick devices with surge current ratings that fit the risk in their systems.
Devices with the right SPD type, Uc, and surge current rating help keep 3 phase surge protection strong. She can keep systems safe from lightning surge and switching surges by following these steps.
Discharge Capacity and Lightning Risk
He needs to check discharge capacity when picking surge protection devices. Discharge capacity tells how much surge current the device can send to the ground during a lightning surge. IEC standards say to use Iimp for Type 1 surge protection devices. A higher discharge capacity means the device can handle bigger surges and protect electrical systems better.
She should think about how much lightning risk there is in the area. If the building is in a place with lots of lightning surges, the system needs devices with higher discharge capacity. If there is not much lightning surge risk, a lower discharge capacity might be enough.
Lightning Risk Level | Recommended Discharge Capacity (Iimp) | Protection Device Type |
|---|---|---|
High | ≥ 25 kA | Type 1 SPD |
Medium | 10–25 kA | Type 1 SPD |
Low | 5–10 kA | Type 2 SPD |
Tip: He should always pick a discharge capacity that matches the local lightning surge risk. This helps keep the electrical system safe.
Response Time and Line Protection
Surge protection devices must act fast to stop overvoltage and send surge current to the ground. Response time shows how quickly the device works when a surge happens. Faster response times give better protection for sensitive equipment.
She should look for devices with response times under 25 nanoseconds. This makes sure the device stops overvoltage before it can hurt the system. Devices with slower response times may not protect equipment as well.
It is also important to protect all lines. He must make sure the surge protection device covers every line in the three-phase system. For Wye systems, the device should protect phase and neutral lines. For Delta systems, the device should protect all phase lines.
Devices with fast response times keep sensitive equipment safe.
Full line protection stops surge damage in the whole system.
System Type | Lines to Protect | Recommended SPD Coverage |
|---|---|---|
Wye | Phase + Neutral | All lines |
Delta | Phase only | All phase lines |
Note: She should check the wiring diagram to see which lines need surge protection.

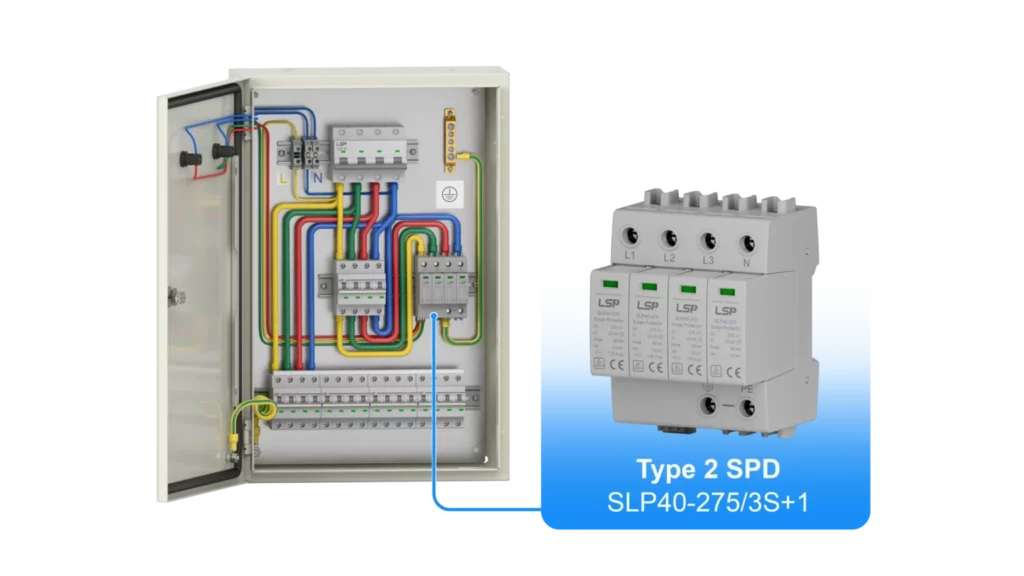

Installation Location and SPD Type
He needs to put surge protection devices in the right spot to work best. IEC standards say to put Type 1 surge protection devices at the main distribution board. This keeps the system safe from lightning surge coming into the building. Type 2 devices go at sub-distribution boards for extra protection from switching surges. Type 3 devices should be close to sensitive equipment for fine protection.
She should choose the SPD type based on where it will go and the risk level. The right spot helps the device stop overvoltage and send surge current to the ground before it can reach important equipment.
SPD Type | Installation Location | Protection Purpose |
|---|---|---|
Type 1 | Main distribution board | Lightning surge protection |
Type 2 | Sub-distribution board | Switching surge protection |
Type 3 | Near equipment | Sensitive device protection |
Callout: They should always follow IEC standards for where to put surge protection devices to get the best results.
Backup Protection: MCBs and Fuses
Backup protection is very important in three-phase systems with surge protection. Miniature Circuit Breakers (MCBs) and fuses help surge protection devices keep the system safe. When a surge happens, the surge protection device stops extra voltage and sends surge current to the ground. Sometimes, a big surge or fault can break the surge protection device. If this happens, backup protection helps stop more problems.
He should always put MCBs or fuses in line with the surge protection device. This setup makes sure backup protection will disconnect the device if it fails or shorts. This keeps fire risks low and protects the rest of the system.
Tip: Always pick backup protection that matches the surge protection device’s current rating and the system’s voltage.
How to Choose the Right Backup Protection
She should do these steps to pick the right MCB or fuse for surge protection:
Check the Surge Protection Device’s Data Sheet: Find the backup protection type and rating that is recommended.
Match the Current Rating: Pick an MCB or fuse with a current rating that fits the surge protection device.
Use the Correct Breaking Capacity: Make sure the MCB or fuse can handle the highest fault current.
Follow IEC Standards: Always use backup protection that meets IEC rules for working with surge protection devices.
Backup Protection | Purpose | How It Works with Surge Protection |
|---|---|---|
MCB | Disconnects broken SPD or wiring | Trips if surge protection device fails or shorts |
Fuse | Melts and breaks the circuit | Opens if surge protection device draws too much current |
Coordination between the surge protective device & its circuit breaker in the event of a short circuit.
| Main Switch (ACB / MCCB / MCB) | Dedicated MCCB / MCB or Fuse | Surge Protective Device (SPD) | ||||||
| MCCB / MCB | Fuse | TN-S Network | TN-C Network | TT Network | ||||
| Single Phase | 3 Phase | Single Phase | 3 Phase | Single Phase | 3 Phase | |||
| ACB ≥ 630A MCCB: 630A ~ 315A | 200A | 315A ~ 250A | Type 1 SPD FLP25-275/1(S), FLP25-275/2(S), FLP25-275/1(S)+1 | Type 1 SPD FLP25-275/4(S), FLP25-275/3(S)+1 | Type 1 SPD FLP25-275/1(S) | Type 1 SPD FLP25-275/3(S) | Type 1 SPD FLP25-275/1(S), FLP25-275/1(S)+1 | Type 1 SPD FLP25-275/3(S)+1 |
| MCCB: 400A ~ 200A | 125A ~ 100A | 125A | Type 1+2 SPD FLP12,5-275/1(S), FLP12,5-275/2(S), FLP12,5-275/1(S)+1 | Type 1+2 SPD FLP12,5-275/4(S), FLP12,5-275/3(S)+1 | Type 1+2 SPD FLP12,5-275/1(S) | Type 1+2 SPD FLP12,5-275/3(S) | Type 1+2 SPD FLP12,5-275/1(S), FLP12,5-275/1(S)+1 | Type 1+2 SPD FLP12,5-275/3(S)+1 |
| MCCB: 200A | 80A ~ 50A | 80A | Type 1+2 SPD FLP7-275/1(S), FLP7-275/2(S), FLP7-275/1(S)+1 | Type 1+2 SPD FLP7-275/4(S), FLP7-275/3(S)+1 | Type 1+2 SPD FLP7-275/1(S) | Type 1+2 SPD FLP7-275/3(S) | Type 1+2 SPD FLP7-275/1(S), FLP7-275/1(S)+1 | Type 1+2 SPD FLP7-275/3(S)+1 |
| MCCB: 100A ~ 63A | 40A ~ 32A | 40A ~ 32A | Type 2 SPD SLP40-275/1(S), SLP40-275/2(S), SLP40-275/1(S)+1 | Type 2 SPD SLP40-275/4(S), SLP40-275/3(S)+1 | Type 2 SPD SLP40-275/1(S) | Type 2 SPD SLP40-275/3(S) | Type 2 SPD SLP40-275/1(S), SLP40-275/1(S)+1 | Type 2 SPD SLP40-275/3(S)+1 |
| MCB: 32A | 20A | 20A | Type 2+3 SPD SLP20-275/1(S), SLP20-275/2(S), SLP20-275/1(S)+1 | Type 2+3 SPD SLP20-275/4(S), SLP20-275/3(S)+1 | Type 2+3 SPD SLP20-275/1(S) | Type 2+3 SPD SLP20-275/3(S) | Type 2+3 SPD SLP20-275/1(S), SLP20-275/1(S)+1 | Type 2+3 SPD SLP20-275/3(S)+1 |
| / | 16A ~ 10A | 16A ~ 10A | Type 3 SPD TLP-275/2（S) | Type 3 SPD TLP-275/2(S) | Type 3 SPD TLP-275/2(S) | |||
Why Backup Protection Matters
Backup protection helps surge protection devices last longer and stay safe. If a surge protection device faces a strong surge, it might break. The backup protection will disconnect the broken device and stop more risks. This keeps the rest of the system working and stops downtime.
He should check the status window on the surge protection device after a surge. If the window is not green, the device may need to be changed. Backup protection makes sure a broken device does not stay connected and cause more trouble.
Note: Backup protection does not take the place of a surge arrester. Both are needed for full protection.
Best Practices for Installation
Put MCBs or fuses close to the surge protection device.
Use wires that match the current and voltage ratings.
Test backup protection devices often to make sure they work.
Write down the type and rating of each backup protection device for future checks.
By doing these steps, he can make sure the surge protection system works well and stays safe. Backup protection, when picked and installed right, helps the main surge protection device and keeps the electrical system reliable.
Compliance and Certification for Surge Protection Devices
Safety Standards (IEC)
He should make sure the surge protection device follows safety rules. The IEC 61643 series is the main standard for these devices. This standard tells how to test and rate devices for lightning surge and switching surges. IEC 61643-11 is for low-voltage surge protection devices in electrical systems. It gives clear steps for how the device should work, how to test it, and how to mark it.
A table below shows the key points:
Standard | Focus Area | Why It Matters |
|---|---|---|
IEC 61643-11 | Low-voltage SPD requirements | Ensures device works as rated |
IEC 61643-12 | SPD selection and installation | Guides proper use |
Tip: He should check for the IEC mark on the surge protection device. This mark means the device follows strict safety rules.
Importance of Third-Party Certification
Third-party certification gives more trust in a surge protection device. An outside lab tests the device to see if it meets IEC standards. This test checks if the device can stop overvoltage and send surge current to the ground during a lightning surge. Third-party certification helps people believe the device is safe and works well.
She can see why third-party certification is important:
It shows the device passed hard tests.
It proves the device does what the maker says.
It helps with insurance or building code rules.
Note: Devices with third-party certification have a special label or certificate. He should ask for this proof before buying.
How to Verify Compliance
He can do these steps to check if a surge protection device meets all rules:
Check the Product Label: Look for the IEC standard number and a third-party mark.
Ask for Test Reports: She can ask the supplier for a test report copy.
Review the Certificate: Make sure the certificate matches the device model and type.
Inspect the Status Window: The status window should be green for normal use. If it is not green, the device may not work right.
Consult the Manual: The manual should list all standards and certifications.
A checklist can help:
IEC standard number is there
Third-party mark or label is present
Test report or certificate is valid
Status window is green
Manual lists standards
Callout: They should always pick a surge protection device that meets IEC standards and has third-party certification. This helps keep people safe and gives good protection from lightning surge.
Installation and Maintenance of 3 Phase Surge Protectors
Best Installation Practices
She should use easy steps to install the device. This helps surge protection work well. First, she needs to find the right spot for each device. IEC rules say to put Type 1 at the main board. This stops overvoltage from lightning surge. Type 2 goes at sub-boards. It sends surge current to the ground from switching surges. Type 3 should be close to sensitive equipment. It uses Uoc as its main number.
He must connect all lines that need protection. In Wye systems, he should protect phase and neutral lines. In Delta systems, he must protect all phase lines. The installer should use short and straight wires. This lowers resistance and makes response time better. She must check the status window after putting in the device. Green means it works right.
Tip: Always use the wiring diagram and follow IEC rules. This helps the device stop overvoltage and send surge current to the ground fast.
Common Mistakes to Avoid
Many people make mistakes when they install surge protection. He sometimes uses wires that are too long or too thin. This slows down the device and makes it hard to send surge current to the ground. She may forget to protect every line. This leaves some parts open to lightning surge or switching surges.
Some people put the device too far from the main board or equipment. This makes the system less safe. He must not use a device with Uc lower than the system voltage. She should always check SPD numbers like Iimp for Type 1 or In/Imax for Type 2.
Mistake | Impact |
|---|---|
Long or thin wires | Slower response, less surge protection |
Missing line protection | System remains vulnerable to surge |
Wrong installation location | Reduced effectiveness against lightning surge |
Incorrect Uc or SPD parameter | Device may fail to clamp overvoltage |
Alert: He should always look at the status window after installing. If it is not green, fix it right away.
Maintenance and Periodic Checks
Surge protection devices need regular checks to keep working well. She should look at the status window often. If it is not green, the device may not stop overvoltage or send surge current to the ground. He must change any device that shows a problem.
She should write down the install date and SPD numbers for each device. He must test backup protection like MCBs or fuses. This makes sure they can disconnect a bad device. She should plan regular checks, especially after lightning surge or switching surges.
A simple checklist for maintenance:
Look at the status window for each device
Change devices with a bad status
Test backup protection (MCBs/fuses)
Write down SPD numbers and install dates
Plan checks after lightning surge events
Note: Regular checks keep surge protection strong and safe. He should never skip these checks.
LSP 3 Phase Surge Protection Solutions
About LSP as a Manufacturer
LSP is a top company that makes surge protection devices. The company started by wanting to make electricity safer and better. Over time, LSP became known for making good and dependable products. The team works hard on new ideas to build better 3 phase surge protection devices. LSP always follows strict IEC rules when making their products. They use modern factories and skilled workers to make sure each device meets world standards. LSP gives help and training for putting in their devices. Customers get advice on how to pick the right surge protection device for their system.
LSP has certifications from trusted labs. These show that LSP devices can stop too much voltage and send surge current to the ground during lightning surges.
LSP’s Key 3 Phase Surge Protector Products
LSP makes many devices for 3 phase surge protection. Their products work with different system types and voltages. Each device has a window that shows its status. Green means the device works fine. If it is not green, the device should be replaced. LSP sells Type 1, Type 2, and Type 3 devices. Type 1 uses Iimp and protects against lightning surges at the main board. Type 2 uses In or Imax and helps with switching surges at sub-boards. Type 3 uses Uoc and protects sensitive equipment near where it is used.
LSP devices work with both Wye and Delta systems. They fit common voltages like 400V and 480V. Each device stops too much voltage and sends surge current to the ground fast.
How LSP Products Meet Electrical System Needs
LSP surge protection devices help with the needs talked about before. The devices protect all lines in three-phase systems. For Wye systems, LSP devices protect phase and neutral lines. For Delta systems, they protect all phase lines. LSP engineers make devices that act fast to lower surge damage. The company says to put devices in important places for the best safety.
LSP gives advice about backup protection. The team helps customers pick the right MCBs or fuses for each device. LSP devices have clear windows so it is easy to check if they work. Customers can trust LSP for certified products, help, and service.
LSP uses advanced factories, follows IEC rules, and has expert help to give safe 3 phase surge protection for electrical systems everywhere.
He needs to use simple steps to pick a 3 phase surge protector. She should make sure the device matches the system type, voltage, and what the system needs for protection. Surge protection stops too much voltage and sends extra current to the ground. This keeps the system safe from lightning surge.
Checklist for choosing a 3 phase surge protector:
Find out if the system is Wye or Delta
Look at the system voltage
Pick the SPD type and numbers (Iimp, In/Imax, Uoc)
Make sure the device gives the right protection
Check that it follows IEC standards
Look at the status window after putting it in
If they are not sure, they should ask trusted companies or experts for help. Checking and taking care of surge protection often helps the system work well.
FAQ
What does a 3 phase surge protector do?
A 3 phase surge protector stops too much voltage. It sends extra current to the ground. This keeps electrical systems safe from lightning surge and switching surges. The device helps protect equipment and lowers downtime.
How can someone check if a surge protector works?
He or she should look at the status window. If it is green, the device works fine. If it is not green, there is a problem. The device might need to be replaced.
Which IEC standard applies to surge protection devices?
IEC 61643-11 is the rule for surge protection devices in low-voltage systems. This rule tells how to test, use, and mark SPDs in three-phase electrical systems.
How does system type affect surge protector selection?
System type shows which lines need protection. Wye systems need protection for phase and neutral lines. Delta systems need protection for all phase lines. The right SPD gives full coverage.
What SPD parameters matter for different device types?
Type 1 uses Iimp for lightning surge risk. Type 2 uses In or Imax for switching surges. Type 3 uses Uoc for sensitive equipment. He or she should pick the SPD type that fits the system’s needs.
Where should someone install a 3 phase surge protector?
He or she should put Type 1 at the main distribution board. Type 2 goes at sub-distribution boards. Type 3 should be close to sensitive equipment. The right spot gives better protection.
Why is backup protection important?
Backup protection like MCBs or fuses disconnects a broken surge protector. This stops more risks and keeps the system safe. He or she should match backup protection to the SPD’s rating.
How often should someone check surge protection devices?
He or she should check the status window often. After a lightning surge, it is good to inspect the device. Regular checks help the device keep working and keep the system safe.
