Why Should You Care About the Joule Rating?
A surge refers to a momentary overvoltage, usually lasting only a few microseconds. Common sources of surges include lightning-induced voltages, power system switching, grid faults, and interference voltages generated when inductive loads—such as motors or air conditioners—start up or shut down.
These surges can travel through power lines to end-user devices, causing damage such as burned-out power supply modules, PCB breakdowns, damaged storage media, or even data loss.

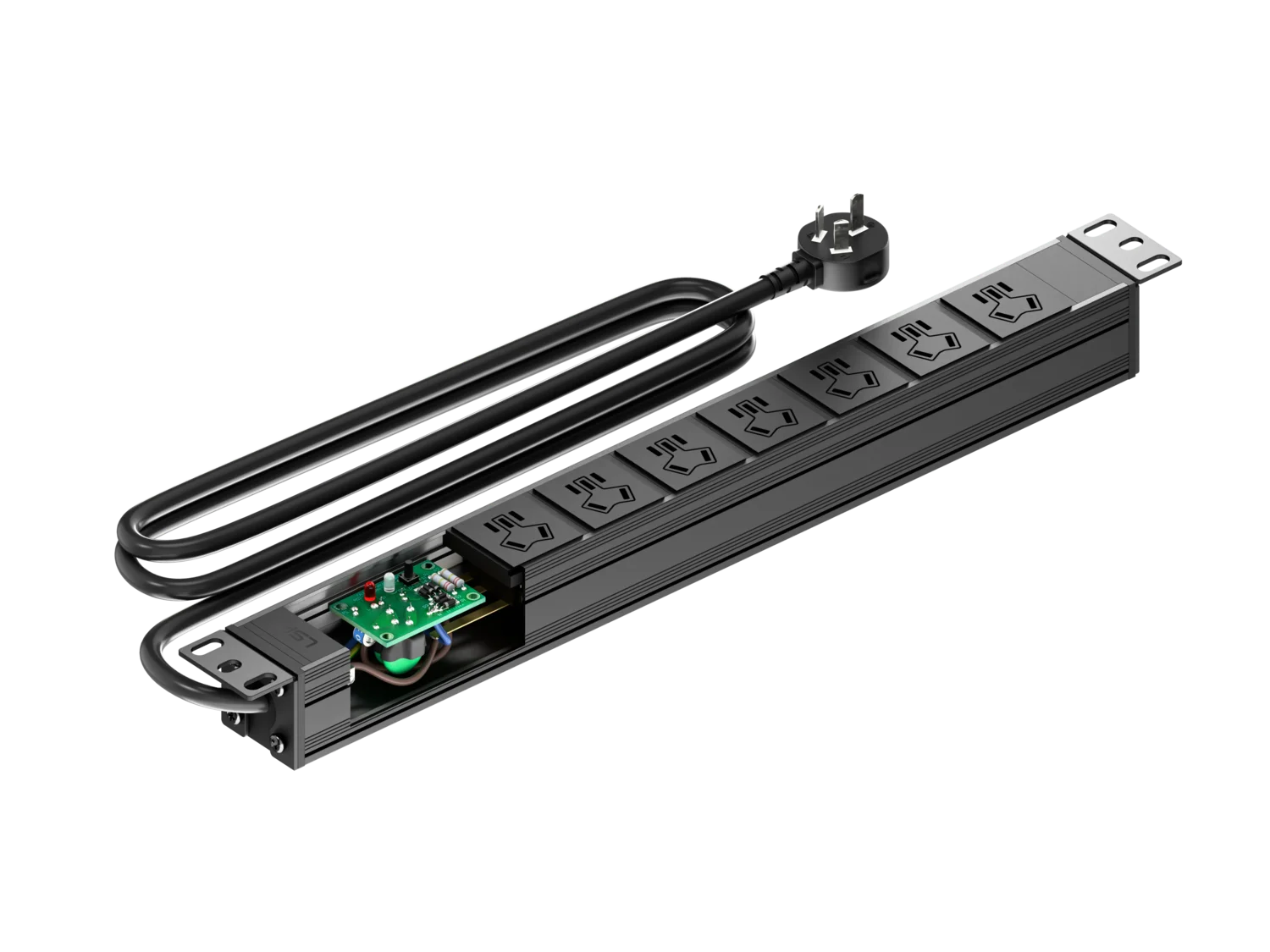

To reduce such risks, using a surge protector is an effective safeguard. Surge-protected power strips are widely used in low-voltage systems, household appliances, and office equipment. Their primary function is to instantly limit surge energy within a safe range and divert it to ground, ensuring the safe operation of downstream equipment.
When selecting a surge protector, the joule rating is a key parameter. It measures the total amount of energy the surge protector can absorb—essentially indicating its endurance.
What are the Joules on a Surge Protector?
A joule (symbol: J) is the SI unit of energy, where 1 joule equals 1 watt-second (W·s). In surge protection, the joule rating indicates how much cumulative surge energy the device can absorb before it fails.
The core components of a surge protector usually include Metal Oxide Varistors (MOVs) or other nonlinear suppressor components. These components become conductive when the voltage exceeds a threshold, directing the excess current to ground or a bypass path to prevent it from reaching the protected devices. However, every time they discharge energy, heat is generated and material degradation occurs—gradually reducing their energy absorption capacity.
Therefore, a higher joule rating means the internal components have greater thermal capacity and can withstand more cumulative surge energy. This results in more surge events being handled, a longer service life, and more consistent protection performance.
In engineering terms:
- High joule rating: Can absorb more and larger surges → longer lifespan and higher reliability
- Low joule rating: Limited surge capacity, suitable for light-load environments → reaches failure threshold sooner and needs more frequent replacement
However, while the joule rating is important, it should not be evaluated in isolation. As we’ll explain later, proper selection should also consider other key parameters such as response time, maximum continuous operating voltage (MCOV), and peak surge current capacity.
Why Is the Joule Rating Important?
The joule rating is not only a core performance indicator of a surge protector but also a critical reference for evaluating its protection capability, lifespan, and overall cost-effectiveness. Here are three key reasons why it matters:
1. Enhanced Protection for Electronic Devices
Modern electronic devices (like computers, routers, LCD TVs, and smart home systems) contain numerous sensitive components that are highly vulnerable to microsecond-level overvoltages. A surge can cause irreversible damage to motherboards, communication ports, and power modules.
A higher joule rating means the surge protector can absorb a greater amount of energy, offering stronger resistance to surge events. It can safely handle multiple or more powerful surges without passing damaging energy to your devices.
2. Determines the Effective Lifespan of the Surge Protector
The internal components of surge protectors, such as MOVs or TVS diodes, have a limited energy absorption capacity. Every time they respond to a surge, some of that joule rating is consumed. Once the total rating is depleted, the device loses its protective function and essentially becomes a regular power strip.
Surge protectors with higher joule ratings can operate longer in the same environment, reducing the risk of entering an unprotected state due to unnoticed failure.
3. Lowers Long-Term Usage Costs
From a cost perspective, replacing a surge protector with a sufficient joule rating is much cheaper than replacing high-value equipment damaged by a surge—such as industrial controllers or home theater systems.
Selecting a surge protector with a proper high joule rating not only extends the product’s service life but also reduces indirect costs caused by equipment failure, such as repair expenses, downtime, and data loss.
How Many Joules Are Needed for Different Scenarios?
The joule rating of a surge protector should be selected based on the specific usage environment and the type of equipment being protected.
Different devices vary in their sensitivity to surges and in their value, which means their requirements for energy absorption capacity (joule rating) also differ significantly.
Below are some common application scenarios along with recommended joule rating ranges for each:
| Application Scenarios | Recommended Joule Rating (J) | Description |
| Small Electronic Devices (e.g., phone chargers, routers, modems) | 1,000–2,000J | These are compact, low-cost devices with moderate protection needs. However, repeated surges can shorten their lifespan, so some level of surge protection is still important. |
| Home Entertainment Equipment (e.g., TVs, gaming consoles, audio systems) | 2,000–3,000J | These devices are higher in value and typically operate for extended periods, making them more vulnerable to surge-related damage. A higher joule rating ensures better protection. |
| Household Appliances (e.g., refrigerators, washing machines, dishwashers) | 2,000–4,000J | Large appliances can generate internal surges when starting up, in addition to being exposed to external surges. Given their high repair costs, stronger surge protection is recommended. |
| High-End Electronics (e.g., high-performance PCs, workstations, professional audio equipment) | 3,000–6,000J | These devices demand high power stability and signal integrity. Since damage can be costly, a high level of surge protection is essential. |
| Whole-House or Panel-Level Protection | ≥10,000J | Ideal for areas prone to lightning strikes or high-value properties. System-level protection can be achieved by installing rail-mounted surge protection devices (SPDs) in the main distribution panel. |
Guidelines for Choosing the Right Joule Rating
- The higher the value and importance of the protected equipment, the higher the recommended joule rating for the surge protector.
- Power grid quality and lightning frequency in the area: In regions with frequent thunderstorms or unstable power systems, a higher joule rating should be considered.
- Multi-level protection schemes: If a high-capacity, rail-mounted surge protector is installed at the distribution panel, the joule rating required for downstream surge-protected power strips can be reduced accordingly.
A reasonable joule rating configuration not only ensures the safety of your equipment but also extends the lifespan of the surge protector itself, reducing the need for frequent replacement.
Factors Affecting Joule Rating Selection
When selecting a surge protector’s joule rating, it’s not enough to rely solely on equipment type or fixed values. A comprehensive evaluation of multiple factors is necessary to ensure cost-effectiveness and reliable protection. Key influencing factors include:
1. Power Grid Environment and Regional Characteristics
- Lightning frequency and intensity: Areas with frequent thunderstorms experience more and stronger surges. In such regions, surge protectors with higher joule ratings are recommended, ideally in conjunction with panel-level protection.
- Power system stability: In industrial zones or older urban areas with frequent voltage fluctuations, surges are more common, so devices with higher joule ratings should be used.
- Power grid type and grounding system: The grounding method of the power system (TN, TT, or IT systems) affects surge behavior and therefore the standards for surge protector selection.
2. Device Sensitivity and Value
- Device surge tolerance: Precision instruments and digital devices are highly sensitive to surges and require high-joule surge protection.
- Device cost and maintenance: High-value equipment requires stricter protection. Investing in high-joule surge protectors can significantly reduce long-term maintenance and replacement costs.
3. Usage Environment and Load Characteristics
- Load power and type: High-power devices can generate large internal surges during startup, potentially affecting nearby equipment. In such cases, higher joule ratings are advised.
- Usage frequency and duration: Devices that operate continuously or are frequently powered on and off are more vulnerable to cumulative surge damage.
4. Multi-Level Protection Systems
Rail-mounted SPDs (Type 1 or Type 2) installed in the distribution panel provide initial surge suppression at the source. As a result, the joule rating requirement for terminal surge protectors can be lower.
On the contrary, if there is no upstream protection, the terminal equipment must be equipped with a high-joule surge protector to withstand the full surge energy.
Why a High Joule Rating Is Crucial for Your Electronic Devices
The joule rating, as a key indicator of a surge protector’s energy absorption capacity, directly reflects its effectiveness in defending against power surges.
The joule rating represents the total cumulative energy the surge protector can absorb. Each surge event consumes a portion of this capacity. The higher the joule rating, the more energy the protector can absorb over its lifespan.
A high joule rating ensures longer-lasting protection. Even after repeated surge impacts, the protector remains effective, avoiding premature failure of protective components that could otherwise leave your devices vulnerable.
It also enhances the safety of high-value and sensitive electronics. For devices like data processing systems, industrial control equipment, and high-end consumer electronics, high-joule surge protectors significantly reduce the risk of failure and associated maintenance costs.
Choosing a surge protector with a high joule rating is a critical step to ensure long-term stable operation of your electronic devices and to minimize potential losses.
How Many Joules is a Good Surge Protector?
An important criterion for judging the quality of a surge protector is whether its joule rating meets the needs of the protected device. Since different devices vary in sensitivity and value, their required energy absorption capability (joule rating) also differs. Below are joule rating recommendations for common devices to guide your purchase:
How many joules surge protector for tv?
Modern LCD/LED TVs contain complex power modules and control circuits that are sensitive to surges. It’s recommended to choose a surge protector with at least 2000 J to cope with common grid fluctuations and sudden surge events—extending the lifespan of your TV.
How many joules surge protector for pc?
Desktop PCs, especially those with discrete graphics cards and multiple peripherals, are complex and high-value systems. A surge protector rated at 3000 J or higher is recommended to reduce the risk of PSU damage or data loss.
How many joules for a refrigerator surge protector?
Refrigerators are large household appliances that generate significant surge current during startup and operation, and are also vulnerable to external surges affecting their control circuits. A surge protector in the 2000–4000 J range is advised to ensure reliable operation.
How many joules for laptop surge protector?
Although laptops are compact, they are still sensitive to power fluctuations. A joule rating of at least 1000–2000 J is generally sufficient to protect the adapter and internal circuitry.
How many joules for rv (recreational vehicle) surge protector?
RVs are often used outdoors in environments with limited power quality and are more susceptible to lightning and grid variations. A specialized surge protector with at least 3000 J is recommended to safeguard onboard electronic devices.
Summary Table of Recommended Joule Ratings:
- Small electronics: 1000–2000 J
- Home entertainment devices (TVs, game consoles): 2000–3000 J
- Large household appliances (refrigerators, etc.): 2000–4000 J
- High‑end computer systems: 3000 J and above
- Special environments (RVs, industrial equipment): 3000 J and above
A properly chosen joule rating not only protects devices but also avoids frequent replacements due to insufficient surge capacity.
Other Key Factors to Consider Besides Joule Rating
Although the joule rating is a critical metric in evaluating surge protector performance, it alone does not fully reflect the level of protection. When selecting, you should also consider the following technical specifications:
1. Maximum Surge Current (Max. Discharge Current, in kA)
This indicates the peak current the protector can safely handle in a single surge event. The higher the rating, the better the protector’s resistance to extreme events like lightning strikes or grid faults. For example, a model rated for 20 kA can withstand far higher currents than typical surges, significantly enhancing device safety.
2. Response Time (Response Time, in nanoseconds, ns)
This measures how quickly the protector activates and clamps the voltage peak after a surge occurs. A faster response time means less surge energy reaches the protected device. Ideally, response time should be below 1 ns to provide near-instant protection for sensitive components.
3. Maximum Continuous Operating Voltage (MCOV or Uc)
This is the voltage threshold at which the protector starts conducting and clamping. A lower MCOV means protection kicks in sooner at lower voltage levels, increasing safety. Common clamping voltages include 330 V, 400 V, and 500 V—chosen based on the voltage tolerance of the device being protected.
4. Relevant International Certifications (e.g., UL 1449, IEC/EN 61643‑11)
Surge protector performance and safety must meet recognized standards. UL 1449 is a U.S. safety standard, while IEC/EN 61643‑11 is used in Europe and other regions. Choosing products certified to these standards assures quality and reliable protection.
Can a Surge Protector Handle Multiple Surges? Can Its Joule Rating Be Depleted?
The core components of a surge protector, such as Metal Oxide Varistors (MOVs), absorb and dissipate surge energy during operation. However, their absorption capacity is limited and subject to cumulative degradation over time.
1. Accumulation of Joule Rating Consumption
Whenever a surge occurs, the MOV (Metal Oxide Varistor) inside the protector becomes conductive, diverting the overvoltage to the ground or bypass path. This process involves the absorption and conversion of energy, but it also gradually deteriorates the microscopic structure of the MOV material. Each surge event consumes a portion of the joule capacity.
Therefore, the joule rating of a surge protector represents the maximum cumulative energy it can absorb, rather than the energy limit for a single surge event. As the number of surges increases, the joule capacity gradually decreases until it reaches its design limit, at which point the protector will lose its protective function.
2. How Many Surges Can It Absorb?
The exact number varies depending on surge intensity and the protector’s joule rating.
- A single high-energy surge may consume a large portion of the joule rating, causing early failure.
- Repeated low-energy surges consume it gradually, extending the protector’s lifespan.
As a result, there’s no fixed “number of surges” — lifespan depends on real-world use.
3. Recognizing When the Joule Rating Is Depleted & Replacement Guidance
High-quality surge protectors are generally equipped with status indicators or fault alarm functions to alert users when the protector has failed or its protective capability has significantly decreased.
For products without indicators, it is recommended to set a reasonable replacement cycle based on the installation environment and usage frequency.
In regions prone to thunderstorms or frequent surges, it is recommended to inspect or replace surge protectors every 1 to 2 years to ensure continuous and effective protection.
How to Tell When a Surge Protector Needs to Be Replaced
As a protective device, a surge protector’s performance gradually degrades over time and with repeated surge events. Timely replacement is essential to ensure the safety of connected equipment. The following key indicators can help determine whether it’s time to replace your surge protector:
1. Status Indicator Light
Most high-quality surge protectors or surge-protected power strips come equipped with a status indicator light to reflect the effectiveness of their protection function in real time.
- If the indicator light is on, it means the internal components (such as MOVs) still have the capacity to absorb surges.
- If the light is off or flashing, it usually indicates that the joule capacity has been exhausted and the device has lost its protective function. In this case, it should be replaced immediately.
2. Service Life and Environmental Factors
The typical lifespan of a surge protector is 3 to 5 years, but the actual replacement cycle can vary depending on environmental conditions.
- In areas prone to frequent lightning or unstable power supply, it is recommended to shorten the replacement interval to 2 to 3 years.
- Regular inspection and timely replacement help prevent damage to equipment caused by a failed surge protector.
Choosing the Right Surge Protector Based on Joule Rating & Other Factors
To choose the right surge protector, it is essential to consider both the protection requirements of the equipment and the technical specifications of the product. This ensures not only the safety of the devices but also a cost-effective investment. You may refer to the following guiding principles:
1. Choose the joules as needed
According to the category and application environment of the protected equipment, configure the joule value of surge protectors reasonably:
- Small Electronic Devices (e.g., phone chargers, routers)
Recommended Joule Rating: 1,000–2,000 joules.
Suitable for surge-sensitive but relatively low-value devices, providing basic protection.
- Home Entertainment Equipment (TVs, gaming consoles, audio systems)
Recommended Joule Rating: 2,000–3,000 joules.
Protects high-value household electronics from medium-level surges.
- Household Appliances (refrigerators, washing machines, etc.)
Recommended Joule Rating: 2,000–4,000 joules.
Takes into account both surge generated during appliance startup and power grid disturbances, requiring stronger energy absorption capability.
- High-End Computers and Professional Audio Equipment
Recommended Joule Rating: 3,000–6,000 joules.
High-value devices with strict power quality requirements should use high-joule products for long-term protection.
- Whole-House Surge Protection (Main Distribution Panel Level)
Recommended Joule Rating: ≥10,000 joules, or choose DIN rail-mounted SPDs compliant with Type 1 or Type 2 standards.
These provide first-level protection for the entire electrical system, used in combination with plug-in SPDs for multi-layered defense.
2.Pay Attention to Other Key Parameters
- Response Time: The faster the surge protector responds, the more effectively it can limit transient overvoltage. Look for products with a response time under 1 nanosecond.
- Maximum Surge Current: Higher ratings allow the surge protector to withstand larger peak surge currents, improving overall protection performance.
3.Regular maintenance and replacement:
- Even high-joule surge protectors degrade over time as internal components absorb surges. Protection capacity decreases gradually. It’s recommended to periodically check the status of the protector based on your usage environment and device condition. Replace it in time according to the indicator light status or after the rated service life to ensure continued protection.
