Created by: Glen Zhu | Updated Date: March 31st, 2025

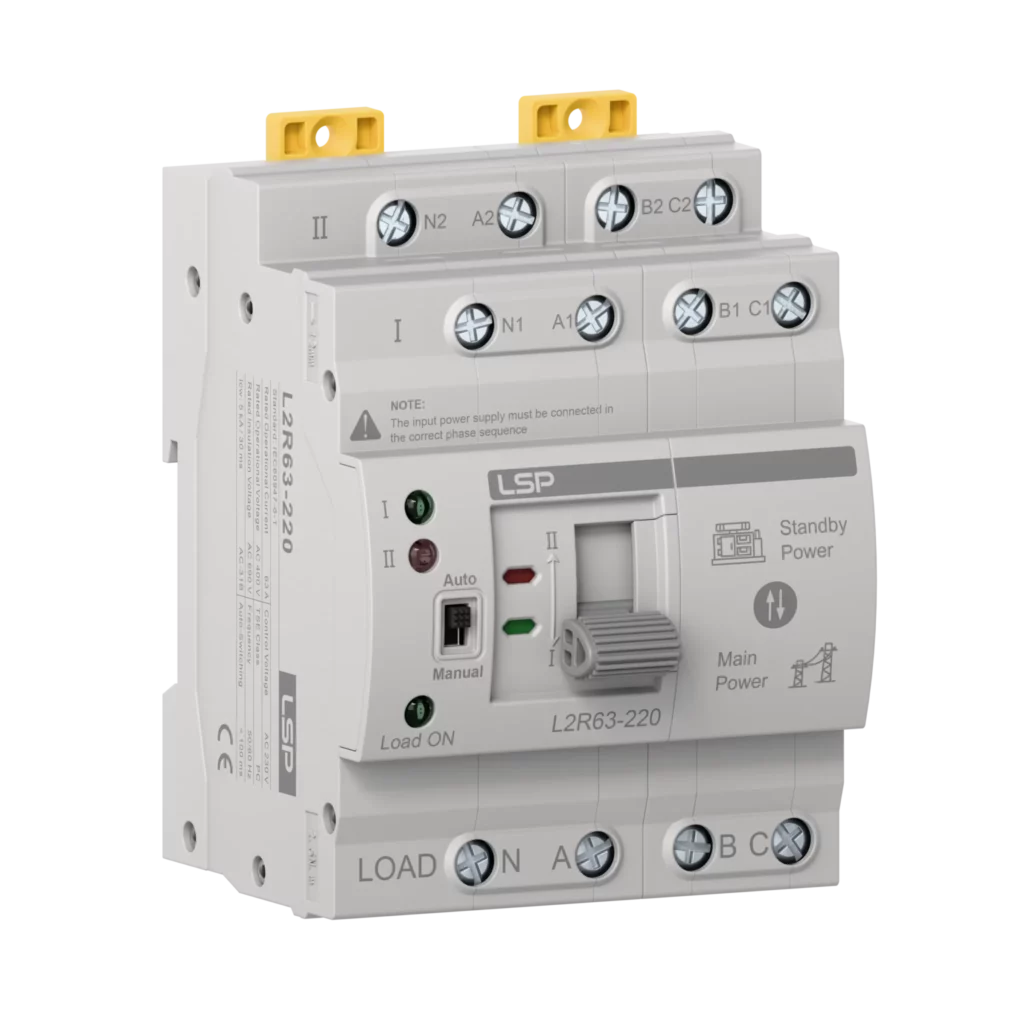

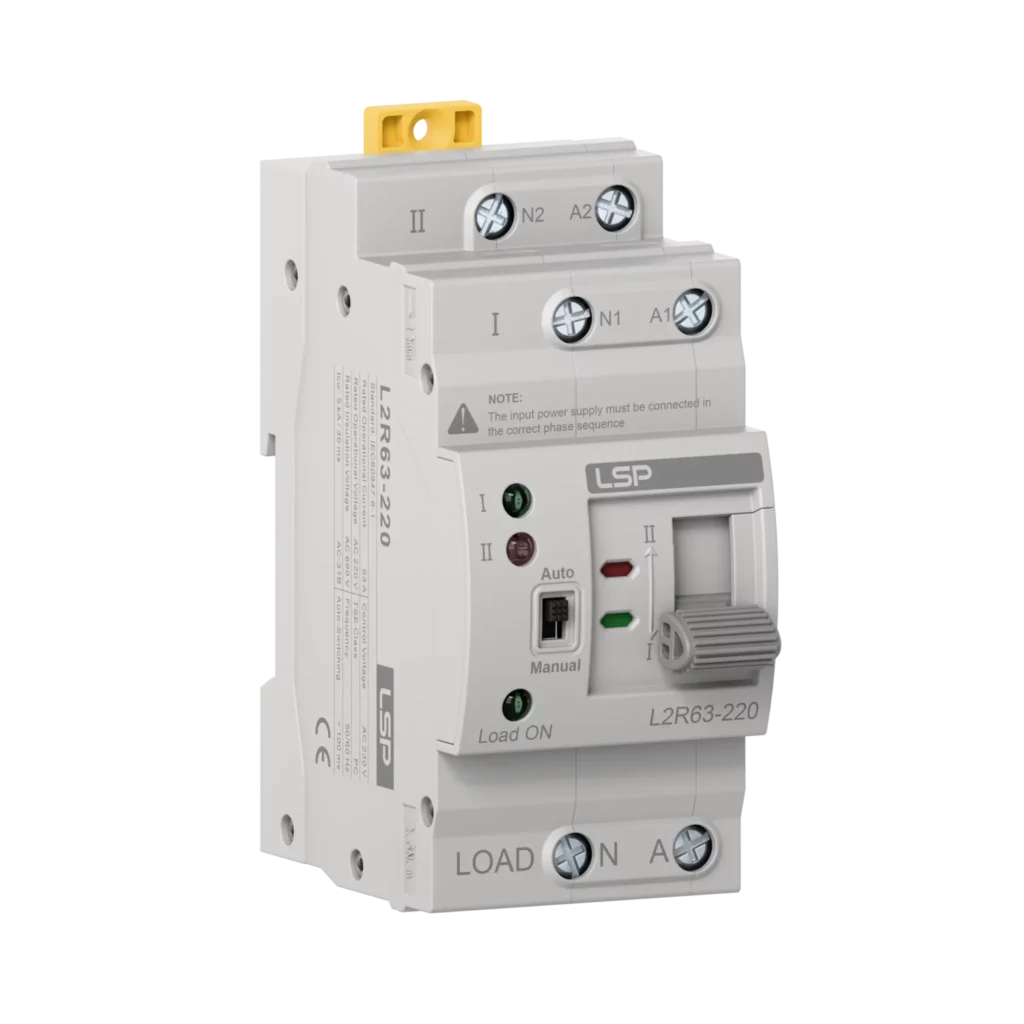

An automatic transfer switch is a device that ensures your power supply remains uninterrupted during outages. It detects when the main power source fails and instantly switches to a backup generator, keeping your essential systems running. This automation eliminates the risks of manual switching, such as delays or safety hazards.
You’ll find these switches indispensable in settings like hospitals, factories, and data centers, where even a brief power loss can cause significant disruptions. The growing demand for reliable power solutions highlights their importance. For example:
1. Critical facilities like hospitals and data centers rely on automatic transfer switches to prevent costly downtime.
2. Rising industrial investments and safety regulations have increased their adoption across sectors.
3. Frequent power outages have driven the need for backup generators, further boosting demand.
By ensuring rapid transitions between power sources, automatic transfer switches protect sensitive equipment and maintain operational continuity.
An automatic transfer switch constantly monitors the primary power source to ensure a steady and reliable supply. Advanced microprocessors and sensors track key parameters like voltage, frequency, and phase. These components detect any irregularities, such as voltage drops or frequency fluctuations, before they escalate into power failures.
Modern systems provide real-time data on power availability and load capacities. This information helps you stay informed about the health of your power supply. By proactively identifying potential issues, the automatic transfer switch ensures your critical systems remain protected from unexpected disruptions.
When the primary power source fails, the automatic transfer switch springs into action. Sensing devices immediately detect the loss of power and trigger the transfer process. This rapid response minimizes downtime and eliminates the need for manual intervention.
The system’s ability to detect power failures is crucial for maintaining operations in critical environments. For example, in healthcare facilities, uninterrupted power is essential for patient safety. Similarly, data centers rely on these switches to prevent costly outages and protect sensitive equipment from damage caused by power surges.
Once the automatic transfer switch detects a power failure, it seamlessly transitions to the backup power source. Depending on the system design, this process can follow two modes: Break-Before-Make or Make-Before-Break. The former disconnects the primary source before connecting the backup, while the latter ensures a brief overlap for a smoother transition.
Tip: Regular testing of your automatic transfer switch can help ensure it performs reliably during emergencies.
Once the primary power source stabilizes, the automatic transfer switch begins the process of returning to it. This step ensures that your backup power source is preserved for future emergencies. The system carefully monitors the main power supply to confirm its reliability before initiating the transfer. It checks parameters like voltage, frequency, and phase alignment to avoid any potential damage to your equipment.
The transition back to the primary power source happens in a controlled manner. The automatic transfer switch waits for a predefined stabilization period, often referred to as the “retransfer delay.” This delay ensures that the main power source remains steady and prevents unnecessary switching caused by brief fluctuations. You can usually customize this delay based on your specific needs or the requirements of your facility.
When the system determines that the primary power source is stable, it disconnects the backup power and reconnects the main supply. This process is seamless and designed to minimize any disruption. In most cases, you won’t even notice the switch happening. The automatic transfer switch ensures that your operations continue smoothly while protecting your equipment from potential power surges during the transition.
After the retransfer, the system resets itself and resumes monitoring the primary power source. This readiness ensures that it can respond immediately to any future outages. Regular maintenance and testing of your automatic transfer switch are essential to keep this process reliable. By doing so, you can ensure that your backup power system remains effective and ready to protect your operations.
Note: Always consult the manufacturer’s guidelines or a professional technician when adjusting the settings of your automatic transfer switch. Proper configuration is crucial for optimal performance and safety.
The controller acts as the brain of an automatic transfer switch. It manages the entire operation, from monitoring the power supply to initiating the transfer process. Modern controllers use advanced microprocessors to enhance performance. These microprocessors provide real-time data on power availability and load capacities, ensuring efficient operation.
Controllers also detect abnormalities in voltage or frequency. This capability allows you to address potential issues before they escalate into failures. Additionally, they optimize load management by analyzing power usage patterns. This ensures that your system operates smoothly and efficiently, even during power transitions.
Tip: Regularly updating the controller’s firmware can improve its performance and ensure compatibility with newer technologies.
Sensors play a critical role in ensuring the reliability of an automatic transfer switch. They continuously monitor voltage and frequency levels to detect any irregularities. Advanced sensors enhance system accuracy by identifying even minor fluctuations.
These sensors provide several benefits:
By using these sensors, you can maintain a stable power supply and protect your equipment from damage caused by voltage or frequency abnormalities.
Contactors and relays are the mechanical components responsible for switching power sources. The transfer switch mechanism connects or disconnects the primary and backup power supplies. This ensures a seamless transition during outages.
Relays act as the intermediary between the controller and the contactors. When the controller detects a power failure, it signals the relays to activate the contactors. This process happens quickly, minimizing downtime and maintaining operational continuity.
The table below summarizes the key components involved in power switching:
| Component | Description |
|---|---|
| Transfer switch mechanism | Core component responsible for connecting or disconnecting power sources. |
| Automatic source sensing devices | Detect power failures and initiate transfer; includes advanced sensors for real-time data on power availability. |
| Control circuitry and monitoring | Ensures smooth operation and provides real-time information; microprocessor-based controls enhance functionality. |
| Power distribution connections | Facilitate the distribution of power to various electrical loads. |
These components work together to ensure that your automatic transfer switch operates efficiently and reliably.
The enclosure of an automatic transfer switch plays a vital role in protecting its internal components and ensuring your safety. It shields the sensitive parts from environmental factors like dust, moisture, and extreme temperatures. This protection extends the lifespan of the device and ensures it operates reliably under various conditions. A well-designed enclosure also minimizes the risk of accidental contact with live electrical parts, reducing the chances of electrical shocks.
Safety mechanisms built into the enclosure enhance the overall performance of the automatic transfer switch. Features like External Manual Operators (EMOs) allow you to operate the switch without opening the cabinet doors. This design ensures the doors remain closed during arc flash procedures, significantly reducing the risk of injury. High-quality materials used in the enclosure construction further lower the potential for arc flash danger, providing an additional layer of safety.
Tip: Always ensure the enclosure meets industry standards, such as NEMA or IP ratings, to guarantee optimal protection and safety.
The quick-break and quick-make mechanisms integrated into the switch improve reliability during power transitions. These mechanisms minimize downtime by ensuring a fast and smooth transfer of power. They also eliminate risks associated with manual switching, such as human error or delays. By automating the process, the switch ensures your systems continue running without interruption.
Here’s a summary of how specific safety features impact performance:
| Safety Feature | Impact on Safety Performance |
|---|---|
| External Manual Operators (EMOs) | Ensures cabinet doors remain closed during arc flash procedures. |
| High-Quality Materials | Reduces potential for arc flash danger. |
| Quick-Break and Quick-Make Mechanism | Minimizes downtime and enhances reliability during power transitions. |
These features work together to create a safer and more efficient system. You benefit from reduced risks, smoother power transitions, and improved operational reliability.
Key advantages of these safety mechanisms include:
By prioritizing safety and reliability, the enclosure and its mechanisms protect both you and your equipment. Regular inspections and maintenance of the enclosure ensure it continues to perform effectively, keeping your operations safe and uninterrupted.
Automatic transfer switches come in several types, each designed to meet specific operational needs. Understanding these types helps you choose the right one for your application.
An open transition automatic transfer switch operates using a “break-before-make” method. It disconnects the primary power source before connecting to the backup source. This brief interruption in power makes it suitable for applications where momentary downtime is acceptable.
You’ll find this type commonly used in residential and general commercial settings. For example, small businesses often rely on open transition switches to maintain basic operations during outages. While the momentary power loss may not affect non-critical systems, sensitive equipment might require additional safeguards.
Note: Open transition switches are cost-effective and simpler to maintain, making them a popular choice for non-sensitive loads.
A closed transition automatic transfer switch eliminates power interruptions during the transfer process. It uses a “make-before-break” method, momentarily paralleling the primary and backup sources. This ensures a seamless transition, ideal for environments where even a brief power loss can cause disruptions.
Hospitals and data centers often use closed transition switches to protect critical systems. For instance, medical equipment in healthcare facilities depends on uninterrupted power to ensure patient safety. Similarly, servers in data centers require continuous power to prevent data loss or corruption.
| Type of ATS | Characteristics | Applications |
|---|---|---|
| Open Transition | Momentary power interruption during transfer. | Most applications. |
| Closed Transition | No power interruption during transfer, momentarily parallels sources. | Sensitive loads. |
Tip: If your facility handles sensitive equipment, investing in a closed transition switch can save you from costly downtime.
Soft load automatic transfer switches offer a more advanced solution by gradually transferring the load between power sources. This controlled transition minimizes stress on your electrical system and reduces the risk of power surges.
These switches are particularly useful in facilities with large motors or equipment that require stable voltage levels during power transitions. Manufacturing plants and industrial facilities often benefit from soft load switches, as they help maintain operational efficiency while protecting machinery.
Soft load switches also support load-sharing capabilities, allowing you to balance power distribution between the primary and backup sources. This feature enhances system reliability and reduces wear on your equipment.
Callout: Soft load switches are ideal for applications requiring controlled power transitions and load-sharing capabilities.
By understanding the characteristics and applications of these types, you can select the automatic transfer switch that best suits your needs.
A static transfer switch (STS) uses solid-state components like thyristors or silicon-controlled rectifiers (SCRs) to transfer power between sources. Unlike mechanical switches, it operates without moving parts, enabling faster and more reliable transitions. You can expect an STS to switch between power sources in milliseconds, ensuring uninterrupted power for critical systems.
This type of switch is ideal for environments where even the slightest power interruption can cause significant issues. For example, data centers often rely on static transfer switches to maintain continuous power for servers and networking equipment. Similarly, hospitals use them to protect life-support systems and other essential medical devices. The rapid response of an STS minimizes downtime and prevents damage to sensitive equipment.
Static transfer switches also offer high efficiency and durability. Since they lack mechanical components, they experience less wear and tear, reducing maintenance needs. Additionally, their compact design makes them suitable for installations with limited space. However, you should note that STS systems may require a higher initial investment compared to other types of automatic transfer switches. Despite this, their long-term reliability and performance often justify the cost.
Tip: If your facility handles sensitive equipment or requires ultra-fast power transitions, a static transfer switch could be the best choice.
Automatic transfer switches (ATS) serve various applications, depending on their type and features. Each type offers unique benefits tailored to specific scenarios. Understanding these applications helps you select the right ATS for your needs.
The versatility of ATS makes them indispensable across industries. They work with various power sources, including utility grids, diesel generators, and renewable energy systems. This adaptability ensures reliable power supply in diverse settings.
Callout: Investing in the right ATS can save you from financial losses, operational disruptions, and equipment damage. Choose a type that aligns with your specific requirements.
By understanding the strengths of each type, you can make an informed decision and ensure your facility remains operational, even during unexpected power outages.

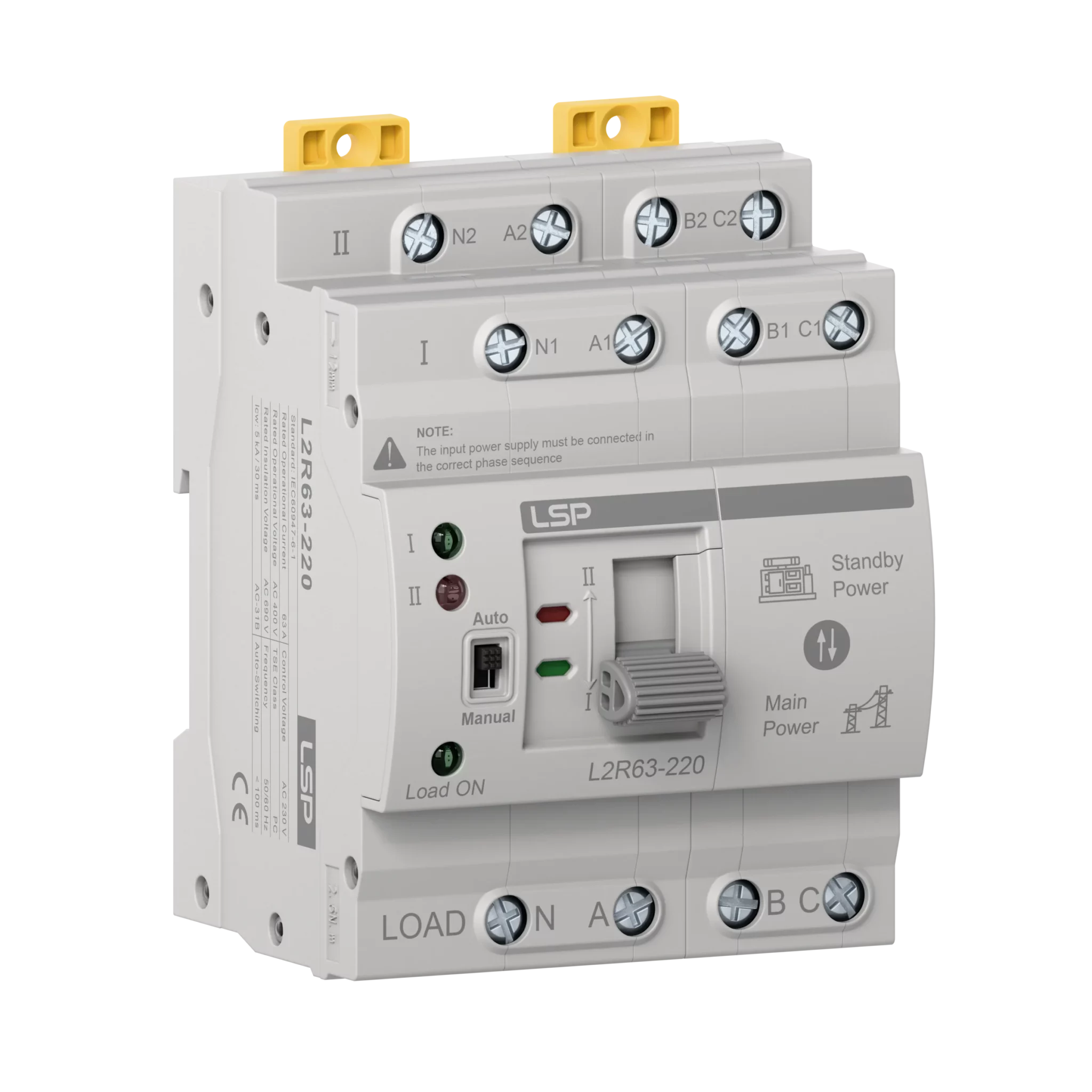

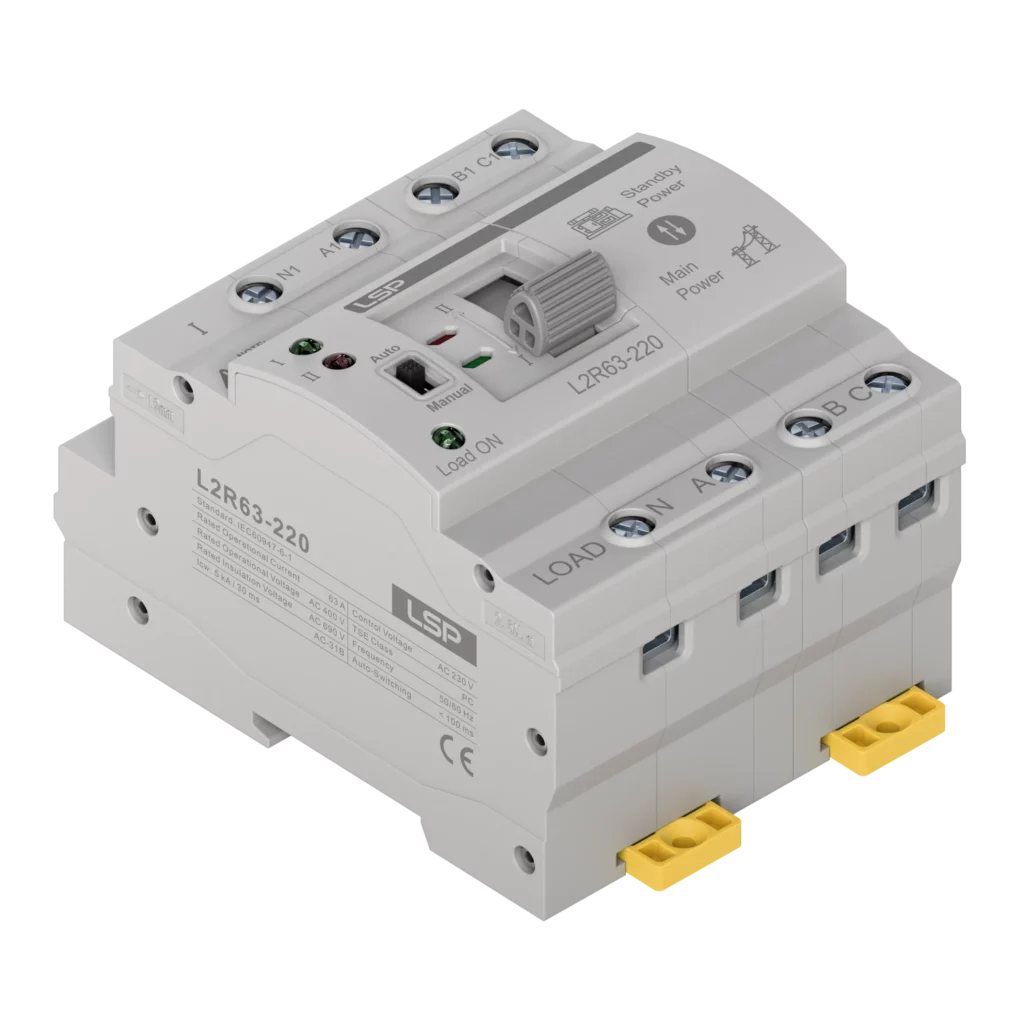

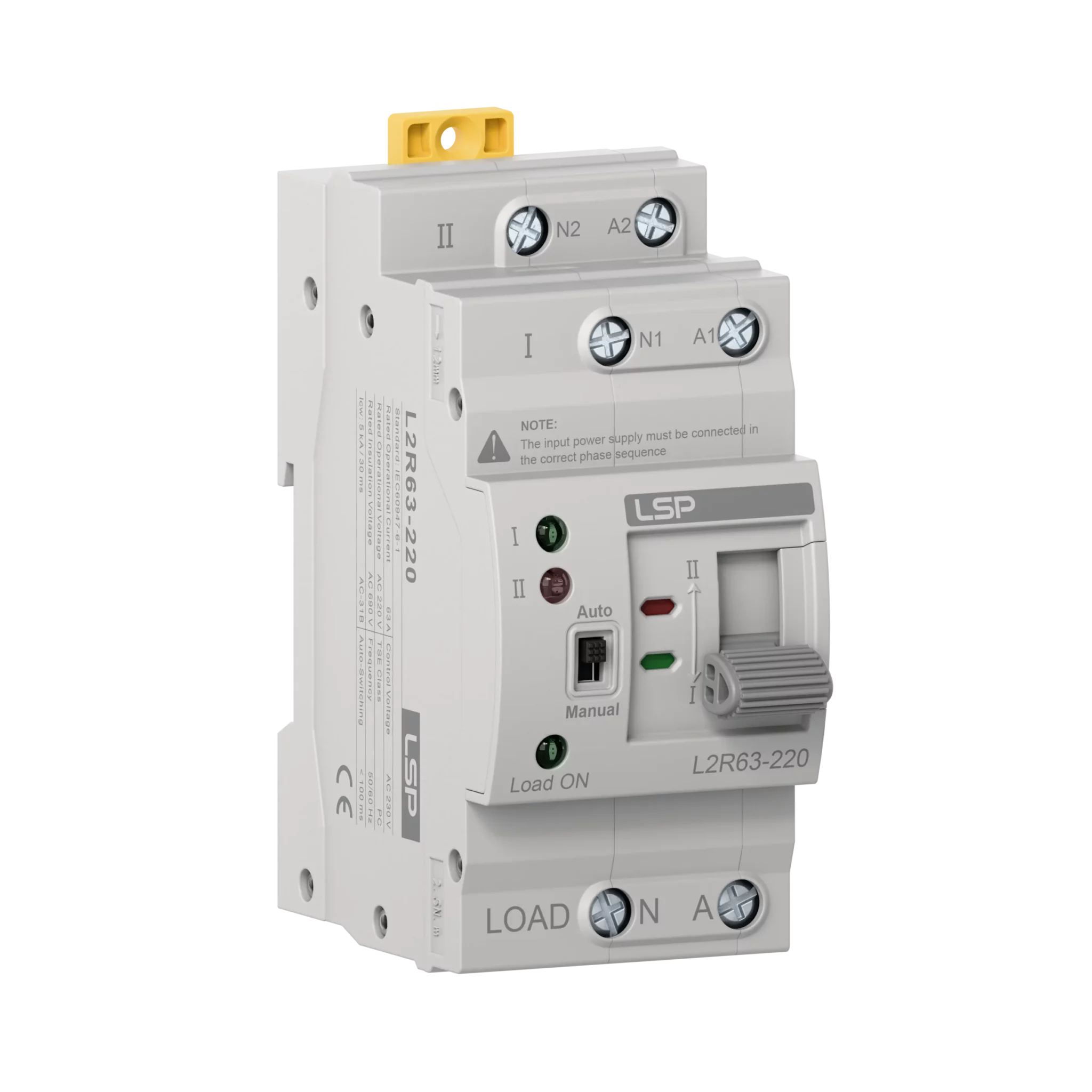

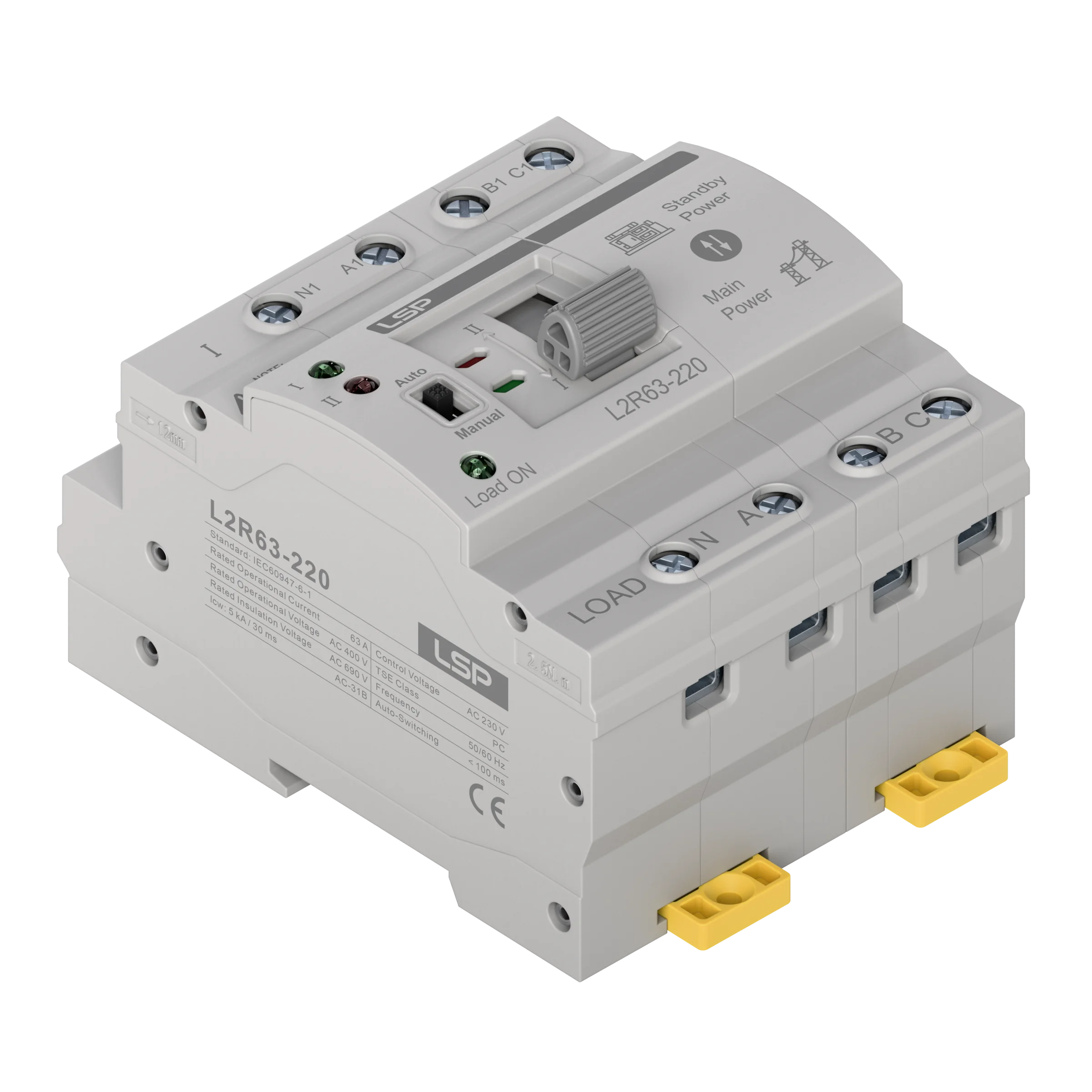

By automating the transition between power sources, the switch eliminates the need for manual intervention. This automation reduces the risk of human error and ensures a seamless power supply. You can rely on it to maintain productivity and protect critical operations, even during unexpected outages.
Tip: Regular testing of your automatic transfer switch ensures it performs reliably when needed.
Safety is a top priority when dealing with power systems. An automatic transfer switch enhances electrical safety by automating the switching process. Manual switching can be risky, especially during emergencies. Human error, such as connecting the wrong power source, can lead to equipment damage or even electrical hazards.
The switch’s built-in safety mechanisms protect both you and your equipment. For instance, it prevents power surges by ensuring a controlled transition between sources. Additionally, its enclosure shields sensitive components from environmental factors, reducing the risk of malfunctions. By using an automatic transfer switch, you can minimize safety risks and ensure a reliable power supply.
Callout: Always follow the manufacturer’s guidelines for installation and maintenance to maximize safety.
Downtime can be costly for businesses. An automatic transfer switch minimizes downtime by ensuring rapid transitions to backup power sources. It typically switches within seconds, preventing long periods of inactivity. This quick response is crucial for industries like manufacturing, where even a brief power loss can disrupt production lines.
Key benefits of reducing downtime with an automatic transfer switch:
You can depend on an automatic transfer switch to keep your operations running smoothly, even during unexpected power failures. Its reliability makes it an essential component for maintaining productivity and protecting your investments.
Integration with Backup Generators
An ATS pairs effortlessly with backup generators to provide a reliable power supply during outages. When the main power fails, the ATS signals the generator to start. Once the generator reaches optimal performance, the switch transfers the load to it. This process happens automatically, eliminating the need for manual intervention.
You can customize the ATS settings to match your generator’s specifications. For example, you might adjust the delay time to ensure the generator stabilizes before taking on the load. This feature protects your equipment from potential damage caused by unstable power.
Tip: Always verify that your generator’s capacity matches your power needs. An undersized generator may struggle to handle the load, while an oversized one could waste fuel.
Compatibility with Renewable Energy Systems
Renewable energy sources like solar panels and wind turbines integrate well with ATS. These systems often work alongside battery storage to provide backup power. The ATS monitors the availability of renewable energy and switches to it when conditions are favorable. If the renewable source becomes insufficient, the ATS transitions to a secondary backup, such as a generator.
This compatibility allows you to maximize the use of clean energy while ensuring a reliable power supply. For instance, during the day, your ATS can prioritize solar power. At night or during cloudy weather, it can switch to stored battery power or a generator.
Benefits of ATS in Hybrid Systems
Using an ATS in hybrid systems that combine renewable energy and generators offers several advantages:
| Power Source | Role in Hybrid System | ATS Functionality |
|---|---|---|
| Solar Panels | Primary source during sunny conditions | Switches to solar when sufficient power exists. |
| Battery Storage | Backup for renewable energy | Transfers load to batteries when needed. |
| Diesel Generator | Secondary backup for emergencies | Activates generator during extended outages. |
Callout: Investing in an ATS compatible with renewable energy helps you achieve both sustainability and reliability.
By integrating ATS with backup generators and renewable energy, you can create a robust power system. This setup ensures continuous power while supporting your environmental and operational goals.

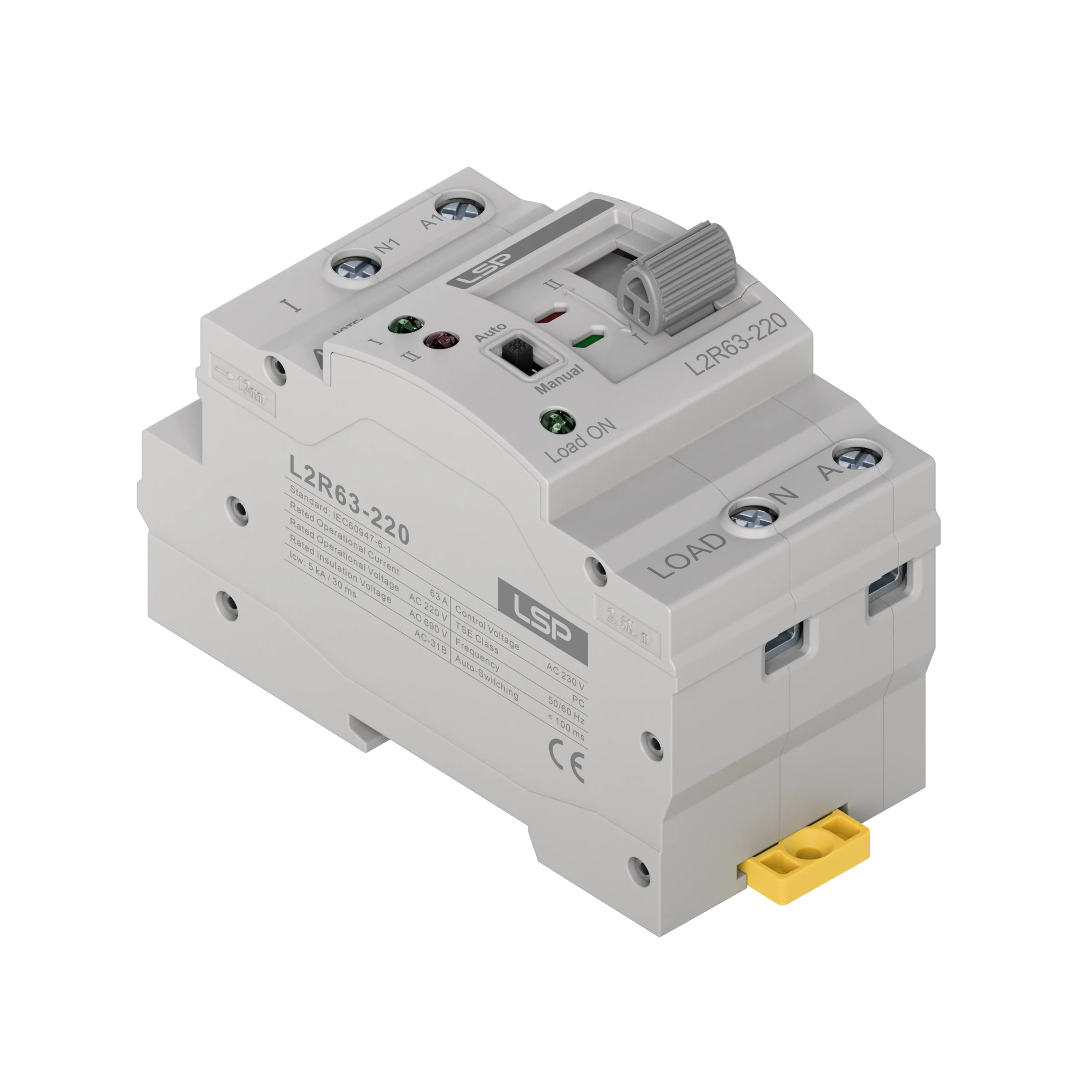

Routine inspections are essential for keeping your automatic transfer switch in top condition. These inspections help you identify potential issues before they escalate into costly failures. By regularly checking the system, you can ensure it operates efficiently and reliably during emergencies.
Inspections also extend the lifespan of your equipment. For example, examining mechanical parts can reveal wear and tear that might affect performance. Addressing these issues early prevents unexpected breakdowns. Additionally, routine checks ensure the system complies with safety standards, protecting both your equipment and personnel.
Tip: Schedule inspections monthly to maintain optimal performance and meet industry standards like NFPA 110.
Testing your automatic transfer switch ensures it performs as expected during power outages. Functional tests simulate real-world scenarios, allowing you to verify the system’s reliability. For instance, simulating a power loss can confirm that the switch transitions smoothly to the backup source.
Here are some key testing procedures:
| Testing Procedure | Description |
|---|---|
| Contact to pole resistance test | Ensures electrical connections are secure and functioning properly. |
| Settings and operations verification | Confirms that the ATS operates according to specifications. |
| Control device examinations | Checks the functionality of control mechanisms. |
| Calibration services | Ensures all settings are accurate for optimal performance. |
| Mechanical parts inspections | Identifies wear and tear that could affect operation. |
| Time delay and retransfer functions checks | Verifies that the ATS correctly manages power transitions. |
Regular testing not only ensures reliability but also helps you comply with safety regulations. Monthly tests, including automatic generator start and load transfer, are recommended to keep your system ready for emergencies.
Even with regular maintenance, your automatic transfer switch may encounter issues. Identifying these problems early can save you time and money. Common issues include loose connections, worn-out components, and calibration errors.
To resolve these problems, start by inspecting the system for visible signs of damage. For example, check for loose wires or corroded contacts. Next, test the system to pinpoint the issue. Electrical tests like insulation resistance and contact resistance can reveal hidden faults.
If you notice unusual delays during power transitions, the time delay settings might need adjustment. Similarly, if the switch fails to transfer power, the control mechanisms could require servicing. Addressing these issues promptly ensures your system remains reliable.
Note: Always consult a professional technician for complex repairs to avoid further damage.
By staying proactive with inspections, testing, and repairs, you can ensure your automatic transfer switch operates smoothly and protects your critical systems during outages.
Why Professional Servicing Matters
Automatic transfer switches are intricate devices with multiple components working together. Over time, wear and tear can affect their performance. Professional servicing addresses these challenges by providing:
Tip: Schedule professional servicing annually to prevent unexpected failures and extend the lifespan of your ATS.
Key Benefits of Professional Servicing
Investing in professional servicing offers several advantages that go beyond basic maintenance.
1. Enhanced Reliability: Regular servicing ensures your ATS responds quickly and accurately during power outages. This reliability protects your critical systems from downtime.
2. Improved Efficiency: Technicians optimize the system’s performance, helping you reduce energy consumption and operational costs.
3. Prolonged Lifespan: Servicing prevents minor issues from escalating into major problems, extending the life of your ATS.
4. Compliance with Regulations: Professionals ensure your ATS meets safety and performance standards, keeping your facility compliant with local codes.
What to Expect During Servicing
Professional servicing involves a thorough examination of your ATS. Here’s what technicians typically do:
| Service Task | Description |
|---|---|
| Visual Inspection | Checks for physical damage, loose connections, or signs of wear. |
| Electrical Testing | Verifies voltage, frequency, and phase alignment for accurate operation. |
| Component Replacement | Replaces worn-out parts like contactors, relays, or sensors. |
| Calibration | Adjusts settings to ensure smooth transitions between power sources. |
| Firmware Updates | Installs the latest software to improve functionality and compatibility. |
These steps ensure your ATS remains dependable and ready to handle emergencies.
Choosing the Right Service Provider
Selecting a qualified technician or service company is essential for effective servicing. Look for providers with:
Callout: Partnering with a trusted service provider gives you peace of mind and ensures your ATS performs flawlessly.
Professional servicing is an investment in the reliability and safety of your power system. By prioritizing regular maintenance, you can protect your operations, reduce costs, and ensure uninterrupted power supply when it matters most.
Choosing the right automatic transfer switch depends on several important factors. First, consider the power capacity of your system. The switch must handle the total load of your electrical equipment. Calculate the combined wattage of all devices you want to power during an outage. This ensures the switch can manage the load without overloading or failing.
Next, think about the application. Residential, commercial, and industrial settings have different requirements. For example, a home may need a smaller switch to power essential appliances. In contrast, a hospital or data center requires a larger, more advanced switch to support critical systems. Identify your specific needs to select a switch that matches your environment.
Finally, evaluate compatibility with your backup power source. Ensure the switch works seamlessly with your generator or renewable energy system. Some switches offer additional features like load management or remote monitoring. These can enhance performance and provide greater control over your power system.
Tip: Always consult a professional to determine the correct size and type of switch for your setup.
Manual and automatic transfer switches serve the same purpose but operate differently. A manual switch requires you to physically change the power source during an outage. This process can be time-consuming and risky, especially in emergencies. You must monitor the power supply and ensure the generator is running before switching.
An automatic transfer switch, on the other hand, operates without your intervention. It detects power failures and switches to the backup source instantly. This automation ensures a seamless transition and eliminates the risk of human error. For critical applications, such as hospitals or data centers, an automatic switch is the better choice.
| Feature | Manual Switch | Automatic Switch |
|---|---|---|
| Operation | Requires manual intervention | Fully automated |
| Response Time | Delayed | Instantaneous |
| Cost | Lower | Higher |
| Reliability | Limited | High |
Callout: If you prioritize convenience and reliability, an automatic transfer switch is worth the investment.
The cost of an automatic transfer switch varies based on its size, type, and features. Smaller switches for residential use are more affordable, while industrial-grade switches with advanced capabilities cost significantly more. When budgeting, include the price of the switch, installation, and any additional equipment, such as wiring or enclosures.
Installation costs depend on the complexity of your setup. A professional electrician must connect the switch to your power system and ensure it complies with safety standards. Improper installation can lead to malfunctions or safety hazards. While this adds to the overall expense, it guarantees reliable performance and peace of mind.
To save on costs, compare different models and brands. Look for switches that meet your requirements without unnecessary features. Some manufacturers offer warranties or maintenance packages, which can reduce long-term expenses.
Note: Investing in a high-quality switch and professional installation ensures your system operates safely and efficiently.
An automatic transfer switch plays a vital role in ensuring reliable power. It monitors the primary power source, detects outages, and seamlessly transitions to backup power. This process minimizes downtime and protects critical systems, such as life-support equipment in hospitals or servers in data centers, from damage. By automating power transitions, it prevents financial losses and operational disruptions.
Proper maintenance and testing are essential to keep your system reliable. Routine inspections and functional tests ensure the switch operates efficiently during emergencies. Professional servicing further enhances its performance and extends its lifespan.
Investing in an automatic transfer switch is a smart choice for uninterrupted power in your home or business. It safeguards your operations, protects sensitive equipment, and provides peace of mind during unexpected outages.
An ATS is a device that automatically switches your power supply from the main source to a backup generator during outages. It ensures uninterrupted power for your critical systems without requiring manual intervention.
The ATS uses sensors to monitor voltage and frequency levels. When it detects irregularities or a complete loss of power, it triggers the transfer process to the backup source.
Yes, an ATS can integrate with renewable energy sources like solar panels or wind turbines. It prioritizes renewable energy when available and switches to backup power when needed.
You should test your ATS monthly to ensure it operates correctly during emergencies. Regular functional tests and inspections help identify potential issues early.
An open transition ATS disconnects the primary source before connecting the backup, causing a brief power interruption. A closed transition ATS overlaps the two sources momentarily, ensuring no power loss.
Yes, professional servicing ensures your ATS operates efficiently and safely. Technicians can identify hidden faults, replace worn components, and optimize performance.
Consider your power capacity, application, and compatibility with your backup source. For critical systems, prioritize features like seamless transitions and load management.
The cost depends on the size, type, and features of the ATS. While installation may require a higher upfront investment, it ensures reliable performance and long-term savings.
Tip: Always consult a professional to determine the best ATS for your setup and ensure proper installation.
