How do I Know if My Surge Protector is Bad

How do I Know if My Surge Protector is Bad

Created by: Glen Zhu | Updated Date: December 13th, 2024

How do I Know if My Surge Protector is Bad?

How do I Know if My Surge Protector is Bad
You can determine whether a surge protector (SPD) is bad through the following methods: inspecting the appearance, observing the status indicator window, paying attention to audible alarms, and using remote monitoring functions for checking.

1. Visual Inspection

Check the surface of the surge protector for any obvious damage, such as cracks or scorch marks. If these are found, it indicates that the surge protector has been damaged and should be replaced immediately to ensure its continued protection of your equipment.

2. Surge Protector Status Indicator Window

The surge protector is equipped with a status indicator window, usually displaying two states: green and red. (Some manufacturers may use different colors to indicate status, it is best to refer to the manual or consult the manufacturer for confirmation.)
  • Green indicator window(OK): If you see a green indicator window, it means the surge protector is working normally and protecting your equipment from power surges.
  • Red indicator window(Defect): If you see a red indicator window, it indicates that the surge protector has malfunctioned and can no longer provide protection. This is typically due to the surge protector absorbing too many power surges and losing its protective capability. In this case, you should immediately replace the surge protector.
Surge Protector Status Indicator Window to Determine SPD Condition

3. Indicator Lights on the Distribution Box

Some surge protectors are equipped with remote signaling terminals, which can be connected to signal lights in distribution boxes. When a surge protector fails, the red light in the distribution box will turn on. At this time, you need to replace the surge protective device. If the green light is always on, it indicates that the surge protector is working properly.

Surge protector OK the Green Indicator Light on the Distribution Box

Surge Protector OK

Surge protector Defect the Red Indicator Light on the Distribution Box

Surge Protector Defect

4. Sound Alarm

Some surge protectors are also equipped with a sound alarm function. They emit an alarm sound (usually a buzz) through remote signaling terminals or built-in buzzers to remind you that the surge protector has malfunctioned and should be replaced.

Surge protector OK the Green Indicator Light on the Distribution Box

Surge Protector OK

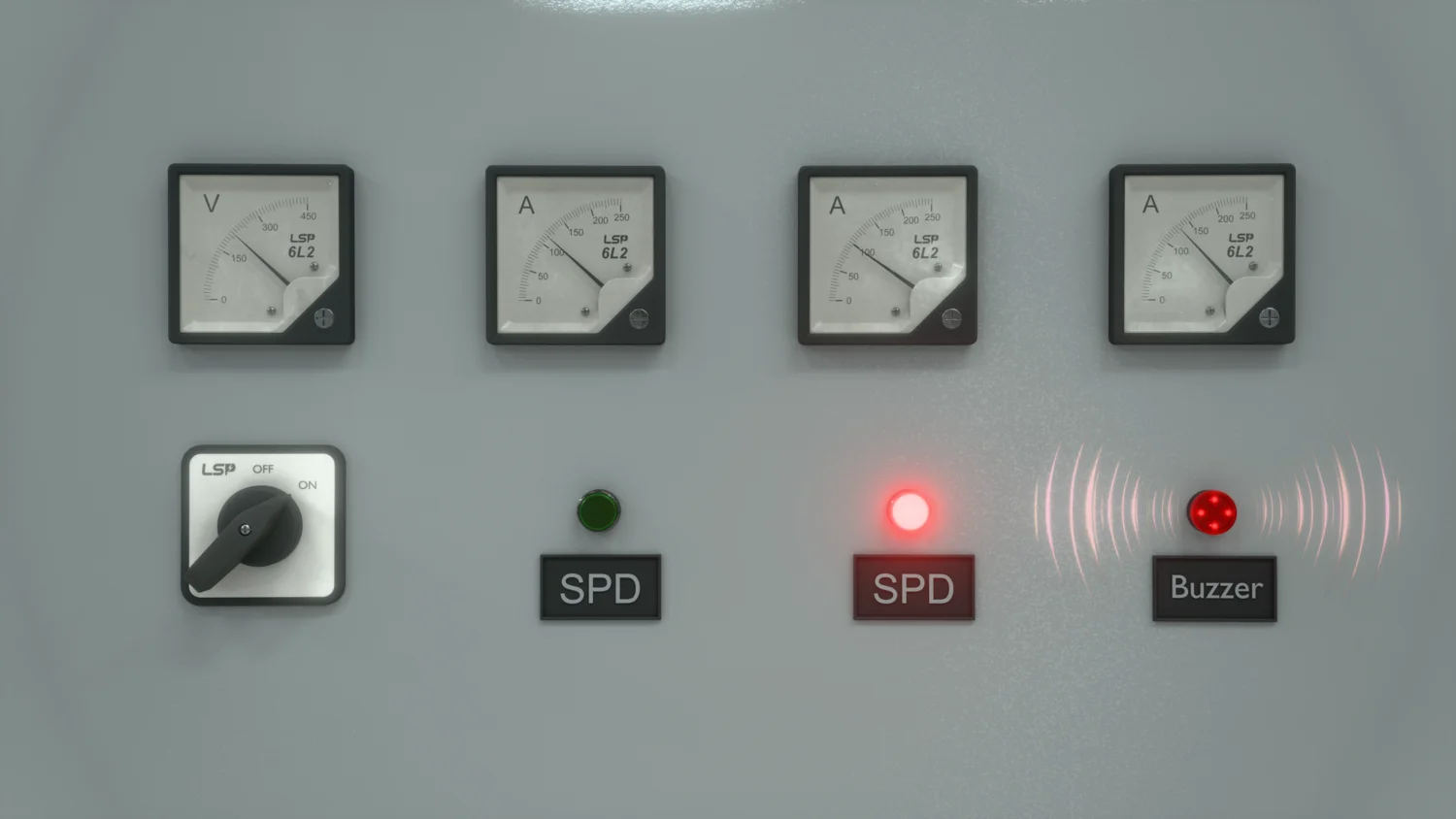

Surge protector Defect The Buzzer Sounds in the Distribution Box

Surge Protector Defect

5. Remote Monitoring Function

With the development of technology, many modern surge protectors have remote monitoring capabilities. You can monitor the working status of surge protectors through dry contact communication and be promptly notified if they need to be replaced. This system allows you to proactively manage surge protectors to ensure they are always in good working condition.

6. Through a Dedicated Circuit Breaker

A dedicated circuit breaker is usually installed in front of the surge protector to protect the circuit. If the circuit breaker trips, it indicates that the surge protector may be faulty, and it should be replaced promptly.

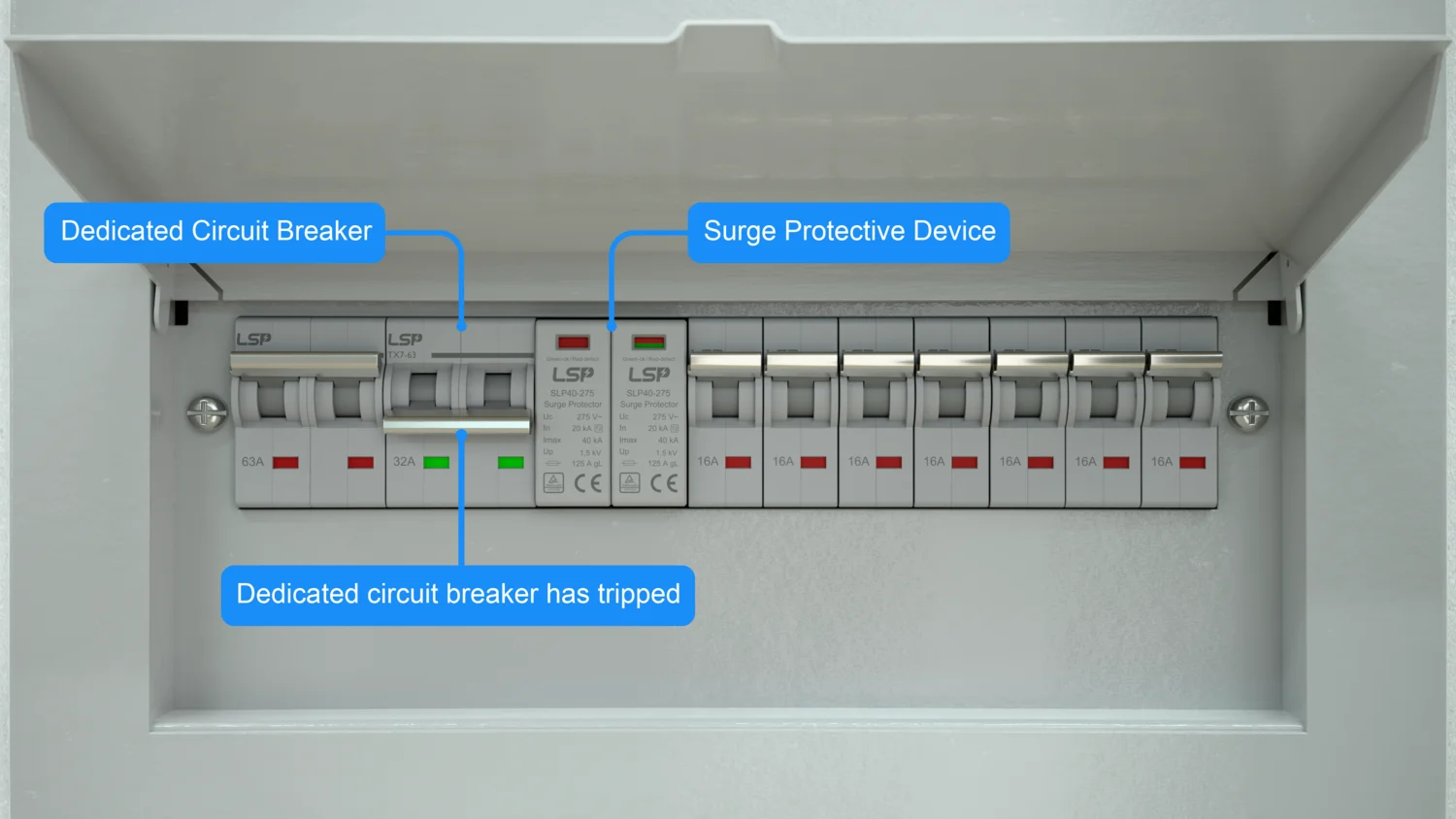

Surge protector Defect dedicated circuit breaker has tripped

Surge Protector Lifespan

The service life of a surge protector is affected by multiple factors, including the number of power surges absorbed, the intensity of power surges, and the operating lifespan of the equipment itself. It is generally recommended to replace it every 2-5 years, or promptly after experiencing a major power surge.
3 Phase Surge Protection Device Type 1 SPD FLP25-275-3S+1

Type 1 Surge Protector

3 Phase Surge Protector Type 2 SPD SLP40-275-3S+1

Type 2 Surge Protector

If you would like to learn more about how surge protectors work, please visit the following link: https://lsp.global/how-does-surge-protection-work/

The Importance of Regular Inspection of Surge Protectors

Regular inspection is particularly important to ensure that your surge protector functions when needed, as surge protectors are a type of linear component that typically remains in standby mode. It only works when a power surge occurs. Over time, the surge protector will absorb multiple power surges, but excessive absorption can gradually reduce its protective ability. Therefore, regular inspection of the surge protector’s condition is very important.
Regular Inspection of Surge protector
If not checked regularly, you may find that the surge protector has gone bad when a power surge occurs, leaving your equipment unprotected. The cost of regularly replacing surge protectors is much lower compared to the damage caused by equipment failure. By checking surge protectors regularly, you can ensure they work properly when needed and avoid greater losses due to equipment damage.
In addition to regular checks, it is important to check the surge protector promptly in the following situations:
  • Power outage in the area;
  • Construction taking place in the area;
  • Nearby occurrence of lightning strikes.
In case of any of the above situations, be sure to check the surge protector as soon as possible to ensure its proper operation.
