Grounded Protection vs Surge Protection

What is grounded protection vs surge protection? In essence, grounded protection ensures personnel safety by directing fault currents to earth, while surge protection safeguards electronic devices from transient voltage spikes.

There is an ongoing misunderstanding in electrical safety discussions regarding grounded protection vs surge protection. Many people assume one can replace the other, but surge protection vs grounded protection is not a matter of alternatives. Electrical protection actually consists of two distinct disciplines that must operate together in a coordinated manner.

This guide clarifies what is grounded protection vs surge protection by methodically explaining their different purposes, how each system functions, and why ground protection vs surge protection should be viewed as complementary rather than competing approaches. By understanding grounded vs surge protection, readers can see how proper grounding provides a reference path for fault currents, while surge protection devices (SPDs) actively limit transient overvoltages.

Ultimately, surge vs grounded protection is about synergy. Only when grounding systems and surge protection work together can a truly comprehensive, reliable, and standards-compliant electrical protection system be achieved.

Definition of Grounded Protection

Grounded protection refers to a protective wiring method that reliably connects the metal parts of electrical equipment that are normally not energized but may become energized after insulation damage or other conditions (i.e., metal structural parts insulated from the energized parts) with a ground body using a conductor.

Its purpose is to prevent the electrically charged endangerment of personnel and equipment by the metal casing of electrical devices, distribution device frameworks, and line poles.

Classification of Grounded Protection

1. Protective grounding: Connecting the metal casing or framework of electrical equipment to the ground body to prevent electric shock accidents caused by human contact with damaged insulated electrical equipment. Protective grounding is suitable for power devices in low-voltage power grids where neutral points are not directly grounded.

2. Protective zero connection: In 10kV distribution transformers with direct neutral point grounding systems, connecting the non-energized metal parts (such as casings) of electrical equipment directly to the neutral line (zero line) of low-voltage distribution systems under normal conditions to prevent electric shock accidents caused by human contact with damaged insulated electrical equipment.

Application for Grounded Protection

Grounded protection is generally used in supply systems where transformer neutral points are not directly grounded (three-phase three-wire system) to ensure that when an electrical device leaks due to insulation damage, the voltage generated does not exceed safe limits.

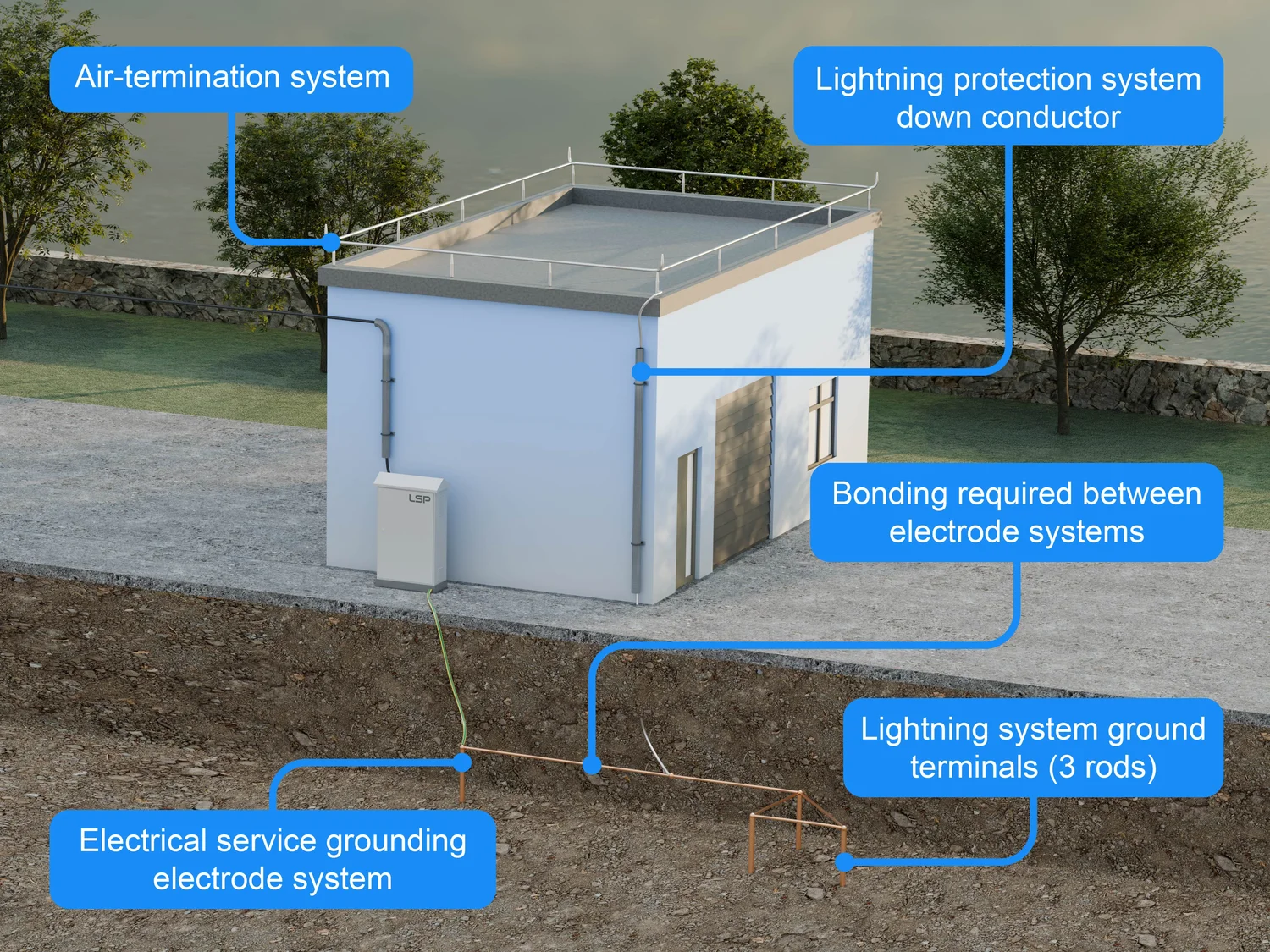

The Foundation of Electrical Safety

The most basic safety measure in any well-designed electrical system is grounding, also known as earthing. It does not serve to safeguard delicate electronics against power abnormalities but rather human life and property against hazardous electrical faults.

A ground connection establishes a physical path between non-current-carrying metal parts of the electrical system—such as equipment enclosures, distribution frames, and structural supports—and the earth. This is typically implemented using a grounding conductor connected to a grounding electrode, forming a low-impedance path for fault current.

When insulation failure or internal faults occur—for instance, when a live conductor contacts a metal enclosure, the fault current naturally seeks the path of least resistance. In the absence of grounding or a protective zero connection, a person touching the energized surface could become that path, resulting in severe or fatal electric shock.

A properly designed grounding system or protective zero connection provides a controlled return path for fault current, causing protective devices such as circuit breakers or fuses to operate rapidly, disconnecting the power supply and eliminating the hazard.

Thus, grounded protection—whether via protective grounding in systems with ungrounded neutral points or via protective zero connection in directly grounded systems—serves the fundamental objectives of preventing electric shock, limiting dangerous touch voltages, and reducing the risk of equipment damage or electrical fires. It forms the essential foundation for all other electrical protection measures, including surge protection.

Definition of Surge Protectors

A Surge Protection Device (SPD), also known as a surge protector, is specifically designed to protect electronic devices and systems from transient overvoltage events (surges). Surges refer to instantaneous high voltages or currents in power systems that can pose serious threats due to various reasons, such as lightning strikes, power system switch operations, electrostatic discharge.

Surge protectors respond quickly during surges through their unique circuit design and protective components, limiting overvoltages below safe levels and ensuring normal operation of devices and safety for individuals. The main principle involves using nonlinear elements like varistors, gas discharge tubes, transient suppression diodes, etc, which absorb excess energy during surges.

When system voltage is normal, surge protectors remain in a high impedance state without affecting system operation; however, they rapidly respond during transient overvoltages by becoming a low impedance state, releasing excess voltage into ground, thus protecting electrical equipment.

Classification of Surge Protectors

Surge protectors can be classified based on different criteria:

1. Based on operating principles:

• Switch type: Quickly conducts during surges, directing overvoltage into earth.
• Voltage limiting type: Limits overvoltage below safe levels through internal components.
• Current limiting type: Protects devices by restrictingthe surge current size.

2. Based on application scenarios:

• Power line protection type: Mainly used for protecting lines within power systems.
• Signal line protection type: Used for safeguarding communication lines & data transmission lines.
• Combination type: Possesses both power & signal protection functions simultaneously.

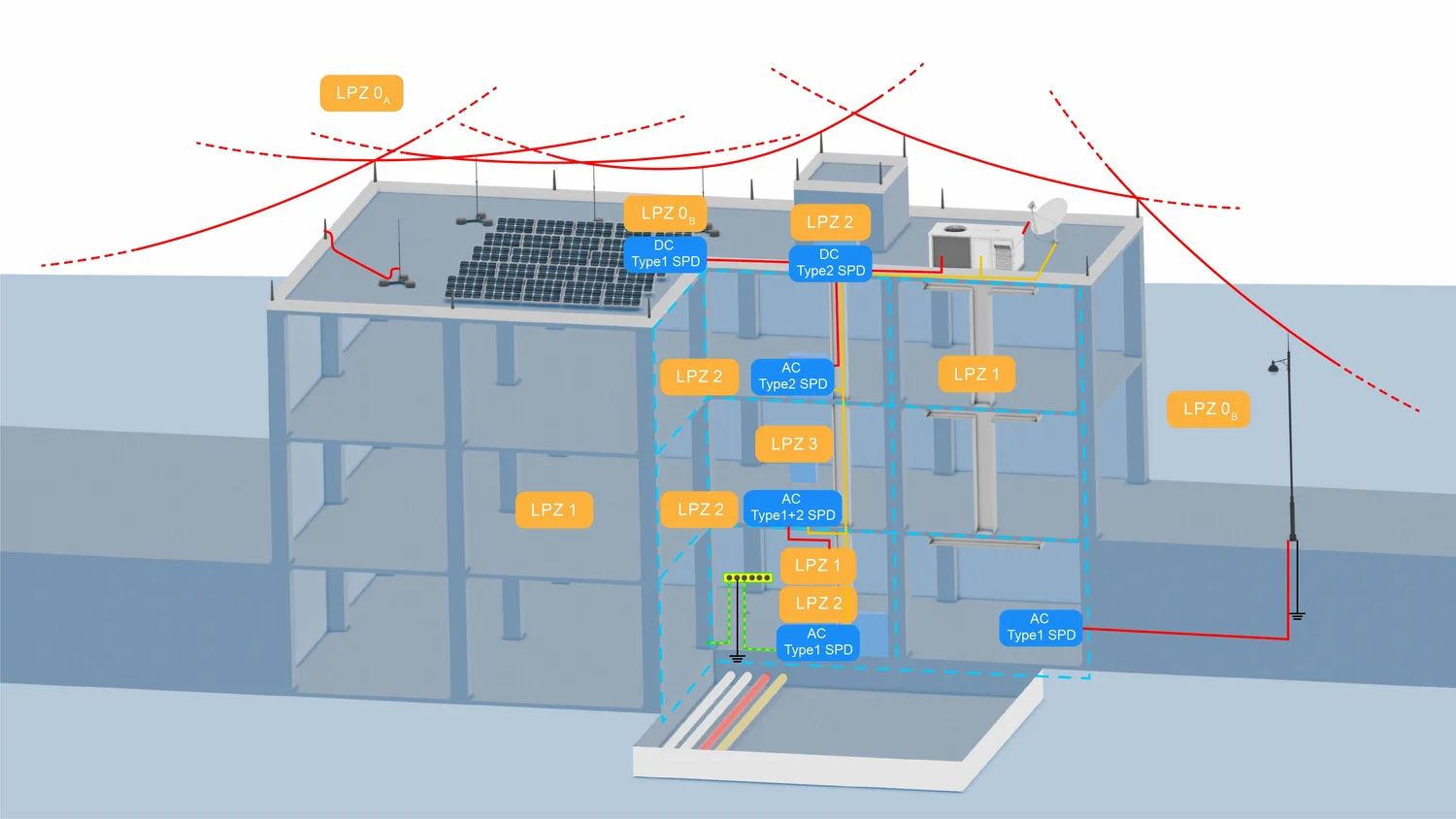

3. Based on level classification:

• Level 1 Surge Protector provides highest level defense mainly at LPZ0-LPZ1 boundary preventing direct conduction into LPZ1 zone from surged voltages;

• Level 2 & Level 3 Surge Protectors offer progressively lower defense levels further securing equipment against damage.

Surge Protection: Shielding Sensitive Electronics

While grounding protects against large-scale electrical faults, surge protection addresses short-duration transient overvoltage events—commonly referred to as power surges or voltage spikes—that can damage sensitive electronic equipment.

These surges may originate from external sources, such as nearby lightning strikes injecting extremely high voltage into power lines, or internal sources, including switching of large appliances or building electrical systems. Such rapid events cannot be interrupted by standard circuit breakers, and while they pose minimal risk of electrocution, they can irreversibly damage microprocessors, servers, communication equipment, and other sensitive electronic devices, or create latent failures that shorten device lifespan.

A surge protector, or Surge Protective Device (SPD), continuously monitors system voltage. When a transient overvoltage exceeds a predefined clamping level, the SPD immediately shunts the excess voltage and surge current to the grounding system, clamping the voltage supplied to connected equipment to a safe level. Once normal voltage is restored, the SPD returns to monitoring mode, ready to respond to subsequent surges.

In this way, surge protection complements grounding and protective zero connection, ensuring that sensitive electronics are shielded from damaging overvoltages without interfering with normal system operation. Properly implemented, surge protection and grounded protection together provide a comprehensive, reliable electrical protection system.

Difference between Grounded Protection and Surge Protection

Grounded Protection

• Purpose: To safely divert faults like short circuits or lightning strikes away from sensitive electronics, reducing risks while providing a secure path guiding fault currents towards earth;
• Principle: includes ground systems like rods conductive materials electrodes designed to redirect excessive current/fault conditions safely towards earth;
• Application: typically found in residential, commercial, and industrial buildings’ installations, crucial for maintaining the operational safety of electricity networks;
• Limitations: include being unsuitable for addressing momentary voltage fluctuations/surges caused by lightning, grid switching, etc.

Surge Protection

• Purpose: Aimed at shielding electronic equipment against transient voltage spikes triggered via lightning, grid switching, and other sudden fluctuation sources;
• Principle: Operates utilizing SPDs such as arresters, suppressor filters installed within electricity networks, absorbing/diverting surplus energy before reaching sensitive equipment;
• Application: Essential safeguard sensitive electronics, industrial telecommunication setups, among others, preventing potential damages/shortening lifespan due to surge voltages ;
• Limitations:do not address systemic faults nor provide continuous current protections distinctively differing from grounds.

Key Differences Between Grounded Protection and Surge Protection

When evaluating electrical safety, understanding ground vs surge protection helps engineers design systems that protect both personnel and equipment.

• Functionality: Grounding ensures safety during faults, whereas Surge protection protects gears against instantaneous voltage spikes that damage them.
• Focus Points: Ground focuses on fault currents/electrical security, while surge protection concentrates on fluctuating voltages/device protections.
• Complementary Relations: Both Ground/Surge Protections usually work together; former ensures any surges/fault currents safely discharged latter prevents surged voltages reaching sensitive gears.

Grounded Protection vs Surge Protection — Comparison Table

To provide a clear and concise comparison between grounded protection and surge protection, the following table summarizes their primary targets, working mechanisms, core objectives, applications, and limitations. This structured view highlights that these two protection strategies are complementary, each addressing distinct aspects of electrical safety.

Feature	Grounded Protection	Surge Protection
Primary Target	Protect human life from electric shock and prevent electrical fires.	Protect sensitive electronic equipment from damage caused by transient overvoltages.
Working Mechanism	Provides a permanent, low-impedance path to earth for fault currents, causing protective devices (circuit breakers/fuses) to operate and de-energize the circuit.	Detects transient overvoltages and diverts excess surge current to the grounding system, clamping voltage to safe levels.
Core Objective	Manage large-scale, sustained electrical faults and prevent immediate hazards to people and property.	Mitigate short-duration voltage spikes to prevent damage to internal components of electronic devices.
Applications	Residential, commercial, and industrial installations where the neutral point of transformers is not directly grounded.	Power lines, signal lines, distribution panels, and areas exposed to lightning or large current industrial environments.
Limitations	Cannot address short-duration voltage spikes or surges caused by lightning or switching events.	Does not manage systemic faults and cannot replace the need for grounding.

Summary: Grounded protection provides the foundational safety for personnel and property, while surge protection offers a specialized defense layer for sensitive electronic equipment. Proper integration of both ensures comprehensive protection against both sustained electrical faults and transient voltage spikes.

How Grounding and Surge Protection Work Together for Complete Safety

Grounded protection and surge protection are mutually dependent systems. A surge protector cannot effectively safeguard sensitive electronic equipment without a properly installed grounding system. The core function of a surge protective device (SPD) is to redirect excessive, unwanted voltage away from connected electronics—but this redirection relies on a functional grounding path.

When an SPD detects a voltage spike, its internal components—commonly metal oxide varistors (MOVs) or similar nonlinear elements—conduct the excess current to the grounding system. The surge energy travels through the circuit’s ground wire, enters the grounding bus of the electrical panel, and is finally safely dissipated into the earth via the grounding electrode. The earth acts as a large, stable reservoir capable of absorbing high-energy pulses without damage.

Without an effective ground path, surge protection is compromised. For instance, connecting an SPD to an ungrounded outlet or an outlet with a disconnected ground renders it nearly ineffective. Excess voltage may then be forced onto neutral or equipment paths, increasing the risk of damage to sensitive electronics. Proper grounded protection ensures that surge protection operates as intended, offering a coordinated defense against both transient overvoltage and electrical faults.

Grounded vs surge protected systems ensure both human safety and device integrity, making them essential for data centers, industrial controllers, and critical IT equipment.

Selecting Professional-Grade Protection Systems

Achieving comprehensive electrical protection requires a systematic approach: first, ensuring grounding protection, then layering surge protection strategically.

Step 1: Auditing for Grounded vs Surge Protection Needs

Before deploying SPDs, verify that the grounding system meets IEC standards.

• Residential and general commercial users: Check that AC outlets for sensitive electronics are three-prong and properly grounded. Use a simple plug-in tester to verify correct wiring and functional ground.
• Technical professionals: Perform quantitative testing of grounding electrodes. A high-performance system typically requires a grounding resistance ≤5 ohms. Verify equipotential bonding across all metallic structures to prevent hazardous voltage differences during fault or surge events.

Step 2: Implementing Layered SPD Surge Protection

With a verified low-resistance ground, implement a layered surge protection strategy, often called a cascaded system. Relying solely on a single point-of-use surge protector is insufficient.

Layer 1: Service Entrance Protection (Type 1 or Type 2 SPD)

• Type 1 SPDs are installed at the main service disconnect to protect against large external surges, such as partial lightning currents.
• Type 2 SPDs are mounted on the building side of the service disconnect, protecting the entire electrical system against external and internal surges.

This first layer intercepts the majority of high-energy surges before they propagate through building wiring.

Layer 2: Point-of-Use Protection (Type 3 SPD)

• Includes power strips, wall-mounted surge protectors, or plug-in devices.
• Protects individual sensitive electronics from residual surge energy conducted through the primary SPD or generated locally.

Correct SPD selection and deployment depend on matching the SPD topology (4+0, 3+1) to the building’s grounding scheme (TN-S, TT). This alignment ensures optimal protection and prevents nuisance tripping of upstream protective devices. Choosing the right SPD depends on your protection needs. Explore surge protection device types to make an informed decision.

Integrating SPD and Grounded Protection Systems for Maximum Safety

Selecting an SPD is not simply a comparison of Imax or energy ratings. Correct integration with the facility’s grounding system is critical. Mismatched devices can reduce effectiveness or compromise overall safety, including unwanted tripping of upstream protective devices.

Topology Considerations: 4+0 vs. 3+1

4+0 Topology (L1/L2/L3/N-PE)

• All conductors are protected by MOVs to the protective earth (PE).
• Suited for TN-S and TN-C-S systems where Neutral and PE conductors are separate with a low-impedance connection.

3+1 Topology (L1/L2/L3-PE, N-PE)

• Three-phase conductors protected by MOVs, Neutral-to-PE path protected by a gas discharge tube (GDT).
• Essential for TT systems with independent earth electrodes to avoid persistent leakage currents that could trip sensitive residual current devices.

Specialized SPD Systems for High-Value Applications (PV, ESS, Telecom)

The interaction between SPD technology and grounding systems is particularly critical in high-value installations:

• Photovoltaic (PV) and Energy Storage Systems (ESS): DC systems can be grounded or floating. LSP’s dedicated DC SPDs operate up to 1500V DC and employ Y-type MOVs and GDTs to safely dissipate fault energy and protect inverters.
• Telecom & Infrastructure (5G Base Stations): Maximum uptime is required. The N-PE path in a 3+1 SPD is uncompromisable. LSP uses only Vactech GDTs and LKD MOVs, screened within ±10% tolerance, ensuring predictable and reliable surge protection for industrial automation and telecom networks.

For Professionals: Sourcing and Partnership Insights

Selecting an SPD supplier impacts product integrity, supply chain stability, and market reputation. LSP provides not only high-quality components but also deep technical expertise and reliable logistics support.

• Customization and OEM/ODM Services: Standard products do not fit all technical or branding requirements. LSP collaborates directly with engineering teams to design bespoke SPDs, including private labeling, laser-engraved logos, custom packaging, and proprietary designs. 3D modeling and renderings are available for marketing and product certification support (TUV, CB, CE), reducing time-to-market.
• Supply Chain Reliability and Flexibility: LSP has an annual production capacity exceeding 300,000 units with automated lines capable of handling high-volume orders while maintaining consistent quality. Stocked components enable lead times of 10–15 days. There is no minimum order quantity, ensuring flexibility for startups and established businesses alike.
• Quality Assurance and Long-Term Support: LSP guarantees 5-year warranty on all SPDs. Quality control includes 48-hour salt spray tests, thermal stability testing, and impulse current verification. Technical support provides a 12-hour response window for product selection, installation, and troubleshooting. LSP is not just a supplier but a long-term partner in electrical protection.

A Quick Safety & Protection Audit

To ensure both grounded protection and surge protection are functioning properly, follow this checklist:

Grounding Checks:

• Visual Inspection: All outlets for sensitive electronics have three-prong, grounded receptacles.
• Simple Test (All Users): Use a plug-in tester to verify functional grounding.
• Professional Audit (Technical Users): Grounding electrode resistance ≤5 ohms, proper equipotential bonding.
• Connection Integrity: Ground wire at main panel is secure, intact, and corrosion-free.

Surge Protection Checks:

• Layered System: Whole-facility SPD (Type 1 or 2) installed at main electrical panel.
• Point-of-Use Protection: Individual SPDs (Type 3) protecting sensitive devices.
• Status Indicators: Protection working lights functional; replace SPDs with flickering or inactive indicators.
• Professional Audit (Technical Users): SPD topology (4+0, 3+1) correctly corresponds to building grounding system.

Summary: A fully coordinated system combining surge protection vs grounded protection ensures safety for personnel and prevents damage to sensitive electronic equipment from both sustained faults and transient overvoltage events. Understanding the difference is just the start. See our surge protection device wiring diagram for proper installation guidance.
