Glass Fuse vs Ceramic Fuse highlights two different approaches to electrical protection. Each fuse type responds differently to heat, current, and mechanical stress. Choosing the correct fuse keeps equipment safe and prevents dangerous failures. Using the wrong fuse can lead to overheating or even fire in critical systems. Understanding these differences helps users make safer and more reliable choices.
Glass Fuse vs Ceramic Fuse: Main Differences
Performance and Durability
Performance and durability play a major role in the glass fuse vs ceramic fuse debate. Glass fuses use a transparent glass tube that allows for easy inspection. This feature helps users quickly see if the fuse has blown. However, glass fuses have a lower breaking capacity. They can handle only moderate fault currents before the glass may shatter or melt. This makes them suitable for low to medium power circuits.
Ceramic fuses use a strong ceramic body. This material resists high temperatures and mechanical stress. Ceramic fuses can interrupt much larger fault currents without breaking apart. Their construction allows them to contain and extinguish arcs more effectively. This means ceramic fuses last longer in harsh environments and provide better protection in demanding applications.
The key differences in performance and durability come down to material strength and current handling. Glass fuses work well in simple, low-risk circuits. Ceramic fuses excel in heavy-duty or high-risk settings where reliability is critical.
Safety Aspects
Safety is a top concern when comparing glass fuse vs ceramic fuse options. Glass fuses offer basic protection. Their transparent body makes it easy to check for a blown fuse, reducing the risk of accidental reuse. However, glass can break under extreme fault conditions. If the fuse shatters, hot fragments may escape and cause injury or damage.
Ceramic fuses provide a higher level of safety. The ceramic body contains any explosion or arc that occurs during a fault. This design prevents hot gases or fragments from escaping. Many ceramic fuses also include sand or other arc-quenching materials inside. These features help absorb energy and stop the arc quickly. As a result, ceramic fuses are often required in circuits where safety standards are strict.
Tip: Always match the fuse type to the safety requirements of your application. Using the wrong fuse can lead to equipment failure or personal injury.
Typical Applications
The choice between glass fuse vs ceramic fuse depends on where the fuse will be used. Glass fuses appear in many household electronics, small appliances, and automotive circuits. Their low cost and easy inspection make them popular for non-critical systems.
Ceramic fuses are common in industrial machinery, power distribution panels, and high-voltage equipment. They protect circuits in environments with high fault currents or extreme temperatures. Many solar power systems, battery storage units, and electric vehicles rely on ceramic fuses for dependable protection.
The table below summarizes typical applications for each fuse type:
Application Area | Glass Fuse | Ceramic Fuse |
|---|---|---|
Home Electronics | ✔️ | |
Small Appliances | ✔️ | |
Automotive Circuits | ✔️ | |
Industrial Equipment | ✔️ | |
Power Distribution | ✔️ | |
Renewable Energy | ✔️ |
Understanding these key differences helps users select the right fuse for their needs. The glass fuse vs ceramic fuse comparison shows that each type has strengths in specific situations. Choosing wisely improves both safety and performance.
Quick Selection Guide
Choosing between a glass fuse and a ceramic fuse can feel confusing. The right choice depends on the needs of your circuit and the environment where the fuse will operate. This guide explains why you should pick one type over the other.
Situation | Choose Glass Fuse If… | Choose Ceramic Fuse If… |
|---|---|---|
Current Level | The circuit handles low to moderate currents. | The circuit may face high fault or surge currents. |
Inspection Needs | You want to see if the fuse is blown easily. | Visual inspection is less important. |
Operating Temperature | The environment stays cool or moderate. | The environment gets hot or faces temperature swings. |
Safety Requirements | Basic protection is enough. | High safety standards or risk of explosion exist. |
Application Type | Used in home electronics or small devices. | Used in industrial, automotive, or power systems. |
Budget | Cost is a major concern. | Safety and durability matter more than price. |
Step-by-Step Selection Process:
Identify the Application:
Start by asking what device or system needs protection. Home electronics often use glass fuses. Industrial machines usually need ceramic fuses.Check Current and Voltage Ratings:
Look at the maximum current and voltage in your circuit. Glass fuses work well for low to moderate values. Ceramic fuses handle higher ratings and sudden surges.Consider the Environment:
Think about where the fuse will operate. Glass fuses suit clean, cool places. Ceramic fuses resist heat, vibration, and harsh conditions.Review Safety Needs:
Decide how much protection you need. If the circuit could cause fire or injury during a fault, ceramic fuses offer better containment and arc suppression.Think About Maintenance:
If you want to check fuses visually, glass fuses make this easy. Ceramic fuses do not allow you to see inside, but they provide more robust protection.
Tip: When in doubt, choose the fuse that matches the highest risk factor in your application. Safety should always come first.
This quick guide helps you understand why each fuse type fits certain situations. Making the right choice improves both safety and performance in your electrical system.

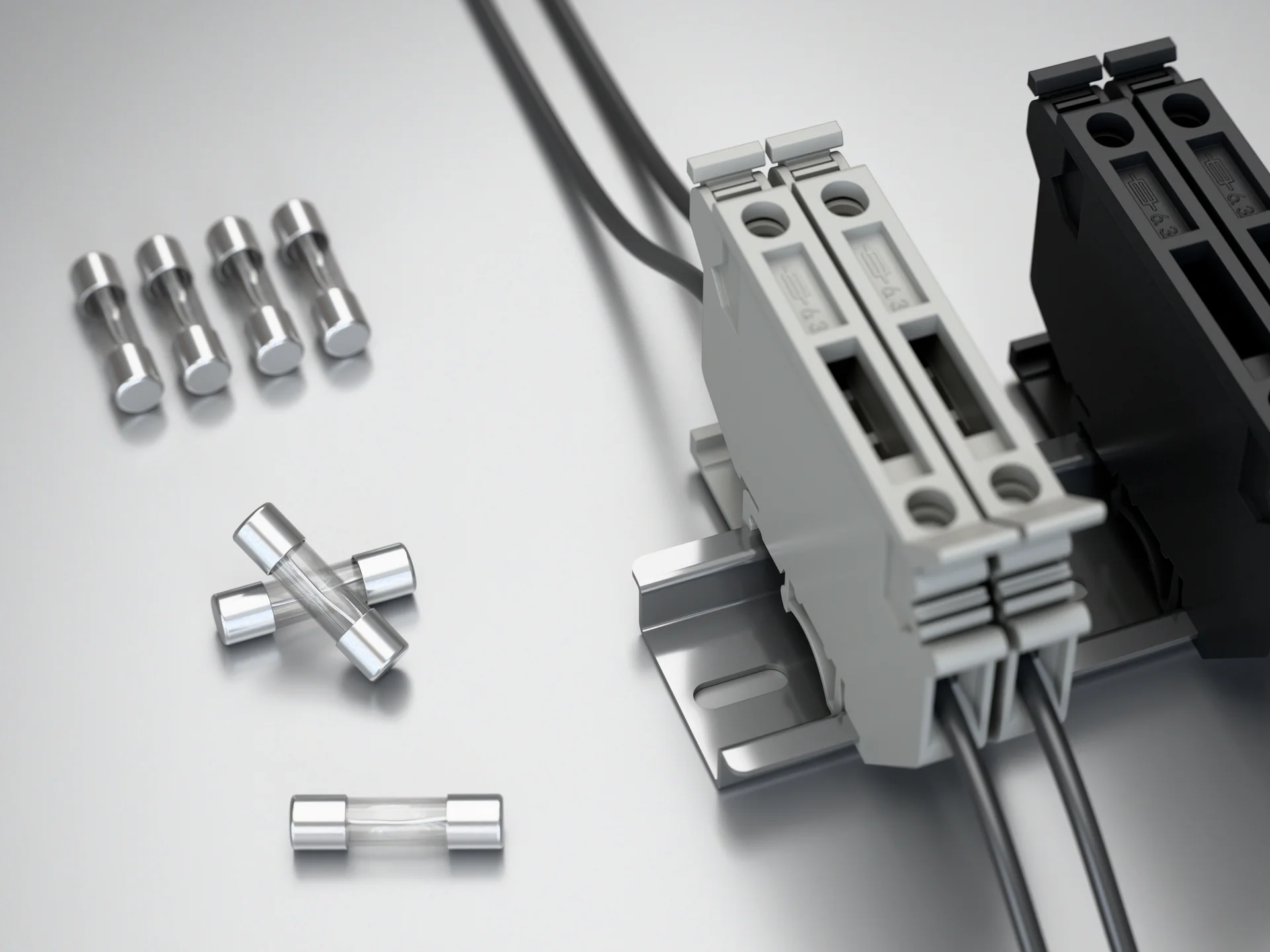

Glass Fuses Explained
What Are Glass Fuses?
Glass fuses serve as protective devices in electrical circuits. They stop the flow of electricity when a fault occurs. The main purpose of glass fuses is to prevent damage to equipment and reduce the risk of fire. Many people choose glass fuses because they offer a simple and effective solution for overcurrent protection. These fuses are common in household electronics and small appliances. The transparent body allows users to see if the fuse has blown, which makes maintenance easier. Glass fuses remain popular due to their reliability and ease of use.
Construction and Features
Manufacturers build glass fuses with a cylindrical glass tube. Inside the tube, a thin metal wire connects both ends. When too much current passes through the wire, it heats up and melts. This action breaks the circuit and stops the flow of electricity. The glass tube contains the melted wire and prevents sparks from escaping. Metal end caps secure the fuse in place and provide electrical contact. The transparent glass body lets users inspect the fuse visually. This feature helps identify blown fuses quickly without special tools.
Glass fuses come in various sizes and ratings. The current rating tells users how much current the fuse can handle before it blows. Voltage rating shows the maximum voltage the fuse can safely interrupt. Manufacturers design glass fuses for low to moderate current levels. The simple construction keeps costs low and makes replacement easy. Many glass fuses include markings that indicate their ratings, which helps users select the right fuse for their application.
Note: Visual inspection is one of the main reasons people prefer glass fuses in non-critical systems.
Pros and Cons
Glass fuses offer several advantages. The transparent body allows for quick visual checks. Replacement is straightforward and inexpensive. Glass fuses work well in clean, cool environments. They provide reliable protection for low-power circuits. Many users appreciate the simplicity and accessibility of glass fuses.
However, glass fuses have limitations. The glass tube can break under high fault currents or extreme heat. This risk makes glass fuses less suitable for demanding applications. The breaking capacity is lower compared to other fuse types. Glass fuses may not contain arcs as effectively as ceramic fuses. Users must consider these factors when choosing a fuse for their system.
The table below summarizes the main pros and cons:
Pros | Cons |
|---|---|
Easy visual inspection | Lower breaking capacity |
Low cost | Can shatter under stress |
Simple replacement | Limited arc containment |
Reliable for low-power use | Not ideal for harsh environments |
Glass fuses remain a practical choice for many everyday applications. Understanding their strengths and weaknesses helps users make informed decisions.
Common Uses
Glass fuses play a vital role in many electrical systems. Their popularity comes from their simplicity, affordability, and ease of inspection. People often choose glass fuses for everyday devices because they provide reliable protection without adding complexity.
Many household electronics rely on glass fuses. Televisions, radios, and audio equipment use these fuses to prevent damage from power surges or short circuits. When a fault occurs, the fuse blows and stops the flow of electricity. This action protects sensitive components inside the device. Home appliance manufacturers also use glass fuses in products like microwaves, blenders, and toasters. These appliances operate at low to moderate currents, which matches the strengths of glass fuses.
Automotive circuits often include glass fuses. Car manufacturers use them in older vehicles to safeguard wiring and electrical accessories. Glass fuses help prevent fires and equipment failure by disconnecting faulty circuits quickly. Many classic cars still use glass fuses because they are easy to replace and check visually.
Small power supplies and battery chargers also benefit from glass fuses. These devices need basic overcurrent protection. Glass fuses provide a cost-effective solution that is easy to maintain. Technicians can see if a fuse has blown without special tools, which speeds up repairs.
Test equipment and laboratory instruments frequently use glass fuses. These tools require precise protection to avoid damage during experiments or measurements. Glass fuses offer a clear indication of faults, making them ideal for controlled environments where safety and accuracy matter.
Note: Glass fuses are not suitable for high-power or high-risk applications. Their main advantage lies in simple systems where quick inspection and low cost are important.
The table below highlights common uses for glass fuses and explains why they are chosen for each application:
Application Area | Why Glass Fuses Are Used |
|---|---|
Home Electronics | Simple, reliable, easy to inspect |
Small Appliances | Matches low current needs, affordable |
Automotive Circuits | Quick replacement, visual check possible |
Power Supplies | Basic protection, low maintenance |
Test Equipment | Clear fault indication, safe for labs |
People choose glass fuses when they need straightforward protection and want to minimize maintenance time. Their transparent design and low price make them a practical choice for many everyday electrical systems.
Ceramic Fuses Overview
What Are Ceramic Fuses?
Ceramic fuses protect electrical circuits from damage caused by excessive current. These fuses use a ceramic body instead of glass. The ceramic material gives them extra strength and heat resistance. Many engineers choose ceramic fuses for circuits that face high fault currents or harsh conditions. The main reason for using ceramic fuses is safety. Their design helps contain explosions or arcs that can happen during a fault. This makes them a preferred choice in industrial and high-power applications.
Construction and Features
Manufacturers build ceramic fuses with a thick ceramic tube. This tube surrounds a metal fuse element. When too much current flows, the metal melts and breaks the circuit. The ceramic body does not shatter like glass. It holds together even under extreme heat or pressure. Many ceramic fuses include sand or other arc-quenching materials inside the tube. These materials absorb energy and help stop electrical arcs quickly. This feature increases the breaking capacity of ceramic fuses. It also prevents hot gases or fragments from escaping. The strong construction allows ceramic fuses to handle higher voltages and currents than glass fuses. Engineers rely on these features to protect equipment in demanding environments.
Pros and Cons
Ceramic fuses offer several advantages. Their strong bodies resist heat and mechanical shock. This makes them reliable in tough conditions. The arc-quenching materials inside improve safety by containing explosions and stopping arcs. Ceramic fuses can interrupt large fault currents without breaking apart. These benefits explain why many industries use ceramic fuses for critical protection.
However, ceramic fuses have some drawbacks. Their opaque bodies do not allow for visual inspection. Users cannot see if the fuse has blown without removing it or using a tester. Ceramic fuses also cost more than glass fuses. The extra safety and durability come with a higher price. Despite these points, the advantages often outweigh the disadvantages in high-risk or high-power systems.
Tip: Choose ceramic fuses when safety, durability, and high breaking capacity are important for your application.
The table below summarizes the main pros and cons:
Pros | Cons |
|---|---|
High heat and shock resistance | No visual inspection |
Superior arc containment | Higher cost |
Handles high fault currents | Slightly harder to replace |
Reliable in harsh environments | Bulkier than glass fuses |
Ceramic fuses play a key role in protecting modern electrical systems. Their design and features explain why they are the top choice for many demanding applications.
Common Uses
Ceramic fuses play a vital role in protecting electrical systems where safety and reliability are essential. Their unique construction makes them the preferred choice in many demanding environments. Understanding why ceramic fuses are used in certain applications helps explain their importance in modern electrical engineering.
Many industrial facilities rely on ceramic fuses to protect heavy machinery. These machines often operate at high voltages and draw large currents. Ceramic fuses can handle these conditions without breaking or losing effectiveness. Their ability to contain arcs and withstand heat makes them ideal for factories, manufacturing plants, and processing equipment.
Power distribution panels also use ceramic fuses. These panels manage the flow of electricity in buildings, factories, and infrastructure. A fault in these systems can cause significant damage or even fires. Ceramic fuses interrupt dangerous currents quickly, reducing the risk of equipment failure and protecting both property and people.
Renewable energy systems, such as solar power installations and battery storage units, depend on ceramic fuses for protection. These systems often face high fault currents and fluctuating temperatures. Ceramic fuses maintain performance in these harsh conditions. Their robust design prevents damage to sensitive components and helps ensure continuous operation.
Automotive and transportation industries use ceramic fuses in electric vehicles, trains, and buses. These vehicles require reliable protection against electrical faults. Ceramic fuses provide this protection, even when exposed to vibration, heat, and dust. Their durability helps keep vehicles safe and operational.
Aerospace and defense sectors also choose ceramic fuses for mission-critical equipment. Satellites, aircraft, and military systems must operate without failure. Ceramic fuses offer the high breaking capacity and arc containment needed in these high-stakes environments.
The table below summarizes common uses and the reasons why ceramic fuses are selected:
Application Area | Why Ceramic Fuses Are Used |
|---|---|
Industrial Machinery | Handles high currents and heat |
Power Distribution | Quick interruption of dangerous faults |
Renewable Energy | Reliable in harsh, fluctuating conditions |
Automotive/Transport | Withstands vibration and temperature |
Aerospace/Defense | High reliability and arc containment |
Note: Choosing ceramic fuses in these applications improves safety, reduces downtime, and protects valuable equipment. Their strong construction and arc-quenching features make them the best option for circuits where failure is not an option.
Ceramic fuses have become the standard in many critical systems. Their widespread use reflects their ability to meet strict safety and performance requirements. When reliability matters most, engineers turn to ceramic fuses for dependable circuit protection.
How to Choose the Right Fuse
Selecting the right fuse is essential for safe and reliable circuit protection. The decision depends on several important factors. Understanding why each factor matters helps you make the best choice for your application.
Key Factors to Consider
Application Type
The type of device or system you want to protect is the first thing to consider. Different applications have different electrical demands. For example, home electronics and small appliances often use glass fuses. These devices operate at lower currents and do not face extreme conditions. Glass fuses are easy to inspect and replace, making them suitable for everyday use.
Industrial machines, power distribution panels, and renewable energy systems require more robust protection. These environments may experience high fault currents or sudden surges. Ceramic fuses are better for these situations because they can handle higher stress and provide greater safety. When you know the application type, you can match the fuse to its ideal use cases.
Tip: Always check the manufacturer’s recommendations for fuse type in your equipment manual.
Environment
The environment where the fuse will operate affects its performance and lifespan. Clean, cool, and stable environments are less demanding. Glass fuses work well in these settings because they do not face much vibration or heat.
Harsh environments, such as factories, vehicles, or outdoor installations, present more challenges. High temperatures, dust, and mechanical shock can damage fragile fuses. Ceramic fuses resist heat and physical stress, making them the preferred choice for tough conditions. If your system operates in a place with temperature swings or frequent movement, ceramic fuses offer better durability.
Safety Needs
Safety is a critical factor in fuse selection. Some circuits pose little risk if a fault occurs. In these cases, basic protection from a glass fuse may be enough. The transparent body allows for quick checks, reducing the chance of accidental reuse.
Other circuits carry higher risks. Power distribution systems, industrial equipment, and renewable energy installations can cause fires or injuries if not properly protected. Ceramic fuses provide superior arc containment and explosion resistance. They are often required by safety standards in high-risk environments. Choosing the right fuse for your safety needs ensures reliable operation and protects people and property.
Budget
Cost is always a consideration. Glass fuses are less expensive and easy to replace. They are a good choice for simple systems where budget is a concern and the risks are low.
Ceramic fuses cost more, but they offer better protection and last longer in demanding environments. Investing in the right fuse can prevent costly equipment damage and downtime. When safety and reliability are priorities, the higher price of ceramic fuses is justified.
Decision Checklist
Use this checklist to help decide which fuse type fits your needs. Review each question and see which column matches your situation.
Question | Glass Fuse | Ceramic Fuse |
|---|---|---|
Is the application low-power or non-critical? | ✅ | |
Does the environment stay cool and stable? | ✅ | |
Is easy visual inspection important? | ✅ | |
Is cost the main concern? | ✅ | |
Does the circuit face high currents or surges? | ✅ | |
Will the fuse operate in harsh conditions? | ✅ | |
Are strict safety standards required? | ✅ | |
Is long-term durability a priority? | ✅ |
Note: If you answer “yes” to more questions in the ceramic fuse column, choose ceramic for your application. If most answers fall under glass fuse, that type will likely meet your needs.
Example Scenarios
Home Electronics: Glass fuses are the ideal use cases due to low current and easy inspection.
Industrial Machinery: Ceramic fuses fit the ideal use cases because they handle high currents and harsh environments.
Solar Power Systems: Ceramic fuses are recommended for high-performance applications where safety and reliability are critical.
Choosing the right fuse protects your equipment and ensures safe operation. Always consider the specific needs of your circuit and environment before making a decision.
LSP DC Fuse Solutions
Why Choose LSP
LSP stands as a trusted name in electrical protection. The company has over 15 years of experience in the industry. LSP focuses on research and development of surge protective devices and DC fuses. More than 1,200 companies in 35 countries rely on LSP products. This trust comes from a strong commitment to quality and safety.
LSP uses advanced testing facilities. Every DC fuse goes through strict quality checks. The company follows international standards, including IEC 61643. Customers receive reliable products that meet high safety requirements. LSP also offers professional support. The technical team helps with product selection and application guidance.
Tip: Choosing a manufacturer with proven experience reduces the risk of equipment failure.

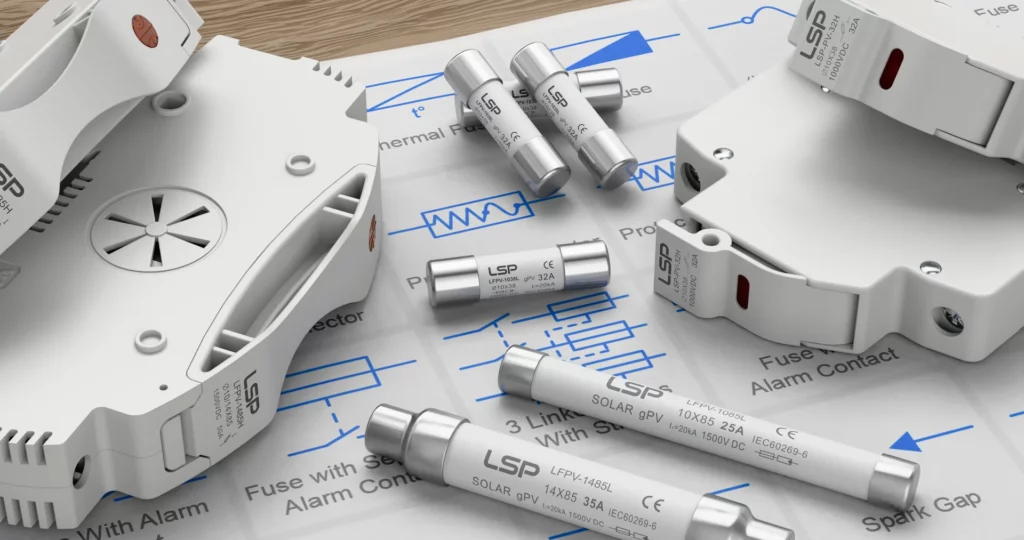

LSP DC Fuse Features
LSP DC fuses offer several important features. These features help protect modern electrical systems.
High Breaking Capacity: LSP DC fuses can interrupt large fault currents. This protects equipment from severe damage.
Excellent Arc Suppression: The fuses use advanced arc-extinguishing materials. This design stops dangerous arcs quickly.
Wide Voltage Range: LSP DC fuses support a variety of DC voltage levels. They work well in both low and high-voltage systems.
Robust Construction: The fuses use strong materials that resist heat and mechanical stress. This ensures long-term reliability.
Customization Options: LSP provides OEM and ODM services. Customers can request special ratings, sizes, or configurations.
The table below summarizes key features:
Feature | Benefit |
|---|---|
High Breaking Capacity | Handles large fault currents |
Arc Suppression | Improves safety |
Wide Voltage Range | Fits many applications |
Robust Construction | Lasts in harsh environments |
Customization | Meets unique project needs |
Applications in Solar, Storage, and Industry
LSP DC fuses protect many types of systems. Their design makes them suitable for demanding environments.
Solar Power Systems: LSP DC fuses act as the first line of defense. They prevent faults from damaging solar panels, cables, and inverters.
Battery Energy Storage: The fuses help stop thermal runaway and equipment damage. They disconnect faulty circuits quickly.
Industrial DC Networks: LSP DC fuses protect machinery and control panels. They ensure safe operation in factories and plants.
Electric Vehicles: The fuses provide reliable overcurrent protection for EV batteries and charging stations.
LSP DC fuses support safe and stable operation in renewable energy, transportation, and industrial sectors.
Customization and Support
Choosing the right DC fuse often requires more than just picking a standard product from a catalog. Every electrical system has unique requirements. Customization and strong technical support play a key role in ensuring safety, reliability, and long-term performance.
Why does customization matter?
Not all applications are the same. Some projects need fuses with special current ratings, unique sizes, or specific mounting options. Customization allows engineers and installers to match the fuse exactly to the system’s needs. This reduces the risk of improper protection and helps prevent costly equipment failures.
Tailored Ratings:
Custom current and voltage ratings ensure the fuse responds correctly to faults in your system.Special Dimensions:
Unique sizes or shapes may be needed for tight spaces or unusual installations.Application-Specific Features:
Some environments require extra resistance to heat, vibration, or moisture. Custom fuses can include these features.
Tip: Customization helps avoid compromises. The right fit means better protection and easier installation.
Why is support important?
Technical support guides users through selection, installation, and troubleshooting. Many users face challenges when choosing the correct fuse, especially in complex or high-risk systems. Expert advice ensures the right product is chosen and installed correctly.
Support Service | Why It Matters |
|---|---|
Product Selection Help | Prevents mistakes and mismatches |
Application Guidance | Ensures compatibility with your system |
Troubleshooting | Solves problems quickly and safely |
After-Sales Support | Maintains system reliability over time |
A strong support team answers questions, provides documentation, and helps with compliance to safety standards. This reduces downtime and increases confidence in the protection solution.
Why choose a provider with both customization and support?
Projects run smoother when products fit perfectly.
Safety improves when experts help with selection and installation.
Long-term reliability increases with ongoing support.
Note: For critical applications like solar power, battery storage, or industrial automation, customization and support are not just added benefits—they are essential for success.
When selecting DC fuses, consider providers who offer both tailored solutions and responsive technical support. This approach ensures your system receives the best possible protection, now and in the future.
Choosing between glass and ceramic fuses depends on your needs. Glass fuses suit low-power, simple systems. Ceramic fuses work best in high-risk or demanding environments. Always match the fuse type to your application and surroundings.
Glass fuses: Easy inspection, lower cost, basic protection.
Ceramic fuses: Higher safety, better durability, handles more stress.
For complex systems or when unsure, check product specifications or ask an expert. The right fuse keeps your equipment safe and reliable.
FAQ
Why do glass fuses allow for easy inspection?
Glass fuses allow for easy inspection because their bodies are made of transparent glass, providing a clear view of the internal fuse element. Users can visually confirm if the fuse is functional or blown by checking for a broken wire or dark scorch marks inside the tube. This transparency eliminates the need for diagnostic tools like a multimeter for initial troubleshooting, making maintenance fast.
Why are ceramic fuses preferred in high-current circuits?
Ceramic fuses are preferred in high-current circuits due to their high breaking capacity and thermal stability. Unlike glass, ceramic bodies withstand extreme heat and pressure without shattering. Many are filled with silica sand to quench internal arcs and prevent physical explosions during a short circuit. This robust design ensures safety and reliability in demanding industrial and PV power systems.
Why should I choose a fuse based on the environment?
Choosing a fuse based on the environment is vital because factors like ambient temperature and physical stress affect reliability. High heat can cause nuisance tripping if not properly derated. Ceramic fuses offer superior thermal stability and mechanical strength, making them ideal for harsh industrial or outdoor settings like PV systems, where glass might fail under extreme vibration or thermal shock.
Why is breaking capacity important when selecting a fuse?
Breaking capacity is critical because it defines the maximum fault current a fuse can safely interrupt without rupturing. If a short circuit occurs and current exceeds this rating, the fuse might sustain an arc or physically fail, leading to fire hazards and severe equipment damage. Choosing a fuse with adequate breaking capacity ensures total circuit isolation and protects against catastrophic system failures.
Why do some applications require strict safety standards for fuses?
Strict safety standards are essential in high-risk applications like solar PV or industrial systems to prevent catastrophic failures. Regulations like IEC or UL ensure fuses operate reliably by effectively extinguishing arcs and isolating faults. Compliance guarantees that devices can handle extreme surges without causing fire or explosions, thereby protecting lives and expensive infrastructure.
Why do glass fuses cost less than ceramic fuses?
Glass fuses cost less primarily due to cheaper materials and simpler manufacturing. The glass body is easier to mass-produce compared to ceramic, which requires higher thermal resistance. Additionally, glass fuses lack internal arc-quenching agents like silica sand, reducing complexity and material costs. Their focus on low-power applications makes them a budget-friendly choice for consumer electronics.
Why should I consider DC fuses for solar and industrial systems?
DC fuses are vital for solar and industrial systems because DC current lacks a zero-crossing point, making arcs harder to extinguish than in AC. Standard fuses may fail under DC faults, causing fires. High-quality DC fuses are engineered to handle high voltages (up to 1500V) and quench arcs rapidly, ensuring safety for batteries and inverters while meeting strict gPV standards for system reliability.
