In photovoltaic systems, the DC Combiner Box serves as the critical junction between each PV string and the inverter. It not only consolidates the DC output from multiple strings but also provides overcurrent protection, short-circuit prevention, and coordinated protection with surge protective devices (SPDs). A proper combiner box protection scheme directly affects the safety of PV modules, string cabling, and downstream inverters, as well as the long-term stability of the system.
Unlike AC systems, DC systems face greater technical challenges when interrupting current: DC current lacks a zero-crossing point, making sustained arcs more likely. Therefore, protection components must not only interrupt overcurrents quickly but also have strong arc-extinguishing capabilities. Choosing between a Fuse and a Circuit Breaker in a DC combiner box involves not just cost and maintenance considerations, but also directly impacts system safety and reliability.
This article will explore the roles, advantages, disadvantages, and application scenarios of fuses and circuit breakers in DC combiner boxes, along with best practices for integrating DC surge protective devices (SPDs). Whether you are designing a large-scale PV power plant or installing a distributed rooftop system, this guide provides practical insights for selecting the most appropriate DC protection solution.
What is a DC Combiner Box？
The DC Combiner Box is a key component in photovoltaic systems, primarily used to combine the DC outputs from multiple PV strings and deliver them to an inverter or energy storage system. It simplifies wiring, improves installation efficiency, and enhances operational safety.
Beyond its combiner function, the DC combiner box provides critical protection:
Overcurrent Protection: Prevents damage to PV modules, cables, or inverters caused by overloads or short circuits.
Short-Circuit Protection: Quickly interrupts current during faults to protect the system and equipment.
Surge Protection: Works in coordination with DC SPDs to safeguard the system from lightning-induced and transient surges.
Common protective components inside a DC combiner box include:
Fuses: Offer fast and cost-effective overcurrent protection for individual strings.
Circuit Breakers: Resettable devices used for main bus lines or critical string protection.
DC Surge Protective Devices (SPDs): Protect the entire system from lightning strikes and transient overvoltages, ensuring stable operation.
Proper configuration of these protective components balances system safety, maintenance convenience, and cost efficiency.
Role of Fuses in DC Combiner Boxes
Fuses are one of the most common protective devices used for individual strings in DC combiner boxes. Their primary role is to quickly disconnect the circuit when the current exceeds the rated value, preventing damage to PV modules, cables, and downstream equipment.
Working Principle
The fuse contains a fusible element that melts under overcurrent conditions, physically interrupting the circuit to provide one-time overcurrent protection. Fuses for DC systems are designed to handle high voltage and high short-circuit currents, effectively addressing DC arcing issues.
Key Advantages
Fast Response: Fuses operate almost instantly under overload or short-circuit conditions, protecting sensitive electronics and PV modules.
High Breaking Capacity: Capable of interrupting high short-circuit currents, suitable for large-scale centralized PV systems.
Compact and Cost-Effective: Ideal for multi-string, high-density combiner boxes, reducing overall project costs.
Limitations and Considerations
Single-Use: Must be replaced after operation, increasing maintenance workload.
Spare Management: Backup fuses are required on site to ensure quick system recovery.
Operational Safety: Typically cannot be removed under load; may require a DC isolator in some applications.
Typical Applications
Large commercial or utility-scale PV power plants
High-string centralized PV systems
Scenarios requiring cost-effective protection and high short-circuit interrupt capability
Role of Circuit Breakers in DC Combiner Boxes
Circuit breakers are key protective devices in DC combiner boxes, used for string or main bus protection. Their primary function is to automatically disconnect the circuit under overload or short-circuit conditions, while also supporting manual operation for maintenance and inspection.
Working Principle
Circuit breakers operate through mechanical contacts to open or close the circuit and integrate thermal (overload) and magnetic (short-circuit) protection mechanisms. Under overload conditions, the thermal element trips with a delay; under short-circuit conditions, the magnetic trip mechanism rapidly disconnects the circuit to protect the system.
Key Advantages
Resettable Operation: After a fault, the breaker can be manually reset without replacement, reducing system downtime.
Manual Disconnect and Isolation: Facilitates on-site maintenance and enhances operational safety.
Easy Fault Identification: Equipped with trip indicators, allowing quick identification and isolation of faulty strings.
Limitations and Considerations
Larger Size: Requires more space in the combiner box, less suitable for high-density layouts.
Higher Cost: DC circuit breakers are significantly more expensive than fuses.
Limited Breaking Capacity: DC arc extinguishing is challenging; for very high short-circuit currents, derating or careful selection is required.
Typical Applications
Distributed rooftop PV systems or small commercial projects
Remote locations or areas with limited maintenance resources
Systems requiring frequent operation or inspection
Main bus lines or critical string protection; when combined with string fuses, it optimizes overall system protection
Fuse vs Circuit Breaker
Technical & O&M Comparison
In DC combiner boxes, fuses and circuit breakers each have distinct advantages and limitations in terms of technical performance and operation & maintenance (O&M). Understanding these differences helps designers and operators select the most suitable protection solution.
Response Speed
Fuses: Operate extremely fast, usually in milliseconds, quickly protecting sensitive PV modules under short-circuit or overload conditions.
Circuit Breakers: Slightly slower response due to thermal-magnetic tripping delay, but offer manual operation and reset functionality.
Breaking Capacity
Fuses: High breaking capacity, capable of handling the high short-circuit currents of large centralized PV systems.
Circuit Breakers: DC arc extinguishing is more challenging, so breaking capacity is relatively limited and must be selected according to system short-circuit current.
Reset and Maintenance
Fuses: Single-use; must be replaced after operation, increasing downtime and maintenance effort.
Circuit Breakers: Resettable; after clearing a fault, can be manually reset, reducing downtime.
Space Adaptation and Operation Features
Fuses: Compact, suitable for high-density layouts, but generally do not support manual disconnect.
Circuit Breakers: Larger, occupy more space, but can act as a manual isolator for maintenance, improving operational safety.
Cost Analysis
Fuses: Low initial cost, ideal for large-scale, multi-string systems.
Circuit Breakers: Higher upfront cost, but lower long-term O&M cost by reducing replacement and downtime losses.
Overall Assessment
For high short-circuit current, large centralized power plants, fuses are more cost-effective while providing reliable protection.
For frequent maintenance, remote locations, or small distributed systems, circuit breakers provide superior O&M convenience through reset and manual operation features.
Fuse vs Circuit Breaker Comparison Table
| Feature | Fuse | Circuit Breaker |
| Response Speed | Fast | Slightly slower |
| Resettable | No | Yes |
| Breaking Capacity | High | Moderate or Limited |
| Cost | Low | High |
| Maintenance | Replacement required | Resettable, easier maintenance |
| Operation Function | No manual disconnect | Manual disconnect & isolation available |
| Typical Applications | String-level protection | Main bus or critical string protection |
Integration with DC SPDs
In a DC combiner box, fuses and circuit breakers mainly provide overcurrent and short-circuit protection, but they cannot protect against lightning or transient surges. This is where DC Surge Protective Devices (SPDs) become essential.
Coordination of SPDs with Fuses/Breakers
Multi-level protection: Fuses or breakers disconnect overload currents, while SPDs absorb transient surges, preventing damage to PV modules and internal combiner box components.
Extended equipment life: SPDs reduce voltage spikes’ impact on electronic components, prolonging the life of the combiner box and inverter.
Enhanced system reliability: Using them together provides dual protection against short circuits and surges, ensuring stable PV system operation.
Selection Recommendations
For string-level protection, a combination of fuse + DC SPD balances fast disconnection and surge absorption.
For main bus or critical string protection, a circuit breaker + DC SPD combination provides resettable operation and comprehensive protection.
When selecting an SPD, consider its rated voltage, discharge capacity, and response time to ensure compatibility with combiner box voltage levels and system requirements.
By properly configuring fuses/circuit breakers with DC SPDs, designers can achieve the optimal balance of cost, protection performance, and O&M convenience.
Selection Guidelines
When designing a DC combiner box, selecting fuses, circuit breakers, and DC surge protective devices (SPDs) should consider system scale, string current, voltage level, maintenance convenience, and cost. Here are the guidelines:
Selection by System Scale
Large centralized PV plants: Use fuses for strings—cost-effective and reliable; main bus lines can use high breaking capacity circuit breakers.
Small distributed or residential systems: Use circuit breakers on main lines for manual operation and maintenance; string protection can use fuses or small circuit breakers based on cost.
Selection by O&M Requirements
Remote or hard-to-maintain locations: Prioritize resettable circuit breakers to reduce downtime and replacement labor.
Ample O&M resources and low tolerance for downtime: Fuses offer economic protection and high breaking capacity, ideal for rapid string protection.
Integration with SPDs
Each string or main line should be paired with a DC SPD for dual protection: short-circuit + surge protection.
When choosing an SPD, consider rated voltage, discharge capacity, response time, and compatibility with fuses/circuit breakers.
Space and Environmental Considerations
Compact combiner boxes: Prioritize small fuses for space efficiency.
High-temperature or frequently operated environments: Use derated or high-reliability circuit breakers to ensure safety and long-term stability.
Hybrid Configuration Strategy
In complex systems, a string fuse + main circuit breaker + DC SPD hybrid approach balances fast protection, O&M convenience, and cost efficiency.
By carefully considering these factors, designers can provide a safe, reliable, cost-effective, and easy-to-maintain DC combiner box protection solution for photovoltaic systems.
LSP Products for DC Combiner Boxes
LSP is a trusted company for DC Combiner Boxes. You can count on LSP for smart solutions in solar power. LSP has been making new products for a long time. The company works hard to make protection better for your pv projects. LSP uses modern ways to build and checks quality closely. This means you get products you can trust for your solar setup.
LSP cares about safety and how well things work. The company follows IEC rules for every product. You can see certificates that prove LSP meets world standards. LSP also gives help with technical questions and service after you buy. This lets you fix problems fast and keep your pv system working.
LSP Fuses for PV Combiner Boxes
You can put LSP DC Fuses in your DC Combiner Boxes to protect each solar string. These fuses act fast if there is too much current or a short circuit. They help stop damage to your pv panels and wires. LSP makes its fuses to handle high DC voltage in solar systems. You can trust these fuses to work in tough places like hot roofs or dusty fields.
LSP fuses last a long time and work steady. You do not need to worry about parts wearing out. You can check if a fuse has blown and put in a new one. This makes it easy to take care of your pv combiner box. LSP fuses help keep your solar power safe and working well.

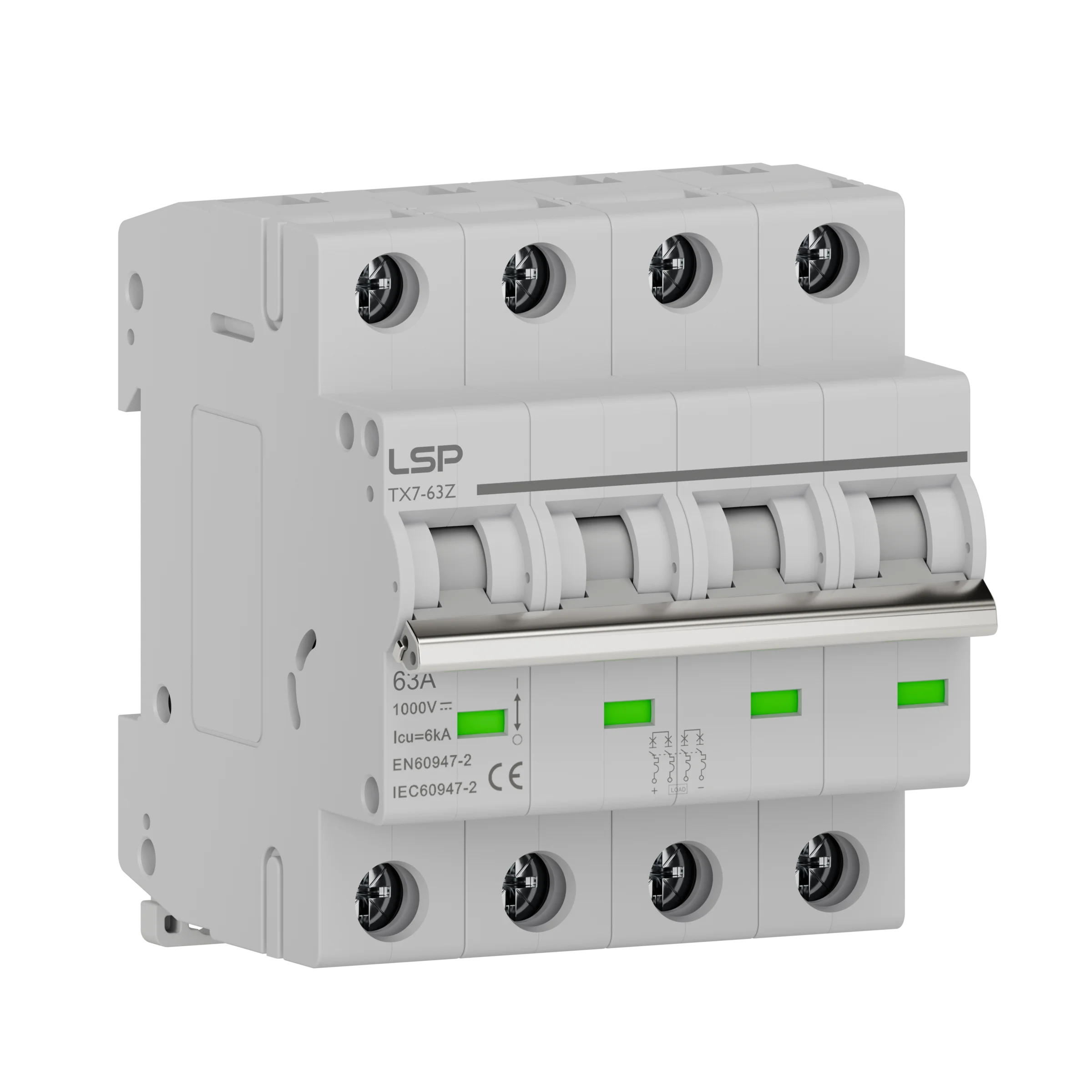

LSP Circuit Breakers for Solar Combiner Boxes
LSP also has DC Circuit Breakers for your DC Combiner Boxes. These breakers give protection and easy switching. You can use them to turn off a string or part for repairs. LSP circuit breakers trip when there is too much current. You can reset them after you fix the problem, so your solar system has less downtime.
LSP circuit breakers work great in both business and home pv projects. They have strong arc control to lower fire risk. This makes your solar system safer. You can trust LSP breakers to handle what modern solar power needs.
Selecting the Right LSP Solution
Pick LSP products based on what your pv system needs. For small or far-away solar projects, LSP fuses give simple and cheap protection. If you want quick resets and less waiting, choose LSP circuit breakers for your combiner. In big or important solar sites, circuit breakers give more safety and control.
When you pick protection devices, match the current and voltage ratings to your pv combiner box. Look for IEC certificates to make sure it is safe. If you use surge protection, check the status window. Green means everything is normal. If it is not green, the device may need a check.
Tip: Ask LSP’s technical team if you need help picking the best protection for your solar power system.
LSP gives you good choices for every pv project. You can keep your power safe and your combiner working well.
You need to choose between a Fuse and a Circuit Breaker for your DC Combiner Boxes based on your needs. For low cost and simple design, pick a Fuse. For fast resets and safer maintenance, choose a Circuit Breaker. In solar projects, both options protect your system well.
Conclusion
In DC combiner boxes for photovoltaic systems, fuses and circuit breakers are the core devices for overcurrent protection, each with unique advantages and suitable applications:
Fuses: Fast-acting, high breaking capacity, compact, and cost-effective, ideal for string protection and large centralized PV systems.
Circuit Breakers: Resettable, easy to maintain, and equipped with manual disconnect functionality, suitable for main bus lines, critical strings, and systems requiring frequent maintenance.
At the same time, DC Surge Protective Devices (SPDs) are essential for safeguarding the system against lightning strikes and transient surges. Using fuses or circuit breakers together with SPDs provides dual protection: short-circuit + surge protection, ensuring long-term stable system operation.
When selecting protection devices, designers should consider system scale, current levels, environmental conditions, maintenance convenience, and cost. In complex systems, a hybrid configuration (string fuses + main circuit breakers + DC SPD) can optimize protection performance and O&M efficiency.
With proper configuration, designers and installers can provide a safe, reliable, cost-effective, and easy-to-maintain DC combiner box protection solution for photovoltaic systems.
FAQ: Fuse and Circuit Breaker in DC Combiner Boxes
Can you omit fuses in a PV DC Combiner Box?
For multi-string, high-current combiner boxes, omitting fuses is high-risk and not recommended. In small, low-current systems, main breakers can offer some protection, but they cannot provide fast string-level disconnection like fuses.
Fuses in a PV DC combiner box are mainly used for string-level overcurrent protection. If the current in a PV string exceeds its rated value, the fuse quickly disconnects the circuit, protecting PV modules, string cables, and internal combiner components.
If fuses are omitted:
Higher short-circuit risk: A string short-circuit can directly affect modules and cables, potentially causing damage or fire.
Maintenance complexity: Troubleshooting a faulty string requires shutting down the main line or the entire system, reducing operational efficiency.
Reduced system safety: Without fuses, a string fault may impact the whole combiner box or downstream inverters.
Can you omit circuit breakers in a PV DC Combiner Box?
In large-scale or critical-line systems, omitting circuit breakers reduces maintenance convenience and system reliability. In small or low-maintenance systems, using only fuses is possible, but breakers on main lines are still recommended.
Circuit breakers in a PV DC combiner box are mainly used for main bus or critical string protection, providing resettable and manual disconnect functions for easier maintenance.
If circuit breakers are omitted:
No manual isolation of main lines: Maintenance may require shutting down the entire combiner box or inverter, which is inconvenient.
Slower fault recovery: Fuses must be replaced after operation, whereas circuit breakers can be reset quickly, reducing downtime.
Reduced system reliability: Without breakers on critical lines, a fault may cause full system shutdown.
Can a circuit breaker be used as a manual disconnect switch?
Yes, many DC circuit breakers include manual disconnect functionality, allowing safe maintenance and inspection without shutting down the entire system.
Do I still need a DC SPD if I have fuses or circuit breakers?
Yes. Fuses and circuit breakers protect against overcurrent and short circuits, but they do not protect against lightning or transient surges. DC SPDs are necessary for surge protection.
How often should fuses or circuit breakers be checked or replaced?
Fuses are replaced only when blown. Circuit breakers should be periodically tested and inspected according to manufacturer recommendations and system operation frequency.
Which is more cost-effective for large multi-string systems?
Fuses are generally more cost-effective for large-scale, multi-string combiner boxes due to lower initial cost and high breaking capacity.
Can I mix fuses and circuit breakers in one combiner box?
Yes. A common approach is using fuses for string-level protection and a circuit breaker for the main bus or critical strings, often combined with DC SPDs for full protection.
