Distribution Board Diagram Overview
A distribution board diagram gives the blueprint for the electrical wiring before any physical installation is done. It serves as the primary technical reference for ensuring safety, maintenance, and long-term system reliability. In modern electrical infrastructure, a clear schematic is essential for coordinating various protective devices and managing complex circuit layouts to ensure power is distributed efficiently and safely across the entire facility.
Modern electrical installations face growing challenges, including the integration of surge protection, handling complex loads, and organizing multi-circuit environments. As buildings become more digitized and connected, the way SPD symbols and placements are represented in a distribution board diagram has become a critical factor for engineers to prevent catastrophic equipment failure caused by external grid disturbances or nearby lightning activities.
Key Components of a Distribution Board Diagram
Understanding Component Functions and Symbols
To accurately read a schematic, one must understand the specific roles of its parts. The distribution board diagram utilizes standardized symbols to ensure electrical design complies with international safety standards.
- Main Switch (Isolator): Positioned at the top of the distribution board diagram, it provides “double pole” isolation, simultaneously breaking live and neutral conductors for safe maintenance.
- RCD / RCCB: Symbolized by a switch with a test button (“T”), it senses tiny residual currents (30mA) during earth faults to provide instant automatic protection against electric shock.
- MCBs: Using thermal and magnetic trip symbols, MCBs prevent fire from overheating wires (overload) and trip immediately during short-circuits to safeguard appliances.
- Busbars & Links: The busbar (thick horizontal line) supplies power to MCBs, while neutral and earth links provide the necessary paths for current return and fault grounding.
Integrating SPD for Advanced Protection
Standard circuit protection focuses on overloads and shocks, but the advanced distribution board diagram addresses a critical hazard: transient overvoltages. These high-energy spikes from lightning or grid switching can cause irreparable damage to sensitive microelectronics within a modern home supply.
To mitigate this, the distribution board diagram incorporates the Surge Protection Device (SPD) as a vital safety valve. Wired close to the incoming supply, the SPD creates an active defense strategy that safeguards the entire installation—from the main board to final sub-circuits—against external voltage events.
SPD Placement in Distribution Board Diagrams
SPD Placement and Wiring Logic
In an advanced distribution board diagram, the SPD acts as a safety valve designed to mitigate transient overvoltages. It remains inactive during normal operation, but when a surge occurs, its impedance drops to redirect excess energy to the earth. This prevents the spread of overvoltage through the installation and avoids the destruction of connected equipment.

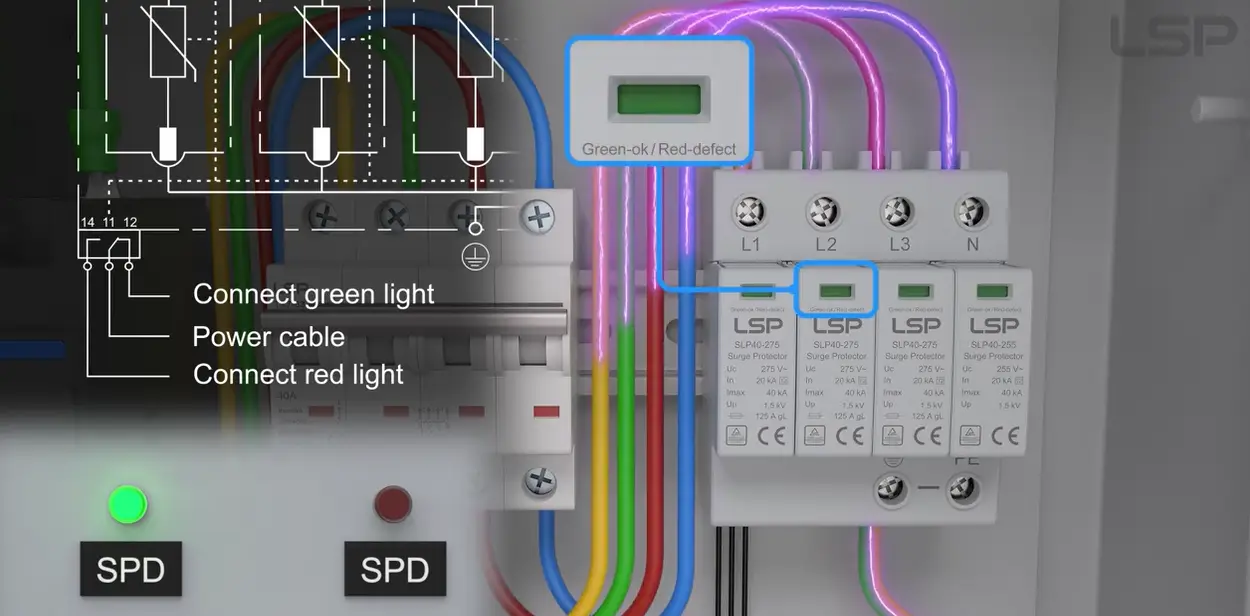

The SPD must be mounted in parallel with the supply on a distribution board diagram. It is typically installed between the main switch and any RCDs, connecting the live, neutral, and main earth terminals. This location captures surges at the point of entry, safeguarding the end circuits and the delicate protective devices within the board itself.
Upstream vs. Downstream Protection
The distribution board diagram should show the SPD placed after the main isolator to protect downstream circuits. To ensure effective protection, grounding links must be clearly indicated, with lead lengths kept as short as possible. Proper coordination in the distribution board diagram ensures that the system can withstand a lightning strike or heavy grid switching without failure.
Single-Phase Distribution Board Wiring Diagram
Residential Consumer Unit Diagram
A single-phase distribution board diagram provides a multi-layered defense strategy for homes. Following the circuit, the phase supply passes through the energy meter to the main switch. The distribution board diagram indicates the parallel connections to the SPD immediately after this switch, which serves as the initial protective level against surges from the transformer secondary.
In this configuration, the protective logic is clearly organized. The main switch provides manual control, while the RCD offers protection against electric shock. Power is then fed through the busbar to individual MCBs for circuit protection. For most residential properties, installing a Type 2 SPD in the main distribution board diagram is the correct solution to safeguard sensitive electronics and ensure a robust installation.
Three-Phase Distribution Board Wiring Diagram
Industrial & Commercial Power Center Diagram
In industrial environments, the distribution board diagram manages high-capacity loads using a three-phase supply (L1, L2, L3, N, PE). These diagrams represent a more complex infrastructure where power is distributed to large motors and heavy machinery. The integration of high-performance protection in the distribution board diagram is crucial to prevent process downtime caused by grid disturbances.
The three-phase distribution board diagram often coordinates multiple protective stages. For main incoming boards, heavy-duty Type 1 SPDs are required to handle high-energy currents, while sub-boards use Type 2 devices. This hierarchical strategy within the distribution board diagram ensures that transient surges are mitigated before reaching critical industrial control systems.
Common Distribution Board Wiring Topologies
The distribution board diagram must adapt to different earthing systems used globally. Whether it is a TN-S, TN-C-S, or TT system, the schematic defines how the SPD is connected between live, neutral, and earth. For instance, in a TT system, the distribution board diagram often shows a 3+1 configuration to prevent earth faults from causing hazardous leakage.
Another critical aspect of the distribution board diagram is coordinated protection. When multiple SPDs are used, the distribution board diagram should reflect the necessary spacing or decoupling requirements between Type 1 and Type 2 devices. This ensuring that the high-energy surge is mitigated at the entrance before the remaining transient reaches downstream sub-boards.
Best Practices for Distribution Board Diagrams
A professional distribution board diagram is a vital guide, but translating it into a secure physical installation requires selecting components that match the environment’s specific lightning risk. The following table outlines the engineering logic for selecting the correct SPD category:
| SPD Category | Optimal Application | Primary Engineering Function |
| Type 1 | Service entrance (High Risk) | Divert direct lightning strike energy |
| Type 2 | Standard distribution board diagram | Suppress indirect surges and switching events |

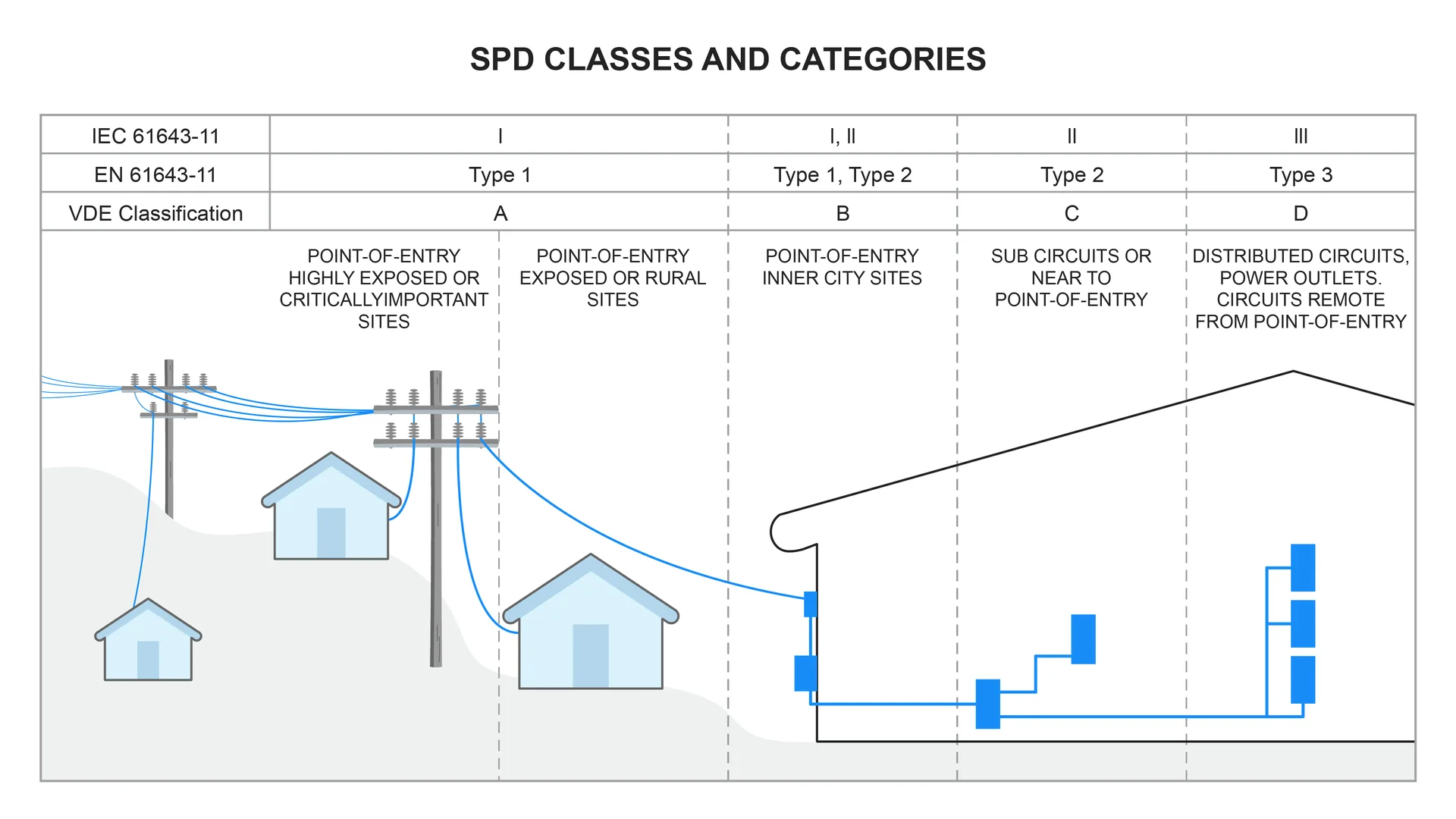

| Type 3 | Near terminal/precision loads | Final protection for microelectronics |
For most residential and commercial MDBs, a Type 2 SPD in the distribution board diagram is the correct solution. Engineers must prioritize the Voltage Protection Level (Up)—where a lower value indicates superior protection—and the Nominal Discharge Current (In) to ensure the system withstands repeated transients.
Beyond selection, professional safety principles must be strictly followed. Working on a board is a high-risk job that requires the “Isolate, Lock Out, and Prove Dead” protocol. Following the distribution board diagram to the letter, including electrical wiring color codes, ensures that the physical installation remains as safe and functional as the original design.
Conclusion: Toward a Secure Electrical Infrastructure
A clear, accurate distribution board diagram is the foundation of electrical safety. In today’s sensitive electronic environment, integrating an SPD into your distribution board diagram represents a vital shift toward active defense. By aligning the physical installation with a precise schematic, you ensure both regulatory compliance and comprehensive equipment protection.
LSP Professional Diagrams & SPD Products
LSP provides customized distribution board diagram solutions and CAD schematics for complex engineering projects. To ensure the highest level of safety, we offer specialized product lines tailored to the specific protection stages indicated in your diagrams.
- For MDB diagrams: LSP FLP series (Type 1+2)
Specifically engineered for main distribution boards, the FLP series handles high-energy lightning currents at the service entrance, providing a robust first line of defense as specified in the distribution board diagram.
- For Consumer Unit diagrams: LSP SLP series (Type 2)
Ideal for sub-boards and residential consumer units, the SLP series ensures that sensitive downstream electronics remain safe from residual transient voltages, matching the precision requirements of your distribution board diagram.
All LSP products feature seamless DIN-rail integration, ensuring that the final physical installation is as clean, organized, and reliable as the distribution board diagram itself.
