A transformer is an electrical device that does not move. It changes voltage levels without moving parts. Power transformers help move electricity from one place to another. They make moving electricity more efficient. They help lower energy loss. They keep your lights on at home. They keep machines running at work. They help your city stay powered. Using power transformers saves a lot of money on energy. They also help cut down carbon emissions over time.
What Is a Transformer
Power Transformer Definition
If you ask, “what is a transformer,” you want to learn about a device that changes voltage in an electrical system. A transformer is a machine that does not move. It has no moving parts inside. You use it to move electrical energy from one circuit to another. The main job of a power transformer is to raise or lower voltage. This means it can make voltage go up or down. You can find power transformers in power stations, substations, and some big buildings.
Power transformers work using electromagnetic induction. They have two main coils called windings. These windings are wrapped around a core. When electricity goes through one coil, it makes a magnetic field. This field moves energy to the second coil. The voltage changes depending on how many turns each coil has. There are no moving parts inside. This makes power transformers strong and last a long time.
You can see the main differences between power transformers and other types of electrical transformers in the table below:
Aspect | Power Transformers | Other Transformers |
|---|---|---|
Voltage Transformation | Used to step up or step down voltage levels | Typically used for specific applications |
Cooling Methods | Can be oil-cooled or air-cooled | May use different cooling methods |
Winding Configurations | Can be two-winding or auto transformers | Varies based on application |
Mounting Types | Can be pole-mounted or pad-mounted | Various mounting options available |
Why Power Transformers Matter
You use power transformers every day, even if you do not see them. They help move electricity from power plants to your home or school. Power transformers raise low-voltage electricity for long trips. This helps stop energy loss. When electricity gets to your area, power transformers lower it to a safe level. This makes sure you get the right voltage for your lights and devices.
Power transformers also help keep the power grid steady. They make sure the voltage stays the same across the network. This helps protect your electronics and keeps things safe. Power transformers connect different parts of the grid. They make sure electricity from power plants matches what you need at home or work.
You can see power transformers in many places. They help big factories, cities, and small towns. They give electricity at the right voltage for each place. Without power transformers, you would have more power outages and less reliable service. They are very important for modern life and industry.
Tip: Power transformers help save energy and money by making electricity travel better over long distances.
How Power Transformers Work
Electromagnetic Induction Principle
You may wonder how a power transformer changes voltage. It uses electromagnetic induction. This lets electrical energy move from one coil to another. The coils do not touch each other. Here is what happens:
Alternating current goes into the primary winding. This makes a magnetic field around the iron core.
The magnetic field gets bigger and smaller as the voltage changes.
The changing magnetic field moves through the secondary winding. Both windings wrap around the same core.
Faraday’s law says a changing magnetic field creates electromotive force (EMF) in the secondary winding.
The EMF strength depends on how quickly the field changes. It also depends on how many turns are in the coil.
You can make voltage go up or down. You do this by changing the number of turns in each winding.
You do not need moving parts for this process. Power transformers use this idea to work quietly and last a long time.
Step-Up and Step-Down Operation
Power transformers help change voltage levels. You can step up voltage for sending electricity far away. You can step down voltage for safe use at home. The way you wind the coils decides if voltage goes up or down. Here is a table that shows the main differences:
Feature | Step-Up Transformer | Step-Down Transformer |
|---|---|---|
Voltage Change | Raises voltage (for example, 220v to 11,000v) | Lowers voltage (for example, 220v to 110v) |
Primary Winding Turns | Fewer turns in primary winding | More turns in primary winding |
Secondary Winding Turns | More turns in secondary winding | Fewer turns in secondary winding |
Main Application | Used by power companies for long trips | Used for home appliances and electronics |
You see step-up power transformers at power stations. They help send electricity far with less loss. You find step-down power transformers near homes and businesses. They make sure you get the right voltage for your devices. The frequency of the electricity does not change during this process. You get safe and steady power for your needs.
Parts of a Transformer
A power transformer has several important parts. Each part has a special job. You need to know these parts to understand how a transformer works and why it is reliable.
Component | Function |
|---|---|
Primary Winding | Connects to the power source and creates a magnetic field. |
Core | Made from special steel or metal, guides the magnetic field between windings. |
Secondary Winding | Receives energy from the core and sends it to the next circuit. |
Tank | Holds and protects the inside parts, helps with cooling. |
Transformer Coil

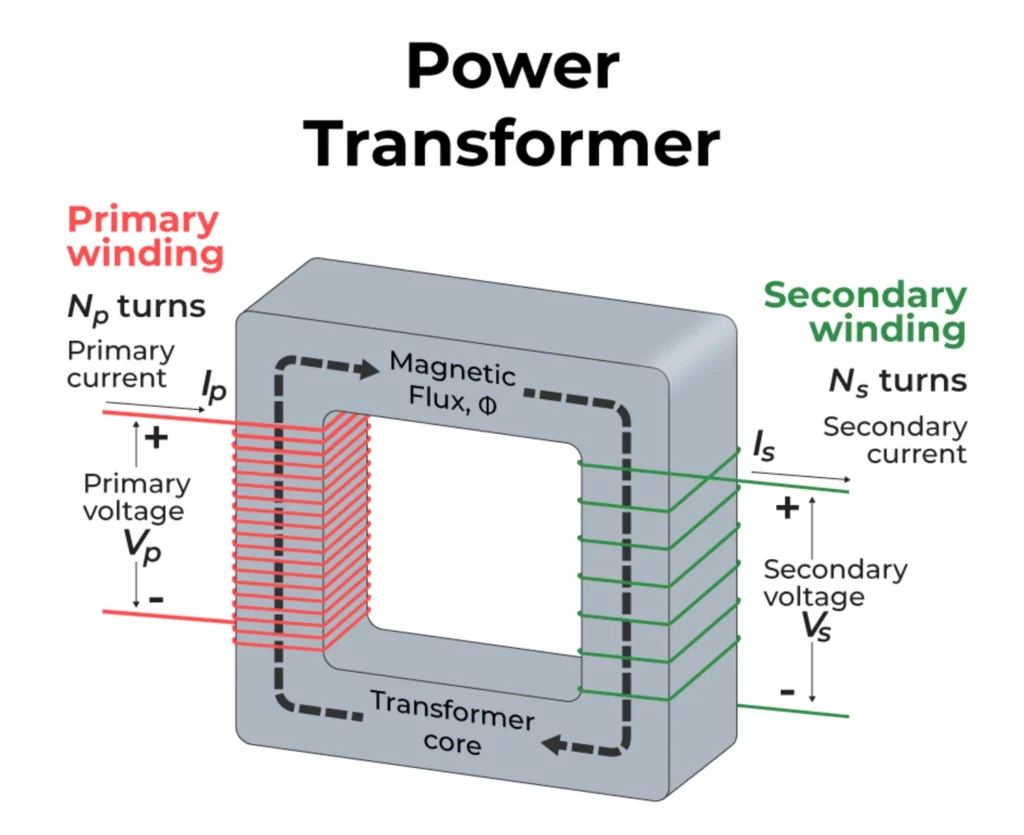

The transformer coil is a key part of every transformer. You find two main coils: the primary and the secondary. The primary coil connects to the power source. The secondary coil connects to the output. Here is how the transformer coil helps move energy:
You send alternating current into the primary winding.
The current creates a magnetic field in the core.
The magnetic field links to the secondary winding.
The changing field makes voltage in the secondary winding.
The secondary winding sends out the new voltage.
Transformer bushings let wires pass safely through the tank. They keep the high voltage inside and protect you from electric shock. Transformer fuses protect the transformer from too much current. If a problem happens, the fuse breaks the circuit and keeps the transformer safe.
Core and Insulation
The core sits at the center of the transformer. Most cores use cold-rolled grain-oriented silicon steel. Some use amorphous metal for better efficiency. The core gives a path for the magnetic field. This helps the transformer coil work well.
Insulation keeps the windings safe from each other and from the core. You often see kraft paper, pressboard, or Nomex used for insulation. Epoxy resin covers the windings in dry-type transformers. Transformer fluid, like mineral oil or synthetic ester oil, also acts as insulation and helps cool the transformer.
Note: Good insulation and a strong core help the transformer last longer and work safely.
Cooling System
Transformers get hot when they work. The cooling system keeps the temperature safe. You find different cooling methods:
Cooling System | Description |
|---|---|
AFA | Uses fans to blow air through the transformer. |
AA/FA | Fans turn on when the transformer gets too warm. |
ANV | Uses natural air, no fans needed. |
GA | Uses gas inside the tank for cooling. |
ONAN | Uses transformer fluid and air to cool down. |
ONAN/ONAF | Uses both fluid and forced air for better cooling. |
ONAN/ONAF/OFAF | Uses fluid, air, and sometimes extra pumps for large transformers. |
Transformer fluid flows inside the tank. It removes heat from the core and windings. This keeps the transformer safe and working well.
Tip: Always check that transformer bushings and cooling systems are in good shape for safe operation.

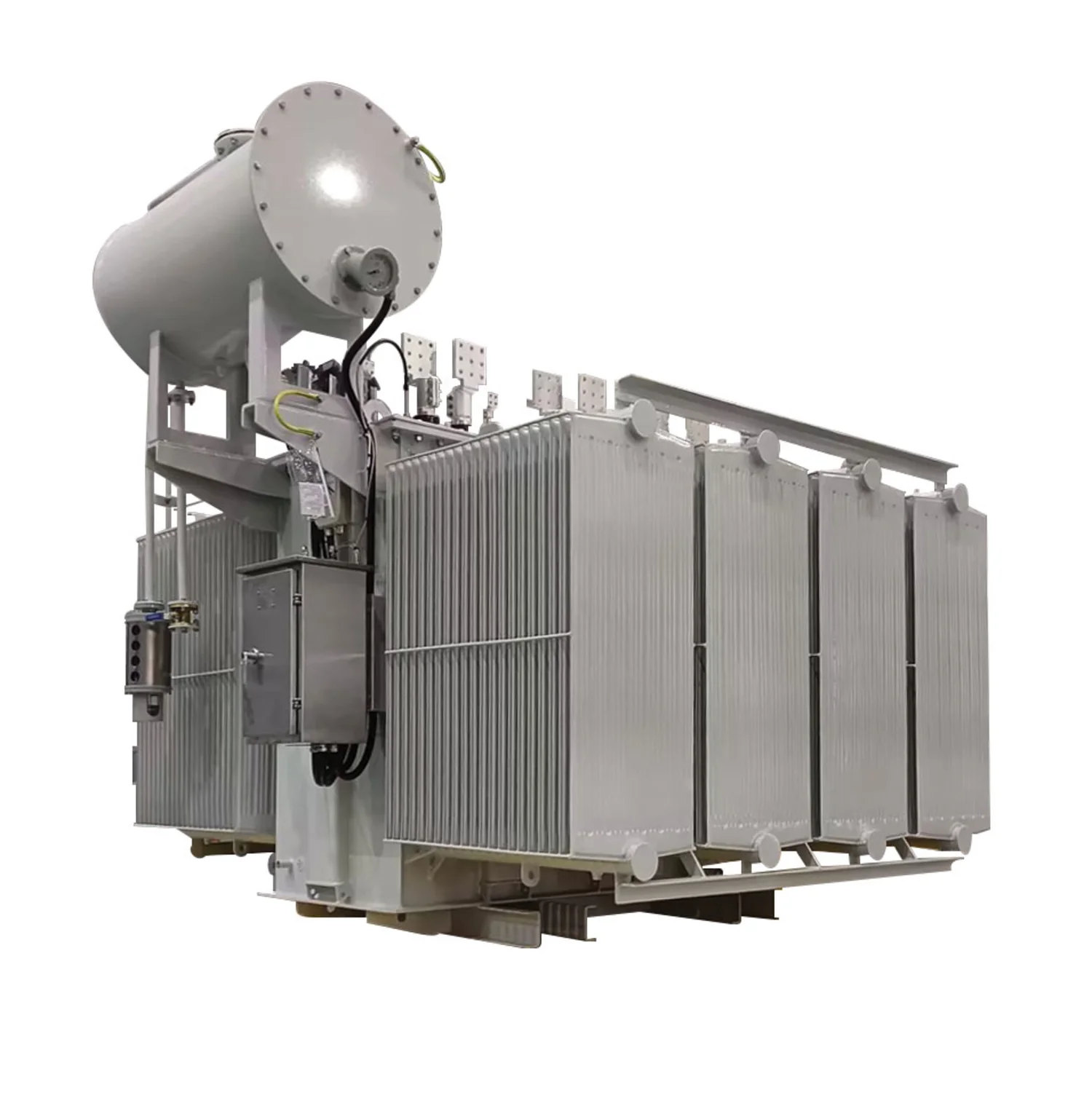

Power Transformers in Use
Substations
Substations use power transformers to change AC voltage. They step up voltage for sending power far away. They step down voltage for local use. This helps lower transmission loss and keeps electricity moving well.
Copper Mines
Copper mines need power transformers for safe power. Grounding transformers give a safe point and limit faults. Step-down transformers lower high voltage for equipment. Substation transformers handle lots of power and help save energy.
Grounding transformers make things safer and more reliable.
Step-down transformers keep mining equipment safe.
Substation transformers help mines run smoothly.
Power Plants
Power plants use power transformers to send electricity far. They step up voltage for transmission. This helps lower energy loss. It makes power transmission and distribution work better.
Residential Distribution
You need power transformers for safe electricity at home. Residential transformers change high voltage to 120/240 volts. This step-down keeps your appliances safe. Transformers keep the grid steady and voltage levels even.
Residential transformers make electricity safe for homes.
Transformers protect devices from getting damaged.
Steady voltage helps electrical devices work right.
Key Specs and Types
Voltage and Power Ratings
When you look at electrical transformers, you need to know some main specs. Voltage rating tells you the highest voltage a transformer can take. Power rating shows how much power the transformer can move. Most transmission transformers work with voltages from 11kV to 765kV. Power ratings can be hundreds of megavolt-amperes (MVA). Smaller transformers for homes have lower voltage and power ratings. You use transformer voltage adjustment to match the voltage you need. This keeps your devices safe and your power steady.
Efficiency and Losses
Transformers work best when they do not waste much energy. Efficiency means how much input power becomes useful output power. Most big transformers reach over 98% efficiency. Losses happen because wires and the core get hot. These are called copper losses and core losses. Good design and cooling systems help lower these losses. High efficiency means less energy is wasted during transmission. You save money and help the environment with efficient transformers.
Note: Always check the efficiency rating before you pick a transformer for your system.
Main Transformer Types
There are several types of transformers in power systems. Each type does a special job. The most common types are distribution transformers, power transformers, and instrument transformers. Distribution transformers lower voltage for homes and businesses. Instrument transformers help measure high voltages and currents safely. The table below shows how distribution transformers and instrument transformers are different:
Type of Transformer | Application Description | Design Characteristics |
|---|---|---|
Distribution Transformer | Used to lower voltage levels for distribution to consumers. | Rated at 200 MVA or lower, voltage rating between 230V to 11kV. |
Instrument Transformer | Converts high voltages and currents into lower, manageable levels for measurement. | Known as measurement transformers, isolates equipment from high voltage and currents. |
You see these types of transformers at different places in the transmission network. Each one helps keep the system safe and reliable.
Tip: Knowing the types of transformers helps you pick the right one for your needs.
Conclusion
You have learned what a transformer is and what makes it important. You now know that transformers do not have moving parts. You use them to change voltage levels and keep electricity safe. You see them in power plants, substations, factories, and even near your home. You can find them in many places because they have a critical role in electrical systems.
You can remember these main points:
Transformers help move electricity over long distances.
They make sure you get the right voltage for your devices.
They protect your electronics and keep the power steady.
They help save energy and lower costs.
If you want to keep your home and devices safe, you should understand how transformers work.
You can use this knowledge when you see a transformer in your neighborhood. You can also use it if you study science or work with electricity in the future. You now know what parts make up a transformer and what each part does. You also know what types of transformers exist and what jobs they do.
If you want to learn more, you can read books about electrical engineering. You can also visit websites that explain how transformers work. You can ask your teacher or a local electrician for more information.
You now understand what transformers are and what they do for you every day. You can see how they help keep your world powered and safe.
You notice transformers help give you steady electricity every day. They keep energy moving without problems. They also help new technology work in homes and factories.
They make sure energy is shared well and stays steady.
They let renewable energy join the power grid.
They help smart systems and machines work better.
If you want to know more, look at these resources:
Resource Title | Description |
|---|---|
Technical Services for Transformers | Learn about checking designs and getting expert advice. |
Insulation Design Analysis | Find out how insulation parts can work better. |
Dry-Out Process Analysis | See how to safely take water out of insulation. |
DFMEA and FMEA | Learn ways to check risks and improve designs. |
FAQ
What does a power transformer do?
A power transformer changes voltage in an electrical system. It helps move electricity safely from one place to another. It makes sure electricity travels efficiently.
What are the main parts of a power transformer?
There are four main parts in a power transformer. These are the core, primary winding, secondary winding, and insulation. Each part helps move energy and keeps the transformer safe.
What happens if a transformer fails?
If a transformer fails, you might lose power. Your devices could get damaged. The utility company needs to fix or replace the transformer to bring back electricity.
What is the difference between a step-up and a step-down transformer?
A step-up transformer makes voltage higher for sending electricity far. A step-down transformer lowers voltage for safe use at homes and businesses.
What should you check to keep a transformer working well?
You should check the cooling system, insulation, and bushings often. Regular checks help stop overheating and make the transformer last longer.
