Ethernet Surge Protector – Complete Guide

Understanding Ethernet Surge Protector: What They Are and Why You Need Them

What Is Ethernet?

When we talk about an Ethernet surge protector, the first question is—what exactly is Ethernet?

Ethernet is a widely used data communication technology that connects computers, security cameras, routers, control terminals, and many other devices to enable high-speed data transmission and communication. It typically uses twisted-pair cables, fiber optics, or, in earlier systems, coaxial cables.

• Twisted-pair cables are commonly used for indoor local area networks (LANs).

• Fiber optic cables offer higher speeds and longer transmission distances, and are often used in backbone networks for transferring data and video.

• Coaxial cables, although now less common, offer good interference resistance and moderate distance, but are heavier and are mainly used in legacy video and broadcast systems.

From traditional LAN setups to today’s smart cities, industrial automation, healthcare systems, and video surveillance platforms, Ethernet has become a foundational element of modern digital infrastructure.

What Is a Surge (Transient Overvoltage)?

A surge, also known as a transient overvoltage, is a sudden spike in voltage that occurs in a very short time. These dangerous bursts can be caused by:

• Lightning strikes or induced surges nearby;

• Switching on or off large electrical equipment;

• Static discharge, power fluctuations, or grid faults.

These unexpected voltage spikes can travel through power or network lines, resulting in signal interference, communication failures, or even physical damage to network ports and circuitry. This makes Ethernet surge protection critically important in any reliable system.

What Is an Ethernet Surge Protector?

An Ethernet surge protector is a small but essential device designed to protect Ethernet-connected equipment from surge damage. It works by instantly diverting excess voltage to the ground before it can reach and harm your network devices.

You can think of your normal Ethernet data flow as a calm river on a sunny day. A surge is like a sudden tsunami crashing through. Without protection, your surveillance cameras, network switches, or control systems could be compromised in a matter of seconds.

The surge protector for Ethernet acts like a hidden floodgate on the riverbank. When the voltage storm hits, it opens instantly to divert the surge underground, keeping your network surface calm and your devices safe.

It’s not just a technical gadget—it’s the silent guardian of your Ethernet system.

Why Is Ethernet Surge Protector Necessary?

As network technology advances, Ethernet has become ubiquitous, found in homes, offices, security systems, smart control panels, cloud data centers, and even industrial automation systems. Wherever data is being transmitted, there’s usually an Ethernet cable involved.

Because Ethernet is so widely used, protecting it from surges is more important than ever.

Surges: The Invisible Threat to Your Network

One of the biggest dangers to any Ethernet system is transient overvoltage, also known as a surge. These sudden spikes in voltage—caused by lightning, switching of large equipment, or power grid disturbances—can go far beyond what your Ethernet cables or devices can handle.

The result?

•  Burned-out ports

•  Dead routers or cameras

•  Network outages and data loss

•  Even fire hazards in extreme cases

Ethernet Devices Are Vulnerable

Many Ethernet-connected devices are built with low-voltage, sensitive electronics, such as:

• Routers, switches, and PoE injectors

• IP cameras, industrial sensors, and control terminals

• Media converters and wireless access points

Their input voltage tolerance is very narrow, meaning even a small surge can cause damage, and that damage can take down your whole network.

The Cables Can Be a Gateway for Damage

The Ethernet cables themselves can also bring in trouble:

• Twisted pair cables, the most common Ethernet medium, are highly vulnerable to electromagnetic interference and lightning induction.

• Fiber optic cables are immune to electrical interference, but the power supply and interface modules attached to them can still have surge entry points.

Even if devices don’t burn out, a surge can distort signals, cause data loss, or interrupt communication, leading to an unstable system.

Why You Absolutely Need Ethernet Surge Protection

Ethernet systems are full of sensitive components with limited surge tolerance. This makes them easy targets for electrical surges.

In areas prone to lightning, industrial environments, or places where network uptime is critical, installing an Ethernet surge protector is not optional—it’s a must.

An Ethernet surge protection device (SPD) acts instantly to redirect dangerous voltage spikes into the ground, preventing them from harming your devices or corrupting your data.

•  It protects your devices from damage

•  It keeps your network stable

•  It improves system reliability

•  It reduces maintenance and repair costs

Whether it’s an outdoor surveillance system, industrial control setup, or office LAN, surge protection for Ethernet is a basic but essential safety measure. The Ethernet lightning surge protector is the silent shield behind your stable connection.

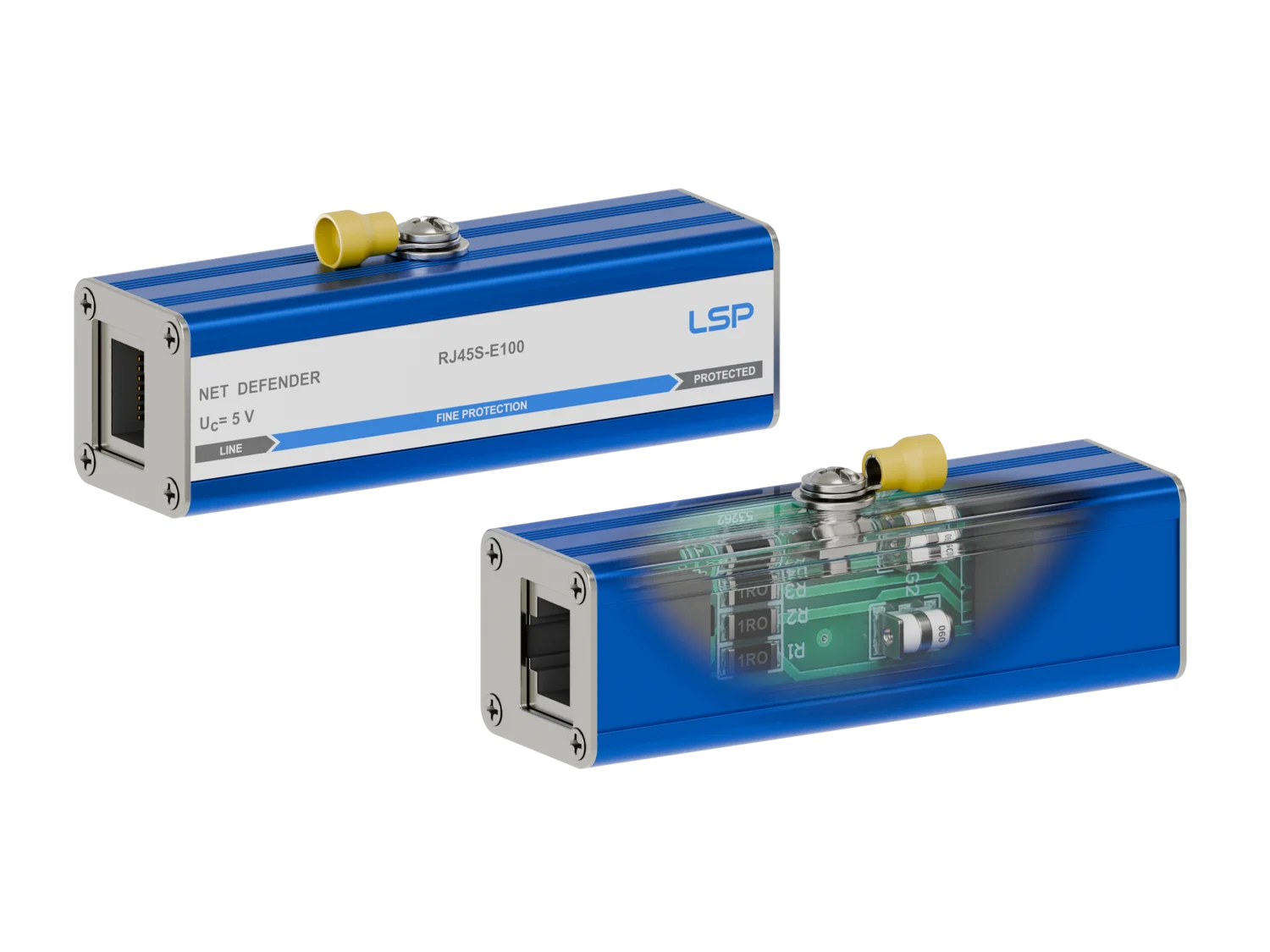

How Do Ethernet Surge Protector Work?

An Ethernet surge protector works by detecting sudden voltage spikes and instantly diverting the excess energy to the ground, just like opening a floodgate during a storm.

Imagine your Ethernet cable as a calm stream of data. When a sudden surge hits—like a lightning strike, power fluctuation, or static discharge—it’s like a flash flood. If there’s no “drainage system,” that surge can fry your network devices, cause data loss, or even spark a fire.

An Ethernet surge protector acts as a safety valve. It detects the incoming surge and safely channels it away from your equipment, helping maintain a stable and uninterrupted connection.

What’s Inside an Ethernet Surge Protector?

A high-quality Ethernet surge protector isn’t built with just one component—it’s a coordinated system of protective elements working together to defend your network against various types of electrical surges.

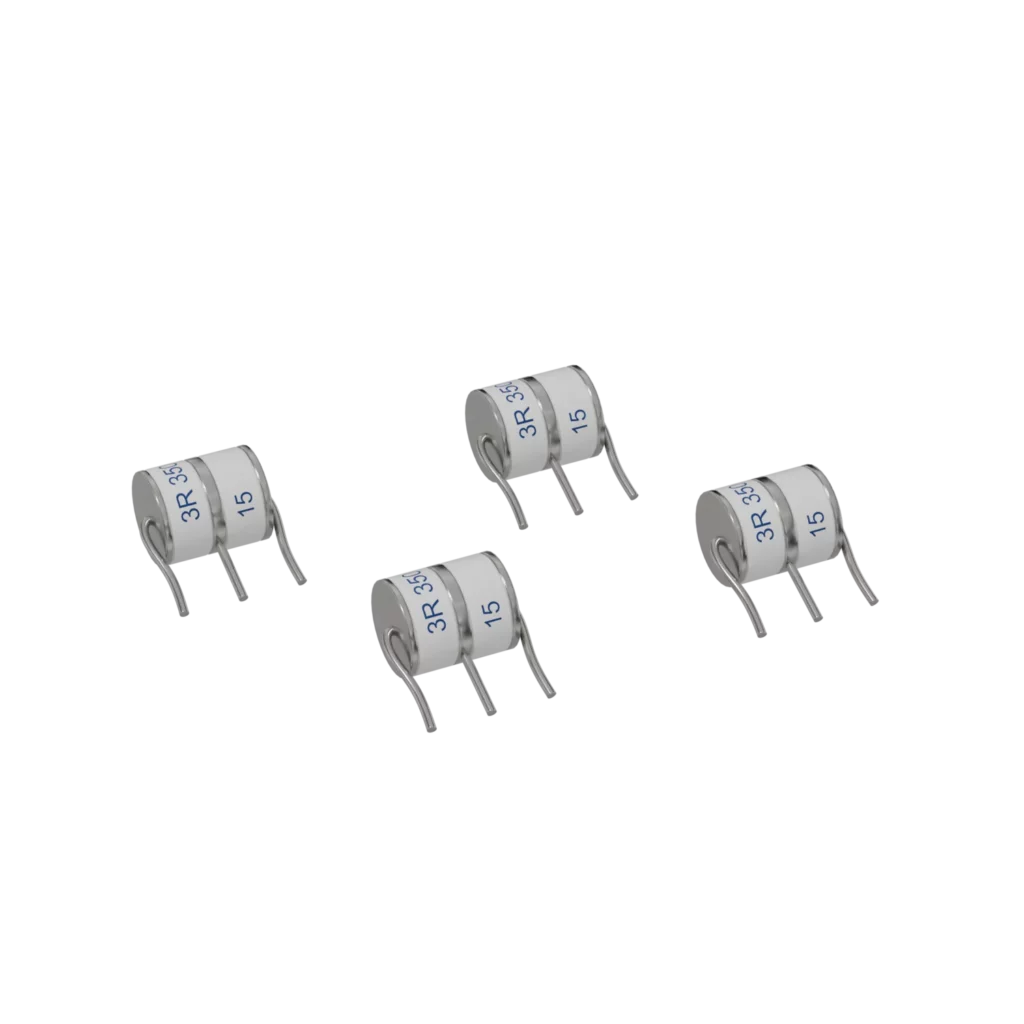

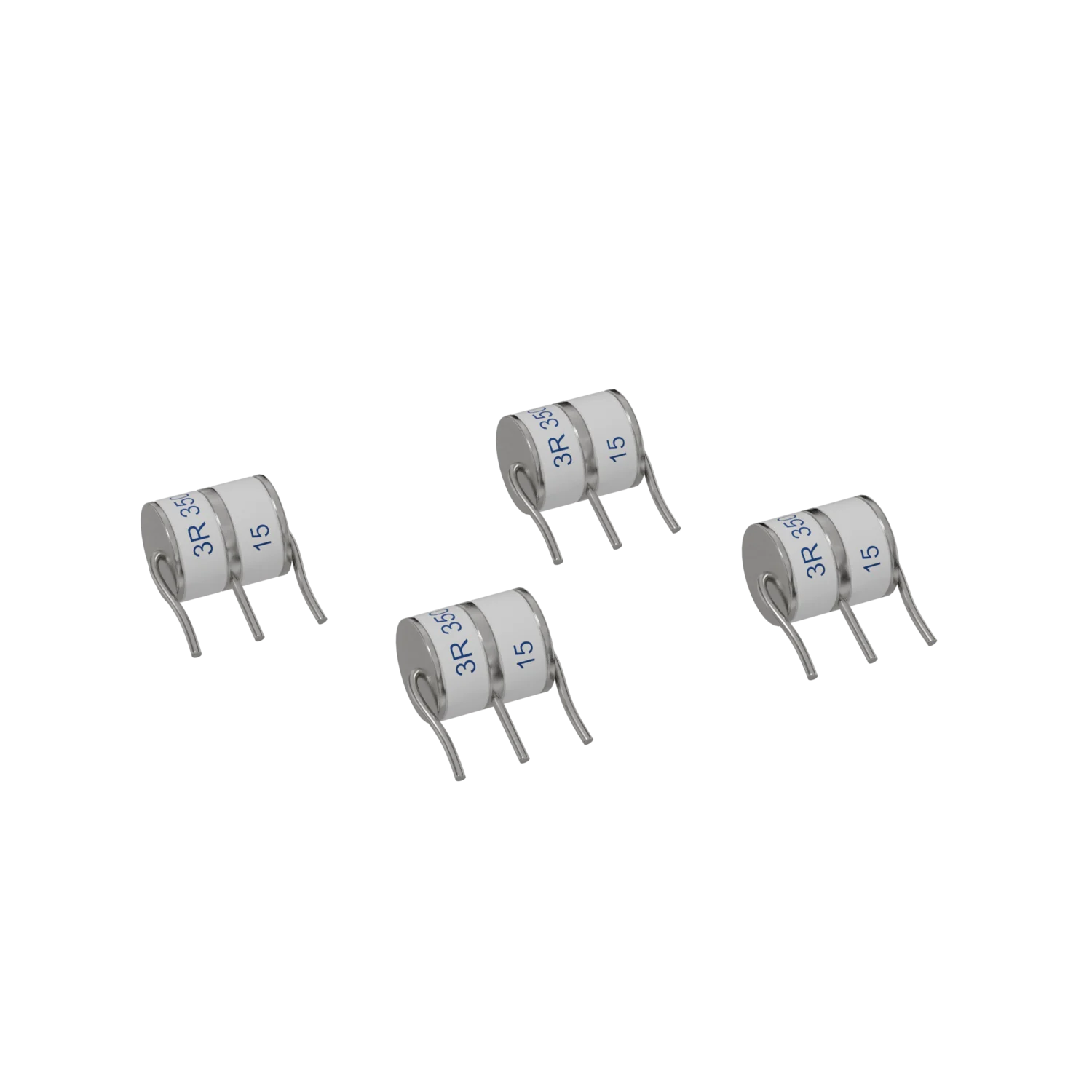

GDT: Heavy-Duty Surge Blockers

• GDT (Gas Discharge Tube) reacts slightly slower but can handle high-energy surges such as lightning.

• It acts like an industrial floodgate, discharging powerful surges before they reach your devices.

TVS Diodes: Fast-Acting Surge Suppressors

• Reacts in nanoseconds to clamp voltage spikes before they damage sensitive electronics.

• Ideal for indoor endpoints like IP cameras, gateways, and network switches.

ESD Protection Arrays: Anti-Static Shield

• Prevents electrostatic discharges caused by plugging or unplugging Ethernet cables.

• One key reason why surge protectors have Ethernet ports, to protect chips and interfaces from ESD damage.

Filters: Noise Reduction for Signal Integrity

• Suppresses high-frequency noise and ensures stable data transmission.

• Especially useful in environments with EMI/RFI interference.

Multi-Layer Ethernet Surge Protection Explained

An Ethernet surge protector stays dormant during normal operation. But once a surge hits, each component activates at its own threshold, forming a fast and layered defense. Like a well-coordinated flood control system, these protective elements work in tandem—some handling heavy surges, others responding to small but dangerous spikes.

For example, outdoor PoE surveillance cameras face a combination of threats such as lightning strikes, long cable runs, and induced voltages. These scenarios require a double-layer protection setup—TVS + GDT—to ensure fast response, high voltage tolerance, and to prevent excessive energy from feeding back into the system.

In contrast, indoor office setups, such as switches connected via Ethernet cables, primarily need protection against static discharge. In these cases, an ESD array combined with TVS diodes is usually sufficient.

That’s why in many surge protectors with Ethernet ports, you’ll often find ESD protection components placed right near the RJ45 interface.

A reliable Ethernet surge protector safeguards your network hardware and data without compromising internet speed or performance. By integrating multiple protective components, these devices deliver comprehensive defense against a wide range of electrical threats:

• From powerful lightning strikes to minor static discharges

• From complex PoE systems to simple LAN connections

• From rugged outdoor security installations to indoor routers and switches

In essence, an Ethernet surge protector is a critical safeguard for any wired network, ensuring continuous uptime, protecting valuable devices, and minimizing costly repairs.

Choosing the Right Ethernet Surge Protector: Key Considerations

Key Factors to Consider

Now that we understand how the internal components of an Ethernet surge protector vary depending on the application environment, choosing the right surge protection device (SPD) requires matching its features with the intended use case.

Start by evaluating the external environment—whether it is for indoor or outdoor use. This directly affects the required IP rating of the Ethernet surge protector.

If you’re dealing with areas prone to frequent lightning strikes or near high-voltage substations, a higher protection level is essential.

Next, consider the characteristics of the Ethernet system itself. The data transmission speed influences the choice of components inside the Ethernet surge protector. Higher speeds demand lower signal loss, faster response time, and better resistance to interference.

A more intuitive method is to refer to the Ethernet cable category—each category, and its corresponding transmission distance dictate different surge protection levels. At the same time, the type of cable connector also determines that the surge protector’s port must be compatible with it.

Below is a basic guideline for matching Ethernet cables with suitable surge protectors for Ethernet cables:

Cable Type	Recommended Surge Protector	Typical Application	Key Electrical Specs
Cat5e / Cat6 UTP (Unshielded Twisted Pair)	Basic RJ45 Ethernet Surge Protector (No Grounding Required)	Home networks, short-distance office cabling	Insertion loss: ≤0.2dB @ 100MHz; Capacitance: ≤20pF
Cat6a / Cat7 STP/FTP (Shielded Twisted Pair)	Shielded RJ45 Ethernet Surge Protector (Supports Grounding or Common Ground System)	Data centers, outdoor industrial cabling, long-distance transmission	Insertion loss: ≤0.15dB @ 1GHz; Capacitance: ≤15pF
Fiber Optic (SC/LC Interface)	Fiber Surge Protector (with module-level protection)	Telecom rooms, long-distance high-speed communication	Insertion loss: ≤0.1dB (optical link overall)
PoE Ethernet Cable (Power + Data)	PoE Ethernet Surge Protector (Supports IEEE 802.3af/at/bt, 48V protection)	IP cameras, PoE access points, powered access control systems	Insertion loss: ≤0.3dB @ DC~100MHz; Voltage withstand: ≥60V
Coaxial Cable (Video/TV Signal)	Coaxial Surge Protector with BNC (for CCTV) or F-type (for TV); 75Ω impedance matched	Analog/digital cameras, satellite TV, cable TV cabling	Insertion loss: ≤0.5dB @ 1GHz; Return loss: ≥20dB

Helpful Terms to Know

What is Shielding?

Think of it as the Ethernet cable wearing an anti-interference jacket to block electromagnetic noise. Shielded cables typically require a grounded Ethernet surge protector to function properly.

What is Insertion Loss?

It refers to the reduction in signal strength or speed after installing a surge protector. The lower the value, the better—less than 1 dB is ideal, especially for gigabit Ethernet surge protectors.

What Does Capacitance Mean?

Lower capacitance means less signal interference. A low-capacitance Ethernet lightning surge protector ensures clean data transmission without distortion.

By understanding these selection principles, you’ll not only feel more confident when choosing a high-performance industrial Ethernet surge protector or inline surge suppressor, but also be able to precisely match the product to your specific network conditions and requirements.

How Many Types of Ethernet Surge Protectors Are There? A Simple Guide to Choosing the Right One

Ethernet surge protectors aren’t one-size-fits-all. They vary based on application, installation method, connector type, and the environment they’re used in. This guide breaks it all down—so you can confidently choose the right one for your network.

By Function

Standard Ethernet Surge Protector

• Only protects the data lines in a network (no power lines involved), Ideal for non-PoE systems (no Power over Ethernet)

• Typical usage: switches, PCs, standard routers

PoE Surge Protector (Power over Ethernet SPD)

• Protects both data and power lines at the same time, Compatible with IEEE 802.3af/at/bt standards

• Used for PoE cameras, wireless access points (APs), VoIP phones, etc.

If your device uses a single Ethernet cable for both power and data, make sure to use a dedicated PoE surge protector—otherwise, it won’t be properly protected and could get damaged.

By Installation Method

DIN-Rail Mount Type

• Common in industrial environments, Installed inside control cabinets or distribution boxes, Secured with screws onto a DIN rail

• Typical use: server rooms, industrial control panels, PV communication boxes. Use a DIN-rail Ethernet surge protector for organized, cabinet-based setups.

Inline Plug-in Type

• Installs in-line between two existing Ethernet cables

• Usually RJ45 interface, plug-and-play like a USB drive

• Best for fast and simple deployment

• Great for offices or homes—look for a compact RJ45 surge protector.

Panel/Wall-Mount Type

• Mounted directly on walls or panels

• Ideal for hidden wiring setups in smart buildings and structured cabling rooms. Clean and professional look for fixed installations.

By Connector Type

RJ45 Interface

• Most common connector type

• Comes in shielded and unshielded versions for compatibility with various twisted pair cables. Use shielded RJ45 surge protectors for Cat6/Cat6A or higher.

M12 Industrial Interface

• Designed for harsh environments with vibration, EMI, or moisture

• Found in industrial automation, railway systems, wind farms, etc. Look for an industrial-grade Ethernet surge protector with M12 interface.

Fiber Media Converter with SPD

• Combines fiber-to-Ethernet conversion and surge protection

• Suitable for long-distance data transmission over fiber. Ideal for fiber-based CCTV or remote devices.

By Usage Environment

Indoor Type

• Basic enclosure (IP20–IP40 rating)

• For clean, dry environments like offices, data centers, and IT rooms. Don’t overpay—basic protection is enough for controlled indoor use.

Outdoor Type

• Rugged housing with IP65–IP67 rating

• Waterproof, UV-resistant, and temperature-tolerant

• For outdoor cameras, external APs, elevator shafts, factory wiring, etc. Must-have for any exposed Ethernet devices.

Watch Out for These Similar Terms

Network surge protector

Network Surge Protector: A broad term that may include Ethernet SPDs and other types (like phone line protectors).

Phone line surge protector

Phone Line Surge Protector: For telephone or ADSL lines—not suitable for RJ45 Ethernet ports.

Cat5 surge protector / Cat6 surge protector

Cat5 / Cat6 Surge Protector: These are Ethernet surge protectors designed specifically for Cat5 or Cat6 cables.

Surge Protectors with Ethernet Ports

Surge Protector with Ethernet Ports: Also called surge protector with ethernet protection, ethernet port on surge protector, or power strip with ethernet port.

• These are mostly power strips with one or two RJ45 jacks for basic Ethernet protection.

• Good for home or office setups with light data loads.

Can I Install an Ethernet Surge Protector by Myself?

If you already have a suitable Ethernet surge protector, can you install it yourself?

 Let’s walk through the three common installation methods for Ethernet SPD (Surge Protective Devices) to help you decide whether a DIY installation is feasible.

How to Install an Ethernet Surge Protector:

As mentioned earlier, there are three main installation methods for Ethernet surge protectors, ranked from easiest to most complex:

1. Inline (Serial) Installation:

Best for home computers, office terminals, and cameras. This is the simplest method and ideal for DIY users.

2. Wall-Mount or Panel Installation:

Requires mounting in a weak current box or wiring cabinet. Recommended under professional guidance.

3. DIN-Rail Installation (Rack Mount):

Used in electrical cabinets, industrial racks, or data centers. Should be handled by professionals.

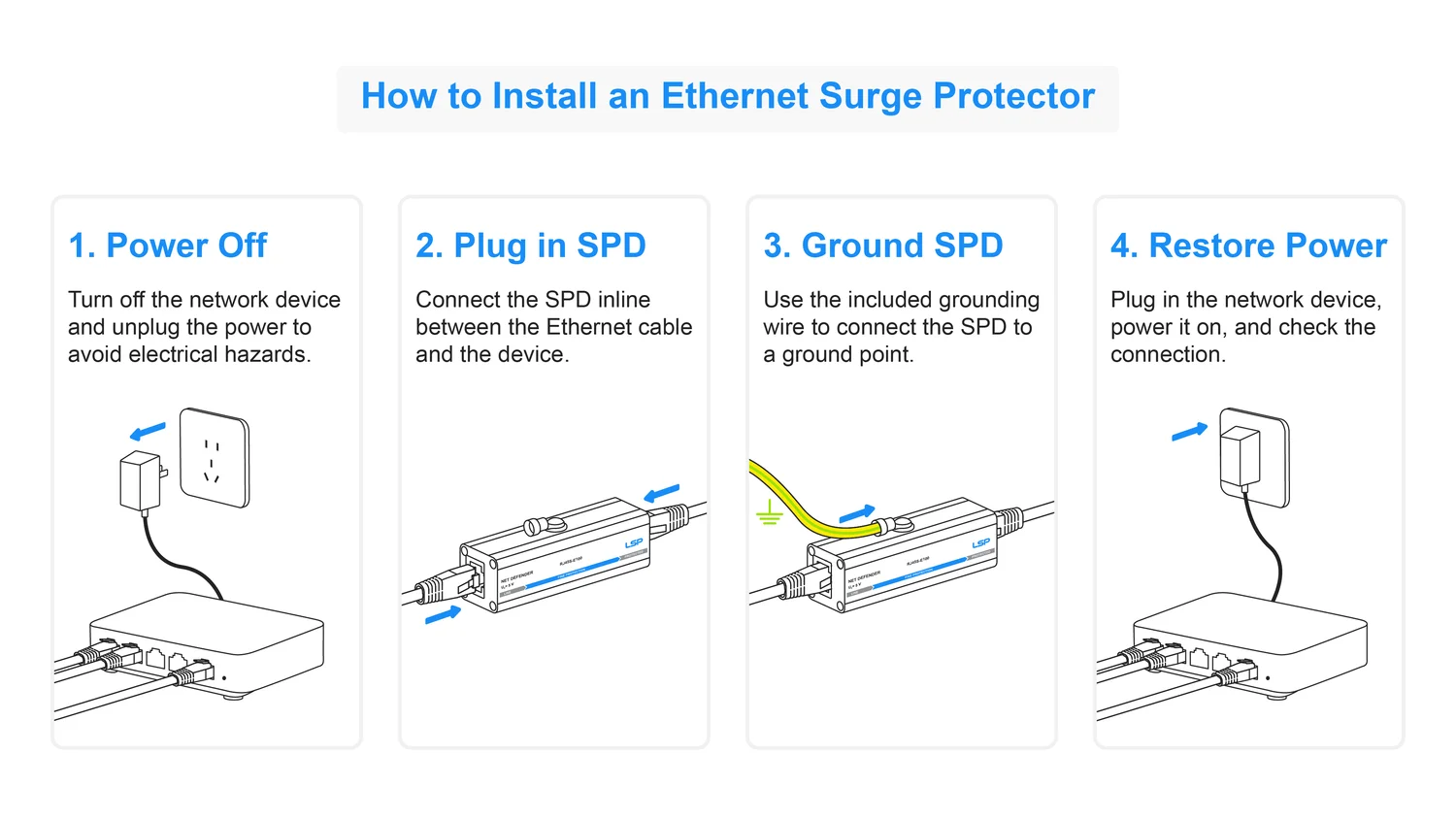

Inline Installation Steps (Recommended for Home/Office Use)

An inline ethernet surge protector, also known as a serial RJ45 surge protector, is the easiest to install yourself. The process is as simple as plugging in a USB drive.

Step 1: Power Off

• Turn off your network devices (router, switch, etc.) and unplug them to avoid electric shock or device damage.

Step 2: Plug in the SPD

• Disconnect your RJ45 network cable from the device.

• Connect the cable from your router or modem to the “IN” port of the Ethernet surge protector.

• Then connect a new cable from the “OUT” port of the SPD to your network device (PC, camera, etc.).

• Ensure proper direction and that the plugs are fully inserted.

Step 3: Ground the Device

• This is critical: Use the included grounding wire to connect the GND terminal on the SPD to a valid grounding point (e.g., power outlet ground or grounding rod).

• If grounding is unavailable, you may use an SPD with an isolation transformer, but protection will be limited.

Step 4: Power On

• After confirming everything is connected correctly, turn your devices back on and check if the network works properly.

Important Notes

Grounding is NOT optional — it’s essential.

• The primary role of a surge protector for Ethernet is to divert surge energy to ground.

• No ground = no surge diversion = your equipment remains vulnerable to lightning

• Use a reliable grounding rod or consult an electrician to ensure proper grounding.

Conclusion:

Yes, you can install an inline Ethernet surge protector yourself — especially the RJ45 inline-type  — as long as you:

• Ensure proper grounding

• Use secure connections

• Choose a model that matches PoE or non-PoE needs

For wall-mount or DIN-rail surge protectors, we strongly recommend professional installation to ensure safety and compliance.

Common Issues After Installing Ethernet Surge Protectors & How to Fix Them

Sometimes, after installing an ethernet surge protector, users may experience disconnection or network drops.

Possible Causes:

Wrong Cable Direction: RJ45 cables are reversed. “IN” should connect to the external network; “OUT” goes to your device.

No Grounding or Poor Grounding: Without proper grounding, surge energy isn’t discharged and can cause interference or downtime.

Incompatible Speed: If you’re using a Gigabit Ethernet network (e.g., Cat6), but the SPD only supports 100Mbps, it can cause instability.

Loose Connection or Damaged Port: The RJ45 connector isn’t fully inserted, or the SPD is faulty.

Solutions:

• Confirm correct cable direction (“IN / OUT”)

• Double-check grounding — ground must be connected to the equipotential system

• Make sure the SPD supports your network speed (e.g., 1000Mbps or 10Gbps)

• Try new cables or replace the SPD to see if it resolves the issue

Tips:

• If your home uses a Gigabit router or Cat6 cables, make sure to select a Gigabit Ethernet surge protector

• If you are powering devices via PoE (e.g., IP cameras, Wi-Fi APs), you must choose a PoE Ethernet surge protector

• Using the wrong type — especially for PoE 48V systems — can result in no power or no connection

Maintenance Checklist for Ethernet Surge Protectors

To ensure your Ethernet surge protector continues to function properly and provides reliable protection, it’s important to perform regular inspections. Below is a simple maintenance checklist:

Check Item	Recommended Frequency	How to Do It
SPD Status	Every 6 Months	Check indicator lights or run a functional test to confirm protection status.
Grounding Connection	Every Quarter	Inspect the grounding terminal and wires. Ensure there is no looseness or corrosion. A properly grounded Ethernet surge protector is critical for lightning protection.
Outdoor Device Sealing	Quarterly or After Heavy Rain	For outdoor ethernet surge protectors, check waterproof enclosures and rubber seals for aging or damage.
Regular Replacement	Every 3–5 Years	Based on local lightning activity, consider replacing the ethernet lightning surge protector earlier if necessary.

Regular maintenance is essential to keep your Ethernet surge protection system performing at its best.

Neglecting proper grounding or overlooking signs of wear could result in failure, right when your network needs protection the most. Stay proactive to ensure a reliable, long-term defense against lightning and power surges.

Choose a Reliable Ethernet Surge Protector – Trust LSP

When it comes to protecting your Ethernet, selecting a high-quality Ethernet surge protector is essential. LSP, with over 15 years of experience, is a trusted brand offering professional-grade surge protection solutions for industrial, commercial, and home networks.

Why Choose LSP?

• Certified Protection

• Compliant with IEC 61643-21, EN 50539, and UL 497B standards.

• Full PoE Compatibility

• Supports PoE/PoE+/PoE++ with no impact on power or speed.

• High-Speed Gigabit Support

• Designed for 10/100/1000 Mbps Ethernet networks.

• Versatile Installation

• DIN-rail, wall-mount, inline, or rack-mounted options.

• Advanced Circuit Design

• Uses TVS diodes, GDTs, and multi-mode protection.

Typical Applications

• Industrial Ethernet systems

• IP cameras & PoE devices

• Smart buildings

• Data centers & server rooms

• Home routers & smart TVs

Conclusion

Whether you’re securing a home office or a factory floor, whether you’re inquiring Ethernet surge protector or a PoE surge protector, LSP provides the dependable protection for you.

Frequently Asked Questions (FAQs)

Do Ethernet SPDs wear out? When should you replace them?

Yes, Ethernet surge protectors are not permanent devices.

The key internal components — such as TVS (Transient Voltage Suppressor), and GDT (Gas Discharge Tube) — absorb the energy from each surge or lightning strike. Over time, they degrade and may eventually fail.

Think of an SPD like a fuse or brake pad — it sacrifices itself to protect your equipment and will need replacement after prolonged use.

How to Ground an Ethernet Surge Protector? Is Grounding Necessary?

Absolutely. Grounding is essential for almost all Ethernet surge protectors to work properly. Without grounding, the device cannot safely discharge surge energy.

How to know if it’s grounded properly?

• Check the manual: Always refer to the user guide. It will tell you whether grounding is required and how to do it.

• Look at the device: Many Ethernet surge protectors have a dedicated grounding screw or terminal marked “GND”. You’ll need to connect a grounding wire here — some models even include one.

• Check the connection type: If you’re using a surge protector with Ethernet ports built into a grounded power strip, and the strip is properly grounded, then the Ethernet ports are usually grounded too.

If you’re unsure how to ground your ethernet lightning surge protector, do not guess. Consult a professional electrician or installer. Improper grounding may render the device useless or even dangerous.

Are Ethernet Surge Protectors Really Necessary?

Whether you need an Ethernet surge protector (SPD) depends on your setup and risk level. For regular home users with indoor equipment on a grounded power strip, it may not seem necessary.

But in these situations, an Ethernet SPD is highly recommended:

• Frequent lightning: Living in storm-prone or lightning-hit areas.

• Outdoor devices: Like IP cameras, antennas, or outdoor Wi-Fi gear.

• Long cable runs: Longer Ethernet cables pick up more interference.

• Expensive equipment: Routers, NAS, or PCs need extra protection.

• PoE systems: Carry both power and data, and need PoE-specific surge protectors.

In short, an Ethernet SPD is like lightning insurance for your network. You may not use it every day, but when a surge hits, it could save your gear and your data.

Can I Use the Same Surge Protector for Both Phone Lines and Ethernet Cables?

Phone lines and Ethernet cables need different surge protectors.

• Phone lines (RJ11/RJ14) carry low-frequency analog signals and require a dedicated phone surge protector.

• Ethernet cables (RJ45) carry high-frequency digital signals and need a specific Ethernet surge protector.

Some advanced surge protectors protect power, phone, and Ethernet lines all in one. Always check the product details to make sure it supports your cable types and connectors.

Why Do Some Surge Protectors Have RJ45 Ports?

You might see some power strips with one or two RJ45 Ethernet ports besides the power outlets. These ports help protect your network devices from surge damage.

Surge protectors with RJ45 ports are easy to use and suitable for devices with moderate protection needs, like home routers or office printers.

Next time you spot a surge protector with Ethernet ports, remember it adds an extra layer of defense for your network gear.

Do Ethernet surge protectors slow internet speed?

No, they do not.

A properly chosen Ethernet surge protector will not slow down your internet.

Modern SPDs are designed with performance in mind. They feature:

• Low signal loss (insertion loss < 1dB)

• Support for high-speed networks (100Mbps, 1Gbps, even 10Gbps)

• Compatibility with Cat5e, Cat6, Cat6A, and Cat7 cables

• Low-capacitance TVS (≤ 20pF) that won’t interfere with data transmission

• PoE support, ensuring power over Ethernet continues to function without issues

Just make sure to choose the right type — for example, if you’re using PoE, pick a PoE surge protector. If you’re running Gigabit Ethernet, make sure the SPD supports 1000Mbps or higher.
