Essential Surge Protection Device Symbol Guide

Introduction: Understanding Surge Protection Device (SPD) Symbols

Understanding the surge protection device (SPD) symbol is essential for engineers, electricians, and technicians working with modern electrical systems.Surge Protection Devices (SPDs) are critical components designed to safeguard electrical systems and sensitive equipment from transient overvoltages caused by lightning, switching operations, and electrical faults such as short circuits. These surges can reach hundreds or even thousands of volts above normal operating levels, potentially leading to equipment malfunction, system downtime, or permanent damage.

SPDs work by diverting excessive surge energy safely to the ground, thereby limiting the voltage that reaches protected equipment and ensuring system reliability.

Many people are unfamiliar with the symbols used for surge protectors, their internal components, and related auxiliary markings. This guide provides a clear and standardized explanation based on IEC/EN requirements. Understanding surge protector symbols is crucial for selecting, installing, and maintaining SPDs properly.

In electrical diagrams, the lightning arrester symbol and surge arrester electrical symbol are often used interchangeably with the standard SPD electrical symbol, although some older or specialized diagrams may show slight variations.

Before diving into the technical details, let’s first address the most common question engineers ask worldwide: What do surge protector symbols look like according to different international standards?

Key International and National Standards Comparisons

A few international and national standards regulate the symbols of SPDs as well as other electrical diagrams.

Standards define not only the shape of the surge protection device symbol but also the labeling conventions for SPD type, surge rating, and protective components. Engineers should always reference these standards when creating schematics to ensure consistency and compliance.

Some of them are listed below:

Standard	Description
IEC 60617	A global standard that provides graphic symbols for nearly all electrotechnical diagrams, including surge protective devices (SPDs).
IEEE Std 315	A standard developed by IEEE that defines USA standard graphic symbols for electrical and electronics diagrams. Organizations like NEMA contribute to its standardization.
UL 1449	Widely used in North America. Product manuals and schematics typically indicate SPD type, voltage rating, and surge current rating.
DIN VDE Standards	Common in Germany and parts of Europe. Emphasizes modular installation, phase connections, and status indicators for integration into industrial and building distribution systems.
IEC 61643‑11 / EN 61643‑11	Focuses on low-voltage SPD performance parameters such as Maximum Continuous Operating Voltage (Uc), Voltage Protection Level (Up), and surge current ratings (Imax, Iimp, In). Critical for SPD selection, testing, and verification.

When using SPD symbols, it is necessary to consult the appropriate standards for the region or device application to ensure proper understanding. It’s also important to note that standards evolve, so referring to the latest version is recommended.

Why Surge Protector Symbols Are Crucial

Surge protector symbols provide a consistent way to represent surge protection devices in electrical diagrams, based on the internationally recognized IEC 60617 standard. Using standardized SPD electrical symbols helps ensure diagrams are readable, consistent, and compliant with global design practices. This not only allows engineers to quickly identify device types and functions but also reduces design and installation errors, improving overall efficiency.

• Space Considerations: Another important advantage is the economy of space, as these SPD electrical symbols occupy much less area compared to the actual device representation. This is especially critical in modern circuit diagrams with highly complex designs.

• Inter-Language Communication: Unlike textual descriptions, circled SPD symbols transcend language and geographic barriers, improving communication among engineers and technicians responsible for the design and maintenance of electrical systems.

• Streamlined Electrical Documentation: The use of SPD electrical symbols enhances the efficiency of wiring diagrams and instruction manuals, making documents more concise, easier to read, and reducing reliance on lengthy textual explanations.

• Safety: When SPD electrical symbols are correctly applied and interpreted according to the specified devices, they help ensure proper installation and servicing, contributing to the overall safety of electrical systems and extending the lifespan of protected equipment.

SPD Types and Key Parameters

SPD Types (Type 1, Type 2, Type 3)

Surge Protection Devices (SPDs) are classified as Type 1, Type 2, and Type 3 according to IEC 61643-11, reflecting their intended application and protection capability. Understanding these types is crucial for designing, implementing, and maintaining electrical systems. Each type protects against specific surge conditions, from high-energy lightning strikes to low-energy residual surges.

Overview of SPD Types

• Type 1 SPD – These SPDs are strategically placed in main distribution boards near the electric installation source, typically installed between the secondary of the service transformer and the line side of the service disconnect. They primarily function to receive and safely discharge an extremely high amount of surge current, particularly those arriving from direct or indirect lightning. They are necessary in buildings with lightning protection systems (LPS), as they manage partial local lightning currents.

• Type 2 SPD – Type 2 SPDs are placed in sub-distribution panels downstream of Type 1 SPDs. They allow for the residual primary surges along with surges caused by switching operations to be controlled further. Type 2 SPD is the most commonly used device type for widespread protection in commercial and residential electrical installations.

• Type 3 SPD – These are located in the closest proximity to very delicate electronic equipment that needs protection. They offer adequate defense against low-energy residual surges that may harm sensitive devices such as computers, household appliances, and industrial control units. Type 3 SPDs are generally deployed together with upstream Type 1 and/or Type 2 SPDs for integrated protection.

AC SPD Symbol vs DC SPD Symbol

Each SPD type behaves differently in AC and DC systems due to the nature of the voltage waveform. Understanding these differences is crucial for proper selection and installation.

AC/DC Considerations

• AC SPDs: Designed for alternating current, consider phase connections (L-N, L-G, N-G).
• DC SPDs: Designed for constant polarity; ensure correct polarity connections to avoid failure.
• Verify voltage and current ratings according to AC/DC system parameters.

Beyond the Electrical Symbol: Key Parameters and Specifications Related to SPD Symbols

Even though the Surge Protection Device (SPD) symbol is widely recognized, it alone does not guide the proper selection or implementation of the correct SPD. Critical information such as nominal voltage, maximum surge current, voltage protection level (U_p), and power frequency is usually provided alongside the symbol in datasheets, technical specifications, or schematic diagrams. These details are essential for ensuring effective surge protection but are not conveyed by the electrical symbol itself.

To implement an SPD properly, operational parameters must be carefully considered with respect to the application. This includes system connecting voltage, power frequency, maximum discharge current, and maximum protection level. While the surge protection device symbol is standardized and universally recognized, the actual effectiveness of surge protection depends on these design parameters, internal component quality, and technical characteristics of the chosen device.

Merely having the SPD symbol, internal component symbols, or related markings is not sufficient for proper understanding or selection. A comprehensive grasp of technical terms, operational parameters, and SPD specifications is also necessary. Additionally, understanding how the SPD integrates into the overall electrical system, including monitoring features, auxiliary contacts, and visual indicators, helps ensure proper operation, maintenance, and safety.

Table: Key SPD Parameters with Type & Symbol Reference

Parameter	Description
Nominal Voltage (Un)	The designated voltage level of the electrical system where the SPD is installed. Represents the system’s standard operating voltage under normal conditions.
Maximum Continuous Operating Voltage (Uc / Vmax)	The highest voltage that can be continuously applied to the SPD terminals without causing degradation or conduction. Must exceed the nominal system voltage to ensure reliable operation.
Nominal Discharge Current [8/20 μs] (In)	The peak value of current the SPD can safely discharge multiple times under an 8/20 μs waveform. Benchmark for SPD durability in real-world surges.
Maximum Discharge Current [8/20 μs] (Imax)	The maximum peak current the SPD can safely discharge once under an 8/20 μs waveform without failure. Indicates SPD capacity for extreme surge events.
Impulse Discharge Current [10/350 μs] (Iimp)	Peak current of a 10/350 μs waveform a Type 1 SPD can discharge, simulating a direct lightning strike. Reflects SPD robustness.
Voltage Protection Level (Up)	Maximum voltage appearing across SPD terminals during surge conduction. Lower Up means better protection.
Response Time (tA)	Time for the SPD to respond and start conducting surge current. Shorter times indicate faster protection.
Short-Circuit Current Rating (ISCCR)	Maximum prospective short-circuit current the SPD can safely withstand with a specified OCPD. Defines SPD safety under fault conditions.
Number of Poles	Specifies conductors protected by the SPD, e.g., single-pole (1+0), two-pole (2+0), three-pole (3+0), three-phase plus neutral (3+1).
Type of SPD	Categorized into Type 1, Type 2, Type 3 based on installation location in the electrical system.
Protection Modes	Common Mode (CM): line(s)-to-ground. Differential Mode (DM): line-to-line. Indicates voltage transient protection.
Standards Compliance	SPD must meet standards like IEC 61643 or UL 1449 to ensure defined performance and safety.
Visual Indication	Provides visible signal (LED or color-coded window) for operational status and end-of-life indication.
Remote Signaling Contact	Auxiliary contact enabling remote monitoring or alarm when SPD fails or requires maintenance.
Information Presentation	SPD specifications are shown via symbols, datasheets, schematic annotations, and Bills of Materials (BOM).

Summary

Understanding these parameters is critical for correct selection, installation, and maintenance of SPDs. While surge protector symbols simplify representation, technical specifications define the device’s true capabilities and limitations, ensuring reliable surge protection and system safety.

Decoding Different Types of Surge Protector Symbols: Type 1, Type 2, and Type 3 Explained

On surge protective device (SPD) product labels, it is common to see framed markings such as T1, T2, or T3. These designations indicate the type of surge test the product has passed, reflecting its intended application and protection capability. In electrical diagrams, all SPDs are represented using the standardized IEC 60617 symbol, while their type classification is indicated on the product label through these T1/T2/T3 markings, helping engineers quickly identify the device’s suitability for specific applications.

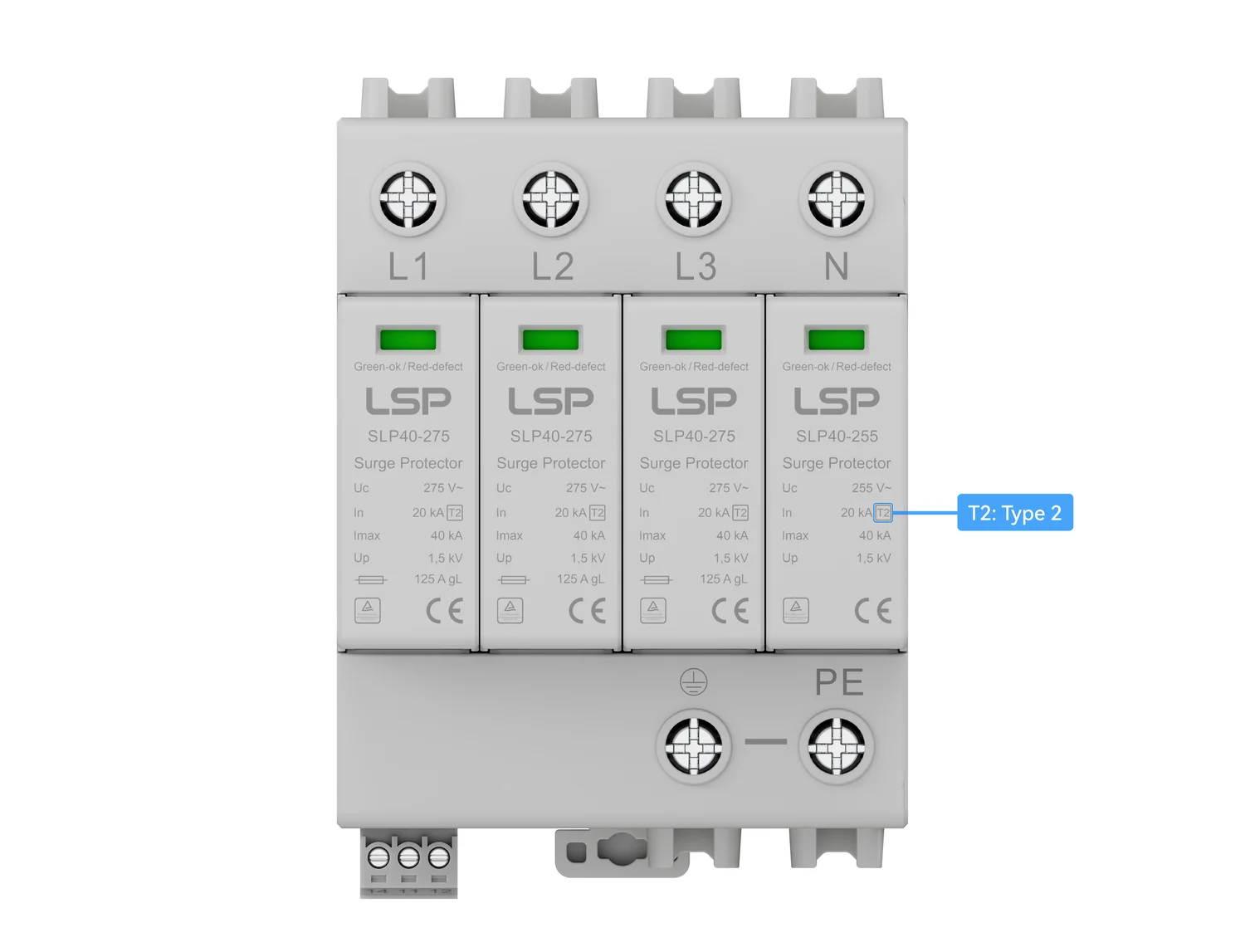

• Framed T1 – Indicates that the SPD has passed a Type 1 test, capable of withstanding a 10/350 µs current waveform, simulating direct lightning strikes. These SPDs are typically installed at the building’s main service entrance or where lightning protection systems are present.

• Framed T1+T2 – Indicates the SPD has successfully passed both Type 1 and Type 2 tests, meaning it can handle high-energy direct lightning currents as well as switching surges. This type of SPD offers broader protection and is suitable for installation at the service entrance or as part of a coordinated protection system.

• Framed T2 – Means the product has passed a Type 2 test, based on an 8/20 µs current waveform, simulating switching surges or indirect lightning surges. Type 2 SPDs are commonly used in distribution boards within the electrical installation.

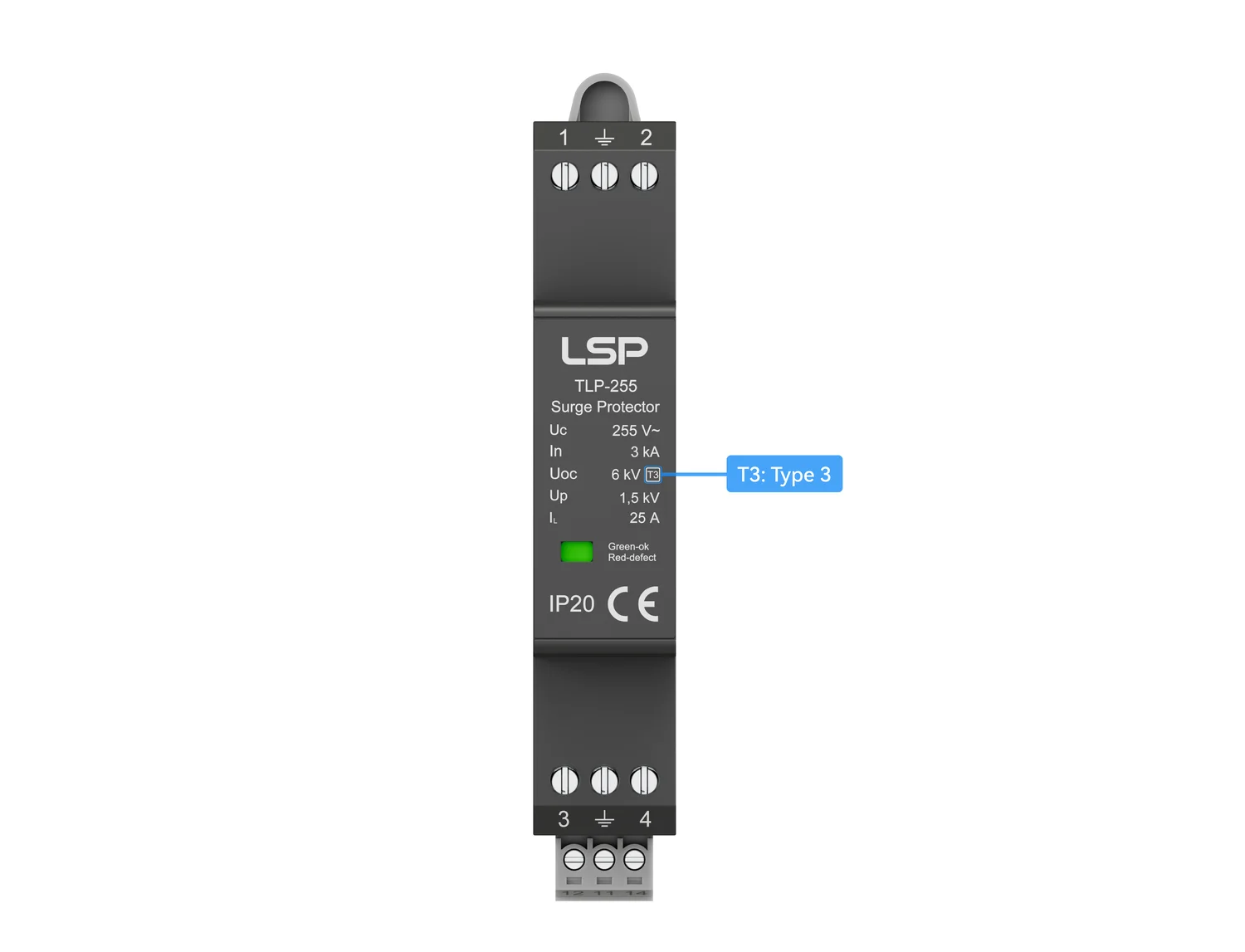

• Framed T3 – Signifies that the SPD has passed a Type 3 test, using a 1.2/50 µs voltage waveform, designed for fine protection of sensitive terminal equipment such as computers, appliances, or socket-level protection.

Diagrams Representing SPDs and Their Symbols

Although all SPDs share a fundamental symbol, the International Electrotechnical Commission (IEC) does not distinguish between SPD types and assigns a particular graphical symbol for all SPDs, which is covered in IEC 60617. Classification is done through text labels adjacent to the symbol, e.g., “Type 1 SPD”, “Type 2 SPD”, or “Type 3 SPD”. These labels are essential in defining the extent of protection appropriate for a specific part of the electrical system.

While it is not common practice, the internal structure of an SPD (such as the number and types of components like MOVs, GDTs, and TVS diodes) is sometimes portrayed in manufacturer-specific documents or educational materials. Therefore, the symbol itself does not reveal the particular components it contains or the performance features it is designed to meet.

Key Points About SPD Symbols and Their Contexts

1. Unified Basic Symbol: All SPDs are encompassed under IEC 60617 symbology without differentiation of internal construction.
2. Importance of Annotations: The specific type of SPD must be shown using textual annotations such as ‘SPD Type 1’ or ‘SPD Type 2’ in a schematic diagram, because the graphical symbol does not denote the SPD category.
3. Representation of Components Using Non-standard Symbols: There exist non-standard or company-specific diagrams that may illustrate internal parts such as fuses, thermal disconnectors, or other protective devices. Such representations are optional and not part of standardized IEC diagrams.
4. Differentiation Within a Product: Even though the symbol does not indicate it, Type 1 SPDs usually incorporate higher-capacity components such as large MOVs, while Type 3 SPDs have lower-power components such as TVS diodes designed for low-energy residual surges.
5. Compliance to a Standard: The performance limits, such as discharge current capacity and voltage protection levels, are indicated in IEC 61643-11, and are accompanied by graphical symbol descriptions in IEC 60617.

Final Remarks

While SPD types do not easily show distinct differences in standard circuit diagrams, the context, annotations, and additional documents assist in differentiating the SPD type depicted. Engineers and designers must always check the labels and specification sheets containing the SPD type and its location in the system, based on risk assessment and system protection design requirements.

Core SPD Components and Surge Protector Symbols

Surge Protection Devices (SPDs) are essential components in modern electrical systems, designed to protect sensitive equipment from transient overvoltages caused by lightning strikes, switching events, or power grid disturbances. To achieve this, SPDs are typically built with specific protective components such as Metal Oxide Varistors (MOVs), Gas Discharge Tubes (GDTs), and Transient Voltage Suppressor (TVS) diodes. SPDs can range from simple TVS diodes to more complex gas tube protectors, with more complex designs generally offering superior surge protection compared to simpler designs using only MOVs or GDTs.

In simplified SPD diagrams, a zig-zag line or a spark gap symbol is often used to depict the surge protection function. While these symbols indicate the functionality of the device, they do not specify individual components like MOVs, GDTs, or TVS diodes. Detailed information about the internal components and their protection characteristics is usually provided in datasheets or manufacturer documents rather than in the schematic symbols. Understanding both the symbol representation and the underlying components is crucial for proper SPD selection, installation, and system protection design.

Key Components Inside SPDs

Component	Symbol Description
Metal Oxide Varistor (MOV)	An MOV consists of zinc oxide grains sandwiched between two electrodes. Under normal operating voltages, it behaves like an insulator. When a transient voltage appears, its resistance drops dramatically, allowing it to divert the surge energy away from protected equipment.
Gas Discharge Tube (GDT)	GDTs contain an inert gas sealed in a ceramic or glass enclosure. When the voltage across the terminals exceeds the gas’s breakdown threshold, the gas ionizes, creating a plasma arc that conducts the surge to ground.
TVS Diodes	Under normal conditions, TVS diodes remain non-conductive. Upon detecting a transient that exceeds their clamping voltage, they conduct current to ground almost instantaneously, limiting the voltage spike.
MOV + GDT in Parallel	When a surge occurs: 1.MOV responds first due to its low breakdown voltage and fast response time. 2.If the surge is strong enough, the GDT eventually fires and conducts the bulk of the surge current. 3.The MOV may continue to clamp any residual voltage until the surge is over.
MOV + GDT in Series	During a surge: 1.The voltage rises and exceeds the GDT breakdown voltage. 2.GDT fires, creating a low-resistance path and allowing current to flow. 3.The MOV clamps the remaining surge voltage quickly and protects sensitive downstream circuits.

Additional SPD Circuit Symbols

Below is a more comprehensive set of surge protector symbols commonly found in SPD circuits, helping engineers and users identify components easily. These symbols complement the previous table and include additional protective elements found in industrial and commercial SPDs.

Component	Symbol Description
Encapsulated Spark Gap	A type of discharge gap sealed within a protective enclosure, used in SPDs to safely divert high-energy surge currents by ionizing the gas inside the gap and creating a controlled spark discharge path.
Graphite Spark Gap	A spark gap type using graphite electrodes to provide a stable and reliable discharge path for surge currents. Graphite’s properties help reduce electrode erosion and maintain consistent performance over time.
Horn Gap	A traditional spark gap device where two metal electrodes are separated by a small air gap shaped like horns. It provides a reliable discharge path for high-voltage surges by allowing the arc to extinguish naturally as it moves along the electrodes.
Spark Gap	A protective component in SPDs that creates a controlled electrical discharge path by allowing an arc to form across a gap when the voltage exceeds a certain threshold, diverting surge current safely to ground.

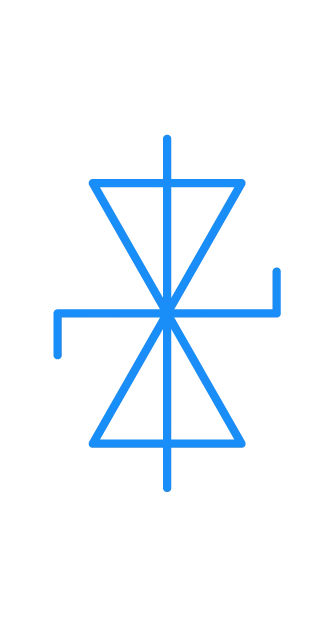

Suppressor Diode	A semiconductor device used in SPDs to clamp voltage spikes by quickly switching from a high-resistance to a low-resistance state when a surge occurs, thereby protecting sensitive electronic circuits.
Transient Voltage Suppression Diode TVS	A semiconductor device designed to protect electronic circuits from transient voltage spikes by rapidly clamping and dissipating surge energy, returning to its high-resistance state once the surge subsides.
Fuse	A protective device that interrupts electrical current by melting its internal element when the current exceeds a specified limit, preventing damage to the SPD and connected equipment during fault conditions.
Resistor	A passive electrical component used in SPDs to limit current, divide voltage, or help dissipate surge energy safely, contributing to the device’s overall surge suppression performance.
Thermo Dynamic Control	A thermal protection mechanism in SPDs that monitors temperature rise and disconnects or deactivates the device if overheating occurs, preventing damage or fire hazards.
Thermal disconnector	A safety device inside the SPD that automatically disconnects the surge protection element (like an MOV) when excessive heat is detected, preventing potential failure or fire.
Socket and plug connector	A modular connection system used in SPDs to allow easy installation, replacement, or maintenance by plugging the SPD into a compatible socket without rewiring.
Changeover break-before-make contact	A type of electrical switch contact that breaks the existing connection before making a new one, ensuring no short circuit or overlap occurs during switching. Used in some SPD signaling or switching mechanisms to safely change states.
Changeover make-before-break contact	A type of switch contact that makes the new connection before breaking the old one, ensuring continuous circuit connection during switching. This prevents interruption or signal loss in SPD monitoring systems.
Capacitor	An electrical component used in some SPDs to absorb and smooth transient voltage spikes by temporarily storing and releasing electrical energy, helping to reduce surge impact.
Break Contact	A switch contact that opens to interrupt the electrical circuit, used in SPDs for disconnecting or isolating components during fault or maintenance.
Acoustic Signal	An audible alert, such as a buzzer or beep, integrated into some SPDs to notify users of device status changes, faults, or failures.

How SPD Components Interrelate with the Generalized SPD Symbol？

With regard to the basic circuit representations, the specific SPD symbol captures the scope of activity performed by one or more SPD components. Often, the actual technology used in the SPD—such as MOV, GDT, TVS diode, or their combination—is not shown in the simplified SPD symbol, but is instead described in the product datasheet or specification documents. For example, the surge suppression system relies heavily on the impedance and performance characteristics of these components.

In more advanced diagrams—especially those depicting the internal circuitry of an SPD or used for instructional purposes—you will often find these component symbols placed within the SPD contour. For instance, an SPD symbol may combine a GDT symbol for first-stage high-energy surge protection with MOV symbols for lower-voltage clamping. A thermal fuse symbol may also be included to indicate additional protection.

Important Considerations

When working with SPD symbols and their components, certain best practices should be followed. These practices ensure that SPDs conform to relevant standards and provide adequate technical information to engineers and users. In most schematic diagrams, the legend explains which protection methods—such as MOV, GDT, or TVS diode—are implemented. This allows users to understand the full scope of the SPD and its performance under surge conditions.

Practical Applications: Reading and Interpreting SPD Symbols in Circuit Diagrams

The standard symbol of a Surge Protection Device (SPD) consists of several components that illustrate the SPD’s characteristic function, which is to channel excess voltage to ground. While some details may differ according to local standards or manufacturers, certain elements are consistently present:

Symbol/Shape	Description	Function/Meaning	Example in Diagram (Position)
Square or Rectangle	Represents the whole SPD device or functional block, sometimes including elements like a thermal fuse.	Denotes the enclosure or unit boundary, which may also indicate built-in safety components.	Dashed-line rectangular boxes enclosing each line and protection element.
Protective Element	Depicted as a zigzag line or spark gap symbol, often shown as two opposing arrowheads with a jagged line in between.	Indicates the component responsible for conducting high-voltage surges and protecting the circuit.	Symbols connected to green, red, yellow, blue wires under each phase, representing surge arresters.
Ground Connection	Shown as a line running straight down with three short horizontal lines stacked below it.	Represents connection to earth ground, where excess surge energy is safely discharged.	Found below each protective element, directly connected.
Input and Output Lines	Multiple lines projecting from the protective element that connect to other parts of the circuit.	Shows the integration points of the SPD into the system, for incoming and outgoing electrical connections.	Top side connections to L1, L2, L3, N (green, red, yellow, blue wires).
Status Signal Lines	Relay output terminals labeled “NC, COM, NO”, connected to indicator lights (red/green).	Used for status monitoring of SPD; to control alarm/indicator lights (e.g., green = normal, red = fault).	Found at the bottom part connected to “Connect green light”, “Connect red light”, and “Power supply”.

Dissecting the SPD Part’s Functionality Within the Picture

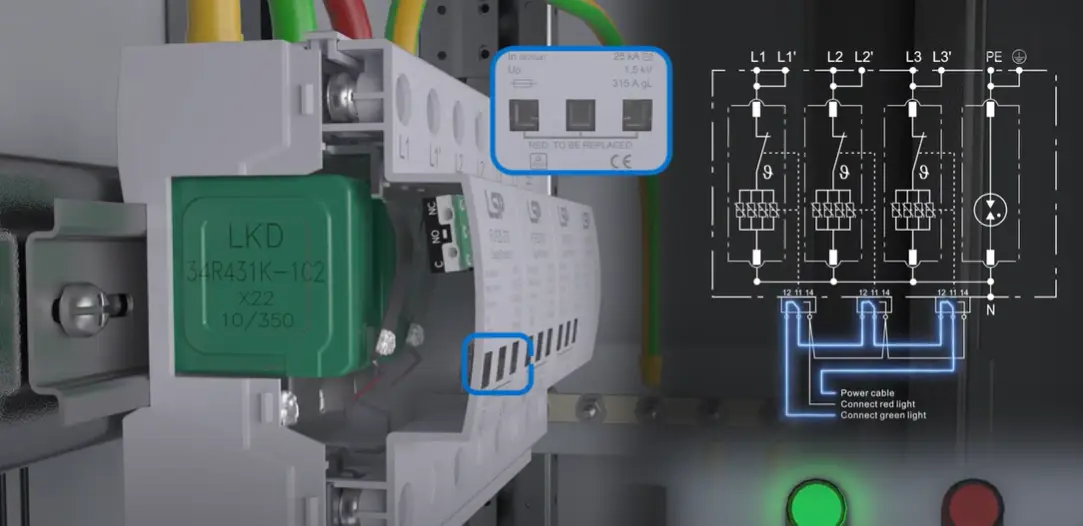

This picture shows a surge protective device (SPD) mounted within an electrical enclosure. It is designed to limit transient overvoltage within the system. The green part under the box (or window) marked as ”LKD 34R431K-102” is one of the most important key components, a varistor, which interlinks and stores excess energy in the event of a power surge.

The SPD module carries the foremost electrical ratings, for instance, discharge current 25 kA (8/20 μs), Up voltage 1.5 kV, and fuse 315 A gL, all ensured to comply with safety standards. The remaining red indication may serve as a substitution monitor, providing a visual indication of SPD module performance degradation. The wires visible behind the SPD suggest the presence of additional monitoring contacts (NC/NO), commonly associated with remote fault indication.

Understanding the Circuit Diagram for the SPD Device

In relation to the image, on the left panel there is a schematic representation showing how the SPD is incorporated into a three-phase power supply (L1, L2, L3, PE). The SPD is depicted within a dashed box, connected in parallel to all three phases and the protective earth (PE), allowing surge currents to be safely shunted.

Understanding the surge protection device working principle helps in appreciating how surge currents are safely diverted through SPD systems. The lower part of the diagram contains a supervision circuit with auxiliary contacts (terminals 12, 11, and 14) for switching red and green signals. The green light indicates that the SPD is in operation; in case of a fault, such as varistor failure, the contact closes and the red light turns on, signaling that servicing is required.

This step-by-step guide allows SPDs to be monitored and serviced effectively while continuously functioning within industrial and commercial electrical systems.

Conclusion: Maximizing Safety and Reliability with SPD Symbols

The Importance of Surge Protection Device Symbols

Understanding and correctly applying surge protector symbols is essential for safe and reliable electrical systems. While the symbol provides a simplified representation of a Surge Protective Device, the actual protection depends on the internal components, SPD type, and design quality. Accurate interpretation of these symbols ensures engineers and users can identify SPD functions, integrate them properly in schematics, and maintain systems confidently.

Technical Specifications vs Symbol Representation

SPD symbols provide a fast way to identify device type and protection functions, but they do not fully reflect the device’s performance limits. Understanding the correspondence between symbols and key parameters such as Uc, Up, Imax, Iimp, and In helps ensure that the symbol’s representation aligns with the actual protection capability of the SPD.

Summary of SPD Symbols, Types, and Key Parameters

Comprehensive use of SPD symbols in schematics allows clear identification of SPD types (Type 1, 2, 3) and internal protection elements like MOVs and GDTs. This ensures proper interpretation, correct installation, and effective maintenance, helping achieve optimized surge protection without relying solely on technical documentation.
