Does a Surge Protector Prevent Tripping Circuit Breaker

If you are dealing with the question of whether installing a surge protector can prevent a circuit breaker from tripping, you may wonder: is it a problem with the surge protective device itself, or is the circuit breaker experiencing a fault? This article will help you understand the different protection responsibilities of surge protective devices (SPDs) and circuit breakers, identify the true causes behind breaker trips, and provide reliable troubleshooting guidance so you can handle similar issues with greater confidence.

What Is a Surge Protector?

A surge protector is, simply put, a device specifically designed to block voltage spikes. Under normal conditions, it quietly stays in the circuit and has almost no impact on operation. Once a sudden overvoltage occurs due to lightning-induced surges, switching operations, or the startup and shutdown of high-power equipment, it quickly switches into a conductive state, redirects the excess energy to the ground, and brings the voltage back within a safe range.

After the surge event passes, it automatically returns to its normal state and remains ready for the next event. Its primary purpose is to protect sensitive equipment that is vulnerable to voltage fluctuations, rather than to ensure the continuous safety of the entire electrical circuit.

What Is the Real Purpose of a Surge Protector?

The core task of a surge protector is to step in at the exact moment when the voltage suddenly rises beyond a safe level. Under normal conditions, it remains almost “invisible” and does not affect the normal operation of the circuit. Only when it detects that the voltage exceeds the safe range will it activate its protection function.

The entire process can be roughly divided into three steps:

1. Silent standby: Under normal power conditions, the SPD remains in a high-impedance state, as if it does not exist in the circuit, and does not interfere with normal operation.
2. Instant conduction: When a voltage spike occurs due to lightning-induced surges, switching operations, or the startup and shutdown of high-power equipment, the metal oxide varistor (MOV) or gas discharge tube (GDT) inside the SPD quickly switches to a low-impedance state, diverting the excess surge current to the ground.
3. Return to normal operation: After the surge energy has been discharged, the SPD automatically returns to its high-impedance state, remaining ready for the next potential surge event.

This protection mechanism mainly safeguards sensitive equipment connected downstream, such as variable frequency drives (VFDs), PLCs, and communication modules, which are highly vulnerable to voltage fluctuations.

Because an SPD is designed to handle “voltage” rather than “current,” it should not be expected to solve problems such as overloads or short circuits. This is also one of the most common misunderstandings about surge protection devices.

What Is a Circuit Breaker?

A circuit breaker can be understood as the “current gatekeeper” in an electrical distribution system. It continuously monitors the amount of current flowing through the circuit and, once it detects that the current exceeds the preset limit—whether due to excessive load, a short circuit, or a ground fault—it immediately disconnects the power supply to prevent conductors from overheating or even causing a fire.

Unlike a Surge Protective Device (SPD), a circuit breaker requires manual resetting after tripping before power can be restored. This is also one of the most obvious differences between the two devices in terms of operation. A circuit breaker protects the safety of the entire circuit and building electrical system, rather than a specific piece of equipment.

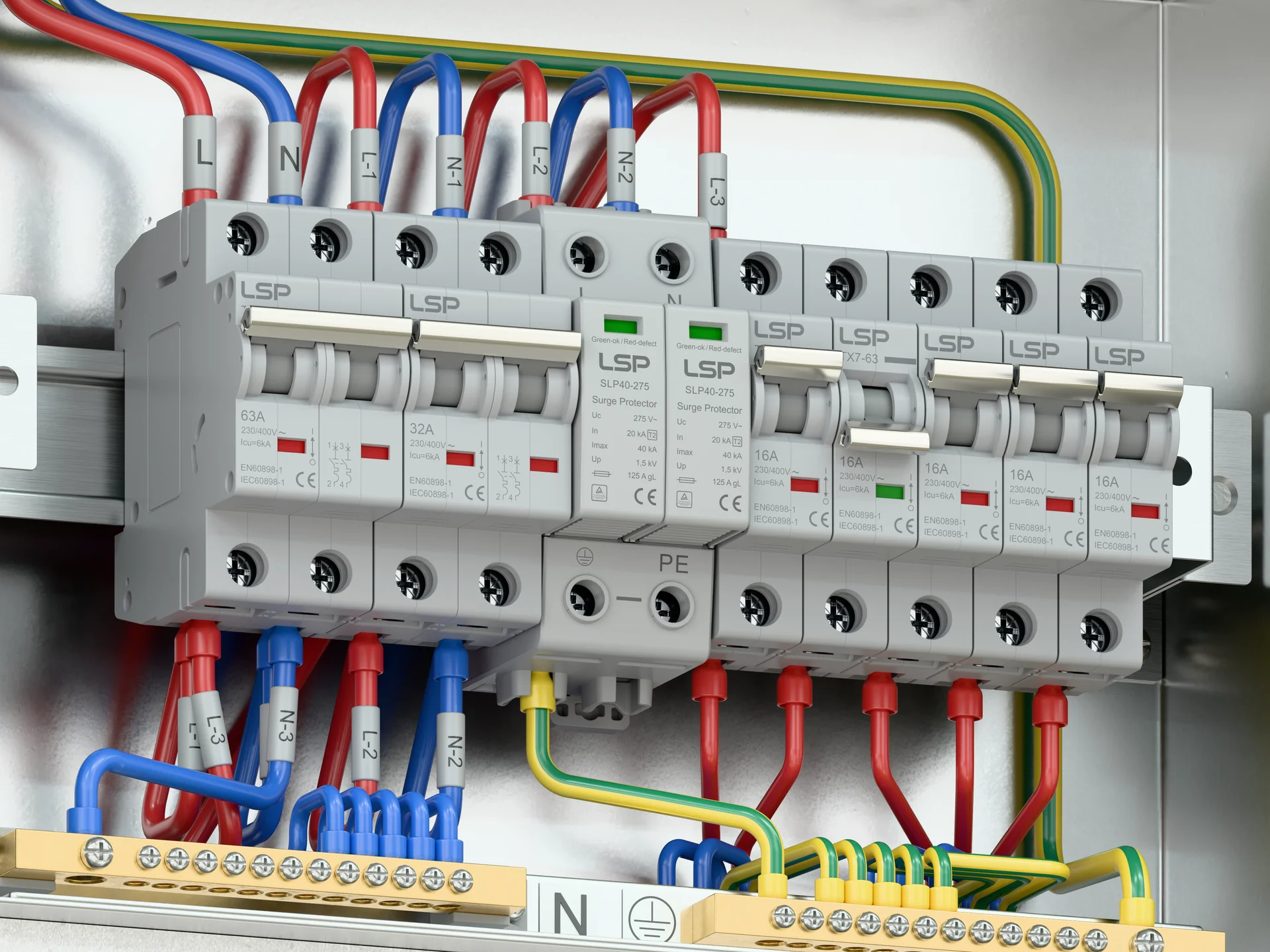

Why Does a Circuit Breaker Trip?

The reasons behind a circuit breaker trip are actually not complicated, and most cases can be traced back to a few common categories. Understanding these causes is the key to determining whether the trip is caused by a surge protective device issue or an underlying problem with the electrical circuit itself.

Common causes of circuit breaker trips include:

• Overload: Too many devices connected to the same circuit, or a high-power appliance drawing a large amount of current during startup, exceeding the circuit breaker’s rated capacity.
• Short circuit: Damaged or aging insulation, or incorrect wiring, causes the live wire and neutral wire to come into accidental contact.
• Ground fault: Leakage current exceeds the safety threshold. This is especially common in circuits equipped with RCDs/RCBOs, which are highly sensitive to leakage current.
• Aging circuit breaker: After long-term use, worn contacts or mechanical fatigue inside the breaker can cause unstable trip thresholds and unreliable operation.
• External transient interference: For example, the sudden discharge of capacitors inside equipment may create temporary current fluctuations that trigger protective devices.

It is important to note that most of these causes are related to current, insulation, and grounding conditions, while a surge protective device (SPD) is designed to handle voltage spikes. These are fundamentally different types of electrical issues, which is why simply installing an SPD cannot completely solve the problem of frequent circuit breaker trips.

Can a Surge Protector Prevent a Circuit Breaker from Tripping?

Not really, at least not directly. Surge Protective Devices (SPDs) and circuit breakers are designed for completely different purposes, as they address two different types of electrical problems. Therefore, expecting one device to perform the function of the other usually leads to misunderstandings.

A simple way to think about it is this: a circuit breaker monitors how much current flows through the circuit, while an SPD monitors how high a sudden voltage spike rises. In most cases, they do not even respond to the same type of electrical event.

However, before completely dismissing the role of an SPD, there are a few important details to understand:

• A properly selected SPD can reduce the electrical stress on downstream equipment, which helps lower the possibility of secondary failures caused by equipment damage and may indirectly reduce circuit breaker tripping.
• An SPD cannot prevent a circuit breaker from tripping due to overloads or genuine short-circuit faults in the wiring system.
• If an SPD itself becomes aged or fails internally, it may actually become the reason why the circuit breaker trips.
• Whether a circuit breaker trip is caused by the SPD or occurs outside the SPD’s protection range usually depends on installation methods, parameter matching, and the coordination between the SPD and circuit breaker.

Can a Surge Protector Cause a Circuit Breaker to Trip?

Yes, it can, but usually it is not because the SPD is performing its intended protection function incorrectly. Instead, the issue is often caused by a problem with the SPD itself. The following situations are the most common causes identified during troubleshooting.

SPD Aging Causes Increased Leakage Current

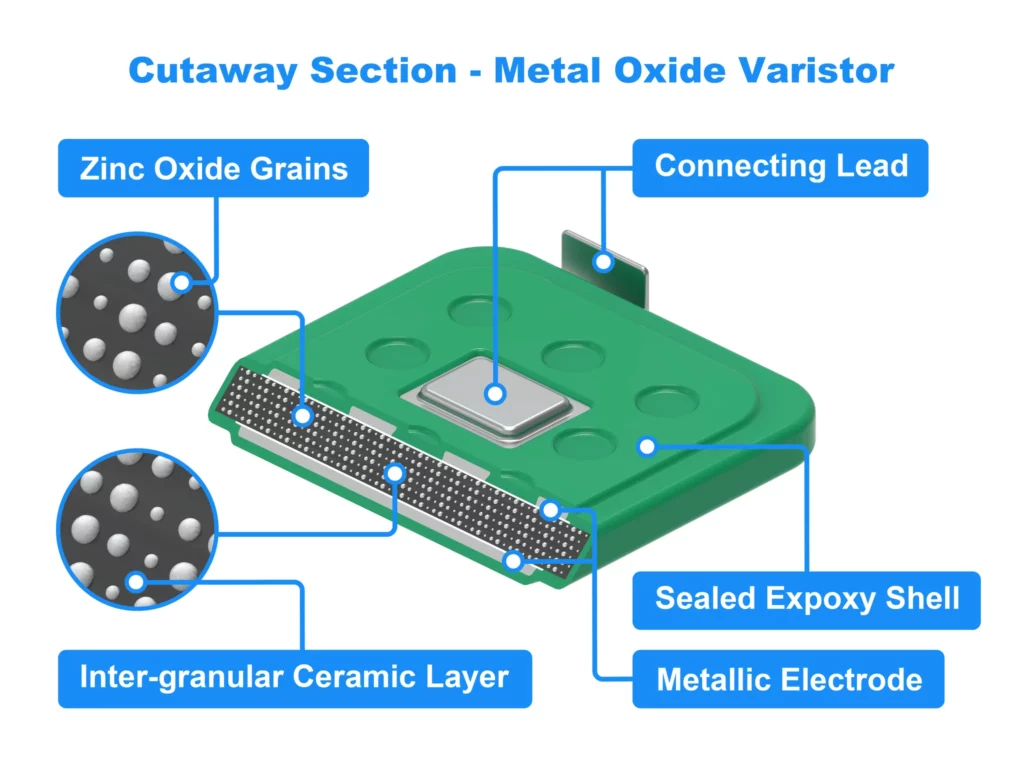

The metal oxide varistor (MOV) inside an SPD is not a permanently unchanged component. Every surge event it experiences, even without visible damage, can cause slight internal degradation. Over time, the MOV may begin to develop small leakage currents even under normal operating voltage.

If the circuit is equipped with a highly sensitive RCD or RCBO, these small leakage currents can accumulate and eventually reach the trip threshold, especially in humid environments or locations where regular maintenance inspections have not been performed for a long time.

SPD Internal Fault Causes Protective Action Triggering

This is the most direct situation: the SPD itself has actually failed, and the circuit breaker is simply responding to the fault condition. Common failure symptoms include:

• The MOV deteriorates into a short-circuit condition after experiencing multiple surge events.
• The internal thermal protection mechanism activates and disconnects the failed module.
• Internal wires or solder joints become loose or even short-circuited due to long-term exposure to high temperatures.
• Aging seals allow moisture to enter the SPD, reducing insulation performance.

In this situation, a circuit breaker trip is actually a positive sign. It indicates that the protection chain is functioning properly. Simply replace the faulty SPD, and there is no need to assume that the circuit breaker itself has a problem.

Incorrect SPD Installation or Wiring Errors

Wiring issues may seem like basic mistakes, but they occur quite frequently in actual installations. Common errors include:

• The live wire, neutral wire, and ground wire are connected incorrectly or attached to the wrong terminals.
• The grounding conductor is too long or the grounding resistance is too high, resulting in an ineffective surge discharge path.
• The conductor size between the SPD and the protected circuit is insufficient.
• The wiring sequence is incorrect when multiple SPDs are installed in parallel.

These issues often do not immediately cause equipment damage. Instead, they may first appear as irregular circuit breaker trips. During troubleshooting, checking whether the SPD wiring complies with installation requirements should be one of the first steps.

Incorrect SPD Parameter Selection

Common Mistake	Possible Consequence
Uc rated voltage is lower than the actual system voltage	The SPD remains close to the conduction threshold for a long time, causing overheating or even damage
In/Imax rating is undersized	The SPD may fail prematurely when exposed to larger surge events
SPD type does not match the installation location	Insufficient protection performance and excessive residual voltage
Maximum system operating voltage fluctuations are not considered	Normal voltage variations may trigger unwanted protective actions

Choosing the wrong parameters is essentially like “using a small horse to pull a heavy load.” The SPD operates beyond its designed limits for a long time, and circuit breaker tripping is just one of the visible signs that these hidden risks are starting to appear.

Improper Selection of Backup Protection Devices

Common Mistake	Possible Consequence
Backup circuit breaker capacity is selected too small	False tripping may occur during normal SPD surge current discharge
Circuit breaker operating characteristics do not match the SPD	Effective energy coordination cannot be achieved
Selection is not based on the SPD manufacturer’s recommended values	Protection sequence becomes uncoordinated, reducing the effectiveness of backup protection
Short-circuit current withstand capability is ignored	The device may not reliably interrupt faults under extreme conditions

A backup circuit breaker cannot be selected randomly. It needs to be properly coordinated with the response characteristics of the SPD. If the rating is too small, it may cause nuisance tripping; if it is not properly matched, it will fail to provide the intended protection.

How to Reduce Frequent Circuit Breaker Tripping?

To solve the problem of frequent circuit breaker tripping at its root, it is better to perform a complete inspection step by step rather than repeatedly resetting the breaker.

First, check whether the SPD has aged or suffered internal damage. If necessary, replace it directly instead of continuing to rely on a potentially faulty component. Then verify that the wiring is installed correctly, the grounding connection is reliable, and the conductor size meets the design requirements.

At the same time, recheck the parameter selection of the SPD and backup circuit breaker to ensure that their ratings and operating characteristics are properly coordinated, rather than being selected based only on experience or estimation.

Regular insulation testing and leakage current measurements can help identify potential problems before they become more serious. If the breaker continues to trip unpredictably after all these checks, it is recommended to have a qualified electrician perform a comprehensive evaluation of the system load and wiring condition.

Why Does Complete Electrical Protection Require Both SPDs and Circuit Breakers?

If there is only a circuit breaker, it cannot respond quickly enough to microsecond-level voltage spikes caused by lightning strikes or switching transients. By the time it reacts, the equipment may have already been damaged. On the other hand, if there is only an SPD without a circuit breaker, the SPD cannot interrupt the sustained high current caused by a real overload or short circuit.

The two devices complement each other in terms of response time and protection type: the SPD handles fast and sharp voltage abnormalities, while the circuit breaker handles slower and sustained current faults. Without either one, the electrical protection chain remains incomplete.

Frequently Asked Questions

Can a Surge Protector Replace a Circuit Breaker?

No, a surge protector cannot replace a circuit breaker. They serve different roles: circuit breakers protect against overcurrent and short circuits to prevent fires, while SPDs divert high-voltage transients like lightning to the ground. Most installations require both, as they guard against different electrical threats. They are complementary safety devices, not interchangeable substitutes.

Can a Damaged Surge Protector Affect the Normal Operation of an Electrical System?

Yes, a damaged surge protector can impact your system. Most modern SPDs disconnect safely when failed, allowing the electrical system to continue running but leaving equipment vulnerable to surges. However, a severe internal short could trip the circuit breaker, causing power loss. Regular inspection of the indicator window is essential to ensure your system remains protected and functional.

Is It Normal for the Circuit Breaker to Trip After Installing a Surge Protector?

Tripping immediately after installation is not normal and usually points to a wiring error or a faulty unit. If the SPD is wired incorrectly, it may create a short circuit or ground fault, causing the breaker to trip. In some cases, the breaker might be defective or incompatible. You should verify the installation against the manual and ensure the SPD is correctly rated for your system.

Can a Surge Protector Failure Cause Fire Risks Besides Tripping?

Yes, a faulty surge protector can pose a fire risk beyond just tripping breakers. Internal components like MOVs can undergo thermal runaway and overheat significantly when failing. While modern SPDs include thermal disconnectors to isolate the circuit, a severe malfunction or low-quality unit could lead to fire. Regular monitoring of the device’s status is vital for fire prevention.

What Is the Difference Between Ground Fault Tripping and Overcurrent Tripping When Using an SPD?

Ground fault tripping occurs when an SPD diverts surge energy or leakage current to the ground, potentially triggering a GFCI or RCD. In contrast, overcurrent tripping happens when an SPD fails via a short circuit, drawing excessive current that exceeds the breaker’s rating. Ground faults relate to current escaping the intended path, while overcurrent relates to exceeding circuit capacity.

How Often Should an SPD Be Inspected to Prevent Unexpected Tripping?

You should inspect your SPD every 6 to 12 months and immediately after major lightning storms. Most units have visual indicators; if the window turns red, the SPD is exhausted. Regular checks help you identify failed components before they cause unexpected circuit breaker tripping or leave your system vulnerable to the next high-voltage transient event.

Can an Undersized Circuit Breaker Cause Long-Term Damage to a Surge Protective Device?

No, an undersized circuit breaker won’t damage the SPD itself, but it causes a critical system vulnerability. A smaller breaker often trips prematurely when the SPD attempts to divert high surge currents to ground. Once tripped, the breaker isolates the SPD from the power line, leaving all connected equipment completely unprotected against subsequent power surges and lightning.

Is It Safe to Continue Using the Circuit After a Trip Caused by an SPD?

It is not entirely safe until the SPD is inspected. A trip often means the SPD has failed or reached its end-of-life. If the indicator is red, the unit is compromised and may cause repeated trips or leave equipment vulnerable. Always verify the SPD’s status and circuit integrity before resuming use to prevent fire hazards and ensure your electronics remain protected from future surges.
