Do Surge Protectors Protect Against Lightning – Ultimate Guide to Lightning & Surge Protection

What Is a Surge Protector (SPD) and How Does It Protect Against Lightning

Common Causes of Power Surges

Before discussing how surge protectors work, it’s important to understand power surges.

A surge is a sudden spike in voltage that occurs over a very short period of time. Common causes include:

• Switching on or off large electrical appliances, such as air conditioners or elevators, creating current spikes
• Fluctuations or faults in the power grid
• Induced voltages from lightning or other natural phenomena

These short-duration, high-voltage events can damage or destroy sensitive electronics, including computers, televisions, routers, and smart home systems. In modern homes and offices, electronic devices are everywhere and generally very sensitive to voltage variations. Since surges are unpredictable and cannot be completely eliminated, the most effective way to protect your equipment is by using a Surge Protective Device (SPD).

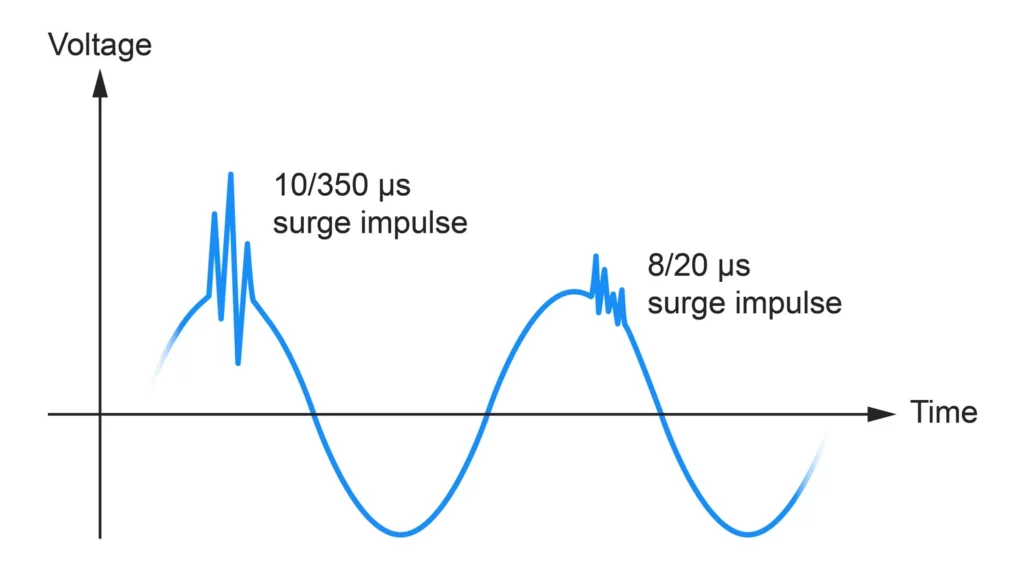

Types of Surges: Switching Surges vs. Lightning Surges

Power surges can generally be categorized into two main types:

Switching Surges:

• Caused by turning electrical devices on or off, usually carrying relatively low energy.
• In residential settings, switching surges are often minor and unlikely to damage household appliances.
• In industrial environments, large equipment like inverters or motors can generate strong switching surges, which may interfere with or damage sensitive devices.

Lightning Surges:

• Caused by induced voltage or current from lightning, carrying extremely high energy and posing significant risk to electronics.
• While SPDs can handle both switching and lightning surges, they are particularly critical for protection against indirect lightning strikes.

Important Note:Do surge protectors protect against lightning? They primarily guard against induced or indirect lightning surges, not direct strikes. Protection against direct lightning requires external lightning protection measures, such as:

• Lightning rods
• Lightning conductors or tapes
• Equipotential bonding
• Down conductors
• Grounding systems (earthing networks)

How a Surge Protector Works

The core function of a Surge Protective Device (SPD) is to detect abnormal overvoltage and quickly divert the surge current to the grounding system, protecting downstream equipment from high-voltage damage.

Key internal components include:

• Metal Oxide Varistor (MOV)
• Gas Discharge Tube (GDT)

These components respond within nanoseconds when voltage rises abnormally, instantly becoming conductive. This clamps the voltage to a safe range and prevents the surge energy from reaching connected devices. Properly installed SPDs in combination with grounding and external lightning protection can significantly reduce the risk of damage from lightning surges.

What Does a Surge Protector(SPD) Protect Against?

Surge protection devices (SPDs) are designed to safeguard electrical equipment and systems from voltage surges, also called transient overvoltages or spikes. Do surge protectors protect against lightning? The answer depends on the type and installation of the SPD, but in general, SPDs are effective against indirect lightning surges and other common voltage disturbances.

Key threats that a properly installed SPD protects against include:

1. Lightning Strikes:
   1. The most powerful and frequent source of surges.
   2. Includes both direct lightning strikes (extremely high energy, requiring external lightning protection) and indirect lightning surges induced on power lines.
2. Power System Switching:
   1. Surges caused by capacitor bank switching, line adjustments, or fault recovery by utility companies.
3. Internal Load Switching:
   1. Surges generated when large electrical loads within a facility—such as motors, air conditioners, compressors—are turned on or off.
4. Grid Abnormalities:
   1. Faults in the power grid (short circuits, fallen power lines, capacitor switching) can transmit high-energy surges into buildings.
5. Electrostatic Discharge (ESD):
   1. Though low in energy, static electricity from human contact or friction can damage sensitive electronic components, especially in data and communication circuits. Specialized SPDs can mitigate this risk.
6. Inductive Coupling:
   1. Fault currents from nearby lightning or parallel high-voltage lines can induce surges in adjacent cables (telephone, network, coaxial) via magnetic fields.

A well-designed and properly installed SPD provides reliable protection against these common surge threats, especially indirect lightning surges, helping prevent equipment damage, downtime, and data loss.

Can a Surge Protector(SPD) Prevent Lightning Surge Damage?

Can a surge protector protect against lightning? While no device can provide absolute protection against direct lightning strikes, a properly selected and installed SPD can effectively reduce the risk of damage from lightning-induced surges.

How Does an SPD Respond to Lightning Surges?

When a lightning surge enters a building through power lines, the SPD reacts within microseconds by diverting the surge current to the ground or neutral line. This limits the excessive voltage to a safe level and protects connected equipment.

Think of a surge protector as a “safety valve” for your electrical system:

• During a lightning surge, the SPD instantly “opens,” conducting the surge current and dissipating excess energy to prevent devices from being damaged or destroyed.
• After the surge passes, the SPD quickly returns to a high-impedance state, ensuring normal power supply remains unaffected.

Indirect vs. Direct Lightning Strikes

• Direct Lightning Strike: Occurs when lightning hits a building, power line, or equipment directly. The released energy is enormous, potentially causing structural damage, fires, or injuries.
• Indirect Lightning Strike: Occurs when lightning strikes nearby objects. The resulting energy is transmitted into the building’s electrical system through electromagnetic induction, conductive coupling via wiring, or ground potential rise.

Key points:

• SPDs are effective against indirect lightning strikes, such as induced surges from nearby lightning.
• SPDs cannot handle direct lightning, as the energy far exceeds their designed capacity.

SPD Performance in Real Lightning Events

While no surge protector can offer 100% protection against lightning, a high-quality SPD can greatly reduce the risk of damage to sensitive electronics and electrical systems. Its effectiveness depends on:

1. SPD specifications: Parameters like Maximum Discharge Current (Imax), Nominal Discharge Current (In), and Voltage Protection Level (Up) determine the SPD’s ability to absorb surge energy.
2. Grounding system quality: A properly designed grounding system quickly dissipates lightning current and minimizes residual voltage.
3. Correct installation location: Installing the SPD near protected equipment or at the main distribution board ensures maximum effectiveness.

In summary: Choose the right SPD, ensure proper grounding, and install it correctly. This combination is essential for effective protection against lightning surges.

Factors Affecting Surge Protection Performance

The effectiveness of a surge protection system depends on several key factors. Ensuring that these elements are properly addressed will help minimize the risk of equipment damage from lightning-induced surges and other voltage spikes.

Key Technical Parameters of Surge Protector

When selecting a surge protector, focus on the following specifications:

• Maximum Continuous Operating Voltage (Uc) (e.g., <275V) Determines the highest voltage at which the device remains inactive. A lower Uc allows the protector to respond more quickly to overvoltage events.
• Surge Rating (kA) Indicates the maximum current the device can safely absorb and discharge. A higher rating ensures better handling of intense surges.
• Response Time (e.g., <25ns) Measures how fast the protector reacts to sudden voltage spikes. Faster response improves protection for downstream equipment.

Installation Location

Positioning the device near the main power entry point, such as a distribution board, maximizes its effectiveness:

• Intercepts surges before they propagate through internal wiring
• Reduces the length of conductive paths, limiting overvoltage exposure for connected devices

Grounding System Quality

A reliable grounding system is essential for optimal surge protection:

• High resistance or poor grounding design slows surge current dissipation
• Consequences of inadequate grounding include reduced effectiveness, potential reverse current, and increased risk of equipment damage

Summary: Choose a protector with appropriate specifications, install it near the power entry, and ensure a low-resistance grounding system to achieve reliable protection against lightning-induced surges.

SPD Limitations and Common Misunderstandings About Lightning Protection

Although surge protection devices (SPDs) are essential for reducing lightning-induced risks, they have inherent limitations. Misuse, incorrect installation, or misunderstandings can significantly reduce their effectiveness.

Why SPDs Cannot Protect Against Direct Lightning Strikes

Direct lightning strikes involve extremely high energy—voltages in the millions of volts and currents in the hundreds of thousands of amperes—well beyond the design capacity of SPDs.

To handle such extreme scenarios, a complete lightning protection system is required:

• Lightning rod systems: Safely channel lightning into the ground, preventing it from striking the building structure.
• Equipotential bonding: Connects metal components within the building to prevent dangerous voltage differences.
• Building-level lightning strategies: Shielding, zoning, and optimized electrical circuit layouts.

Even high-quality SPDs alone cannot replace these essential external measures.

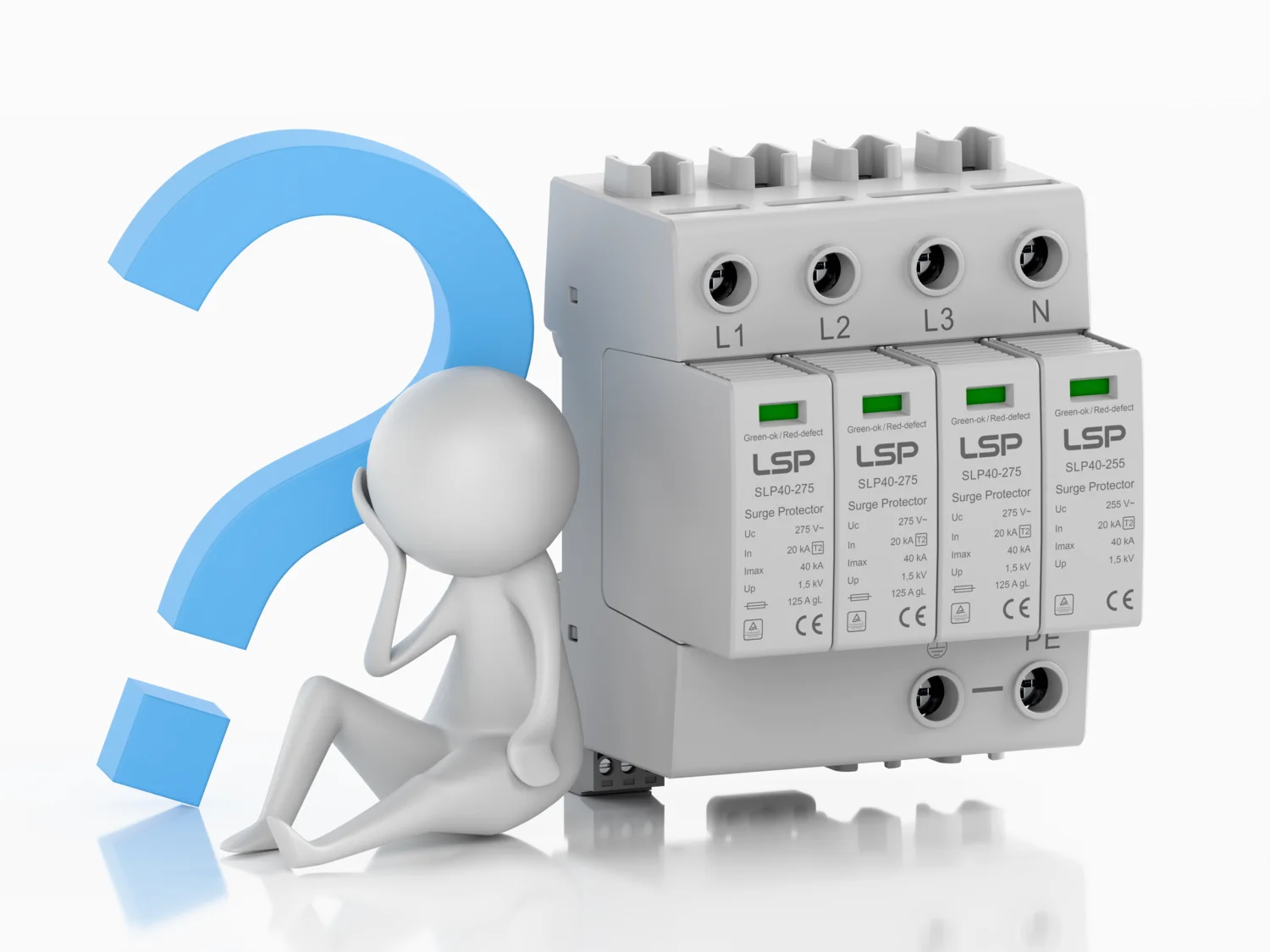

Common Misconceptions about Surge Protector (SPD)

• All SPDs provide full lightning protection: Many plug-in or power-strip type SPDs are designed only for minor everyday surges and cannot withstand high-energy lightning surges.
• SPDs alone are sufficient for building protection: Without proper grounding and a comprehensive electrical distribution system, SPDs cannot operate effectively.

Why Damage May Still Occur Despite SPDs

Even when SPDs are installed, damage may occur if the overall protection system is poorly designed:

• Inadequate grounding: Excessive ground resistance or improper methods prevent timely surge discharge.
• Improper SPD placement: SPDs installed far from the power entry point may allow surges to reach equipment first.
• Exceeding surge limits: Extremely strong surges in lightning-prone areas may overwhelm the SPD.

Understanding Indirect vs. Direct Lightning

Direct Lightning Strike:

• Hit on external protection systems: Lightning rods and down conductors connected to grounding grids protect the structure. However, strong lightning currents create electromagnetic fields, inducing voltage surges in nearby circuits. SPDs installed at key distribution boards help divert and clamp these surges.
• Hit on unprotected metal structures: Roof water tanks, satellite dishes, or ungrounded equipment may conduct lightning into the building. SPDs generally cannot handle such direct strikes; external protection and grounding integrity must be reinforced.

Indirect Lightning (Induced Lightning):

• Occurs when lightning strikes nearby power lines or equipment. High-amplitude surges are induced in cables, power lines, and communication systems.
• Installing SPDs at key nodes—main distribution boards, branch panels, telecom cabinets—effectively absorbs and discharges these surges, protecting downstream devices.

Summary Recommendations for Effective Lightning Protection

A comprehensive strategy combines external lightning protection and internal SPD deployment:

1. Install lightning rods, down conductors, and grounding grids as external protection.
2. Deploy graded SPDs (Type I, I+II, II, III) at main distribution boards, branch panels, and near critical equipment.
3. Install signal SPDs at weak-current interfaces, network, and security systems to filter out lightning-induced interference.

By selecting the right SPD, ensuring proper grounding, and installing it in the correct location, you can maximize protection against lightning surges.

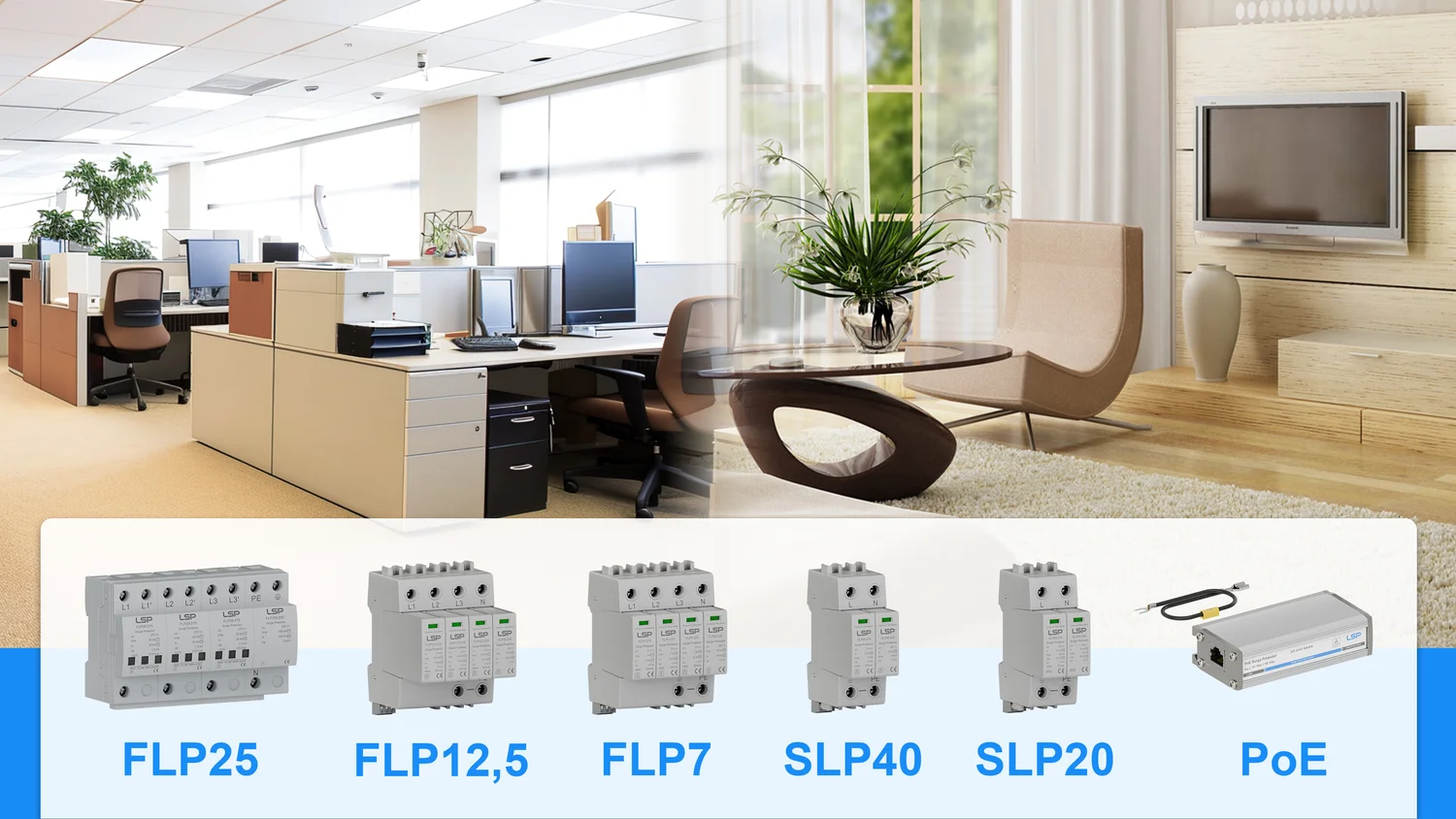

How to Improve Lightning Surge Protection for Homes and Offices?

Effective lightning surge protection requires more than just installing a surge protection device (SPD). Optimal protection depends on proper SPD selection, installation, grounding, and system coordination to form a comprehensive protection system.

Proper Selection of SPD Types

To ensure multi-level defense against lightning surges:

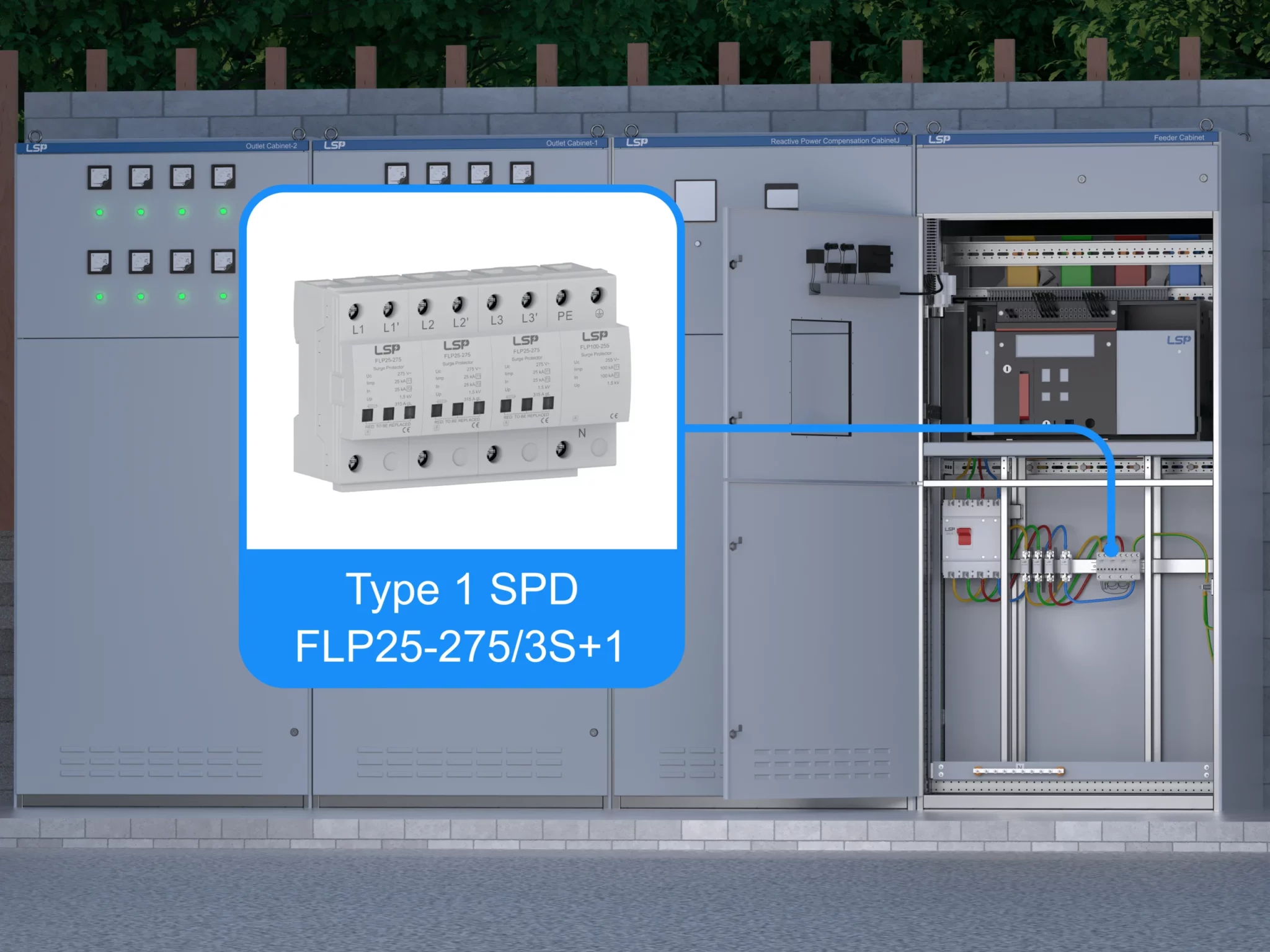

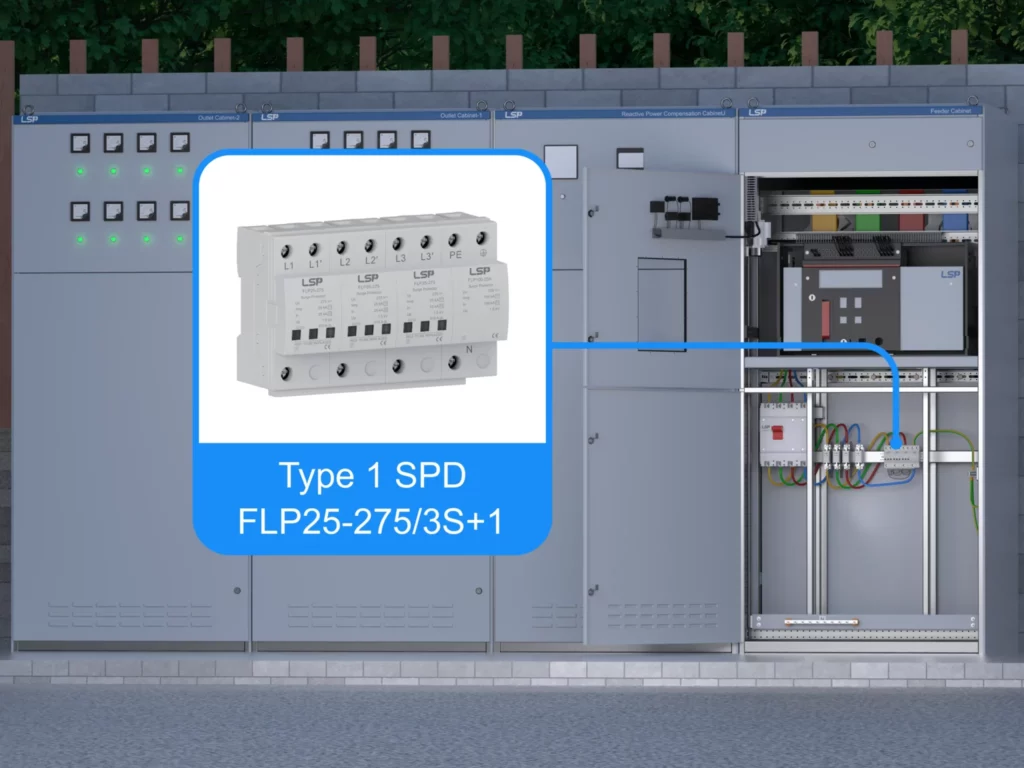

• Type 1 SPD: Installed at the main distribution board (power entry point or distribution room) to withstand high-energy surges from direct or nearby lightning strikes.
• Type 2 SPD: Installed at branch or floor-level distribution boards to suppress residual surges not fully absorbed by Type I SPDs.

Certification and Quality Tips:

• Choose SPDs that comply with UL 1449, IEC/EN 61643, or bear CB, TUV, CE, or UL marks to ensure reliable performance, safety, and international compliance.

Installation and Grounding Recommendations

The installation quality directly affects SPD effectiveness:

• Select SPDs with voltage and current ratings matching the building’s electrical system.
• Ensure the grounding system meets standards, typically with ground resistance below 10Ω (depending on local codes).
• Install SPDs as close as possible to the power entry point or protected equipment to minimize wiring length, reduce voltage drop, and improve surge suppression efficiency.

Additional Protection Measures

In areas with frequent thunderstorms or complex terrain, relying solely on SPDs may not be sufficient. Consider the following measures to further enhance protection:

• Install external lightning protection systems, including lightning rods, down conductors, and grounding networks.
• Protect critical equipment (servers, security systems, communication devices) with isolation transformers or uninterruptible power supplies (UPS).
• Deploy dedicated SPDs for signal lines, network cables, and antenna feeders to prevent surges from entering via communication paths.
• and antenna feeders to prevent lightning from entering through communication paths.

Conclusion: Can Surge Protectors Prevent Lightning Damage?

Brief Answer

• Surge protectors can safeguard electrical systems against surges caused by indirect lightning strikes (induced surges).
• They cannot protect against direct lightning strikes or extreme surges that exceed the SPD’s rated capacity.

What SPDs Can and Cannot Do

Capabilities:

• Suppress lightning-induced surge voltages, reducing stress on wiring and connected equipment.
• Protect sensitive electronics from breakdown, burnout, and premature failure, extending device lifespan.

Limitations:

• Cannot withstand direct lightning strikes.
• Cannot mitigate structural hazards such as severe grounding faults, building-level lightning strikes, or system overloads.

Practical Recommendations During Thunderstorms

To enhance safety in areas prone to lightning:

• Install high-quality, standards-compliant SPDs, including Type I and Type II, preferably at main and branch distribution boards.
• Regularly inspect and maintain the grounding system, ensuring grounding resistance complies with regulations.
• Implement multi-level protection for critical devices, such as isolation transformers and dedicated surge protectors for signal and network lines, to improve overall lightning resilience.

FAQ: Common Questions About Lightning Surge Protection

What does a surge protector protect against?

A:Surge protectors are mainly used to protect electrical equipment and systems from transient overvoltages or spikes. They guard against:

• Lightning surges (direct or indirect)
• Switching operations in power systems
• Internal load switching (motors, compressors, air conditioners, etc.)
• Grid faults (short circuits, fallen power lines)
• Electrostatic discharge (ESD)
• Inductive coupling from nearby lightning or parallel lines

Will a surge protector protect against lightning?

A:Surge protectors can protect connected devices from indirect lightning surges, such as those induced on power lines. They divert excess voltage to ground to prevent damage. However, they cannot withstand direct lightning strikes or surges beyond their rated capacity. Comprehensive protection requires proper SPD selection, external lightning protection, and a reliable grounding system.

How can I test a surge protector without professional equipment?

A: Even without specialized tools, you can perform a basic SPD check:

1. Visual inspection – the indicator window should be green; red or off may indicate failure.
2. Test lamp – verify outlet power and continuity.

Is it normal if a multimeter shows infinity (∞) when measuring a surge protector?

A: Yes. High-impedance MOV components inside SPDs will show ∞ under standard multimeter settings. This does not confirm SPD functionality; use professional testers for accurate assessment.

My surge protector shows a red indicator but devices are still powered – should I replace it?

A: Yes. A red light means the SPD’s MOV/GDT components may be compromised. Replace immediately to avoid electrical damage or fire risks.

How often should I test my surge protector at home or in industrial settings?

A: Recommended testing schedule:

• Residential: Annually (visual + multimeter checks)
• Industrial: Every 6 months (use SPD888 or similar professional tester)
• Wind/Solar Systems: Quarterly and after storms, with on-site and lab verification

What should I record during surge protector inspections?

A: Track critical parameters:

• GDT breakdown voltage (<800 V)
• TOV withstand voltage (≥1200 V + U0)
• Lightning counter readings if available Maintaining records ensures predictive maintenance and timely SPD replacement.

Can a multimeter detect MOV failure inside a surge protector?

A: No. MOVs are high-impedance nonlinear components, so standard multimeters cannot detect degradation. Use SPD888 testers or laboratory impulse tests for accurate assessment.

How do I ensure my SPD is providing full protection after a lightning strike?

A: Check indicator lights, inspect MOV/GDT modules, review lightning counter data if equipped, and replace any module showing abnormal readings. Professional on-site or laboratory testing ensures continued compliance with IEC 61643-11 standards.

Can a surge protector protect against lightning?

A: Yes, but only for indirect lightning effects. The SPD acts like a “safety valve,” clamping overvoltage and preventing sensitive equipment damage. Direct lightning carries energy far beyond the SPD’s design and requires external lightning rods, down conductors, and grounding grids.
