Introduction – The First Line of Defense Against Electrical Surges
Electrical surges are sudden, high-energy voltage spikes from lightning, utility switching, or large inductive loads that can damage sensitive devices like PLCs and VFDs. A Type 1 Surge Protection Device, installed at the service entrance, acts as the first line of defense, safely diverting these surges to ground. Deciding whether to install one is a technical decision based on risk, building conditions, and compliance requirements.
What Is a Type 1 Surge Protection Device?
A Type 1 Surge Protection Device is designed to serve as the first and most robust layer of defense against high-energy transient overvoltages entering an electrical installation from external sources. Unlike downstream Surge Protection Devices that focus on residual or internally generated surges, a Type 1 device is specifically engineered to handle severe surge currents associated with direct or near-direct lightning events.
From an installation perspective, a Type 1 Surge Protector is mounted at the origin of the electrical installation. Typical locations include the main service entrance, the main distribution board, or the interface between a utility transformer and a building’s electrical system. Its purpose is to intercept surge energy before it propagates into internal wiring and connected equipment.
The defining technical characteristic of a Type 1 device is its ability to discharge lightning impulse current with a standardized 10/350 μs waveform. This parameter, known as impulse current (Iimp), represents the energy profile of a direct lightning strike. While downstream devices are not designed to survive such extreme conditions, a Type 1 SPD is constructed to safely conduct this energy to earth without catastrophic failure.
In practical terms, this means that a Type 1 Surge Protection Device does not merely limit voltage-it absorbs and redirects massive surge energy away from the installation. This capability makes it indispensable in environments exposed to lightning risk or where electrical continuity is critical.

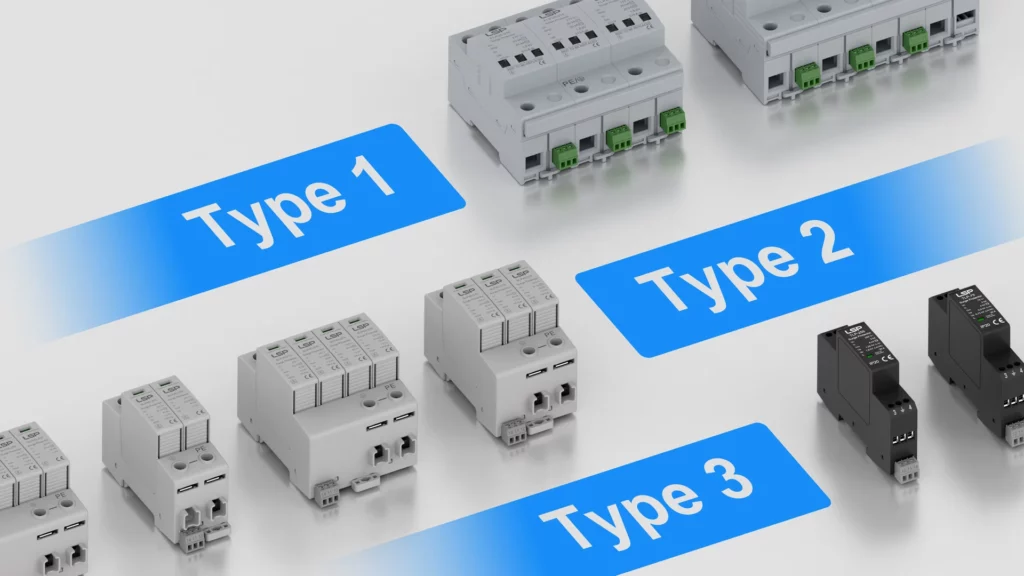

Type 1 vs. Type 2 vs. Type 3 Surge Protection Devices
Understanding the differences between surge protection devices is key to full electrical safety. A Type 1 Surge Protection Device installed at the main panel serves as the first shield against high-energy surges from lightning or utility fluctuations. It protects the entire electrical system (Whole-System protection) and is rated by Iimp, reflecting its ability to handle extreme currents.
Type 2 SPDs are installed at distribution panels to limit residual surges passed by Type 1 protection or generated internally. Their performance is measured by In/Imax. Type 3 SPDs provide localized protection for sensitive equipment, such as PLCs or communication devices. Installed at the device itself, they offer Point-of-Use protection, using Uoc to indicate voltage clamping capability.
Each SPD type works in coordination: Type 1 protects the whole system, Type 2 reinforces internal circuits, and Type 3 safeguards individual devices at the point of use. Status indicators help monitor functionality: green shows normal operation, while other colors signal maintenance is needed. Proper installation and multi-level coordination ensure long-term, effective surge protection.
Do I Really Need a Type 1 Surge Protection Device?
Not every electrical installation requires the same level of surge protection. Whether a Type 1 Surge Protection Device is necessary depends on a combination of environmental exposure, power supply characteristics, building structure, and equipment sensitivity. Understanding these factors helps determine if Type 1 protection is a technical necessity rather than an optional upgrade.
Lightning Exposure and Location Risk
The most direct indicator is lightning exposure. Installations located in regions with frequent thunderstorms, open terrain, elevated structures, or mountainous areas face a significantly higher risk of lightning-induced surges. In such environments, lightning currents can enter the electrical system through overhead power lines or grounding systems.
In these cases, a Type 1 Surge Protector is required to safely discharge high-energy lightning currents before they propagate into internal distribution networks. Without this first protection stage, downstream devices are exposed to energy levels far beyond their design limits.
Power Supply Characteristics
The type of utility connection also plays a critical role. Buildings supplied by overhead lines are more susceptible to direct lightning currents than those with underground cables. Even when lightning does not strike the structure itself, induced surges can travel along supply conductors and enter the main distribution point.
Where overhead supply lines exist, installing a Type 1 Surge Protection Device at the service entrance is widely recognized as best practice to prevent destructive surge energy from entering the building.
Building Structure and External Lightning Protection
Structures equipped with external lightning protection systems, such as air terminals or down conductors, require internal surge protection coordination. External lightning protection safely captures lightning strikes, but the associated surge currents must still be managed within the electrical installation.
In these scenarios, a Type 1 Surge Protector is essential to equalize potential differences and prevent lightning currents from flowing through internal power circuits.
Equipment Value and Operational Impact
The more valuable and sensitive the connected equipment, the stronger the justification for Type 1 protection. Industrial automation systems, data centers, photovoltaic inverters, EV charging infrastructure, and modern smart buildings rely heavily on electronic components vulnerable to high-energy transients.
For such systems, the cost of installing a Type 1 Surge Protection Device is minimal compared to the potential losses caused by equipment damage, downtime, and production interruption.
Benefits and Long-Term Value of Type 1 Surge Protection
Installing a Type 1 Surge Protection Device is not only a technical decision but also a strategic investment in system reliability and asset protection. Its value extends beyond surge suppression, delivering measurable operational and economic benefits over the lifecycle of an electrical installation.
System-Level Protection from the First Entry Point
A Type 1 Surge Protector installed at the service entrance discharges high-energy surges before they reach distribution boards and equipment, providing Whole-System protection. This ensures every device connected downstream is protected from high-energy surges.
Reduced Equipment Damage and Downtime
High-energy surges can cause catastrophic electronic failures and unexpected downtime. Limiting surge energy at the entry point lowers the risk of damage and ensures operational continuity.
Lower Maintenance and Replacement Costs
Repeated exposure accelerates aging. A Type 1 Surge Protection Device minimizes cumulative stress on downstream devices, extending lifespan and lowering maintenance and replacement expenses.
Compliance and Insurance Benefits
Installing a Type 1 Surge Protector aligns with IEC standards and supports risk management. Documented surge protection can improve insurance conditions and reduce liability in commercial or industrial environments.
Installation and Coordination: Getting the Most from a Type 1 SPD
The performance of a Type 1 Surge Protection Device depends not only on its rating but also on correct installation and proper coordination with downstream surge protection. Even a high-quality device can fail to deliver effective protection if applied incorrectly.
Installation Location: Where Type 1 Protection Must Be Installed
A Type 1 Surge Protection Device must be installed at the service entrance—main switchboard, main breaker incoming side, or transformer interface—to discharge high-energy surges before entering internal wiring.
Wiring Principles: Short, Straight, and Low-Impedance
Short, straight, and low-impedance connections are essential. Phase, neutral, and earth conductors should be routed together. Improper wiring reduces the effectiveness of even a high-rated Type 1 Surge Protector.
Overcurrent Protection and Backup Devices
Coordinate the Type 1 Surge Protection Device with backup overcurrent protection to prevent nuisance trips and ensure reliability.
Cascading Protection: Why Type 1 Alone Is Not Enough
While Type 1 Surge Protectors handle high-energy surges, residual voltage can still reach sensitive electronics. Multi-stage protection is required: Type 1 at the entrance, Type 2 at distribution, and Type 3 at point-of-use. Proper spacing and conductor impedance ensure sequential operation and optimal voltage limitation.
Common Myths About Type 1 Surge Protection
Even with growing awareness, several misconceptions persist regarding the necessity and function of a Type 1 Surge Protection Device. Addressing these myths is crucial for ensuring proper protection and avoiding costly mistakes.
Myth 1: “I already have plug-in surge protectors, so I don’t need a Type 1 SPD.”
They only protect individual devices. A Type 1 Surge Protection Device protects the entire system from high-energy surges.
Myth 2: “Lightning is rare here, so it’s unnecessary.”
Even infrequent lightning or utility switching can create destructive surges. A Type 1 Surge Protector ensures resilience against direct and induced surges.
Myth 3: “Installing a Type 1 SPD means I don’t need Type 2 or Type 3 devices.”
Residual voltage may still reach downstream equipment. Multi-stage protection with Type 2 and Type 3 SPDs ensures sensitive devices like PLCs and VFDs are fully protected.
Myth 4: “Type 1 SPDs are too expensive for my facility.”
Considering downtime, equipment replacement, and operational losses, installing a Type 1 Surge Protection Device is cost-effective and provides high ROI.
