Created by: Glen Zhu | Updated Date: April 9th, 2025
Ethernet cables are reliable for most indoor setups, but certain conditions can expose them to risks. Outdoor installations, for example, face environmental challenges like moisture and temperature changes. Areas prone to lightning strikes or power surges also increase the likelihood of damage. These risks can harm not only the cables but also the devices they connect to. By understanding these vulnerabilities, you can take steps to protect your network and ensure its longevity.
Power surges can occur due to various reasons, and understanding these causes helps you protect your Ethernet cables effectively. Some common causes include:
| Cause of Surge | Description |
|---|---|
| Switching Transients | Caused by the sudden release of energy from reactive loads like electric motors. |
| Lightning Transients | Induced voltages and currents from lightning strikes affecting nearby electrical conductors. |
| Insulation Faults | Faults in AC power distribution networks leading to energy release from long supply lines. |
Lightning strikes, in particular, pose a significant risk. They can create powerful discharges that overwhelm the capacity of Ethernet systems, leading to damage.
Outdoor installations and environmental factors
Outdoor Ethernet cables face unique challenges. Exposure to environmental factors like rain, wind, and temperature fluctuations increases their vulnerability. Long cables running outside or through exterior walls are especially at risk. Without proper grounding and shielding, these cables can become conduits for electrical surges.
Lightning strikes and electrical storms
Lightning strikes are one of the most dangerous threats to Ethernet cables. A direct strike can cause catastrophic damage, but even nearby strikes can induce surges through electromagnetic fields. These surges can travel along cables, damaging connected devices. Installing surge protectors at both ends of outdoor cables significantly reduces this risk.
Power surges can have devastating effects on Ethernet cables and the devices they connect to. Surges often cause electrical and thermal overstress, leading to visible damage like scorch marks or burnt components. Devices connected to the cables may experience signal disruptions or complete failure. In severe cases, surges can render entire network systems inoperable.
| Aspect | Details |
|---|---|
| Causes of Electrical Surges | Surges can be caused by switching of reactive loads, insulation faults, and lightning effects. The most common causes are switching and lightning transients. |
| Effects of Electrical Surges | Surges can cause electrical/thermal overstress, visible scorch marks, burnt components, and signal upsets in devices, including Ethernet cables. |
Protecting your Ethernet cables from surges not only prevents physical damage but also ensures the reliability of your network.
Power over Ethernet (PoE) systems come with built-in surge protection mechanisms, making them more resilient to electrical surges compared to non-PoE installations. These systems are designed to handle both data transmission and power delivery through a single Ethernet cable, which requires robust protection to ensure reliability.
| Feature | PoE Systems | Non-PoE Installations |
|---|---|---|
| Surge Protection Mechanism | Built-in surge protection and power management | Typically lacks dedicated surge protection |
| Reliability in Surges | Designed to safeguard against electrical surges | May be vulnerable to electrical spikes |
| Lifespan of Devices | Extended due to surge protection | Potentially reduced without protection |
PoE systems not only protect your devices from surges but also extend their lifespan. This makes them a reliable choice for environments where power fluctuations are common. If you rely on PoE technology, you already have an added layer of protection for your Ethernet cables and connected devices.
While built-in protective mechanisms in Ethernet systems offer a degree of safety, they are not foolproof. These mechanisms often depend on proper design and implementation during manufacturing. If the design lacks robust physical protections, your system may remain vulnerable to certain risks. For example, unauthorized access to restricted areas can compromise the effectiveness of these protections.
Built-in mechanisms also have limitations when dealing with extreme surge events, such as lightning strikes. They may not provide adequate protection in high-risk environments or outdoor installations. To address these gaps, you should consider additional measures like external surge protectors and proper grounding techniques. These steps can enhance the safety and reliability of your Ethernet system.
Risks in outdoor environments
Outdoor environments expose Ethernet cables to unique risks that can compromise their performance and longevity. Aerial cable runs are particularly vulnerable to electrostatic discharge (ESD), which can damage connected devices like routers and switches. Lightning strikes near outdoor installations can induce overvoltage, causing severe harm to network equipment. Rain, wind, and temperature fluctuations further increase the likelihood of electrical surges.
To mitigate these risks, you should use shielded Ethernet cables and surge protective devices (SPDs). Typical setups include SPDs at both ends of the cable—one near the outdoor device and another where the cable enters the building. This configuration protects against induced surges from nearby lightning strikes. Additionally, bonding conductors between grounding points eliminate ground loop conditions, ensuring a safer and more reliable network.
Importance of grounding and shielding
Proper grounding and shielding are essential for outdoor Ethernet installations. Grounding the cable shield safely dissipates ESD events, preventing damage to your network. Shielded cables act as a barrier, reducing the impact of electromagnetic interference and electrical surges. Without these measures, outdoor cables can become conduits for harmful electrical currents, jeopardizing your devices and network stability.
High-risk areas, such as regions with frequent lightning storms or unstable power grids, demand additional surge protection for Ethernet cables. Lightning surges can travel along cables, damaging connected devices like laptops and modems. Installing SPDs at both ends of the cable significantly reduces this risk. Grounding techniques also play a critical role in safely dissipating electrical surges, ensuring your equipment remains operational during adverse conditions.
Industrial and commercial settings often house heavy electrical machinery, which increases the likelihood of power surges. These surges can disrupt your network and cause costly damage. Field studies highlight several risks associated with such environments:
| Risk Type | Description |
|---|---|
| Equipment Downtime | Power surges can lead to equipment failures, halting production and causing financial losses. |
| Costly Repairs | Surges can damage network devices, resulting in expensive repairs or replacements. |
| Data Loss | Electrical spikes can corrupt or erase critical data, affecting operations and decision-making. |
| Worker Safety | Surges pose safety risks to workers, especially in areas with operational machinery. |
To protect Ethernet cables in these environments, you should use SPDs and ensure proper grounding. These measures safeguard your network, reduce downtime, and enhance worker safety.

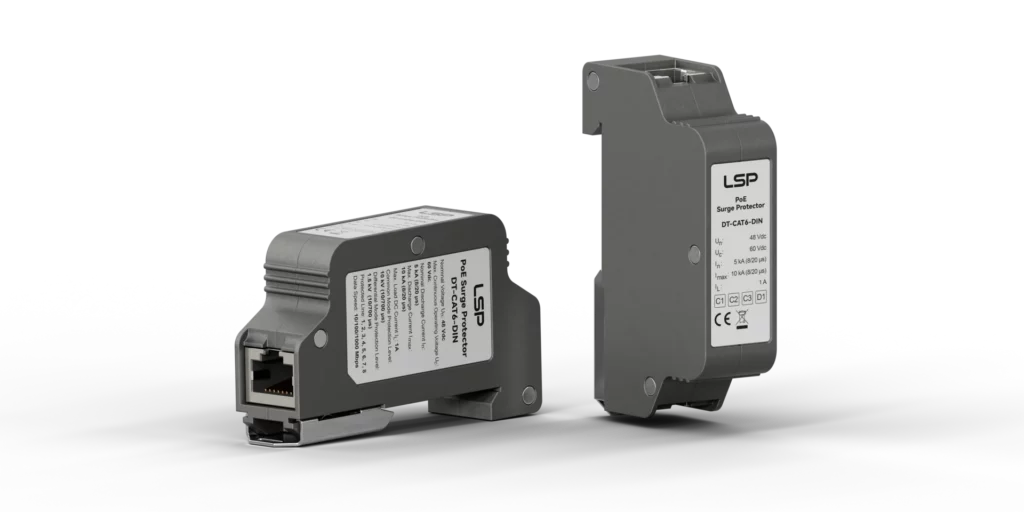

Ethernet surge protectors or arrestors are essential tools for safeguarding your network from voltage spikes. These devices act as a barrier, absorbing excess electrical energy before it reaches your Ethernet cables and connected devices. Installing surge protectors at both ends of outdoor Ethernet cables is a practical way to minimize risks, especially in areas prone to lightning storms or power fluctuations.
Surge protectors are particularly effective during lightning storms. They prevent transient voltage spikes from damaging your network equipment. For added safety, consider using Ethernet lightning arrestors. These devices are designed to handle high-energy surges, offering an extra layer of protection. Shielded cabling, when combined with surge protectors, further reduces the risk of electromagnetic interference.
Tip: Always choose surge protectors that meet industry standards for voltage suppression. This ensures reliable performance and long-term protection for your network.
Grounding your Ethernet cables is one of the most effective ways to protect them from electrical surges. Proper grounding dissipates excess electrical energy safely into the ground, preventing it from damaging your cables and devices. This technique is especially important for outdoor installations and high-risk environments.
A case study from a leading e-commerce company highlights the benefits of proper grounding. By upgrading their cabling infrastructure and emphasizing grounding best practices, the company reduced electromagnetic interference and improved operational efficiency. This approach also minimized downtime, ensuring a more reliable network.
To implement proper grounding, connect the cable shield to a grounding point at both ends. This setup eliminates ground loop conditions, which can cause interference and surges. Without proper grounding, even the best surge protectors may fail to redirect surge currents effectively.
Shielded Ethernet cables offer enhanced protection against electrical surges and electromagnetic interference. These cables feature a metallic shield that reduces the loop area between wires, minimizing the effects of induced voltage from lightning strikes. This design makes them an excellent choice for outdoor installations and environments with heavy electrical equipment.
Using shielded cables in combination with surge protectors creates a robust defense against surges. The shield directs surge currents safely to the ground, protecting sensitive devices. Research shows that shielded cables can mitigate the effects of electromagnetic fields generated by lightning, reducing the risk of damage to your network.
1. Install shielded cables in areas prone to lightning or power fluctuations.
2. Use surge protective devices (SPDs) to disconnect devices from surges.
Note: While shielded cables provide added protection, they must be installed correctly to deliver optimal results. Always follow manufacturer guidelines for installation and grounding.
Regular maintenance and inspection of your Ethernet systems play a vital role in ensuring their reliability and longevity. By proactively addressing potential issues, you can prevent costly repairs and downtime. A well-maintained network not only performs better but also supports the smooth operation of connected devices.
Key Practices for Maintenance and Inspection
To keep your Ethernet systems in top condition, you should follow these essential practices:
Tip: Schedule maintenance checks at least once every six months to catch potential issues early.
Benefits of Regular Maintenance
Adhering to a consistent maintenance schedule offers several advantages. First, it enhances the performance of your Ethernet system by ensuring that all components function optimally. Clean and well-maintained cables reduce signal interference, leading to faster and more reliable data transmission. Second, proactive maintenance minimizes downtime. By identifying and fixing problems early, you avoid unexpected disruptions that could impact your work or business operations.
For example, in warehouse environments, following industry standards for cabling maintenance has been shown to improve overall productivity. Clean and organized cabling reduces troubleshooting time, while prompt repairs prevent small issues from escalating. These practices not only enhance network performance but also contribute to the profitability of the operation.
Simplifying Maintenance with PoE Systems
If your network uses Power over Ethernet (PoE) systems, maintenance becomes even more straightforward. PoE eliminates the need for separate power cables, reducing the complexity of your setup. This streamlined design makes inspections and repairs quicker and less labor-intensive. Additionally, PoE systems often come with built-in surge protection, further reducing the need for extensive maintenance.
By investing time in regular maintenance and inspections, you protect your Ethernet system from avoidable failures. These efforts ensure that your network remains efficient, reliable, and ready to support your needs.
When deciding how to protect your Ethernet cables, you might wonder whether Ethernet surge protectors or whole-house surge protectors are the better choice. Each option has its strengths, depending on your specific needs.
Ethernet surge protectors are designed to safeguard individual Ethernet cables and connected devices. These devices absorb voltage spikes before they can damage your network. They are ideal for protecting outdoor Ethernet installations or cables in high-risk areas. By placing these protectors at both ends of the cable, you create a focused defense against surges.
Whole-house surge protectors, on the other hand, protect your entire electrical system. They are installed at the main electrical panel and shield all connected devices from power surges. While they provide broad protection, they may not address the specific vulnerabilities of Ethernet cables. For example, they might not handle surges induced by lightning strikes near outdoor Ethernet runs.
Tip: Use Ethernet surge protectors for targeted protection and whole-house surge protectors for comprehensive coverage. Combining both can offer the best results.
Protecting your Ethernet cables doesn’t have to break the bank. Evaluating the cost-effectiveness of different solutions helps you make an informed decision.
Whole-house surge protectors, while more expensive upfront, offer long-term savings by protecting all devices in your home or office. However, they may not eliminate the need for Ethernet-specific protectors in high-risk areas. Balancing these options ensures you get the most value for your investment.
Choosing the right surge protection device for your Ethernet cables requires careful consideration. Here are some key factors to keep in mind:
1. Ensure the SPD can withstand multiple surge events without failure. High-quality devices offer better durability.
2. Avoid relying solely on built-in surge protection. Integrated solutions may not provide adequate defense against severe surges.
3. Invest in high-quality SPDs to prevent equipment degradation and reduce service costs over time.
Note: Protecting your Ethernet cables with the right surge protection device ensures uninterrupted service, maintains data integrity, and minimizes costly repairs.
By considering these factors, you can select a solution that meets your needs and safeguards your network effectively.
Surge protection plays a vital role in shielding your connected devices from harm. Voltage spikes, often caused by lightning or power fluctuations, can overwhelm your devices, leading to permanent damage. Surge protectors act as a barrier, diverting excess voltage away from your electronics. This ensures that only a safe level of electricity reaches your devices, keeping them secure.
Additionally, surge protection devices often use components like varistors to safeguard sensitive electronics. These components rapidly adjust their resistance in response to voltage spikes, making them an essential first line of defense. By incorporating surge protection into your setup, you can prevent costly repairs and ensure the safety of your Ethernet cables and connected devices.
Power surges can disrupt your network, causing interruptions or even complete failures. Surge protection ensures that your Ethernet cables and devices operate smoothly, even during adverse conditions. By preventing voltage spikes from reaching your equipment, surge protectors maintain a stable power supply. This stability translates to consistent network performance, which is crucial for both personal and professional use.
Uninterrupted network performance is especially important in environments where reliability is critical, such as offices or data centers. A single power surge can lead to downtime, affecting productivity and communication. Surge protection minimizes these risks, allowing your network to function without interruptions. Whether you’re streaming videos, working remotely, or managing a business, reliable network performance is essential.
Surge protection not only prevents immediate damage but also extends the lifespan of your Ethernet cables and devices. Frequent exposure to power surges can weaken your equipment over time, leading to premature failures. By shielding your network from these surges, you reduce wear and tear on your cables and devices, ensuring they last longer.
For example, industrial-grade surge protection devices are designed to protect equipment in high-risk environments. These devices significantly prolong the operational lifespan of machinery and reduce the need for replacements. Similarly, proper surge protection for Ethernet cables provides peace of mind during storms or power fluctuations. It ensures that your network remains intact, even under challenging conditions.
Investing in surge protection saves you money in the long run. Fewer equipment replacements and lower maintenance costs mean you can allocate resources to other priorities. By protecting your Ethernet cables and devices, you create a more durable and cost-effective network setup.
Surge protection for Ethernet cables depends on your environment. Outdoor setups and high-risk areas demand extra precautions. Isolation transformers reject impulses from nearby lightning strikes, but they may not handle severe surges. Proper wiring and grounding mitigate risks effectively. For comprehensive protection, consider specialized surge protectors or whole-house solutions. These strategies safeguard your network and connected devices, ensuring reliability and longevity. Evaluate your setup carefully to choose the best approach for your needs.
Surge protection shields your Ethernet cables and connected devices from voltage spikes. It prevents damage caused by lightning, power fluctuations, or electrical surges, ensuring your network remains reliable and operational.
Yes, indoor Ethernet cables can experience surges, especially during electrical storms or power grid fluctuations. While the risk is lower indoors, surge protection adds an extra layer of safety for your devices.
Shielded cables reduce electromagnetic interference and minor surges but may not handle severe voltage spikes. Combining shielded cables with surge protectors and proper grounding offers better protection for your network.
Evaluate your environment. Outdoor installations, areas prone to lightning, or locations with unstable power grids require surge protection. If your network supports critical operations, adding surge protection is a wise choice.
PoE systems include built-in surge protection but may not handle extreme surges like lightning strikes. For outdoor or high-risk setups, PoE surge protectors enhance safety and reliability.
Whole-house surge protectors provide broad protection but may not address Ethernet-specific vulnerabilities. For outdoor cables or high-risk areas, Ethernet-specific surge protectors offer targeted defense against surges.
Inspect surge protection devices at least every six months. Check for wear, damage, or reduced performance. Regular maintenance ensures your network remains protected and operational.
Tip: Choose surge protectors that meet industry standards for reliable and long-lasting performance.
