What Is a DIN Rail Automatic Transfer Switch?
A DIN rail automatic transfer switch is a self-acting power switching device that mounts on a standard DIN rail and ensures continuous power to a load by transferring it between two independent sources. It has two input terminals, one for each source, and one set of output terminals that feed the load. The unit senses the condition of both sources, prioritizes the preferred one, and changes the connection automatically when needed.
Unlike a manual changeover switch, which requires an operator to throw a handle, a DIN rail ATS makes the decision itself. It contains a control circuit that monitors voltage and frequency, compares them against configured thresholds, and operates an internal switching mechanism to connect the correct source. Because the entire unit is rail-mounted and modular, it fits directly inside the distribution board rather than requiring a separate enclosure.
What Does a DIN Rail ATS Do?
A DIN rail ATS does one job well: it keeps power flowing to a designated load by switching between two sources without waiting for a person. When the normal utility supply is healthy, the load runs from that source. If the utility fails or drifts outside acceptable voltage and frequency limits, the switch disconnects it and connects the backup source, which is usually a generator, inverter, battery-backed system, or second utility feed.
It also restores the original arrangement once normal conditions return. After the preferred source stabilizes for a programmed period, the ATS transfers the load back, returning the system to its default operating state. Some models additionally send a start signal to a generator, so the backup engine begins running before the load is reconnected. In short, the device removes the reliability risk that comes from depending on a single power feed.
How Does a DIN Rail ATS Work?
The working principle is straightforward. The control module continuously samples the voltage present on each source terminal. Under normal conditions, the preferred source is accepted and the load is connected to it. When that source falls below the low-voltage threshold or rises above the high-voltage limit for a set time, the unit recognizes a failure, opens the connection to the faulty source, and closes the connection to the healthy backup source.
The transfer takes place in a controlled sequence to avoid connecting the two sources together, which would be dangerous. An open-transition design breaks the first source before making the second, introducing a brief interruption that lasts as long as the switching mechanism takes to operate. Fast electronic models complete this in well under a second, while motorized units take longer. The switch holds the backup source until the preferred source returns and stabilizes, then reverses the process.
Why Install an ATS on a DIN Rail?
Installing an ATS on a DIN rail offers several practical advantages over floor-mounted or panel-mounted alternatives. The most obvious is space efficiency. Because the switch is modular and narrow, it occupies only a few module widths inside the board, leaving room for breakers, contactors, and surge protection in the same enclosure.
It also simplifies wiring and maintenance. Standardized rail mounting means the unit clips into place and can be removed and replaced without disturbing adjacent devices. DIN rail ATS devices are typically rated from 6 A up to around 125 A, which covers most residential and small commercial applications, and they integrate cleanly with the modular architecture of a modern distribution board.
Can a DIN Rail ATS Be Installed in a Distribution Board?
Yes. A DIN rail ATS is designed specifically for installation inside a distribution board. Because it uses the same rail profile and module width as standard circuit breakers, it slots into the board just like any other modular device. Whether the board is a home consumer unit or a small commercial panel, a DIN rail ATS can be added where the load must be switched automatically between two feeds.
The key requirement is that the board must have a standard 35 mm DIN rail and enough module width for the device, along with adequate clearance for the heavier cable terminations that an ATS carries. When these conditions are met, installation is straightforward and the switch behaves as an integral part of the distribution system rather than a separate add-on.
What Is a 35 mm DIN Rail?
A 35 mm DIN rail is the standardized metal mounting rail used across low-voltage electrical equipment. It has a distinctive shape with a top hat profile, rolled from steel and typically 35 millimeters wide, that accepts the spring clips on the back of modular devices such as circuit breakers, contactors, meters, and transfer switches. The rail provides both mechanical support and a stable grounding reference point.
Because the rail profile is governed by an international standard, any compliant device from any manufacturer clips onto any compliant rail. This interchangeability is what makes modular distribution boards flexible. An engineer can arrange and rearrange devices on the rail without custom drilling or fabrication, and a DIN rail ATS exploits exactly this modularity.

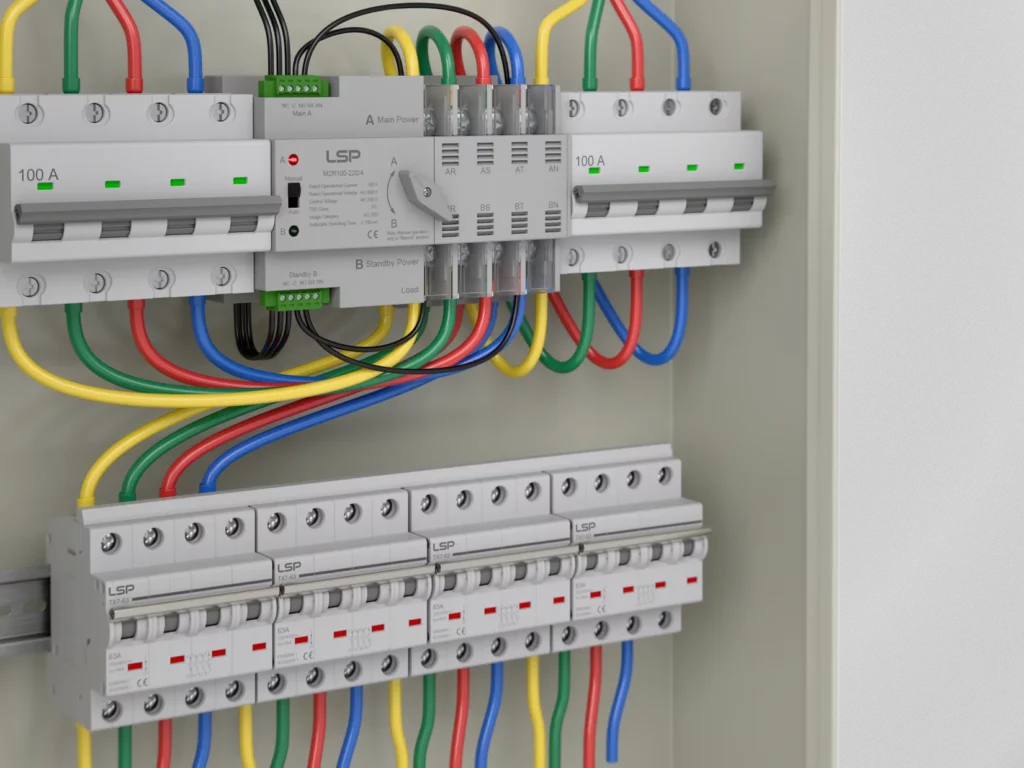

How Does a DIN Rail ATS Mount Inside a Distribution Board?
A DIN rail ATS mounts by aligning the recessed clip on its rear housing with the upper lip of the rail, applying slight pressure, and pushing it down until the lower spring clip locks securely into place. The front of the device presents the terminals, the status indicators, and any control setting dials, so all connections are made from the front after the unit is seated.
Electrical connection follows the same discipline as any rail-mounted device. The preferred source is connected to the source A terminals, the backup source to the source B terminals, and the outgoing circuit to the load terminals. Screws are torqued to the value stated on the product label, and the neutral and earth connections are made according to the system design and local code.
How Much Space Does a DIN Rail ATS Require?
The space a DIN rail ATS requires is modest. Most units occupy between two and four module widths, where one module is a standard 18 mm on the rail. A compact 2-pole single-phase unit typically takes two modules, while a 4-pole three-phase unit takes four modules. The height of the device is standard rail-mounting height, so it does not protrude beyond adjacent equipment.
The board must also accommodate the cable entry. Because an ATS carries both sources and the load, it can involve up to eight or more connected conductors, so sufficient space inside the enclosure for cable routing and termination is necessary. In practice, a dedicated rail section or a slightly larger enclosure is often chosen to keep wiring neat and maintain adequate separation between source circuits.
DIN Rail ATS vs Panel-Mounted ATS
Comparison Point | DIN Rail ATS | Panel-Mounted ATS |
|---|---|---|
Mounting | Clips onto standard 35 mm rail | Bolted to enclosure backplate or frame |
Footprint | Compact, a few module widths | Larger, dedicated panel space |
Typical current range | 6 A to around 125 A | Often 40 A up to hundreds of amps |
Installation | Modular, front-terminated, quick | Requires wiring to a chassis unit |
Best fit | Residential and small commercial boards | Larger commercial and industrial systems |
Serviceability | Replaceable as a single modular unit | Often serviced in place |
Where Are DIN Rail ATSs Used?
DIN rail ATS devices appear wherever a compact, automatic changeover between two feeds is required inside a distribution board. Their size and rating make them ideal for loads up to around 125 A, which covers most small buildings, backup systems, and sub-panels. The applications below are the most common, and each places slightly different demands on the switch.
Residential Distribution Boards
In a home, a DIN rail ATS protects essential circuits such as lighting, refrigeration, heating, and internet equipment when the grid fails. Installed in the main consumer unit, it switches those circuits to a backup generator or battery inverter automatically. Homeowners get seamless backup without needing to reset breakers or manage a manual changeover at night.
Commercial Distribution Boards
Small retail, office, and hospitality premises use a DIN rail ATS to keep lighting, security, and point-of-sale systems running during an outage. The compact unit fits into an existing commercial consumer unit, letting a facility manager add a second feed, such as a small generator, without redesigning the panel.
Generator Backup Systems
A DIN rail ATS pairs naturally with a backup generator. The switch monitors the utility, signals the generator to start when power is lost, and transfers the load once the generator output is stable. When the utility returns and settles, the unit transfers back and shuts the generator down. This is one of the most common applications for the device.
Solar and PV Inverter Systems
Off-grid and hybrid solar installations use a DIN rail ATS to choose between the inverter output and the grid. During the day, the load runs from solar; when generation is unavailable, the switch moves the load to the backup source. Some models also manage the transition between inverter and utility automatically, improving energy use and reliability.
UPS and Backup Power Systems
For smaller uninterruptible power supplies serving IT racks, telecom equipment, or point-of-sale terminals, a DIN rail ATS can feed the load from either the mains or the UPS output. If one path fails, the load transfers to the other. This adds redundancy without the space and cost of a large transfer switch.
Critical Load Sub-Distribution Boards
Sub-distribution boards feeding life-safety, security, or process-critical loads benefit from a DIN rail ATS that guarantees power continuity. Elevator controls, communications, emergency lighting, and industrial instrumentation are typical loads. Keeping the transfer switch local to the sub-panel preserves the rated protection level close to the equipment.
Small Industrial Control Panels
Machine builders install DIN rail ATS devices inside control panels to choose between a main supply and a backup feed for controls and instrumentation. The compact rail mount keeps the panel tidy, and the automatic changeover prevents costly machine stoppages when the primary feed drops. This supports the exact reliability goals of engineers who build equipment into OEM panels.
How to Choose a DIN Rail ATS for a Distribution Board
Choosing the right DIN rail ATS means matching the device to the supply, the load, and the application. The selection is driven by a small set of specifications: rated current, rated voltage, number of poles, transfer time, and frequency. Working through these in order produces a correct, safe choice without over-specifying or under-specifying the switch.
How to Choose the Rated Current
Rated current is the continuous current the ATS can carry, and it must match or exceed the load it feeds. The practical rule is to size the switch to the maximum expected load current plus a margin, typically around 20 percent, so the contacts never run at their limit. For a distribution board, add up the connected load currents on the protected circuits and choose the next standard rating above that value.
It matters to consider the full connected load rather than only the average. Motor starts, heater inrush, and simultaneous operation of several appliances can draw more than the steady-state value. Selecting an ATS rated for that peak, with headroom, prevents overheating contacts and nuisance trips during the moments when load is highest.
How to Choose the Rated Voltage
Rated voltage must match the nominal voltage of the distribution system. A single-phase home supply in North America or parts of Asia is typically 120/240 V, while a single-phase European or Australian supply is around 230 V. Three-phase commercial and industrial supplies operate at 208, 380, or 400 V to 415 V depending on the region.
Selecting an ATS with the wrong voltage rating is unsafe and can lead to arcing or insulation failure. The device label states its rated operational voltage, and the chosen unit should meet or exceed the system voltage. Confirming the supply type and voltage before purchasing avoids the most common selection error in this category.
Single-Phase vs Three-Phase DIN Rail ATS
The choice between single-phase and three-phase depends on the supply and the load. A single-phase DIN rail ATS is used on 120 V or 230 V systems with one live conductor and one neutral, which is standard in homes and small premises. A three-phase unit is used on 380 V to 415 V systems with three live conductors, typical of larger commercial and industrial boards.
Three-phase switching also matters when a machine or a balanced three-phase load must not lose one phase while keeping others. Transferring all three live conductors together preserves phase rotation and prevents the equipment damage that comes from single-phasing. For this reason, a three-phase board almost always uses a three-phase or four-pole DIN rail ATS rather than three single-phase units.
2-Pole vs 4-Pole DIN Rail ATS
Selection Question | 2-Pole ATS | 4-Pole ATS |
|---|---|---|
System type | Single-phase | Three-phase |
Conductors switched | Live + neutral | Three lives + neutral |
Neutral handling | Neutral switched with live | Neutral switched independently |
Typical use | 120 V / 230 V home or small circuit | 380 V to 415 V commercial or industrial |
Separately derived source | Suitable when neutral isolation needed | Preferred for generator or inverter isolation |
A 2-pole ATS switches one live conductor and the neutral and is the standard choice for a single-phase circuit. A 4-pole ATS switches three lives and the neutral and is used on three-phase systems, especially where the neutral must also be disconnected. For most single-phase home applications, the 2-pole unit is the correct and economical choice.
When Should Neutral Be Switched?
The neutral should be switched when the backup source is separately derived, such as a generator or inverter with its own neutral-to-earth bond. In that case, leaving the neutral connected can create parallel current paths, ground loops, or unsafe voltages between the two systems. Switching the neutral separates them cleanly and prevents circulating currents.
In a solidly earthed system where both sources share the same neutral reference and no separate bond exists, a 3-pole arrangement with an unswitched neutral is often acceptable. The decision is a coordination question, not a preference. Where the source is a standalone generator feeding a separately bonded distribution, a 4-pole unit with switched neutral is the safer, code-compliant choice.
How to Choose the Transfer Time
Transfer time is the duration the load is disconnected during a changeover, and it must suit the sensitivity of the connected equipment. Fast electronic DIN rail ATS units transfer in less than 50 ms, some approaching a few milliseconds, which keeps brief interruptions acceptable for most electronics and controls. Motorized or power-driven units may take from a few tenths of a second up to a couple of seconds.
Pumps, heaters, and lighting tolerate longer interruptions, while computers, variable-frequency drives, and process controls need the fastest available changeover to avoid resetting or dropping out. Matching the transfer time to the most sensitive load on the circuit prevents nuisance restarts and protects equipment that cannot ride out even a brief power gap.
How to Check Frequency Requirements
Frequency must match the supply, which is standardized at 50 Hz or 60 Hz depending on the region. A DIN rail ATS designed for 50/60 Hz operation covers both, and this dual rating is common in modern units. Before buying, confirm the unit handles the exact frequency of the local grid or the backup source.
The control circuit samples voltage and frequency to decide when a source is acceptable. If the device is set for the wrong frequency, it may misinterpret the waveform and transfer unnecessarily, or fail to detect a genuine fault. Verifying that the ATS is rated for the system frequency avoids these reliability problems from the start.
How to Match the ATS to the Load
Matching the ATS to the load means considering not only current but also the nature of the load and the failure behavior it tolerates. A load made up of motors or transformers draws inrush current on transfer that the switch must carry. A load of sensitive electronics needs a fast, clean changeover, while a resistive load like a heater is more forgiving.
The overall decision is a balance: the current rating protects the contacts, the voltage rating matches the system, the pole count handles the neutral, and the transfer time matches the load sensitivity. Selecting each dimension against the actual circuit turns a generic device choice into a correct, coordinated design.
Conclusion
A DIN Rail Automatic Transfer Switch (ATS) for Distribution Boards provides a compact and practical way to automatically transfer electrical loads between a primary power source and a backup source.
By combining standard DIN rail mounting with automatic source switching, it is well suited for residential, commercial, generator backup, solar and inverter systems, UPS applications, and other distribution boards where space, reliable power transfer, and easy installation are important.
As a professional manufacturer of Autotmatic Transfer Switch (ATS) and electrical protection products, LSP provides reliable power protection solutions for distribution and backup power systems.
Looking for a reliable DIN Rail ATS and professional SPD solutions for your distribution board? Contact LSP today for product specifications, technical support, OEM/ODM services, and a customized power protection solution for your project.
Frequently Asked Questions About DIN Rail Automatic Transfer Switch ATS for Distribution Boards
When should I choose a DIN rail ATS instead of a conventional panel-mounted ATS?
Choose a DIN rail ATS when you need a compact, space-saving solution that can be easily installed inside a standard distribution board, especially for residential, commercial, and small backup power systems. Choose a panel-mounted ATS for higher-current applications, larger electrical systems, or projects requiring advanced control, monitoring, and customization.
Can a DIN rail ATS be installed in a standard distribution board?
Yes, a DIN rail ATS can be installed in a standard distribution board when the board provides a compatible 35 mm DIN rail and sufficient installation space. Before installation, verify the ATS dimensions, rated current, voltage, number of poles, wiring requirements, and applicable standards. Always follow the manufacturer’s installation instructions and local electrical codes.
How do I choose the right rated current for a DIN rail ATS?
Choose the rated current of a DIN rail ATS based on the maximum continuous load current of the circuit, with sufficient margin for expected load growth and inrush current. The ATS rated current should not be lower than the required load current. Also verify voltage, load type, overcurrent protection, and manufacturer specifications to ensure proper coordination and safe operation.
Should I choose a 2-pole, 3-pole, or 4-pole DIN rail ATS?
Choose the pole configuration based on the power system and whether the neutral needs to be switched. A 2-pole ATS is typically used for single-phase systems with line and neutral switching, while a 3-pole ATS is commonly used for three-phase systems. A 4-pole ATS is used for three-phase systems when neutral switching is required.
How long does a DIN rail ATS take to transfer power from the main source to the backup source?
The transfer time of a DIN rail ATS depends on the product design, control settings, and power-source conditions. Many ATS products provide transfer times ranging from several milliseconds to several seconds. For critical applications, always check the manufacturer’s specified transfer time, detection delay, and return delay to ensure the ATS meets the requirements of the connected load.
Does a DIN rail ATS require a separate circuit breaker or overcurrent protection?
Yes, a DIN rail ATS generally requires appropriate upstream overcurrent protection, such as a circuit breaker or fuse, unless the manufacturer specifies an integrated protection arrangement. The protection device should be properly coordinated with the ATS rated current, short-circuit rating, and connected load. Always follow the manufacturer’s wiring instructions and applicable electrical codes.
