You can tell NO and NC contacts apart by their normal state when there is no power. NO contacts stay open until you turn on the coil. NC contacts stay closed and only open when the coil gets power. Knowing about NO and NC helps you make safer electrical systems. For example:
NC contacts help with emergency stops and safety relays. They shut down systems fast if something goes wrong.
Safety circuits use NC contacts for a fail-safe. They stop machines if there is a problem.
NC micro switches watch and protect conditions. They break circuits right away if something outside changes.
Picking the right contact type keeps your equipment safe and working.
NO and NC Contact Basics

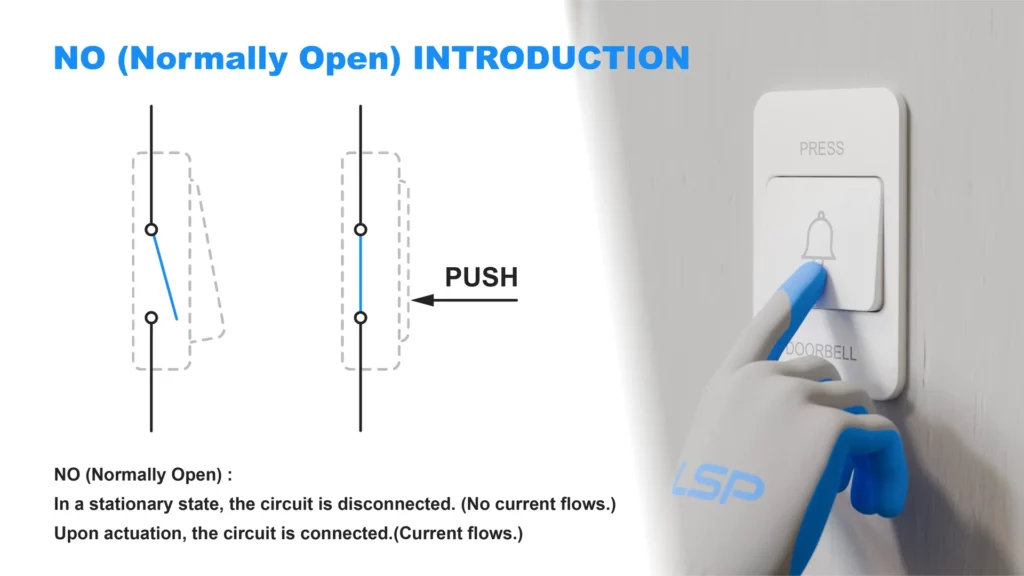

What Is NO (Normally Open)
You will see the term no nc contactor in electrical systems. The no contactor means normally open. This contact stays open when the no nc contactor has no power. When it is open, electricity cannot pass through. You use a no contactor if you want a circuit to stay off until you turn it on. For example, a doorbell uses a normally open contact. The bell only rings when you press the button and close the circuit.
Tip: The no contactor works best for start jobs. You can use it to turn on lights, motors, or alarms only when you need them.
Here is a table that explains what normally open and normally closed contacts mean:
Contact Type | Default State Description | Example Device |
|---|---|---|
Normally Open (NO) | The circuit is open (not complete) when at rest; current flows only when actuated. | Doorbell |
Normally Closed (NC) | The circuit is closed (complete) when at rest; current flows until actuated. | Emergency stop button |

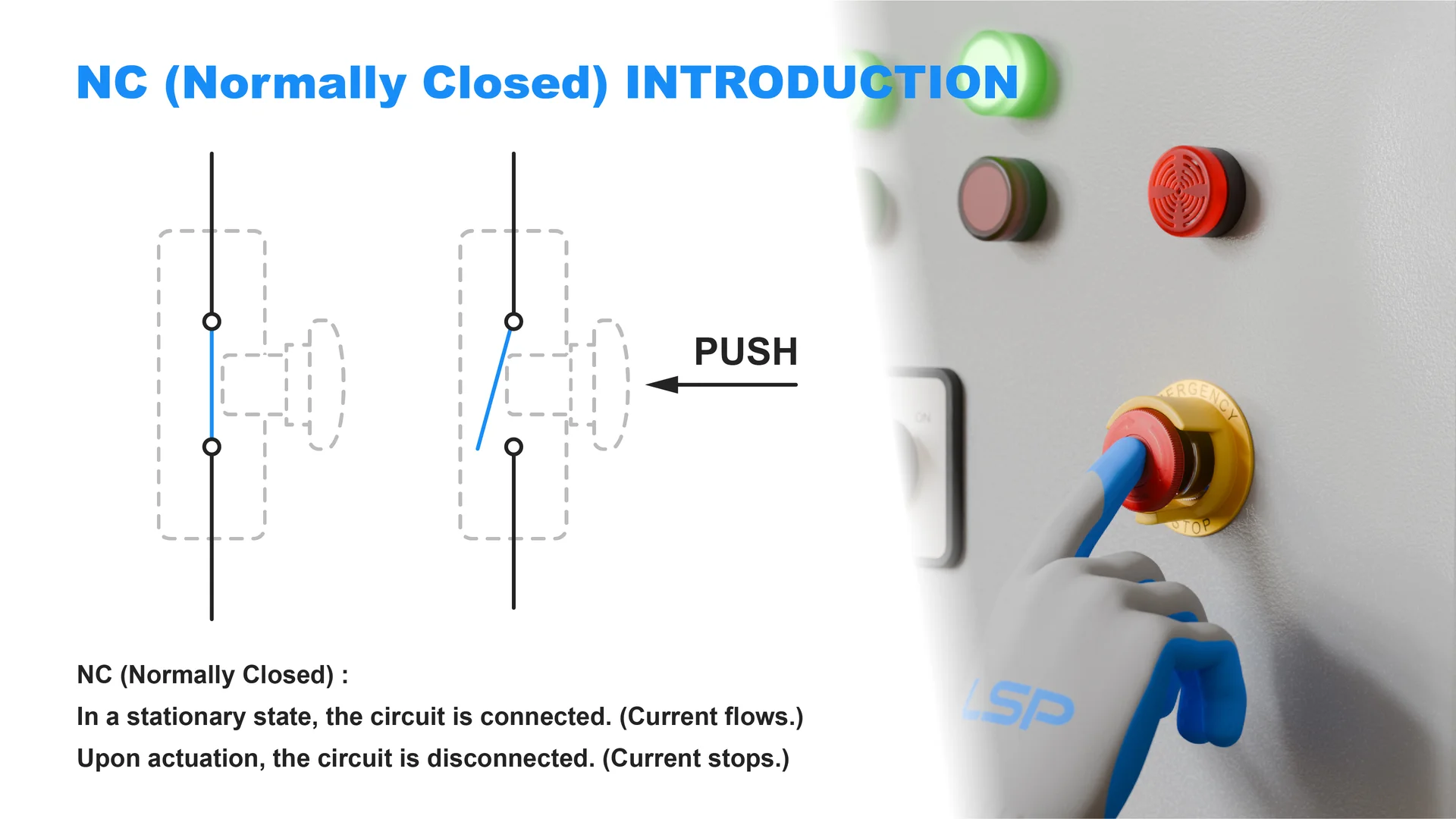

What Is NC (Normally Closed)
The nc contactor means normally closed. This contact stays closed when the no nc contactor has no power. When it is closed, electricity can flow through. You use an nc contactor if you want a circuit to stay on until you turn it off. Emergency stop buttons use a normally closed contact. When you press the button, the nc contactor opens and stops the machine right away.
The nc contactor is important for safety. It makes sure machines stop if something goes wrong.
You see nc contactor a lot in safety circuits and interlocks.
Groups like IEC and NEMA say you should use nc contactor for stop jobs and safety interlocks. If a wire breaks, the circuit opens and the machine stops. This keeps people safe.
NO and NC in De-energized and Energized States
You need to know how no and nc contactor work in different states. The state of the no nc contactor changes when you add power to the coil. Here is a table that shows what happens:
State | Normally Open (NO) | Normally Closed (NC) |
|---|---|---|
De-energized | Open (no current) | Closed (current flows) |
Energized | Closed (current flows) | Open (no current) |
When the no nc contactor is de-energized, the no contactor stays open and the nc contactor stays closed. When you give power to the coil, the no contactor closes and lets current flow. At the same time, the nc contactor opens and stops the current.
You can find these contacts in many devices. The no nc contactor symbols in electrical diagrams help you find them. Here is a simple table of the most common symbols:
Symbol | Description |
|---|---|
NO | Normally Open |
NC | Normally Closed |
The no nc contactor can last for years in homes. In factories, the contacts may last 1 to 3 years because they are used a lot. Humidity and temperature can change how well the no nc contactor works. High humidity can change the resistance and make the contacts fail sooner.
You should always pick the right no nc contactor for your job. The right contact keeps your system safe and working well. The no and nc contactor types help you control machines, lights, and alarms the way you want.
NO NC Contactor Operation
How NO and NC Work in Circuits
You find NO and NC contacts in most control circuits. These contacts help control if electricity moves or stops. In a normal circuit, a NO contact stays open when the coil has no power. This means the circuit is off and nothing works. When you turn on the coil, the NO contact closes. Now, the circuit is on and electricity flows. You use NO contacts to turn things on after you send a signal.
An NC contact works the other way. When the coil is off, the NC contact stays closed. The circuit is on and electricity moves. If you turn on the coil, the NC contact opens. This stops the circuit and no electricity flows. You use NC contacts to keep things on until you turn them off or for safety.
Note: In control circuits, NO contacts help start machines or lights. NC contacts help stop machines or keep them safe.
Here is a table that shows how NO and NC contacts act in a control circuit:
Contact Type | Default State (De-energized) | State When Energized |
|---|---|---|
Normally Open (NO) | Circuit is broken (off) | Circuit completes (on) |
Normally Closed (NC) | Circuit is complete (on) | Circuit breaks (off) |

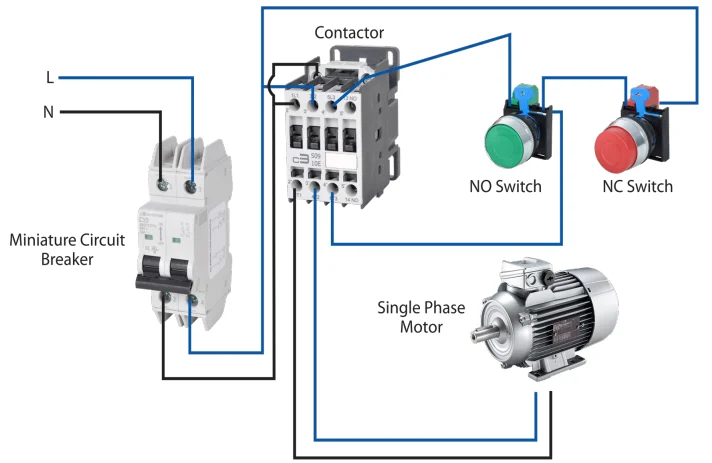

You use these contacts in many ways. For example, a NO contact can start a motor when you press a button. An NC contact can stop the motor if you press an emergency stop button. Picking the right contact helps your system work the way you want.
NO vs NC: Key Differences
It is important to know the main differences between NO and NC contacts. This helps you make safe and strong control circuits. The table below shows the key features:
Feature | NO Contact (Normally Open) | NC Contact (Normally Closed) |
|---|---|---|
Default State | Open (circuit is OFF) | Closed (circuit is ON) |
Current Flow at Rest | No current flows | Current flows |
Operation When Energized | Closes the circuit, allowing current | Opens the circuit, stopping current |
Common Applications | Start circuits, alarms, indicator lights | Emergency stop buttons, safety interlocks |
The big difference between NO and NC contacts changes how your system works. NO contacts turn things on only when you send a signal. Sometimes, this can make things slower. NC contacts are made for safety. If power goes out, NC contacts close and stop machines. This makes your system safer and more reliable.
You use NO contacts when you want to start something, like a motor or alarm. You use NC contacts when you want to stop something or keep it safe, like in emergency stop buttons.
NC contacts break circuits during problems. This stops equipment fast and keeps people safe.
NO contacts finish circuits when you need to start something.
Using both NO and NC contacts in your contactor can make your system safer and work better.
In control circuits, you pick NO or NC contacts based on what you need. For example, you use NO contacts for valve checks, alarm switches, and watching equipment. These contacts show when something is working or when you need an alarm. You use NC contacts for high process worries, like stopping a machine if a tank gets too full.
Tip: Always check what your control circuit needs before you pick a contactor. The right choice keeps your system safe and working as planned.
You see NO and NC contacts in many control circuits. In PLC ladder logic, NO contacts show normal work, while NC contacts help with safety and stopping machines. Using both NO and NC contacts gives you better control and safety in your electrical systems.
Identify NO and NC Contacts
Labeling and Markings
You can find out what kind of contact is on a contactor by checking its labels and markings. Makers use easy codes so you can spot normally open contacts and normally closed contacts. Most contactors use rules like IEC 60947-5-1. This rule helps you avoid mistakes that could make machines start by accident or not stop in an emergency.
NO means normally open. You often see “13-14” on the contactor for this.
NC means normally closed. You usually see “21-22” on the device for this.
Some contactors use colors or symbols to show the contact type.
Picking the right contact block is important for keeping machines safe and working. If you pick the wrong contact, machines might start when you do not want or not stop in an emergency.
Schematic Symbols for NO and NC
You will see different symbols for each contact type in electrical diagrams. These symbols help you know how the contactor works in a circuit.
Symbol | Contact Type | Description |
|---|---|---|
━┄━ | Normally Open (NO) | Circuit closes when actuated |
━━●━━ | Normally Closed (NC) | Circuit opens when actuated |
Normally open contacts have a gap in the symbol. Normally closed contacts have a line with a dot or bridge. These symbols help you check the contact type quickly.
Testing NO and NC Contacts
You can test a contactor to see if it has normally open or normally closed contacts. Use a multimeter to check each contact when the coil is off and on.
Look for loose wires or shaking. These can make normally closed contacts open by mistake.
Make sure the voltage and current ratings are right for your normally open contacts.
Use boxes that keep out dust or water to protect the contact surfaces.
Tip: Test your contactor often to find problems early and keep it working safely.
If you follow these steps, you can find and test each contact type. This helps you keep your electrical systems safe and working well.

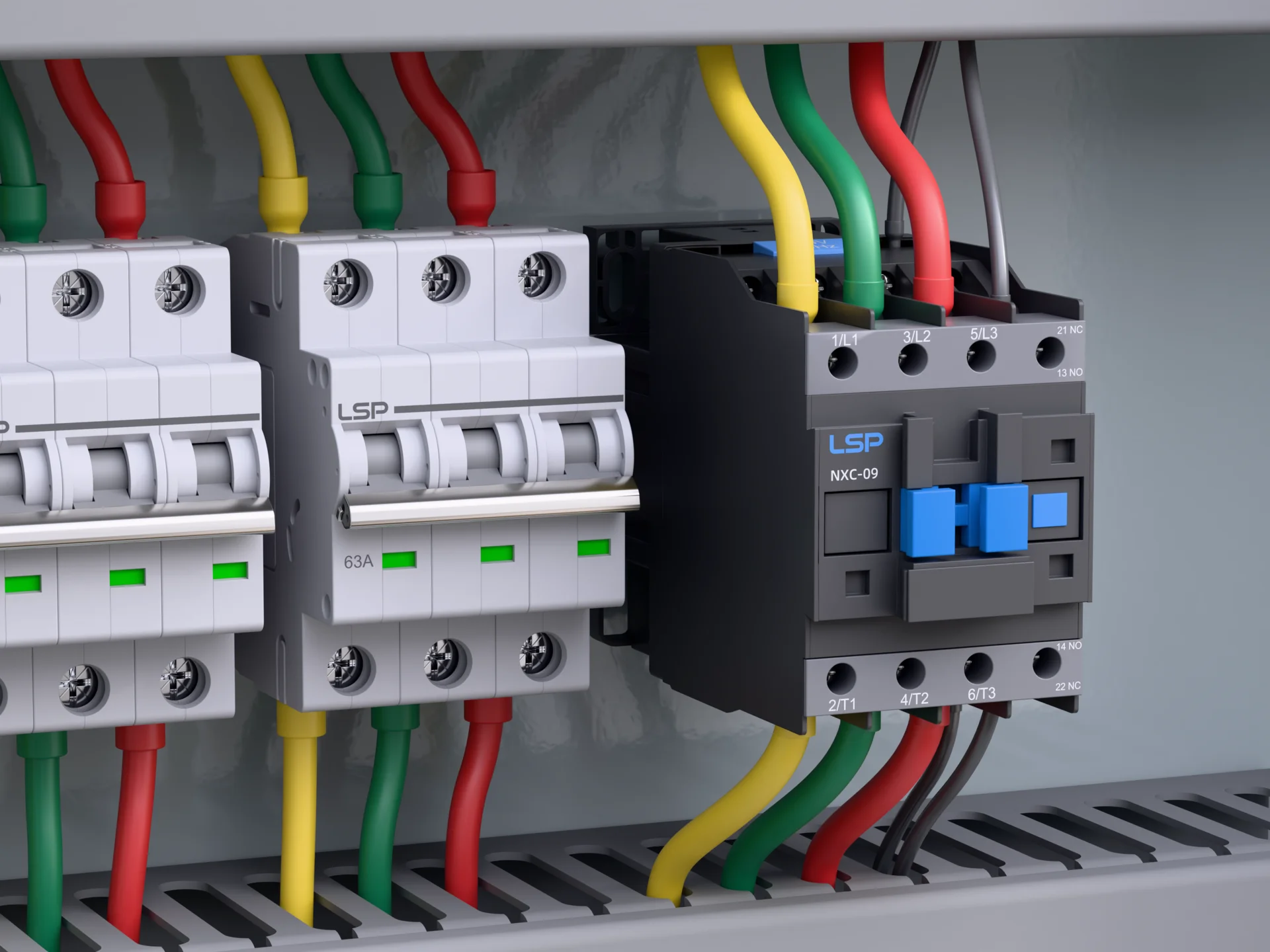

NO and NC Applications
Control Logic Uses
You find no and nc contacts in many control jobs. These contacts help you run machines, lights, and alarms. In automation, both types work together often. For example, a limit switch can use a no contact to turn on a light. An nc contact can turn off the light when the switch closes. This setup lets you control things with easy actions.
A limit switch uses no and nc contacts to control a pilot light.
Pressing a start button closes the no contact. This turns on the output coil.
When the limit switch closes, the nc contact opens. This turns off the pilot light.
You use these relay setups in factories and buildings. The no nc relay helps you make smart control systems. You can design circuits to start motors, open doors, or set off alarms. These uses make your work safer and easier.
Safety and Signal Transmission
Safety is a big reason to use nc contacts in emergency stop circuits. You want machines to stop quickly if something goes wrong. Nc contacts break the circuit and stop the machine when you press the emergency stop button. You also use nc contacts in safety interlocks. These contacts keep doors locked or make sure machines do not run if a guard is open.
Here is a table that shows how nc contacts work in different emergency stop interlock jobs:
Type of Interlock Switch | Description of NC Contact Functionality |
|---|---|
Non-locking Interlock | A bouncing door opens one nc contact. This stops the machine. |
Locking Interlock | A bouncing door pushes the lock. This keeps the door closed. |
Lock Monitoring NC | Only works when the door is closed and locked. This makes the switch smaller and cheaper. |
Signal transmission needs the right contactor. No contacts let current flow only when powered. Nc contacts let current flow in the normal state and stop it when powered. Nc contacts are fail-safe. They stop machines if a wire breaks or a contact fails. No contacts do not protect against failure.
NO Contact | NC Contact |
|---|---|
No contact is open (no current flow) when not powered. | Nc contact is closed (current flows) when not powered. |
No contact closes the circuit and lets current flow when powered. | Nc contact opens the circuit and stops current flow when powered. |
No contact is not fail-safe and does not protect on failure. | Nc contact is fail-safe and stops the machine if something fails. |
If you wire contacts wrong in emergency stop circuits, you can damage equipment. You might get electrical shocks or have dangerous problems. You must pick the right contactor for each job. Standard no and nc contacts do not cost much. Custom combos and sealed units cost more but give extra features.
Type of Switch | Cost Implications |
|---|---|
Standard NO/NC | Cheap |
Custom NO/NC Combo | Costs more because it is flexible |
Sealed Units | Most expensive because of extra features |
You use no nc contactors in many control and safety jobs. You must know what each contact type does. This helps you build safe relay and emergency stop circuits. You keep people safe and machines working.
You have learned how no and nc contacts are not the same in a contactor.
NO contacts are open until you turn on the coil.
NC contacts are closed until you give power to the coil.
Knowing which contact is which helps keep systems safe and working well.
You can use letter labels, numbers, or tests to tell them apart.
Use what you know to make your electrical work safer and easier.
FAQ
What does NO mean on a contactor?
NO stands for “Normally Open.” You see this on a contactor when the contact stays open with no power. The circuit closes and lets current flow only when you energize the coil.
What does NC mean on a contactor?
NC means “Normally Closed.” This contact stays closed when the coil has no power. The circuit opens and stops current flow when you energize the coil.
What is the main difference between NO and NC contacts?
You find the main difference in their default states. NO contacts stay open until powered. NC contacts stay closed until powered. This changes how each controls your circuit.
What applications use NO and NC contacts?
You use NO contacts for starting machines, alarms, or lights. You use NC contacts for emergency stops, safety interlocks, and fail-safe circuits. Each type fits a different control need.
What is the symbol for NO and NC in diagrams?
You see a gap for NO ( ━┄━ ) and a line with a bridge or dot for NC ( ━━●━━ ) in electrical diagrams. These symbols help you identify each contact quickly.
