Selecting the correct DC Circuit Breaker for solar panels protects your system from overloads and electrical faults. Always choose a breaker rated specifically for DC applications. Check the system’s voltage and current before making a selection. The breaker must match these ratings to ensure safe operation. Safety standards guide the right choice and help prevent equipment damage or fire. Reliable protection starts with the right breaker.
Choosing the Right DC Circuit Breaker for Solar Panels
Key Selection Factors
Selecting the right dc circuit breaker for solar panels is essential for safety and performance. The breaker must be designed for dc applications. It must handle the specific voltage and current of the solar panel system. The number of poles is another important factor. Most solar panel systems use single or double pole breakers, depending on the wiring configuration. The breaker must fit the panel’s layout and mounting requirements.
Tip: Always check the manufacturer’s datasheet for compatibility with your solar panel system.
Here are the main factors to consider:
DC rating: The breaker must be rated for dc use. AC breakers are not suitable for solar panel systems.
Voltage rating: The breaker must match or exceed the maximum voltage of the panel array.
Current rating: The breaker must handle the expected current from the solar panel system.
Pole count: Choose the correct number of poles for your panel wiring.
Mounting type: Make sure the breaker fits the panel’s enclosure and mounting rail.
Voltage and Current Ratings
Voltage and current ratings are critical when choosing a dc circuit breaker for solar panels. The breaker must match the panel’s maximum voltage and the highest current expected in the solar panel system. If the breaker is undersized, it may trip too often or fail to protect the panel. If oversized, it may not trip when needed.
The following table shows typical voltage and current ratings for solar panel systems:
Panel Array Voltage | Typical Current | Breaker Voltage Rating | Breaker Current Rating |
|---|---|---|---|
12V | 10A-20A | 24V DC | 20A |
24V | 15A-30A | 48V DC | 30A |
48V | 20A-40A | 60V DC | 40A |
600V | 10A-63A | 600V DC | 63A |
1000V | 10A-63A | 1000V DC | 63A |
Note: Always select a breaker with a voltage rating equal to or greater than the panel array voltage.
DC MCB Features
DC miniature circuit breakers (DC MCBs) offer features that make them ideal for solar panel systems. They provide fast fault isolation and protect the panel from overloads and short circuits. DC MCBs are designed to handle the unique arc characteristics of dc power. They use advanced arc extinguishing chambers to ensure safe operation.
Key features of DC MCBs for solar panel systems include:
High breaking capacity: DC MCBs can interrupt large fault currents quickly.
Compact design: They fit easily into panel enclosures.
DIN rail mounting: Most DC MCBs mount on standard rails for easy installation.
Clear labeling: Ratings and polarity are marked for safe wiring.
Reliable performance: DC MCBs are tested for harsh conditions common in solar panel systems.
Solar breaker selection is crucial for protecting the panel and maintaining system reliability.
A suitable circuit breaker ensures the solar panel system operates safely and efficiently. Circuit breakers designed for dc use provide the best protection for your panel array.
Why Breaker Sizing Matters in Solar PV Systems
Safety and Protection
Breaker sizing plays a crucial role in maintaining safety within a solar pv system. The correct size ensures overcurrent protection, which stops excessive current from damaging wires and equipment. When a circuit breaker matches the system’s requirements, it responds quickly to faults. This action prevents overheating and reduces the risk of fire. Proper sizing also protects people working with the system. If a breaker is too small, it may trip often and interrupt normal operation. If it is too large, it may not trip when needed, leaving the system exposed to dangerous conditions.
Note: Overcurrent protection is essential for preventing electrical hazards and ensuring safe operation in solar installations.
System Performance
The performance of a solar pv system depends on the right breaker size. A well-sized breaker allows the system to deliver power efficiently. It keeps the flow of electricity stable and avoids unnecessary interruptions. When circuit breakers are correctly rated, they help maintain consistent energy output. This reliability is important for both residential and commercial solar setups. Breaker sizing also affects how well the system handles changes in load or weather conditions. A mismatch can cause voltage drops or loss of power, which impacts the overall effectiveness of the solar panels.
Stable operation
Consistent energy delivery
Fewer interruptions
Risks of Incorrect Sizing
Incorrect breaker sizing creates several risks for a solar pv system. An undersized breaker may trip frequently, causing downtime and reducing productivity. It can also lead to nuisance alarms and maintenance issues. An oversized breaker fails to provide proper overcurrent protection, which increases the chance of equipment damage or electrical fires. In some cases, incorrect sizing can void warranties or violate electrical codes. These risks highlight the importance of careful selection and calculation when choosing circuit breakers for solar panels.
Risk Type | Undersized Breaker | Oversized Breaker |
|---|---|---|
System Downtime | High | Low |
Equipment Damage | Low | High |
Fire Hazard | Low | High |
Code Compliance | May fail | May fail |
Tip: Always follow manufacturer guidelines and electrical codes to ensure proper protection and reliable system performance.
How to Size a Solar Panel Circuit Breaker
Calculating System Current
Sizing a solar breaker for a solar panel system starts with calculating the system current. The current depends on the total output of the panel array. To find the correct value, use the following formula:
System Current (A) = Total Panel Power (W) ÷ System Voltage (V)
For example, if a solar panel system has a total power of 1200 watts and operates at 24 volts, the system current is:
1200W ÷ 24V = 50A
The National Electrical Code (NEC) recommends adding a safety margin for overcurrent protection. Multiply the calculated current by 1.25 to account for continuous operation:
Breaker Size (A) = System Current × 1.25
In this example:
50A × 1.25 = 62.5A
Choose a solar breaker rated at least 63A for this panel setup. Always round up to the next standard breaker size.
Tip: Check the panel datasheet for maximum current ratings. Use these values for accurate sizing.
Matching Breaker to Wire Gauge
The wire gauge must match the breaker size to ensure safe overcurrent protection. Wires that are too thin can overheat and cause hazards. Use the NEC wire gauge chart to select the correct wire for your panel system. The chart below shows common sizes:
Breaker Size (A) | Minimum Wire Gauge (AWG) | Typical Panel Voltage |
|---|---|---|
20 | 12 | 12V, 24V |
30 | 10 | 24V, 48V |
40 | 8 | 48V |
60 | 6 | 48V, 600V |
63 | 6 | 600V, 1000V |
Always use wire rated for the voltage of the panel array. The wire insulation must withstand the maximum voltage in the solar panel system.
Note: Proper wire sizing prevents overheating and ensures reliable overcurrent protection.
DC MCB Sizing Options
Solar panel systems require breakers designed for dc operation. The breaker must match the voltage and current of the panel array. Choose a solar breaker with a voltage rating equal to or greater than the panel voltage. Select a current rating based on the calculated system current and safety margin.
Common sizing options for solar panel systems include:
20A, 24V dc panel arrays
30A, 48V dc panel arrays
40A, 60V dc panel arrays
63A, 600V or 1000V dc panel arrays
Solar breakers come in single or double pole configurations. Select the pole count based on the wiring of the panel system. Always verify the breaker’s compatibility with the panel enclosure and mounting rail.
Solar breaker sizing is essential for safe operation and effective overcurrent protection in any solar pv system.
A well-sized breaker protects the panel from faults and ensures stable performance. Follow these steps to select the right breaker for your solar panel system.
Quick Reference for Solar Panel Circuit Breakers
Common System Sizes and Breaker Ratings
Solar panel systems come in different sizes. Each size requires a specific solar panel circuit breaker. The breaker rating depends on the voltage and current of the panel array. Small systems often use lower voltage and current. Large systems need breakers with higher ratings. The table below shows common panel system sizes and the recommended breaker ratings.
Panel System Voltage | Typical Panel Current | Recommended Breaker Rating |
|---|---|---|
12V | 10A-20A | 20A |
24V | 15A-30A | 30A |
48V | 20A-40A | 40A |
600V | 10A-63A | 63A |
1000V | 10A-63A | 63A |
Note: Always select a solar panel circuit breaker with a voltage rating equal to or greater than the panel array voltage.
20A vs 30A Breakers
Choosing between a 20A and a 30A solar panel circuit breaker depends on the panel system’s current. A 20A breaker suits small panel arrays. It protects the wiring and prevents overloads. A 30A breaker fits medium-sized panel systems. It handles higher current and supports more panels. The choice affects the safety and performance of the solar panel system.
20A breaker: Used for panel systems with lower current. Ideal for 12V or small 24V panel arrays.
30A breaker: Used for panel systems with moderate current. Suitable for larger 24V or 48V panel arrays.
Tip: Check the panel datasheet for maximum current. Match the breaker to the panel system’s needs.
Wire Gauge Compatibility
Wire gauge must match the solar panel circuit breaker rating. The correct wire size prevents overheating and ensures safe operation. Each panel system requires a specific wire gauge. The table below shows the minimum wire gauge for common breaker sizes.
Breaker Size | Minimum Wire Gauge (AWG) | Typical Panel Voltage |
|---|---|---|
20A | 12 | 12V, 24V |
30A | 10 | 24V, 48V |
40A | 8 | 48V |
63A | 6 | 600V, 1000V |
Always use wire rated for the panel system’s voltage. Proper wire gauge supports safe and reliable operation.
Solar panel systems rely on the right combination of breaker size and wire gauge. The panel array’s voltage and current guide the selection. A well-matched solar panel circuit breaker and wire gauge protect the panel and maintain system efficiency. Review the panel specifications and choose the correct components for your solar panel system.
Code Compliance for Solar PV System Breakers
NEC and International Standards
Code compliance is essential for every solar pv system. The National Electrical Code (NEC) sets the standard for electrical safety in the United States. NEC Article 690 covers photovoltaic systems and outlines requirements for circuit breakers. Breakers must be listed for use in dc circuits. They must have voltage and current ratings that match the system. The NEC also requires breakers to be able to interrupt fault currents safely.
International standards, such as IEC 60947-2 and IEC 60364, provide guidelines for circuit breakers in solar applications. These standards specify testing procedures, performance criteria, and marking requirements. Compliance ensures that breakers operate reliably and protect the system from electrical hazards. Many countries adopt these standards to maintain safety and consistency in electrical installations.
Note: Always check local codes and regulations before selecting a circuit breaker for a solar pv system.
DC vs AC Breaker Requirements
DC and AC circuit breakers have different requirements. DC breakers must handle continuous current flow and higher arc energy. The arc in a dc circuit is harder to extinguish than in an AC circuit. DC breakers use special arc chambers and materials to manage these conditions. AC breakers are not suitable for dc circuits because they may fail to interrupt the current safely.
Manufacturers design dc breakers with clear voltage and polarity markings. The breaker must match the voltage of the solar array and the expected current. Using the wrong type of breaker can lead to unsafe operation and may violate code requirements. Always select a breaker that is specifically rated for dc use.
Breaker Type | Suitable for DC? | Suitable for AC? | Arc Management |
|---|---|---|---|
DC Breaker | Yes | Sometimes | Enhanced |
AC Breaker | No | Yes | Standard |
Tip: Never substitute an AC breaker for a dc application in a solar pv system.
Labeling and Installation Tips
Proper labeling and installation are key to code compliance. Circuit breakers must have clear labels showing voltage, current, and polarity. Labels help installers and maintenance personnel identify the correct breaker and wiring. The NEC and IEC require labels to be durable and easy to read.
During installation, mount the breaker on a standard DIN rail or in a suitable enclosure. Follow the manufacturer’s instructions for wiring and torque settings. Ensure that all connections are secure and that the breaker is accessible for inspection and maintenance. Use wire rated for the system voltage and current. Avoid mixing AC and dc wiring in the same enclosure.
Callout: Careful installation and accurate labeling reduce the risk of errors and improve safety in solar pv systems.
A compliant installation protects equipment and people. It also ensures that the system meets legal and insurance requirements. Always document the installation and keep records for future reference.
LSP DC Circuit Breaker Solutions for Solar Panels
LSP Brand Overview
LSP is a global leader in electrical protection technology. The company began operations in 2010 and has built a strong reputation for quality and reliability. LSP specializes in surge protective devices and circuit protection solutions. Its products serve many industries, including renewable energy, industrial automation, and building systems. LSP focuses on innovation and safety. The company uses advanced testing facilities and strict quality control to ensure every product meets international standards. Over 1,200 companies in 35 countries trust LSP for their electrical safety needs.
LSP DC MCB Product Line

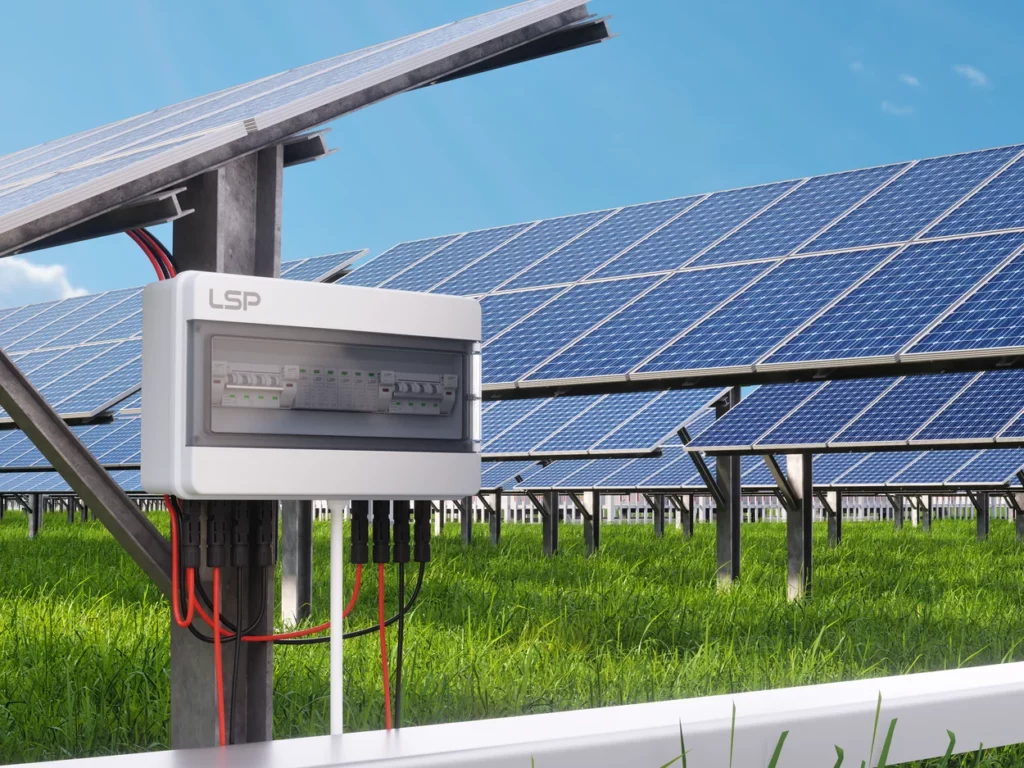

LSP offers a wide range of DC miniature circuit breakers (DC MCBs) designed for solar applications. These breakers protect solar panel systems from overloads and short circuits. The product line includes models such as LDCBH-63/4, LDCBH-63/2, LDCB-63/2, and TX7-63Z/4. Each model supports different voltage and current requirements, making them suitable for both small and large solar installations. LSP DC MCBs can handle up to 1500V DC and 63A, with a breaking capacity of 6kA. The compact design allows for easy installation in solar combiner boxes or control panels. All models feature DIN rail mounting, which simplifies setup for residential and commercial projects. Clear labeling and user-friendly guides help installers connect each panel safely and efficiently.
Advantages of Choosing LSP
LSP DC MCBs offer several advantages for solar panel systems. The breakers use advanced arc-extinguishing technology to provide fast and reliable protection. High breaking capacity ensures that even large fault currents are interrupted quickly. The durable construction withstands harsh environmental conditions often found in solar installations. LSP products comply with international standards, including IEC 60947-2, which guarantees safety and performance. Customers benefit from direct manufacturer support, competitive pricing, and flexible OEM/ODM services. LSP also provides detailed installation guides and technical support to help users set up their panel systems with confidence. Choosing LSP means investing in proven reliability and long-term safety for any solar project.
FAQ
What is a DC circuit breaker?
A DC circuit breaker is a protective device designed to interrupt current flow during overloads or short circuits in direct current systems. Unlike AC, DC lacks a natural zero-crossing point, making arcs harder to extinguish. These breakers use specialized arc chutes to quench electrical arcs safely. They are critical for protecting solar PV arrays, energy storage, and EV charging infrastructure.
What happens if I use an AC breaker in a DC solar system?
Using an AC breaker in a DC solar system is extremely dangerous. AC breakers rely on the natural zero-crossing point to extinguish arcs, which DC lacks. Without this, a DC arc can persist, leading to intense heat, melting, or fire. This failure to disconnect the circuit risks catastrophic damage to the PV system. Only specialized DC MCBs use advanced arc-quenching technology to handle high-voltage DC safely.
What size circuit breaker do I need for my solar panels?
To size a DC breaker, calculate 125% of the solar panel’s short-circuit current (Isc). For example, if Isc is 10A, a 12.5A or 15A breaker is needed to prevent nuisance tripping. Similarly, the voltage rating must exceed 125% of the open-circuit voltage (Voc) to handle peak conditions. Always ensure the breaker matches the system’s maximum voltage and current to provide reliable overcurrent protection.
What does “pole” mean in circuit breakers?
A “pole” in a circuit breaker refers to the number of separate electrical circuits or conductors the device can simultaneously control and protect. A 1-pole (1P) breaker controls one line, while a 2-pole (2P) breaker manages two. In DC solar applications, multiple poles are often connected in series to share the total voltage load, ensuring safer arc extinction and higher voltage ratings up to 1500V.
What is the difference between overload and short circuit protection?
Overload protection targets sustained current slightly above the limit, using a thermal element that trips as heat accumulates. Short circuit protection handles instantaneous, massive current spikes caused by faults, using a magnetic mechanism for immediate disconnection. Overloads are slow-acting, while short circuits require millisecond responses. Both functions are essential for safeguarding DC solar components.
What are common mistakes when installing solar circuit breakers?
Common mistakes include using AC breakers instead of DC ones, which risks fire due to poor arc quenching. Many installers also ignore polarity on polarized units, leading to device failure during a fault. Undersizing by failing to apply the 125% safety rule to current and voltage is another frequent error. Finally, loose terminal connections often cause overheating, compromising the entire PV system.
What maintenance do solar circuit breakers require?
Solar breakers require periodic maintenance to ensure safety. Regularly inspect for signs of heat, such as discoloration or melting. Tightening terminal connections is crucial; thermal cycling often loosens wires, leading to fire risks. Manually toggle the switch to verify mechanical operation. Finally, keep the unit free from dust and moisture to prevent corrosion and ensure reliable performance.
