Combiner Box vs Junction Box

Overview: Combiner Box vs. Junction Box

Combiner boxes and junction boxes are widely used in electrical systems and are commonly seen in everyday life. Whether in communication equipment systems, industrial control systems, electric vehicle systems, or the rapidly growing field of solar energy or other renewable energy systems, both combiner boxes and junction boxes play essential roles. However, their usage methods and application scenarios differ.

Understanding the functional and structural differences between these two components is essential for anyone designing, installing, or maintaining the power system. This article will guide you through their key roles, technical distinctions, use cases, and how to choose the right one for your specific application.

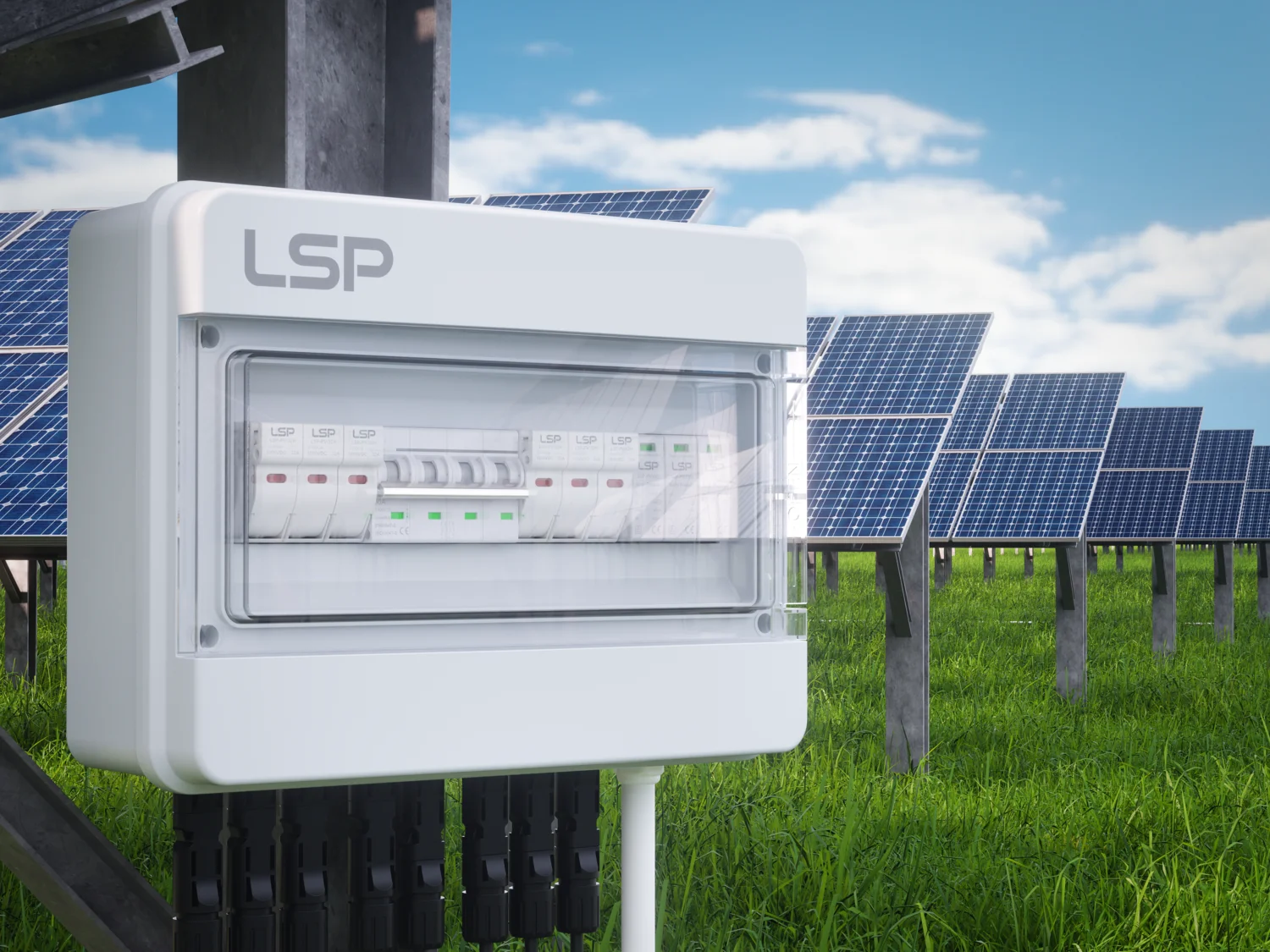

What is a Combiner Box?

A combiner Box refers to an enclosure device in an electrical system that combines multiple circuits into a few circuits. It is in addition to the integration of input lines to simplify the wiring, but also provides protection of the line, usually in the box body configuration of over-current, over-voltage, or quick-disconnect circuit function.

However, it may be called by different names in different electrical systems.

In AC/DC electrical systems (non-photovoltaic systems), it is generally referred to as a busbar box, distribution box, busbar panel, switchboard, distribution panel, or load center, among others. All of these devices have the function of convergence, which is the original mission of the combiner box.

However, it should be noted that when we use the Combiner Box to name it, it is usually used to refer to the DC input combiner box specialized in PV systems.

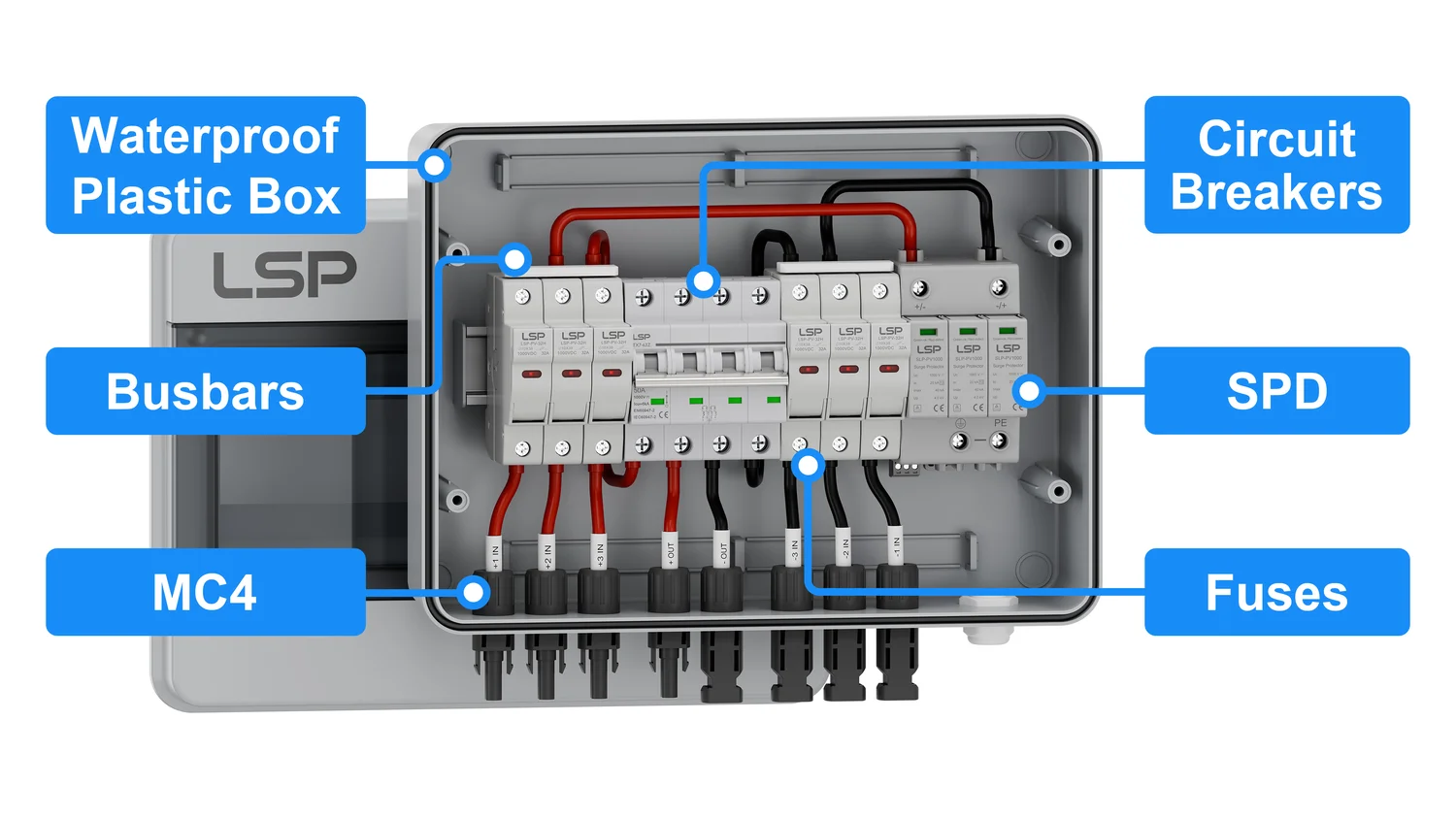

Key Components and Their Functions

A combiner box contains several important parts that keep the photovoltaic system safe and reliable.

Fuses and Breakers

You will find fuses or DC-rated circuit breakers at each input of solar power generation. These devices protect photovoltaic systems by interrupting the flow of electricity if a fault or overcurrent occurs. Fuses disconnect a faulty string, while breakers can be reset after tripping. Both options prevent damage to your wiring and equipment.

Surge Protection Device

Surge protection devices (SPDs) guard your system against voltage spikes. Lightning strikes or grid surges can cause sudden increases in voltage. The SPD redirects these surges safely to the ground, protecting the inverter and other sensitive components in photovoltaic systems.

Busbars

Busbars are thick metal strips inside the combiner box. They collect the current from each string and combine it into a single output. Busbars must handle the total current without overheating, so they are sized for safety and efficiency.

Enclosure

Weatherproof model enclosures protect internal components from dust, water, and UV. The common materials are powder-coated steel, stainless steel, and fiberglass-reinforced plastic (FRP).

Of course, a well-designed solar DC combiner box includes all the above essential components, like fuses or breakers for circuit protection, surge protection devices to handle voltage spikes, and busbars to merge multiple PV string currents. Additionally, monitoring modules, disconnect switches, and grounding infrastructure ensure long-term system safety, reliability, and compliance with IEC/NEC standards.

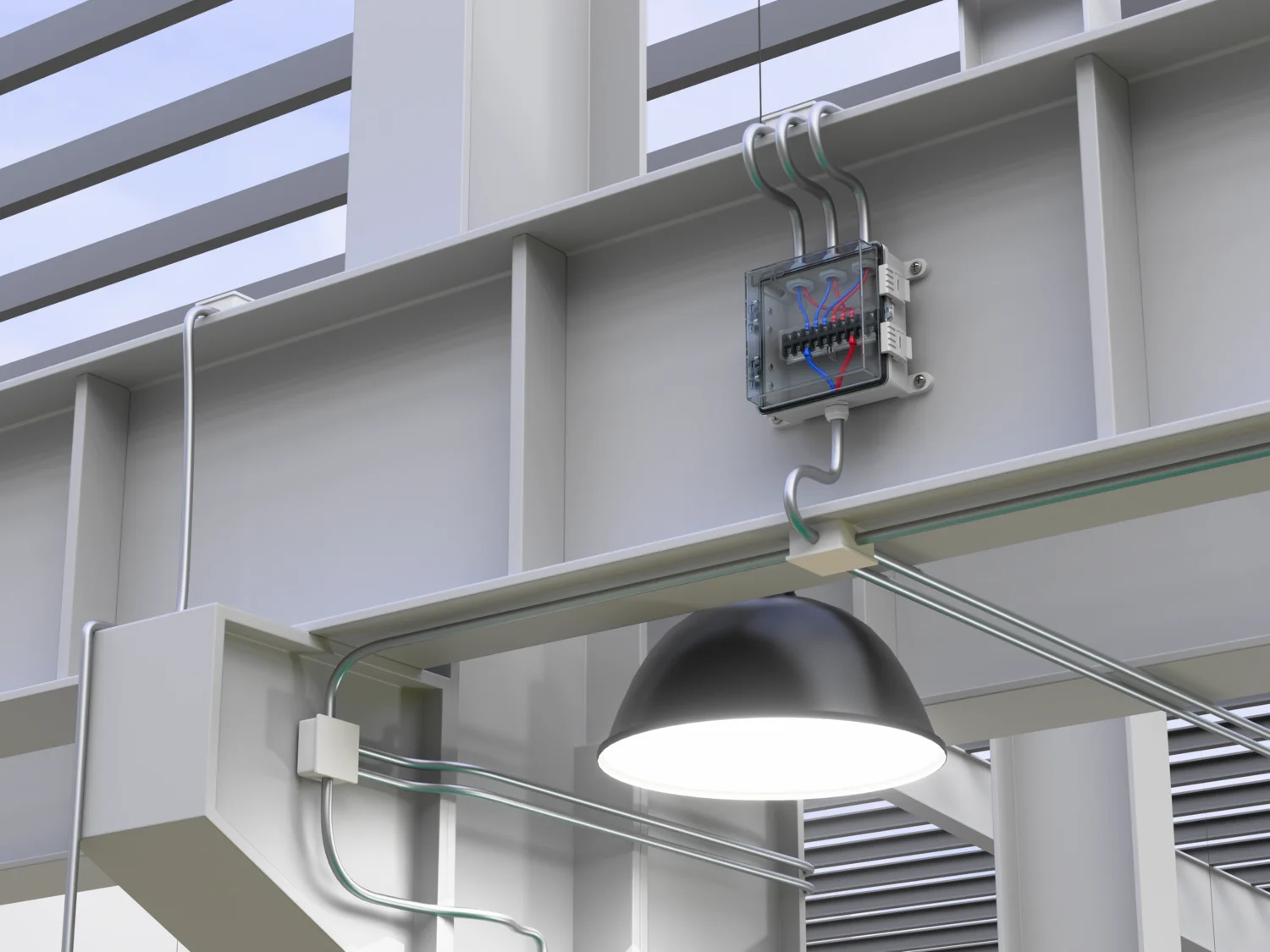

What is a Junction Box?

A Junction Box is an enclosure-type device used for the connection, protection, and distribution of electrical wiring. Its main function is to connect multiple cables neatly and safely, preventing damage to the connection points caused by dust, water vapor, and other external environments, and to ensure accessibility of the line for maintenance and expansion. It is effective in avoiding electrocution, fire, or other electrical accidents.

Let’s take a simple example, in the home wall, wires from the distribution box out may have to be divided into several ways were connected to different rooms or sockets to supply power, this time it is necessary to complete the junction box to complete the safe connection or branching, the head of the wires are enclosed in a box, to prevent the exposure.

Its most basic role is to: fix the wire, protect the connection point, and provide a maintenance and inspection interface.

Main Parts and Their Purposes

Terminal Blocks

Terminal blocks help you connect wires securely inside the junction box. They keep wires organized and make it easy to add or remove connections. You should tighten each wire into place, which reduces the risk of loose or exposed wires. Terminal blocks also help you separate different circuits, making the wiring system safer and easier to manage.

Cable Glands

Cable glands seal the points where wires enter or exit the junction box. You use them to keep out water, dust, and insects. This is important if you install the box outdoors or in damp places like bathrooms or kitchens. Cable glands also prevent wires from being pulled out or damaged by movement. By using cable glands, you protect both the wiring and the electrical connections inside the box.

Enclosure Materials

You can choose junction boxes made from metal or plastic. Metal boxes, such as those made from carbon steel or aluminum, offer strong protection against physical damage. They work well in harsh or hazardous environments, like factories or outdoor locations. Plastic boxes provide good electrical insulation and resist corrosion. Both types of boxes often include covers that snap or screw into place. Covers keep dustproofing, waterproofing, and prevent accidental contact with live wires. Many building codes require you to use covered junction boxes for safety.

Bypass Diodes

In photovoltaic (PV) systems, the junction box is mounted on the back of a solar panel and serves as the output interface for the generated DC electricity. One of its most important internal components is the bypass diode.

Solar panels consist of many solar cells connected in series. If one or more cells are shaded or damaged, the entire string’s current is reduced, and the shaded cells can become reverse-biased. This can cause them to overheat, creating a hot spot, which may permanently damage the panel. The bypass diode allows current to flow around the affected cells, prevents reverse current damage, and reduces power loss.

Note: Depending on the application—residential, industrial, or photovoltaic—junction boxes may also include additional accessories such as DIN rails, grounding terminals, or surge protection devices to enhance safety, functionality, and compliance with local codes.

Selecting a junction box suited to the specific environment and electrical requirements is vital to maintain safety, ensure system longevity, and comply with electrical codes. For example, weatherproof junction boxes are essential in outdoor renewable energy projects to protect wiring from moisture and dust. In industrial applications, boxes with robust metal enclosures are preferred to withstand mechanical impacts and harsh conditions.

How Junction Boxes and Combiner Boxes Differ in Standard Electrical Installations

From their definitions, ｗe know that the two devices have different application locations and roles in general electrical systems.

Junction Box is used in line extension applications, which can also divide a main line into two or more outputs, using terminals or screw connectors to protect the line joints. It is widely used in lighting, socket outlets, motor control, and other applications. It gives physical protection to the line through the properties of the housing material and is usually not equipped with active protection elements.

Combiner Box is used for distributing lines, mainly to consolidate multiple inputs into one output, which reduces the number of input ports for devices connected behind and facilitates line management. At the same time, the protection components contained inside the box provide a stable and reliable guarantee before the current enters the subsequent devices.

(Its most common applications are direct current systems, renewable energy systems including photovoltaic systems, energy storage systems, electric vehicle industry, etc.).

There are similar applications in general electrical systems:

• For example, at the AC output side of a specific PV system, that is, the AC output lines of multiple PV inverters first enter the Combiner Box for centralized management, monitoring and protection, and then are sent to the main distribution cabinet for power supply, where the Combiner Box is generally known as the AC Combiner Box, which is usually found in three-phase grid-connected systems.

• At the input end of the backbone system of a building/factory/data center, the output lines of the main power supply first go through the distribution and protection of the Combiner Box, and then are output to the distribution and control systems of lighting, power, and socket outlets in multiple floors/multi-circuits respectively. The Combiner Box here is not called Combiner Box; it is usually called AC Distribution Box. It is not the same as the Combiner Box, but it is similar in function.

• When applied to the outputs of multiple devices or multiple sub-systems, multiple outputs are connected in parallel into the Combiner Box, and then integrated into one output to the main load or switch in the box, which is called Load Combiner Panel, and is usually used in the outputs of UPS or emergency generators.

PV Junction Box vs DC Combiner Box

Since most of the time, Combiner Box refers to an intermediate device that connects the inputs of the PV system to the inverter, let’s now compare the Combiner Box with the Junction Box in a PV system.

1. Installation Locations: Where Are Junction and Combiner Boxes Used in PV Systems?

The Junction Box installation  sites in a PV system

Back of the PV panel (Module-integrated Junction Box / PV Module J-Box)

In a PV system, almost all solar panels come with a Junction Box when they are shipped from the factory. It is a standard part of the PV module, which provides a reliable electrical output device for the PV module, and complies with IEC 61215 / IEC 61730 / IEC 62790.

The Junction Box is generally fixed in the upper middle of the back of the PV module, and very few photovoltaic modules have embedded integrated packages, or customized components, that hide or integrate the Junction Box in the frame. It consists of a housing, an internal busbar, a bypass diode, and an outlet port. It is responsible for summarizing the output of the photovoltaic cells and bringing out the positive and negative cables for series-parallel connection to other solar panels or to subsequent components.

This factory-installed junction box, which has a protection rating of IP65 or higher, has positive and negative cables with MC4 connectors to meet conventional series-parallel connection requirements.

In other locations of the PV system, the connection to the Junction Box may also be required in special cases.

String-end Junction Box / Inline PV Junction Box

Connecting the Junction Box at the end of each solar string is usually found in large PV systems when the cable length needs to be extended. For example, connecting 20 PV panels in series and then combine with the Junction Box, the main function of the solar Junction Box here is to extend the cable length of the PV modules and protect the cable, which can extend the distance up to 100 meters, and is applied in large power stations or mountain power stations. Based on the system size and specifications, design a corresponding combiner box that complements the function of the junction box, ensuring the safe and reliable operation of the system.

Small PV Junction Box / Mini Combiner Box

Used to connect multiple PV strings in parallel and then unify the output, usually located at the junction point before the multiple PV strings enter the combiner box, or used directly as a combiner box in small solar systems to connect to the inverter. The junction box can also be equipped with optional fuses and surge protectors.

Equipotential Bonding Box / Grounding Junction Box

The IEC 62548 standard requires the installation of a grounding junction box for multiple rows of mounts and high lightning protection levels. It is used to gather the ground wires (PE wires) from multiple bracket rows or metal frames of components, and unify them to connect to the grounding bus or lightning protection system, so as to improve the level of lightning strike resistance and electrical safety of the whole site.

Sensor Area (Monitoring Junction Box / Sensor Cable J-Box)

In the area where environmental monitoring devices (light meter, thermometer, etc.) are concentrated, the signal lines of multiple sensors are gathered and connected to the data collector in a unified way, providing good protection and terminal management, avoiding signal interference and cable damage, and facilitating fault detection and remote management.

Communication Junction Box / Control Cable J-Box

In distributed photovoltaic projects, a solar string inverter system, communication distance is far, installing a solar junction box on RS485, CAN, Ethernet communication link between the inverter, convergence box, and monitoring module can simplify the wiring, relay, and extend the communication cables, and improve maintenance efficiency.

The solar junction box in this position can be equipped with SPDs as required, and the recommended model is TYPE 3 SPD.

Solar DC Combiner Box Mounting locations

DC String Output Point (Solar DC Combiner Box)

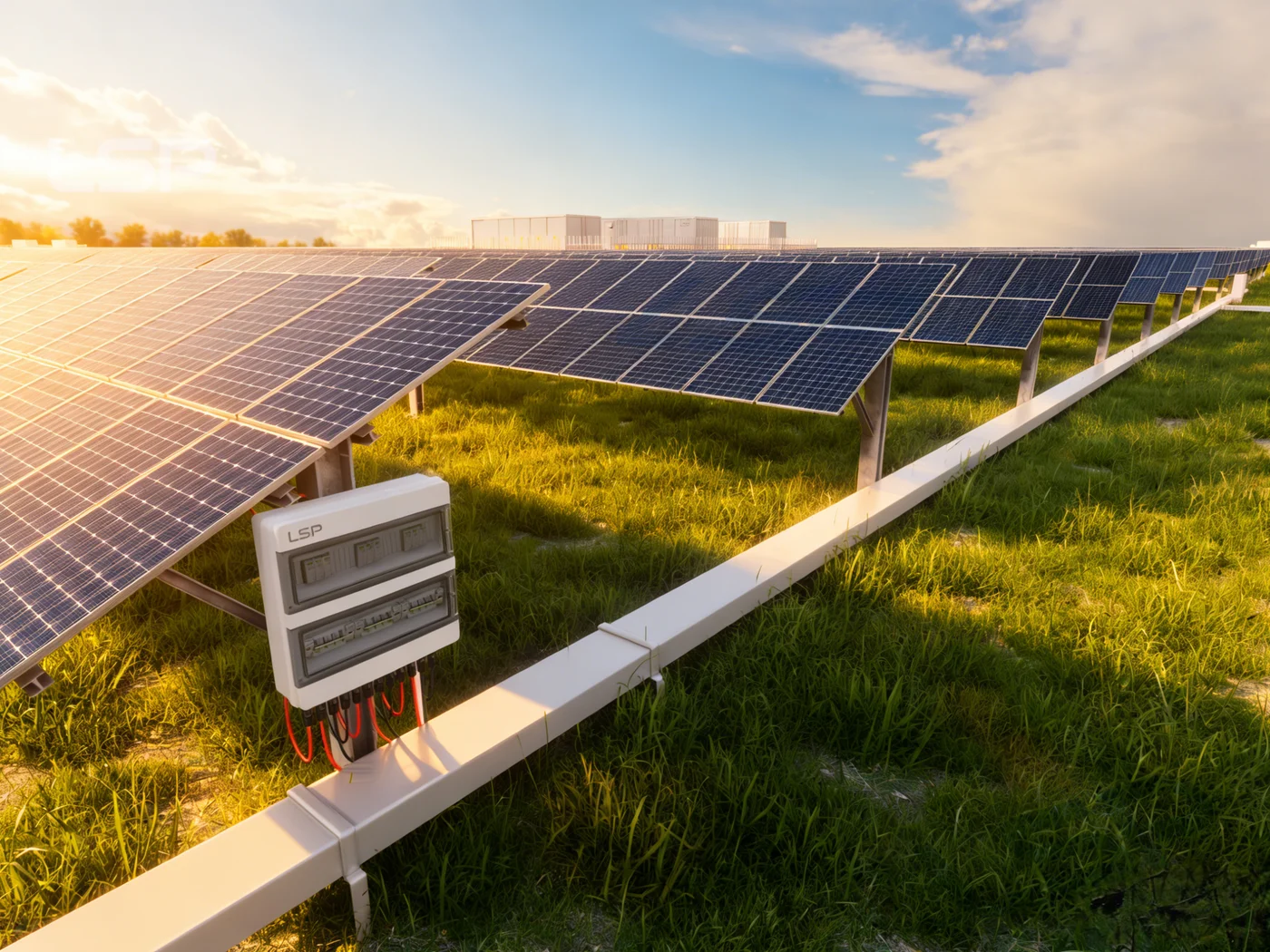

Where multiple PV module strings are connected in parallel, at the rear of the module array and the front of the inverter, this is the most common place and use of a combiner box. It aggregates the DC current output from multiple module strings, and through the configuration of fuses, disconnect switches, and lightning protection devices (SPD) to maintain line safety and convenient management, then outputs the currents to the centralized inverter. Generally used in PV systems with more than three solar panel strings.

AC Output Consolidation from Multiple Inverters (AC Combiner Box)

In the three-phase grid-connected PV system, or the integrated system of PV and energy storage, or other PV power stations that need to be connected to the power distribution system in a unified way, the installation of a combiner box can provide the function of summarizing AC outputs of the inverter before it enters into the main power distribution system. Working with other accessories, it can provide over-current, over-voltage protection, and surge protection. For more complex applications, it can also be configured for grid monitoring, centralized metering, and other functions.

Interface between PV and Energy Storage Systems (Hybrid Combiner Box)

A combiner box is installed in the common bus interface area between the DC output of the PV and the DC input of the storage battery to combine the DC lines from the PV array and the storage system, usually near the inverter.

Load-side Aggregation Point (Load Combiner Panel)

A combiner panel is installed before the PV power is converted to AC by an inverter and connected to a main load bus with the AC output of a UPS, diesel generator, storage PCS, etc. This combiner panel is generally called a Load Combiner Panel. It centralizes the AC outputs of multiple power-generating equipment and provides load zoning control, load distribution, and energy storage. It connects the AC outputs from various power-generating equipment centrally, provides load partition control, isolation, and interlock switching functions, and supports cooperation with ATSE to realize the automatic switching of main and backup power supplies.

Local Node in Micro PV Systems (Mini Combiner Box)

In a small distributed PV system, 2~4 PV Modules are directly connected in series and then paralleled to a mini combiner box, and then output to a micro inverter or controller. Mainly used in household roofs, PV carports, balcony PV, BIPV, and other small power, short-distance installation scenarios. The application function here is similar to a simple PV array junction box.

Through the above different application scenarios in the use of pv junction boxes and solar combiner boxes, you can clearly understand that the junction box is mainly used to realize the role of the cable connection, extension, and conversion, usually not configured to protect the components, or only in specific occasions can only be selected for use. The solar combiner box is for converging multiple currents to a unified output, realizing current integration, centralized protection, easy monitoring, and maintenance.

2. Functional Differences in a Solar PV Setup

Solar Combiner Box

The core role of the Solar Combiner Box is to centralize and protect the direct current from multiple photovoltaic modules (generally multiple solar arrays), and unify the output to the inverter or DC cabinet. It is at the “convergence level” or “array level” of the system, and is a key node for wiring optimization and safety protection. It can be used with current sensors and communication modules to realize real-time monitoring of the operating status of each PV string, and can be connected to SCADA systems for remote management.

Solar DC combiner Box is an “intelligent protection hub”, whose core value is: integrated convergence + safety protection + remote monitoring.

According to its function and positioning, the working voltage of the solar DC combiner box is generally DC600V / DC1000V / DC1500V, which needs to be adapted to multiple series and parallel inputs, and the working current can be up to tens of amperes or even hundreds of amperes. and it is widely used in:

• Medium and large-scale grid-connected photovoltaic power stations

• Industrial and commercial rooftop systems

• Distributed power generation scenarios that require centralized wiring and centralized protection systems.

PV Junction Box

The main task is to complete the internal conductive path of the component package and lead out. It is only responsible for the output line connection of a single component, commonly less than 15A current and  60V voltage, without the ability to integrate current or system-level control; it is a factory-pre-installed standard component.

It has a built-in bypass diode in the junction box, which prevents reverse current caused by shadowing or damage to individual photovoltaic modules and reduces heat generation and energy loss. The junction box must have excellent waterproof and dustproof performance (usually IP65 or above) to ensure the stable operation of the module for a long time.

3. Differences in maintenance and monitoring capabilities

Combiner Box: with system-level monitoring capabilities and proactive operation and maintenance functions

Monitoring functions

1. Real-time current/voltage monitoring

• The DC current of each PV string can be detected by Hall sensors or shunts.

• The system can monitor each circuit for open-circuit, short-circuit, inefficient output, etc.

2. Support the remote communication protocol

• Commonly used RS485 interface or Modbus communication, data can be uploaded to the SCADA system, EMS platform, or the smart inverter.

• It is convenient for centralized management and cloud data analysis.

3. Surge protection status monitoring

• Some high-end models integrate the SPD working status feedback function, which can alarm in real-time after the surge hits.

4. Intelligent alarm mechanism

• Abnormal current, dropout, SPD failure, circuit breaker tripping, etc., can generate alarm information, which can be pushed to the operation and maintenance personnel through SMS, APP, or a background platform.

Maintenance mode

• Regular inspection (recommended every 6~12 months):

Regularly measure the wiring fastening and whether there is any temperature rise in the terminals; check whether the status of fuses and circuit breakers is abnormal; clean up the dust of the housing and check the sealing of the waterproof ring.

• Convenient troubleshooting:

It can quickly locate which string is abnormal through the monitoring system, avoiding manual testing one by one, and significantly improving troubleshooting efficiency.

Most of the combiner boxes are designed as a modular structure, and the modules of fuse, circuit breaker, and communication can be replaced, which could  lower maintenance costs.

PV Junction Box: Module-level encapsulation, essentially maintenance-free

The Junction Box, as a factory-integrated part of the PV module, is designed to be sealed once for life and is very low-maintenance. It does not contain a current detection or communication module, and cannot provide feedback on the status of the components, so there’s no monitoring function.

Routine maintenance is based on troubleshooting. When doing regular troubleshooting for the system, you can use infrared or thermal imaging to check the hot spots of the junction box for poor contact or diode failure inside. Also check for aging, discoloration, and water vapor condensation at the cable outlet.

If the bypass diode is damaged or the package is cracked, it is necessary to replace the junction box on-site (high risk, professional operation is required).

If water enters into the junction box, it will lead to a drop in insulation resistance and even fire; therefore, when purchasing components, pay attention to the protection level (e.g., IP67), flame-retardant level, and sealing method of the junction box.

Final Recommendation: Combiner or Junction Box?

Now that you understand the key differences between a combiner box and a junction box, you can make an informed choice based on your project’s power level, complexity, and safety requirements.

Combiner boxes are ideal for larger photovoltaic systems or other renewable energy projects, where current aggregation, system protection, and performance monitoring are essential. They help streamline wiring, improve operational safety, and enable real-time diagnostics.

Junction boxes, on the other hand, are better suited for residential wiring or small-scale commercial systems, offering a simple and economical way to manage safely and protect wire connections.

Making the right choice not only boosts system efficiency and scalability but also reduces long-term maintenance risks.

Looking for a Reliable Combiner Box?

If you’re working on a solar project that demands high safety standards, robust construction, and real-time performance visibility, consider the LSP Combiner Box series.

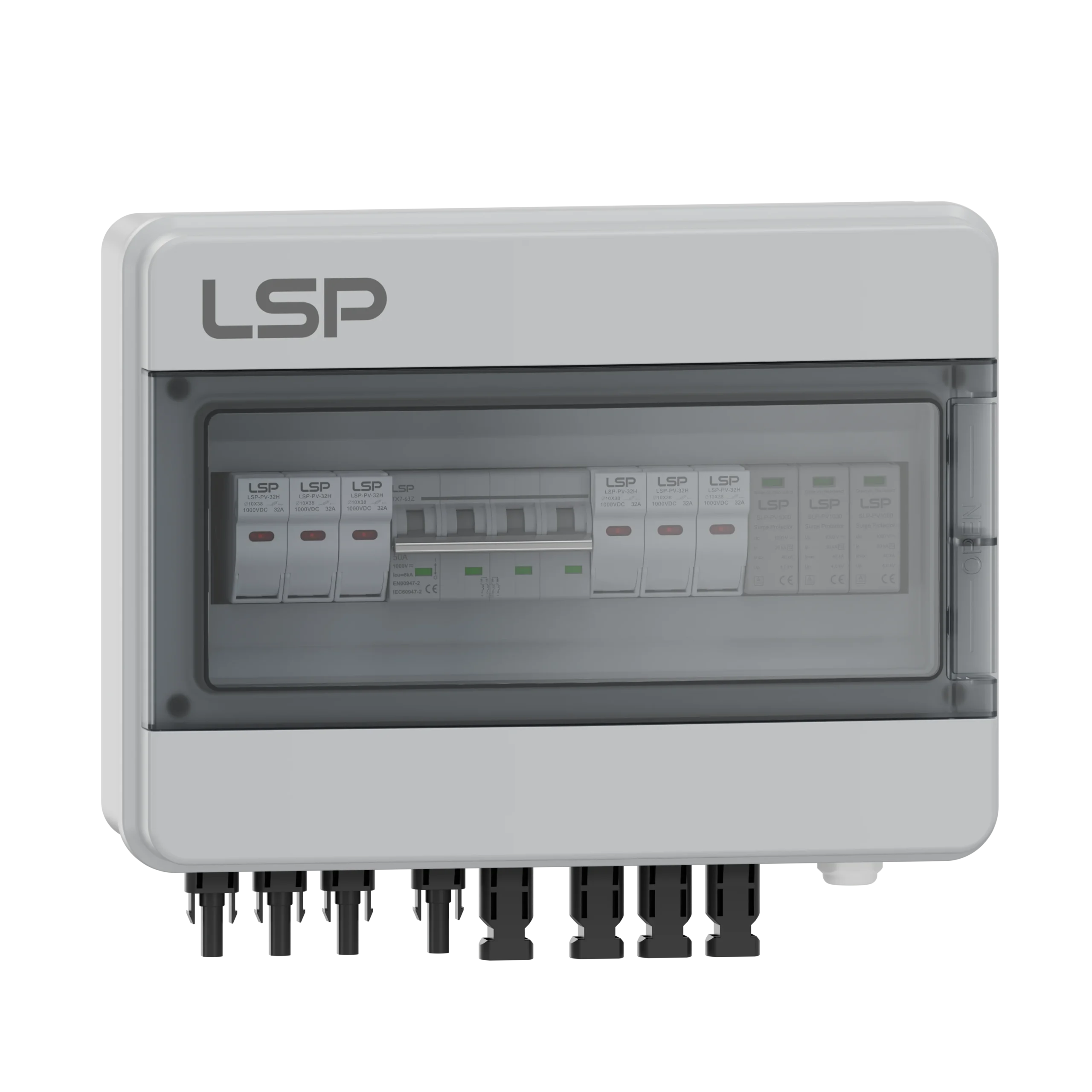

The LSP solar combiner box is a professionally designed electrical enclosure tailored for residential, commercial, and utility-scale photovoltaic systems. It merges multiple DC inputs into a single output while delivering integrated protection and advanced monitoring, referencing LSP’s core solutions from their official documentation.

LSP combiner boxes offer:

• IP65-rated waterproof and weatherproof enclosures

• Integrated surge protection devices (SPD)

• DC fuses or circuit breakers for each string

• Optional monitoring modules for current, voltage, and fault tracking

• Compatibility with residential, commercial, and utility-scale PV systems

Whether you’re building a new array or upgrading an old one, LSP provides reliable, code-compliant, and installer-friendly combiner box solutions.

Need help selecting the right model? Contact an LSP representative or a certified solar engineer for tailored product recommendations.

FAQ: Combiner Box vs. Junction Box in Solar Systems

What is the purpose of a junction box in a solar panel?

A junction box connects the internal circuitry of a solar panel to external DC cables. It protects bypass diodes and provides a sealed exit point for the module’s positive and negative leads. It ensures safe, efficient current flow and minimizes the risk of hotspots and reverse current.

Do all solar panels have junction boxes?

Yes. Every standard PV module comes pre-installed with a junction box on the back, typically IP65 or higher rated, housing diodes and cable connectors (e.g., MC4 plugs).

Can a junction box be repaired?

It’s possible but not recommended. Since junction boxes are factory-sealed for long-term use, repairs should be done only by professionals. In most cases, replacement of the module or box is more practical if a diode fails or the weatherproof enclosure is damaged.

Do I need a combiner box for my solar system?

If your system has more than two PV strings, yes. A combiner box helps streamline wiring, enhance safety, and enable real-time performance monitoring. Small systems (≤2 strings) might connect directly to the inverter.

How does a solar DC combiner box work?

It receives positive and negative outputs from multiple solar strings and internally combines them into a single output pair. It uses fuses or breakers to isolate and protect each string. Advanced boxes also monitor voltage, current, and SPD status.

Can a combiner box monitor system performance?

Yes. Modern combiner boxes can monitor current, voltage, and SPD conditions per string, and report data to SCADA or energy management systems via RS485 or Modbus communication.

Can I build a combiner box myself?

It’s technically possible, especially for small off-grid systems. However, commercial combiner boxes are recommended as they are pre-certified, weatherproof, and built to safety standards (e.g., IEC 61439, UL 1741).
