Automatic Transfer Switch (ATS)

An Automatic Transfer Switch (ATS) is an electrical device that automatically switches a load between two power sources, typically the utility (main) power and a backup power source (such as a standby generator, UPS, or solar power system), to ensure continuous and reliable electricity supply.

1. Automatic Power Switching – Detects power loss or abnormal conditions in the main supply and automatically switches the load to a backup source, then restores it when utility power is stable.
2. Power Source Monitoring – Continuously monitors voltage, frequency, and phase to ensure safe and proper switching.
3. Safety Protection – Prevents backfeeding and protects electrical systems from surges, spikes, or faults.
4. Manual Override – Allows operators to manually control switching for testing or maintenance.

An Automatic Transfer Switch (ATS) works by continuously monitoring the utility (main) power and automatically transferring the electrical load to a backup power source, such as a generator or UPS, when a power outage or abnormal condition occurs. Once the utility power is restored and stable, the ATS switches the load back to the main power.

• Open Transition (Break-Before-Make) ATS: An Open Transition ATS disconnects the load from the main utility before connecting to the backup generator.
• Closed Transition (Make-Before-Break) ATS: A Closed Transition ATS briefly parallels the utility and generator before transferring the load, ensuring continuous power supply.
• Delayed Transition ATS: A Delayed Transition ATS introduces a programmable delay before switching to the backup power source.
• Soft Load / Bypass Isolation ATS: A Soft Load or Bypass Isolation ATS allows maintenance or load switching without interrupting the electrical supply.
• Closed-Coupled ATS: A Closed-Coupled ATS integrates directly with the generator control panel, providing a compact installation and reducing wiring complexity.
• Manual-Operated ATS: A Manual-Operated ATS requires human intervention to switch between utility and backup power.

A Dual Power Automatic Transfer Switch (ATS) is an electrical device designed to automatically switch the power supply between two independent power sources, such as a main utility power and a backup generator. When the primary power source fails, the ATS instantly transfers the load to the secondary source to ensure continuous and reliable power supply. Once the main power is restored, the switch automatically returns the load to the original source. Dual power ATS systems are widely used in industrial facilities, commercial buildings, hospitals, data centers, and other critical applications where uninterrupted power is essential.

Selecting the appropriate Dual Power Automatic Transfer Switch (ATS) is critical to ensuring continuous power supply, system reliability, and operational safety. A properly selected auto transfer switch helps prevent power interruption, equipment damage, and operational downtime in critical applications.

When choosing a Dual Power ATS, several key factors should be considered:

1. Rated Current and Voltage
Ensure the ATS matches the system’s rated current and voltage to handle the expected load safely.

2. Number of Poles
Select the correct pole configuration (2P, 3P, or 4P) according to the power system type and grounding method.

3. Switching Type
Determine whether the application requires automatic transfer, manual transfer, or a specific control mode.

4. Transfer Time
Evaluate the switching speed based on application requirements, especially for sensitive equipment.

5. Application Environment
Consider installation conditions such as industrial facilities, commercial buildings, hospitals, data centers, or renewable energy systems.

6. Compliance and Standards
Verify that the ATS complies with relevant international standards and safety requirements.

Proper selection of a Dual Power Automatic Transfer Switch improves system stability, enhances electrical protection, and ensures long-term reliable performance in both industrial and critical power applications.

Key characteristics of the best ATS include fast and stable switching performance, high electrical endurance, strong arc extinguishing capability, and reliable operation under heavy load conditions. In addition, clear status indication and easy installation contribute to improved user experience and maintenance efficiency.

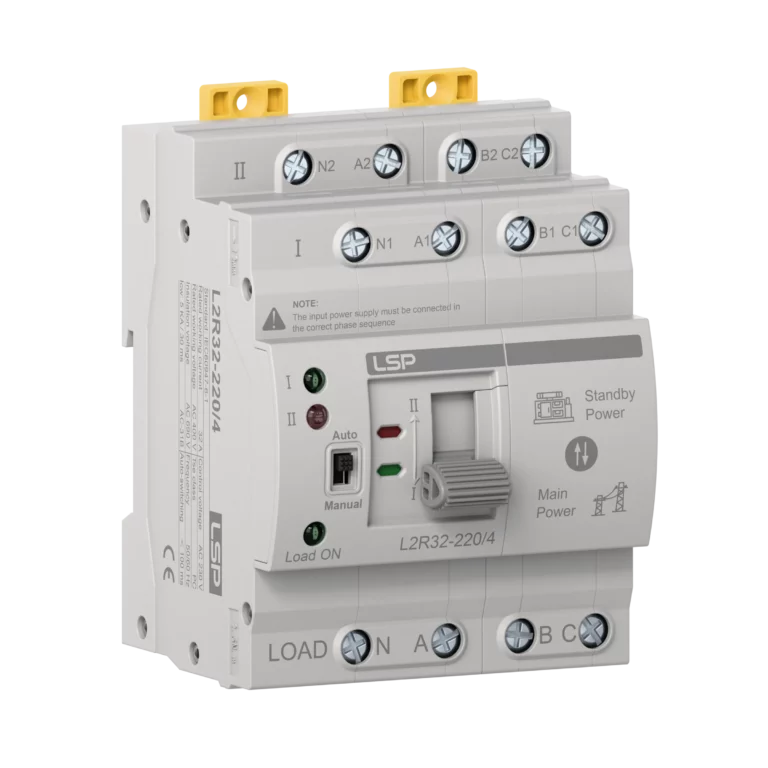

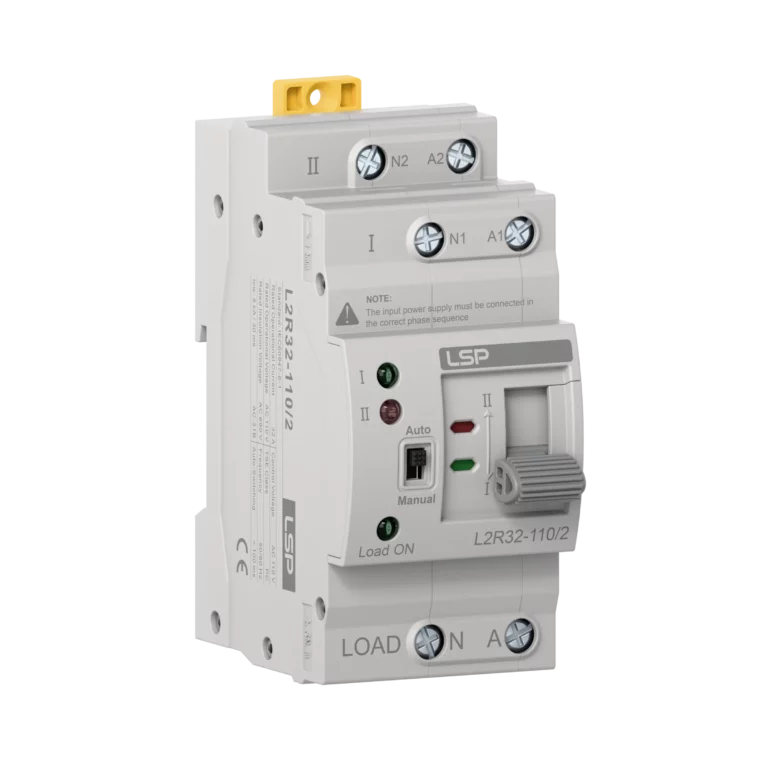

LSP’s L2R and L2H series are specifically designed for residential applications, providing safe and reliable power transfer solutions for home backup power systems, ensuring continuous electricity supply during utility outages.

The M2R, N2M, S3M, and G3M series offer higher performance ratings, wider current ranges, and more robust structural designs to meet demanding operating environments. These series are widely used in commercial buildings, factories, data centers, hospitals, and other critical facilities where uninterrupted power supply is essential.

An Automatic Transfer Switch (ATS) is an electrical device that automatically transfers power between two power sources, typically a primary utility supply and a backup generator. Its main purpose is to ensure continuous and reliable power supply to connected loads.

When the main power source fails or becomes unstable, the ATS detects the abnormal condition and automatically switches the load to the backup power source. Once the primary power is restored and stable, the ATS can transfer the load back, either automatically or with a preset delay, depending on the system configuration.

By managing power source monitoring, automatic switching, and safety interlocking functions, an ATS helps prevent downtime, protects electrical equipment, and ensures uninterrupted operation in residential, commercial, and industrial applications.
