In modern electrical systems, transient overvoltage is one of the common causes of equipment damage and unplanned downtime. Whether caused by lightning-induced transient overvoltage or surges generated by switching operations and power grid disturbances, these events can damage sensitive equipment within milliseconds, resulting in high repair and replacement costs. An AC Surge Protector quickly detects and diverts surge energy, limiting transient overvoltage to a safe range and helping protect the stable operation of electrical systems.
What Is an AC Surge Protector and Why Is It Essential?
Definition and Main Functions of AC Surge Protection
An AC Surge Protector is a protective device installed in an AC electrical system to limit transient overvoltage and safely divert surge current to the grounding path. Its core function is to switch from a high-impedance state to a low-impedance state at the moment of an abnormal voltage rise, providing a low-resistance path for surge current and preventing it from flowing into downstream equipment. After the surge event ends, the protector automatically returns to a high-impedance state and remains ready for the next response. The entire process is typically completed at the nanosecond level and requires no manual intervention.
The Relationship Between Surge Protection and Electrical System Reliability
The reliability of an electrical system depends on whether equipment can operate continuously and stably under various working conditions. If transient overvoltage is not effectively intercepted, it can gradually accumulate stress, causing component aging, reduced insulation performance, and eventually equipment failure or unplanned downtime. By limiting the amplitude of each surge impact, an AC Surge Protector reduces this cumulative damage at the source, helping distribution systems, control cabinets, and terminal equipment maintain long-term stable operation. This is the most direct connection between surge protection and overall system reliability.
Why Modern Electrical Installations Need Transient Overvoltage Protection
Modern electrical systems integrate an increasing number of electronic, automated, and sensitive control devices, which have much lower tolerance for voltage fluctuations than traditional electrical components. At the same time, surge sources such as power grid switching, large equipment start-up and shutdown, and lightning activity have not decreased; instead, they have become more frequent as system complexity increases. This means that relying only on traditional overcurrent protection is no longer sufficient to address the risks caused by transient overvoltage. Transient overvoltage protection has become an indispensable part of modern electrical installations.
Common Sources of AC Power Surges and Their Impact
Lightning-Induced Transient Overvoltage
Lightning strikes are one of the most destructive sources of surges and can occur in two forms: direct lightning strikes and indirect lightning strikes. A direct lightning strike can introduce extremely high-amplitude impulse current through power supply lines, instantly impacting the main distribution system. An indirect lightning strike generates transient overvoltage in cables through electromagnetic induction and can affect a wider area. Even when lightning occurs far away from a building, the induced surge may still travel along cables into indoor equipment, causing damage to distribution cabinets and terminal electronic devices.
Switching Surges Generated by Electrical Equipment
Switching surges do not come from external sources; they are transient phenomena naturally generated during the operation of an electrical system. When high-power motors, transformers, capacitor banks, and similar equipment start up or disconnect, sudden changes in current or magnetic fields can cause brief voltage spikes in the circuit. These surges often occur more frequently than lightning-induced surges. Although their amplitude is usually lower in a single event, the cumulative stress they place on sensitive components over time should not be ignored.
Power Grid Disturbances and Abnormal Voltage Fluctuations
Power grid disturbances usually originate from switching operations, sudden load changes, or fault-clearing processes in the power supply system, such as substation switching operations, large load connection or disconnection, or reclosing actions after grid faults. These events can cause sudden voltage rises or drops within a short period of time, forming conducted surges that propagate along the distribution network. Because power grid disturbances are unpredictable and may affect multiple user-side systems, they are also one of the key surge sources that must be considered in electrical system design.
How Frequent Surges Shorten Equipment Service Life
A single surge may not immediately cause equipment failure, but repeated surges can gradually reduce equipment lifespan through cumulative damage. This process is often difficult to detect before an actual failure occurs. Specific effects include:
- Gradual aging of insulation materials and continuous reduction in insulation strength
- Micro-damage to semiconductor components caused by repeated thermal stress
- Fatigue cracks in contact points and solder joints caused by current impacts
- Year-by-year decline in overall equipment reliability and increased failure probability
By installing a suitable AC Surge Protector, long-term cumulative damage caused by surges can be effectively reduced, equipment service life can be extended, and overall operation and maintenance costs can be lowered.
How an AC Surge Protector Works to Prevent Electrical Failures
An AC Surge Protector works by quickly detecting abnormal voltage changes and rapidly limiting the voltage level and releasing surge energy when transient overvoltage occurs, thereby preventing damage to electrical equipment. Understanding how it works helps ensure the correct selection and configuration of a suitable AC surge protection solution.
The Working Process of Detecting and Diverting Surge Energy
Under normal power supply conditions, an AC Surge Protector remains in a high-impedance state and has almost no impact on the operation of the power system. When transient overvoltage is generated by lightning surges, power grid switching, or equipment switching operations, the SPD changes its conduction state within nanoseconds and guides dangerous surge current to the grounding system, keeping the voltage applied to downstream equipment within a safe range.
The working process of an AC Surge Protector usually includes the following steps:
- Continuously monitoring line voltage: The SPD remains in standby mode and responds in real time to possible transient overvoltage.
- Quickly responding to abnormal surges: When the voltage exceeds the protection threshold, the internal protection components conduct rapidly.
- Diverting surge current: High-energy surges are safely released through the grounding path, reducing the impact on equipment.
- Restoring normal operating status: After the surge ends, the SPD automatically returns to a high-impedance state and continues protecting the electrical system.
This automated protection process requires no manual intervention and provides continuous, reliable overvoltage protection for electrical systems.
The Role of Core Protection Components Such as MOVs and GDTs
The high performance of an AC Surge Protector mainly depends on its internal core protection components. Metal oxide varistors (MOVs) and gas discharge tubes (GDTs) are the most common protection technologies. Different components have different electrical characteristics, and proper combination can improve surge absorption capacity and overall protection performance.
The roles of common core protection components include:
- MOV (Metal Oxide Varistor): With fast response speed and strong voltage-limiting capability, an MOV can quickly reduce excessive voltage when transient overvoltage occurs. It is a widely used core protection component in AC SPDs.

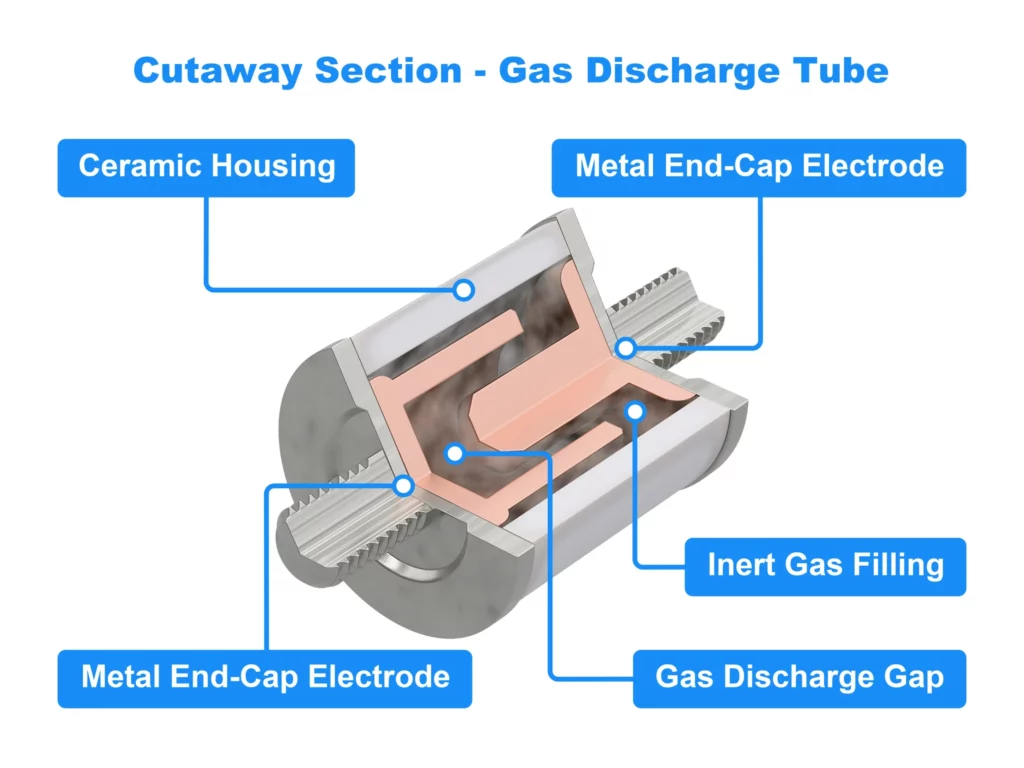

- GDT (Gas Discharge Tube): A GDT has high surge current withstand capability and low leakage current, making it suitable for discharging high-energy lightning surges and improving overall protection capacity.
- Combined protection technology: By combining the advantages of different protection components such as MOVs and GDTs, better energy distribution can be achieved, the equipment protection level can be improved, and the long-term operational stability of the SPD can be enhanced.
How Fast Response Helps Maintain Stable System Operation
Surge events often release energy within an extremely short period of time. If the protector’s response speed is delayed, overvoltage may still damage downstream equipment before it is intercepted. Nanosecond-level response speed means that the protector acts almost simultaneously with the surge, limiting voltage spikes within a safe threshold and preventing the impact from being conducted to sensitive components such as control boards and sensors. This fast response capability is the key reason why a surge protector can effectively maintain continuous and stable system operation.
How an AC Surge Protector Improves Electrical System Performance
After understanding how a surge protector works, it is more important to focus on the measurable value it can bring in actual operation. These benefits are not abstract concepts; they are reflected in multiple aspects, including equipment condition, operation and maintenance costs, and power supply safety.
Reducing Equipment Damage and Unexpected Downtime
Surge events are one of the common causes of sudden equipment failures, especially for sensitive components such as control boards and variable frequency drives, which may be damaged by a single strong surge impact. By intercepting the surge before it reaches the equipment, an AC Surge Protector greatly reduces the probability of equipment damage directly caused by overvoltage, thereby minimizing unplanned downtime caused by failures and ensuring the continuity of production or operational activities.
Extending the Service Life of Electrical Equipment
Equipment aging is not always caused by a single severe failure. More often, it results from the gradual accumulation of stress caused by repeated low-level surge impacts. Insulation materials, semiconductor components, and solder joints can deteriorate faster under continuous voltage fluctuations. By limiting the amplitude of each surge, a surge protector effectively slows down this cumulative wear, allowing equipment to maintain stable performance over a longer period and delaying the need for replacement.
Reducing Maintenance and Equipment Replacement Costs
The costs caused by equipment damage are not limited to replacement expenses. They also include indirect losses during downtime, repair labor, spare parts procurement, and other hidden costs. By reducing the frequency of failures, a surge protector indirectly lowers these recurring expenses, makes maintenance work more predictable, and allows resources to be allocated more toward planned maintenance rather than emergency repairs.
Improving Power Supply Continuity and Operational Safety
For critical loads that rely on continuous power supply, such as control systems, communication equipment, or automated production lines, any unexpected interruption may trigger cascading effects. While maintaining power supply continuity, a surge protector also reduces the risks of short circuits, arcing, and even fire caused by overvoltage. Its role extends from equipment protection to overall electrical safety, making it an essential part of stable electrical system operation.
Understanding Type 1, Type 2, and Type 3 AC Surge Protection
Different surge events have different energy levels and points of occurrence, making it difficult for a single type of protector to cover all scenarios. Therefore, AC surge protection systems are classified into three levels according to protection capability: Type 1, Type 2, and Type 3, each corresponding to different installation locations within the system.
Type 1 Surge Protector for High-Energy Lightning Surge Protection
A Type 1 surge protector is mainly installed at the power entry point of a building or in the main distribution cabinet. It is used to withstand high-energy lightning surges caused by direct lightning strikes or introduced through an external lightning protection system. With high impulse current withstand capability, it can safely divert most surge energy to the grounding system before lightning current enters the internal distribution system.
A Type 1 AC SPD is commonly used in industrial plants, commercial buildings, communication base stations, large infrastructure projects, and other applications with a high risk of lightning strikes. As the first line of defense in an electrical system, it effectively reduces the impact of lightning overvoltage on downstream distribution equipment and provides reliable front-end protection for lower-level surge protection devices.
Type 2 Surge Protector for Distribution Cabinet and Internal Surge Protection
A Type 2 surge protector is usually installed in a distribution cabinet or at the equipment power distribution side. It is mainly used to suppress switching surges from within the power grid and residual transient overvoltage remaining after Type 1 protection. It is the most common type of surge protection used in modern residential, commercial, and industrial electrical systems.
By quickly limiting overvoltage and reducing residual voltage, a Type 2 AC SPD can effectively protect power modules, control systems, automation equipment, and other sensitive electronic devices. For locations without an external lightning protection system or with a lower risk of lightning strikes, a Type 2 surge protector is usually the primary AC power protection solution.
Type 3 Surge Protector for Sensitive Terminal Equipment Protection
A Type 3 surge protector is usually installed close to terminal equipment, such as precision instruments, computers, communication devices, or other highly sensitive electronic equipment. Its main function is to further reduce small residual transient overvoltage after upstream SPD protection, providing fine-level protection for critical equipment.
Because a Type 3 SPD has relatively lower surge withstand capacity, it is usually not used alone. Instead, it is combined with Type 1 or Type 2 surge protectors to form a multi-stage protection system. By reducing surge energy step by step, it can minimize the impact of overvoltage on terminal equipment and improve equipment operating stability and service life.
How Multi-Stage SPD Coordination Achieves Comprehensive Surge Protection
A single type of AC Surge Protector is usually not sufficient to handle all levels of transient overvoltage. Therefore, in important electrical systems, a coordinated protection scheme consisting of Type 1, Type 2, and Type 3 SPDs is commonly used. Different levels of SPDs are installed at different distribution levels and perform different protection tasks, working together to improve the overall reliability of the system.
| SPD Type | Typical Installation Location | Main Protection Target | Core Function |
| Type 1 SPD | Main power entry point, main distribution cabinet | External lightning current and high-energy surges | Diverts most lightning surge energy and protects downstream systems |
| Type 2 SPD | Sub-distribution cabinet, floor distribution panel | Switching surges and residual overvoltage | Limits voltage levels and protects internal electrical equipment |
| Type 3 SPD | Close to terminal equipment | Precision electronic equipment and sensitive loads | Provides fine-level protection and reduces final residual voltage |
Through this multi-stage SPD coordination strategy, from the power entry point to terminal equipment, the electrical system can form a more complete overvoltage protection network, reduce equipment failures, lower the risk of downtime, and significantly improve overall power supply reliability.
How to Choose the Right AC Surge Protector for Your Electrical System
Choosing the right AC Surge Protector requires comprehensive consideration of factors such as the electrical system voltage level, surge risk, installation location, and SPD technical parameters. Proper selection not only improves surge protection performance but also helps ensure the long-term stable and safe operation of the electrical system.
Selecting the Correct Rated Voltage and Surge Discharge Capacity
The rated voltage and surge discharge capacity of an AC Surge Protector are among the most important factors in the selection process. The voltage rating of the surge protector must match the actual AC power distribution system to ensure that it does not fail under normal operating conditions and can quickly provide protection when transient overvoltage occurs.
In addition, surge discharge capacity determines the strength of surge current that the surge protector can withstand and discharge. For areas with a higher risk of lightning strikes or important power systems, surge protectors with higher discharge capacity are usually required. For ordinary commercial or residential power distribution systems, suitable products can be selected according to the actual surge risk level. Properly matching voltage parameters and discharge capacity is an important foundation for ensuring the reliable operation of an AC lightning protection system.
Understanding Key Technical Parameters Such as Uc, Up, In, and Imax
When selecting an AC Surge Protector, understanding key technical parameters helps determine whether the product is suitable for a specific application environment. Different parameters represent different performance indicators of an SPD during normal operation and surge protection.
- Uc (Maximum Continuous Operating Voltage): Indicates the highest AC operating voltage that the SPD can withstand continuously. It should be higher than the normal operating voltage of the system.
- Up (Voltage Protection Level): Indicates the residual voltage limited at the equipment side after the SPD responds to a surge. A lower value usually means better voltage-limiting capability.
- In (Nominal Discharge Current): Indicates the SPD’s operating capability after repeatedly withstanding standard test surge currents, reflecting the product’s long-term stability.
- Imax (Maximum Discharge Current): Indicates the SPD’s ability to withstand a single maximum surge current, reflecting its performance against strong surge impacts.
Comprehensively evaluating these parameters can help you choose an AC Surge Protector that better matches the actual electrical environment.
Selecting an AC Surge Protector According to IEC/EN 61643 International Standards
International standards provide a unified basis for the performance testing and classification of surge protectors. The IEC/EN 61643 series clearly defines the test waveforms, discharge ratings, and performance requirements corresponding to Type 1, Type 2, and Type 3 devices. Choosing a surge protector designed in accordance with IEC/EN 61643 standards means that the product has been verified through a standardized testing process, and its parameter markings are comparable and traceable. This helps users make more reliable comparisons between products from different manufacturers.
Considerations for Installation Location and Electrical System Configuration
The installation location of an AC Surge Protector directly affects its protection performance. To achieve more complete surge protection, a proper SPD configuration should be adopted based on the building’s power distribution structure, equipment importance, and surge sources.
When selecting the installation location, the following factors usually need to be considered:
- Whether a Type 1 SPD is required at the main power entry point to handle high-energy lightning surges
- Whether Type 2 SPDs are needed in distribution cabinets and branch circuits to limit internally generated transient overvoltage
- Whether Type 3 SPDs are required near precision electronic equipment to provide final fine-level protection
- Whether the connection path between the SPD and the grounding system is as short as possible to improve surge discharge efficiency
- Whether the grounding method, load type, and operating environment of the electrical system meet the application requirements of the SPD
By scientifically planning the installation location and coordinating protection through multi-stage surge protection devices (SPDs), the risk of overvoltage can be minimized, thereby improving the reliability and safety of the entire electrical system.
Why Choose LSP AC Surge Protection Solutions?
LSP: A Professional AC Surge Protector Manufacturer
LSP is a professional manufacturer specializing in the research, development, and manufacturing of AC and DC surge protection technologies, providing reliable overvoltage protection solutions for global customers over the long term. With extensive industry experience and a strict quality management system, LSP has established a comprehensive AC Surge Protector product range covering Type 1, Type 2, Type 1+2, and Type 3 protection levels, meeting multi-level surge protection needs from the power entry point to terminal equipment.
LSP AC Surge Protectors are widely used in residential distribution panels, commercial buildings, industrial control cabinets, data centers, and the AC side of solar photovoltaic systems. The products use high-quality core protection components and optimized structural designs, offering fast response, stable performance, and long-term operational reliability. They can effectively reduce the damage caused by lightning surges and switching surges to electrical equipment.
LSP Type 1, Type 2, and Type 3 AC Surge Protector Product Range
| Product Type | Main Installation Location | Core Protection Function | Typical Applications |
| Type 1 AC SPD | Building power entry point, front end of the main distribution cabinet | Withstands high-energy lightning current and reduces the risk of external surges entering the system | High lightning-risk areas, industrial facilities, buildings equipped with external lightning protection systems |
| Type 1+2 AC SPD | Main distribution panel | Provides both lightning current discharge and surge voltage limitation | Residential buildings, commercial buildings, and integrated power distribution systems |
| Type 2 AC SPD | Sub-distribution panels and internal power distribution systems | Suppresses transient overvoltage caused by lightning induction and switching operations | Office buildings, factories, and equipment distribution cabinets |
| Type 3 AC SPD | Close to sensitive terminal equipment | Further reduces residual voltage and provides fine-level protection | Computers, communication equipment, and automation control devices |
Through a complete multi-stage AC SPD product portfolio, LSP can provide flexible configurations based on different power supply systems and risk levels, achieving comprehensive surge protection from the power entry point to terminal loads.
AC Surge Protection Solutions Designed Based on IEC/EN International Standards
LSP AC Surge Protectors are designed in accordance with IEC/EN 61643 international standards from the development stage, covering key technical indicators such as test waveforms, discharge ratings, and voltage-limiting performance. This ensures stable and consistent protection performance across different application scenarios. Based on international standard design, LSP products can better adapt to electrical system configurations in different regions worldwide, providing comparable and traceable surge protection references for diverse applications such as photovoltaic systems, energy storage, and industrial automation.
FAQ
What Does an AC Surge Protector Do?
An AC Surge Protector boosts system reliability by shielding equipment from transient overvoltages caused by lightning or switching. It limits voltage spikes and diverts excess current to the ground, preventing damage and downtime. By stabilizing power flow, it protects sensitive components and extends the lifespan of the entire electrical infrastructure, ensuring long-term operational safety.
What Is the Difference Between an AC Surge Protector and a DC Surge Protector?
AC Surge Protectors handle alternating current where periodic zero-crossings help extinguish arcs. DC units manage continuous current, requiring specialized designs to quench arcs effectively. While AC SPDs protect buildings and machinery, DC versions are tailored for solar PV or battery systems. Choosing the right type is vital for system safety and electrical reliability.
How Does an AC Surge Protector Improve Electrical System Reliability?
An AC Surge Protector boosts reliability by neutralizing transient overvoltages from lightning or switching. By clamping these spikes, it prevents catastrophic hardware failure and cumulative degradation of sensitive electronics. This proactive defense reduces unscheduled downtime and maintenance, ensuring stable performance and a longer lifespan for the entire electrical infrastructure.
Can an AC Surge Protector Protect Against Lightning Surges?
Yes, an AC Surge Protector is specifically designed to safeguard systems against lightning-induced surges. Type 1 models manage direct strikes, while Type 2 units handle indirect effects. By diverting extreme energy to the ground, they prevent component destruction and fire hazards, ensuring the continuous reliability and safety of the electrical infrastructure during lightning events.
What International Standards Should an AC Surge Protector Comply With?
An AC Surge Protector must comply with standards like IEC 61643-11 and EN 61643-11. In North America, UL 1449 is the primary requirement. These certifications ensure rigorous testing for safety and performance. Using standardized devices guarantees that the electrical system is protected by verified technology, significantly enhancing overall operational reliability and safety.
