Homepage » A Complete Guide to Isolator Switches: AC and DC Applications
Created by: Glen Zhu | Updated Date: January 25th, 2025
An isolator switch, also known as a disconnector switch, is an essential electrical device used to completely disconnect a circuit or specific section of an electrical system from its power source.
The primary function of an isolator switch is to provide a visible and physical break in the circuit, ensuring that no current flows to the isolated area. Unlike circuit breakers, which are designed to interrupt the flow of current during faults or overloads, isolator switches are manually operated and are primarily used for safety and maintenance purposes.
Isolator switches are available in various configurations to suit different applications, including single-pole, double-pole, and multi-pole designs. These configurations allow the device to isolate circuits with varying complexities, ranging from simple residential setups to intricate industrial systems. Depending on the application, isolator switches can be designed for AC (Alternating Current) or DC (Direct Current) circuits, each with specific features to handle the unique demands of their respective systems.
One of the defining characteristics of an isolator switch is its ability to create a visible break in the circuit. This ensures that maintenance personnel can visually confirm the disconnection before performing any work, adding an extra layer of safety. In addition, isolator switches are often equipped with features like locking mechanisms to prevent accidental operation and ensure that the circuit remains isolated until it is intentionally reconnected.
Isolator switches are indispensable components in electrical systems, providing a reliable means of isolation to enhance safety, simplify maintenance, and ensure compliance with electrical standards.
AC (Alternating Current) isolator switches are designed to isolate electrical circuits that operate on alternating current, which is the standard form of electricity used in most residential, commercial, and industrial systems. These switches play a crucial role in ensuring safety during maintenance and repair operations, particularly in systems where consistent power flow is critical.
AC isolator switches are commonly found in applications such as power distribution systems, industrial machinery, HVAC systems, and even in residential circuit panels. They are built to handle various voltage and current levels, ranging from low-voltage household circuits to high-voltage industrial setups.
One of the distinguishing features of AC isolator switches is their ability to break both live and neutral connections in a circuit, ensuring a complete disconnection. Many AC isolator switches also include multiple poles, which allow them to isolate multi-phase systems, such as three-phase power networks commonly used in industrial environments.
Another key aspect of AC isolator switches is their emphasis on reliability and durability. Since AC systems often involve fluctuating current, these switches are designed to handle high loads and resist electrical arcing during operation. Many modern AC isolators also come with weatherproof enclosures (e.g., IP-rated designs) for outdoor installations, such as rooftop solar inverters or industrial facilities exposed to the elements.

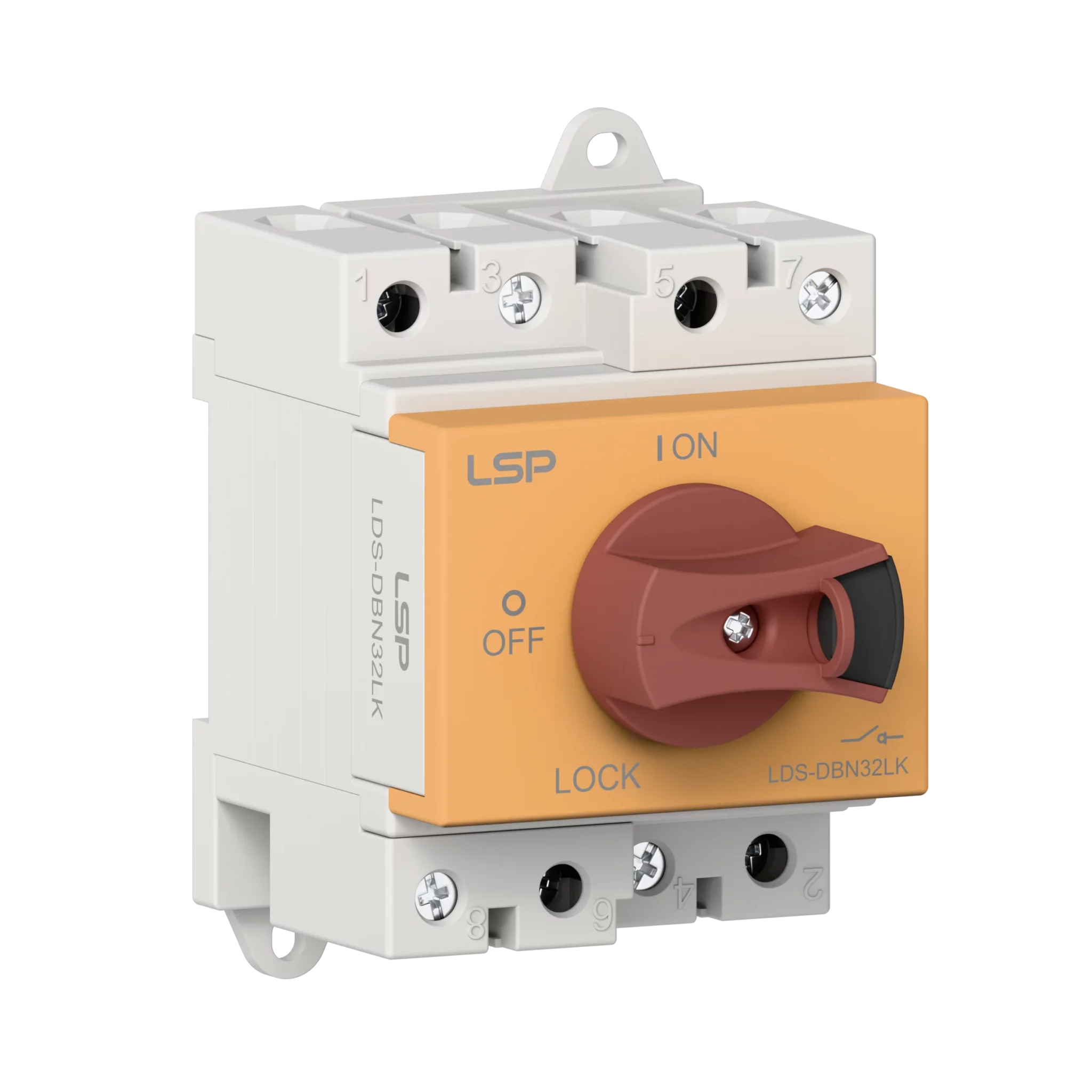

DC (Direct Current) isolator switches, on the other hand, are specifically designed for systems that operate on direct current, where the flow of electricity is unidirectional. These switches are commonly used in specialized applications such as solar photovoltaic (PV) systems, battery storage systems, electric vehicle (EV) charging stations, and telecommunications equipment.
One of the primary challenges in designing DC isolator switches is their ability to handle high-voltage DC circuits. Unlike AC, which passes through zero voltage during each cycle, DC maintains a constant voltage. This makes it harder to extinguish arcs when the circuit is interrupted. To address this, DC isolator switches are equipped with advanced arc suppression mechanisms, such as magnetic blowouts or specially designed contacts, to ensure safe operation.
DC isolator switches are critical in systems like solar PV installations, where they isolate the solar panels from the inverter or other components during maintenance or emergencies. They are also used in EV charging stations to provide a safe disconnection point, ensuring the safety of users and technicians.
Similar to AC isolator switches, DC isolators are available in a range of configurations, including single-pole and multi-pole designs, to suit different system requirements. They are often rated for high-voltage applications, with specialized designs to withstand harsh conditions such as UV exposure, extreme temperatures, or moisture in outdoor solar installations.
While both AC and DC isolator switches serve the same fundamental purpose of isolating circuits, their design and functionality are tailored to the specific characteristics of the electrical systems they serve. Whether in alternating current systems or direct current setups, isolator switches remain indispensable for ensuring safety and operational efficiency.
Although both AC and DC isolator switches serve the fundamental purpose of isolating electrical circuits for safety and maintenance, their designs and operational principles differ significantly due to the unique characteristics of alternating current (AC) and direct current (DC). Below are the key differences between the two:
1. Nature of Current Flow
2. Arc Suppression
3. Voltage Ratings
4. Applications
5. Switch Design
6. Compliance Standards
7. Durability in Harsh Environments
Isolator switches are versatile devices used across a range of applications to ensure the safe and efficient operation of electrical systems. Below, we explore how AC and DC isolator switches serve in different environments and specialized applications.
1. Residential Applications
In residential environments, AC isolator switches are commonly used to isolate power in specific circuits or appliances for maintenance and safety. Examples include:
These switches provide homeowners with a simple and effective way to cut off power and protect both themselves and electrical equipment during repairs or upgrades.
2. Industrial Applications
In industrial settings, AC isolator switches are critical for managing complex and high-power systems, such as:
Industrial-grade AC isolator switches are built to handle high current loads and often feature robust enclosures for harsh environments, including dust or moisture-laden areas.
3. Commercial Applications
In commercial buildings, AC isolator switches are used to manage electrical systems that support operations like:
Commercial AC isolators are designed to integrate seamlessly with building management systems, ensuring safe and efficient operation.
1. Solar PV Systems
DC isolator switches are indispensable in solar photovoltaic (PV) systems, particularly in rooftop and utility-scale solar installations. Their key roles include:
Solar DC isolators are often weatherproof and UV-resistant, as they are typically installed outdoors near the solar panels or inverters.
2. Electric Vehicle (EV) Charging Stations
In the growing EV industry, DC isolator switches are critical for managing the high-voltage DC power used in fast-charging systems. Applications include:
These switches are designed to handle the high currents and voltages associated with DC fast chargers, often featuring arc suppression technology to ensure safe operation.
3. Battery Storage Systems
DC isolator switches are also vital in battery storage applications, including those used in renewable energy systems or backup power setups. Their roles include:
Modern DC isolators for battery systems are built to handle prolonged exposure to high voltages, making them essential for both safety and operational efficiency.
AC and DC isolator switches serve critical roles in diverse applications. Whether it’s ensuring safe maintenance of residential circuits, protecting industrial machinery, managing solar installations, or enabling safe EV charging, these switches remain essential components for reliable and safe electrical systems.

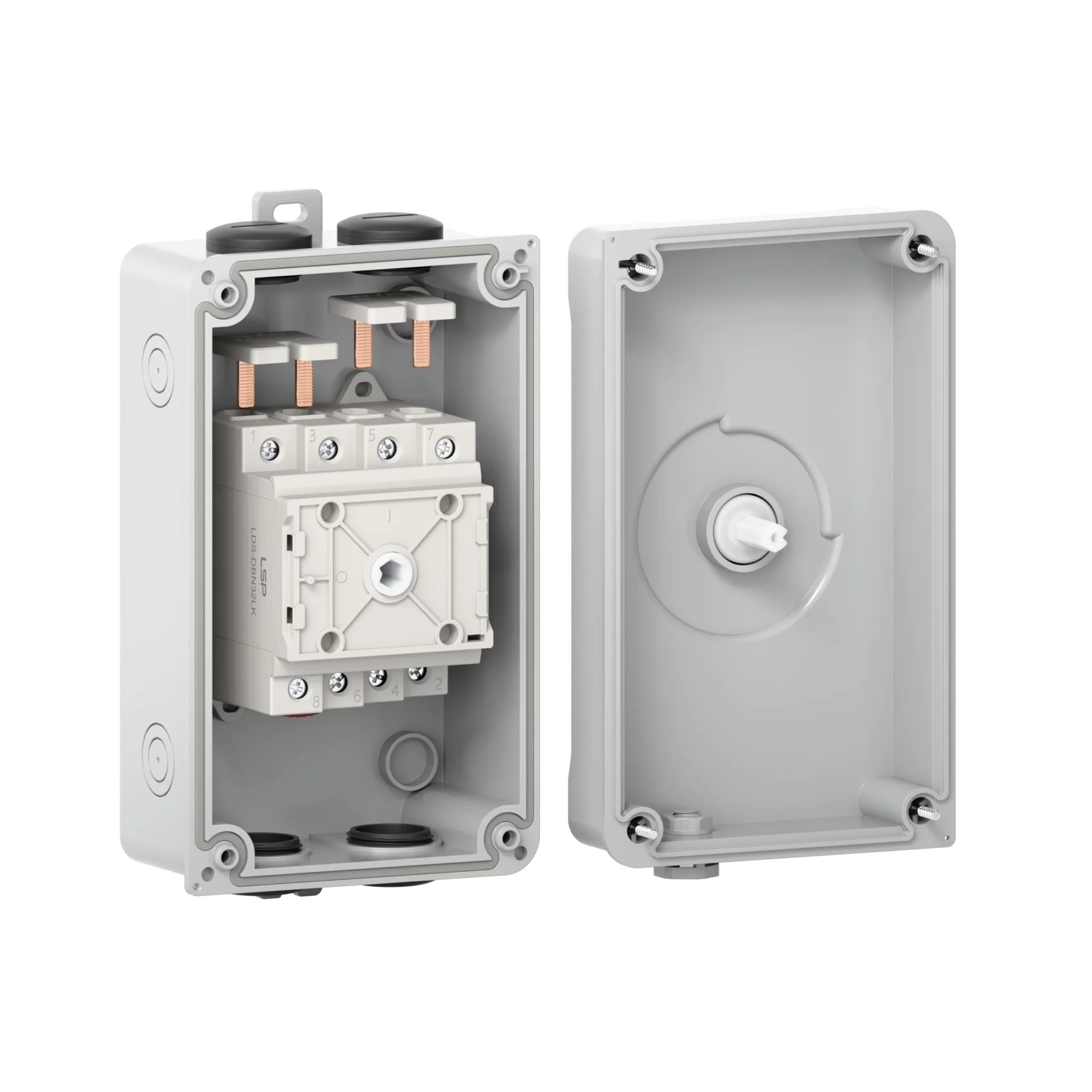

When selecting an isolator switch for a particular application, there are several key features to consider to ensure the switch performs safely, efficiently, and reliably.
The most critical factors include the voltage and current ratings, the number of poles, and the durability of the design (including weatherproofing for outdoor installations). Here’s a closer look at each of these features:
Voltage and current ratings are perhaps the most important specifications when choosing an isolator switch. These ratings determine the maximum electrical load the switch can safely handle without failure.
Proper voltage and current ratings are essential for the switch to operate safely and reliably under normal and fault conditions. Exceeding these ratings can lead to damage, arcing, or even fires.
The number of poles in an isolator switch refers to the number of separate electrical circuits it can isolate simultaneously. The poles of the switch correspond to the number of live conductors it can disconnect, and the more poles it has, the more circuits it can isolate at once.
The number of poles needed will depend on the type of electrical system and the number of circuits or phases that need to be isolated. It’s crucial to ensure that the isolator switch matches the specific system configuration.
For isolator switches used in outdoor or harsh environments, durability and weatherproofing are essential considerations. The IP (Ingress Protection) rating system is commonly used to classify the degree of protection an isolator switch provides against dust, water, and other environmental factors.
When selecting an isolator switch for outdoor or industrial use, it’s important to choose one with a sufficient IP rating to prevent damage from environmental factors and to ensure reliable operation in all conditions.
Selecting the right isolator switch involves considering several critical factors, including voltage and current ratings, the number of poles, and the switch’s durability in different environmental conditions. By carefully evaluating these features, you can ensure that the isolator switch is suited to your specific application, providing both safety and reliability.
Proper installation and wiring of isolator switches are essential for ensuring both safety and the reliable operation of electrical systems.
Whether you’re working with AC or DC circuits, following best practices for installation and wiring will help minimize risks and extend the lifespan of the equipment.
Below are key points for the installation of isolator switches, along with common wiring diagrams for different applications.
1. AC Isolator Switch Installation
2. DC Isolator Switch Installation
1. AC Isolator Wiring Diagram
The most common wiring setup for an AC isolator switch involves isolating a single-phase or three-phase circuit. Below is a simplified diagram for a single-phase AC circuit:
Example: Single-Phase AC Isolator Wiring
[Power Source] –> [Isolator Switch] –> [Load/Appliance]
L (Live) –> L (Live)
N (Neutral) –> N (Neutral)
E (Earth) –> E (Earth)
2. Three-Phase AC Isolator Wiring Diagram
In three-phase circuits, the isolator switch typically has three poles, one for each phase, and a neutral (optional, depending on the system). The following is an example of a wiring diagram for a three-phase system:
Example: Three-Phase AC Isolator Wiring
[Power Source] –> [Isolator Switch] –> [Load/Machine]
L1 –> L1
L2 —> L2
L3 —> L3
N (Neutral) –> N (Neutral)
E (Earth) –> E (Earth)
3. DC Isolator Wiring Diagram
For DC systems, such as solar PV installations, the isolator switch is connected between the DC power source (solar panels or batteries) and the inverter or load. The wiring involves both the positive and negative terminals of the DC circuit:
Example: DC Isolator Wiring for Solar System
[Solar Panels] –> [DC Isolator Switch] –> [Inverter]
+ (Positive) –> + (Positive)
– (Negative) –> – (Negative)
In large-scale battery systems, the DC isolator switch is placed between the battery bank and the inverter, ensuring a safe and efficient disconnection during servicing or emergencies.
Proper installation and wiring of isolator switches are crucial for ensuring the safety, efficiency, and compliance of electrical systems. Whether you’re working with AC or DC circuits, adhering to best practices in installation, and following correct wiring diagrams will prevent operational issues and ensure safe maintenance. Always ensure that isolator switches are correctly rated and installed in accordance with local electrical codes and safety standards.

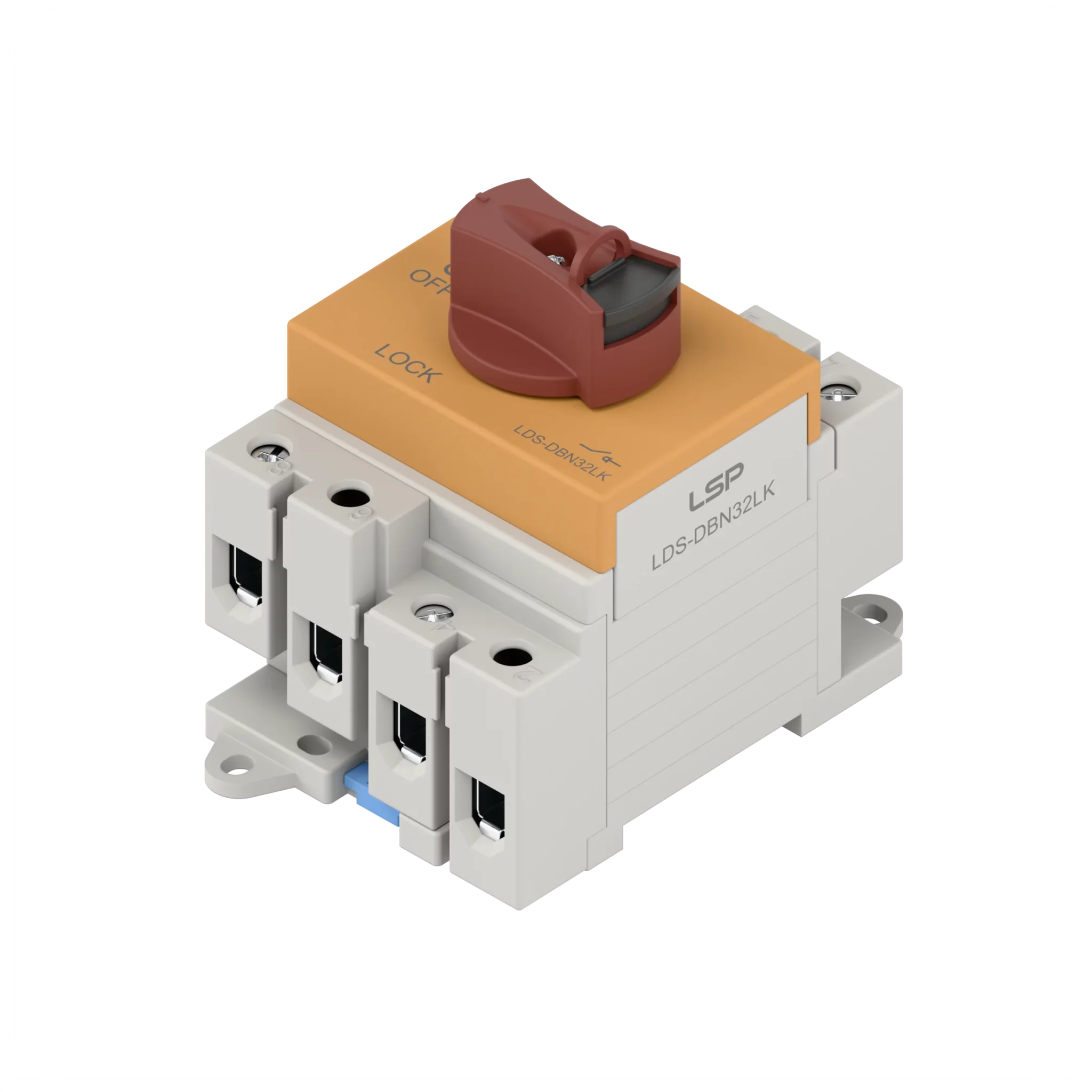

When working with isolator switches, safety is the top priority. These switches are crucial for protecting both personnel and equipment during maintenance, repair, and fault conditions.
Below are key safety guidelines to ensure proper isolation and compliance with industry standards.
Proper isolation of electrical circuits is critical to prevent accidents, electrocution, and equipment damage. The following guidelines should always be followed to ensure that circuits are safely isolated during maintenance:
Ensuring that isolator switches meet relevant regulations and compliance standards is critical for the safety and performance of electrical systems.
Different regions and applications require adherence to specific standards to guarantee that isolator switches are fit for use in various environments.
When installing and using isolator switches, adhering to safety guidelines and regulatory standards is essential to ensure both the protection of personnel and the reliability of the electrical system.
Proper isolation, lockout/tagout procedures, and the use of the right personal protective equipment (PPE) are essential for safe maintenance.
Furthermore, compliance with recognized standards, such as IEC and UL, guarantees that isolator switches are designed and tested to handle electrical loads safely and efficiently, while also meeting the environmental and safety requirements of the application.

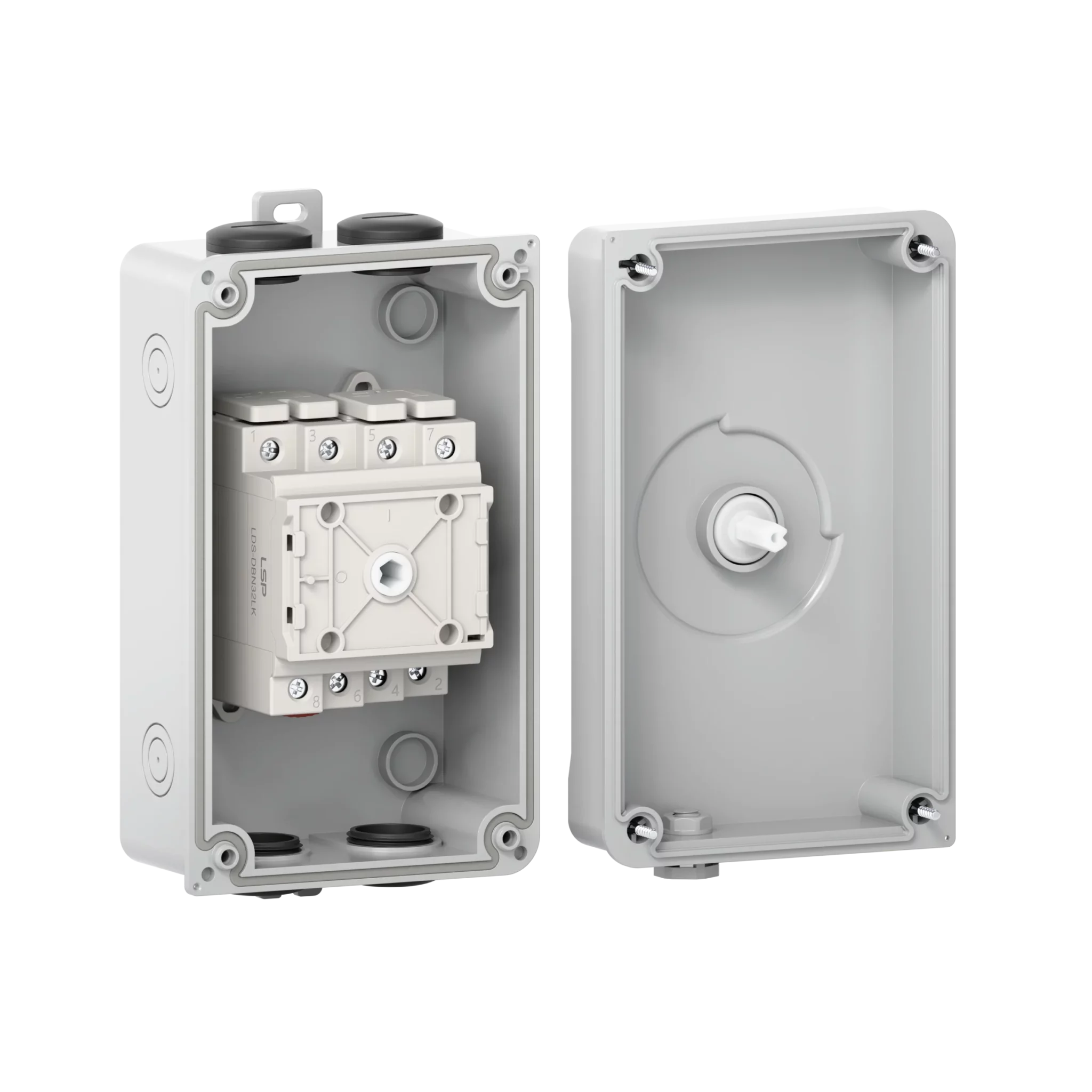

Isolator switches are vital components in modern electrical systems, offering numerous advantages in terms of safety, reliability, and efficiency. Below are some of the key benefits of using isolator switches in both residential and industrial applications:
One of the primary advantages of isolator switches is their ability to enhance safety for both personnel and equipment. These switches are designed to completely disconnect a circuit from the power supply, making them essential for safe operation during maintenance, repairs, and emergency situations.
Another significant advantage of isolator switches is their ability to reduce downtime during servicing and maintenance activities.
By allowing electrical circuits to be safely isolated without the need for complex procedures or shutdowns, isolator switches help keep systems operational and reduce the time required for repairs.
Isolator switches are essential tools in ensuring the safe and efficient operation of electrical systems. Their primary advantages include enhanced safety by providing reliable isolation during maintenance and repairs, as well as reducing downtime by enabling quick, controlled disconnection of electrical circuits.
Whether used in residential, commercial, or industrial applications, isolator switches play a crucial role in safeguarding both personnel and equipment while maintaining operational continuity.
Choosing the right isolator switch for a specific application is crucial for ensuring the safety, reliability, and efficiency of electrical systems. Whether you are working with AC or DC circuits, residential or industrial settings, the isolator switch serves as a critical safety device that protects both personnel and equipment during maintenance, repair, or emergency situations.
The importance of selecting an isolator switch with the correct voltage and current ratings, the appropriate number of poles, and the necessary durability for environmental conditions cannot be overstated. A poorly chosen switch can lead to hazards such as electrical shock, fires, or system failures. By understanding the specific needs of the electrical system, whether it’s for solar energy systems, industrial machinery, or residential appliances, you can select a switch that ensures proper isolation, minimizes risks, and complies with industry standards.
Additionally, isolator switches offer practical benefits such as reducing downtime during servicing and increasing the overall efficiency of maintenance operations. They allow workers to quickly and safely disconnect power, which not only improves productivity but also ensures that any repairs or inspections can be carried out with confidence.
In summary, the right isolator switch enhances operational safety, protects valuable equipment, and contributes to the longevity of electrical systems. Proper selection and installation of these switches should always be a top priority to maintain the safe and smooth functioning of electrical networks in various applications.
