Created by: Glen Zhu | Updated Date: April 16th, 2025
Power surges can harm electrical systems. These surges come from lightning, switching, or grid problems. Without protection, devices and appliances can get damaged forever. Type 2 Surge Protection Devices (SPDs) help stop this damage. They protect your system from dangerous voltage spikes.
Power surges happen more often than you think. Studies show that modern systems face temporary high voltages often. For example, Mansoor and Martzloff (1998) studied how grounding affects surge protection. Their research proved Type 2 SPDs work well to reduce risks. In 1999, they also found that using more SPDs lowers the chance of equipment breaking during surges.
Type 1 SPDs handle direct lightning strikes. But Type 2 SPDs protect circuits and devices further down the line. They stop surges before they reach your appliances. This makes them very useful for homes, offices, and factories.
Adding a Type 2 SPD protects your electrical system. It saves money on repairs and helps your devices last longer. Since surges are more common now, having good surge protection isn’t just a choice—it’s a must.
A Type 2 surge protection device (SPD) is very important. It keeps your appliances and circuits safe from sudden voltage spikes. These spikes can happen because of lightning or power grid issues. Unlike Type 1 SPDs, which are placed at the main board to handle direct lightning, Type 2 SPDs are installed further down. They are set up at sub-distribution boards to protect sensitive devices like computers, solar inverters, and home appliances.
These SPDs can handle surges between 20kA and 40kA. This makes them strong enough to stop high-energy voltage spikes. By blocking these surges, they prevent damage, overheating, or even fires. This is why they are a must-have for homes, offices, and factories.
| Type of SPD | Where It Is Installed |
|---|---|
| Type 1 SPD | At the main board, where power enters |
| Type 2 SPD | At sub-distribution boards |
| Type 3 SPD | Near the device being protected, as extra safety |
A Type 2 SPD has several parts that work together to protect your system. These include:

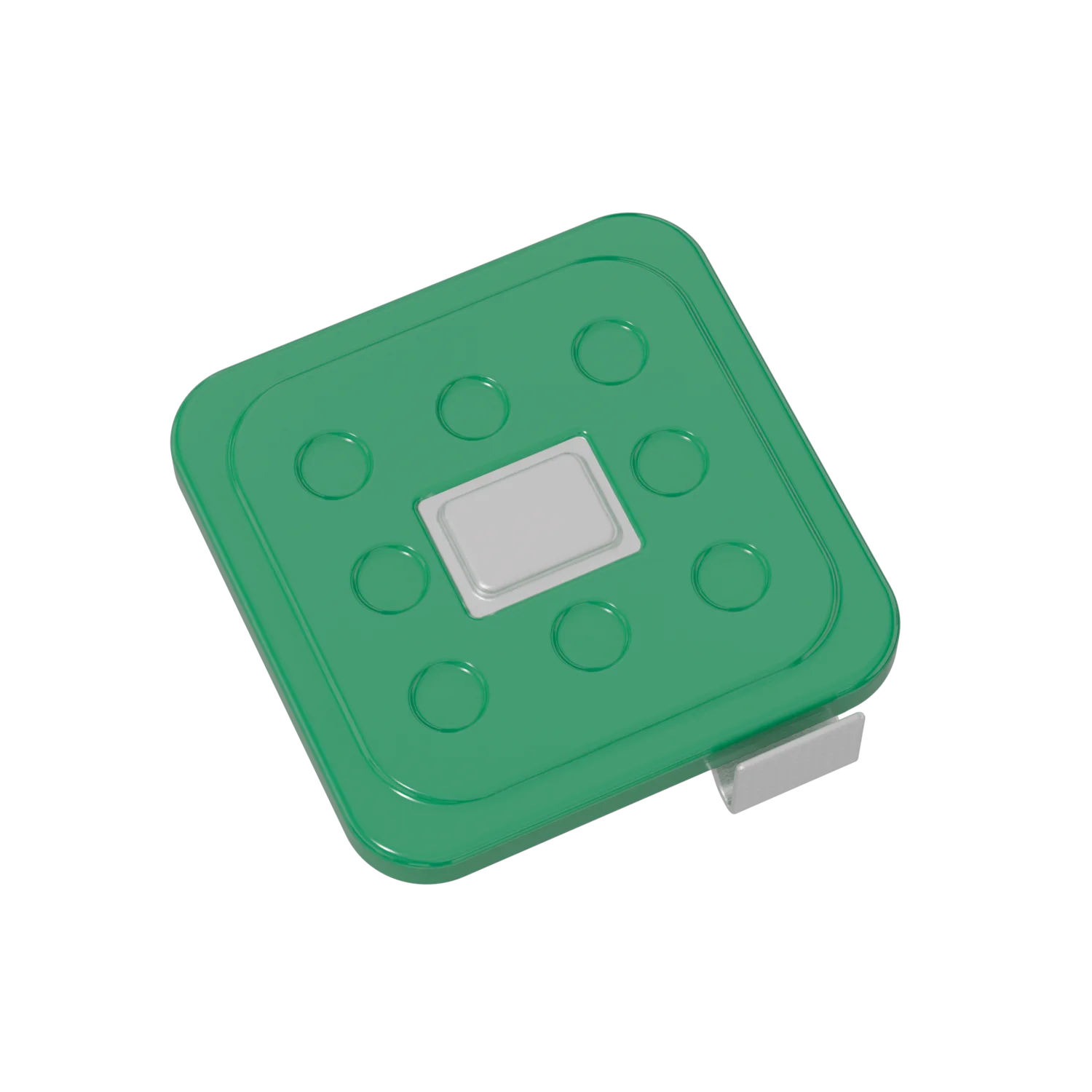

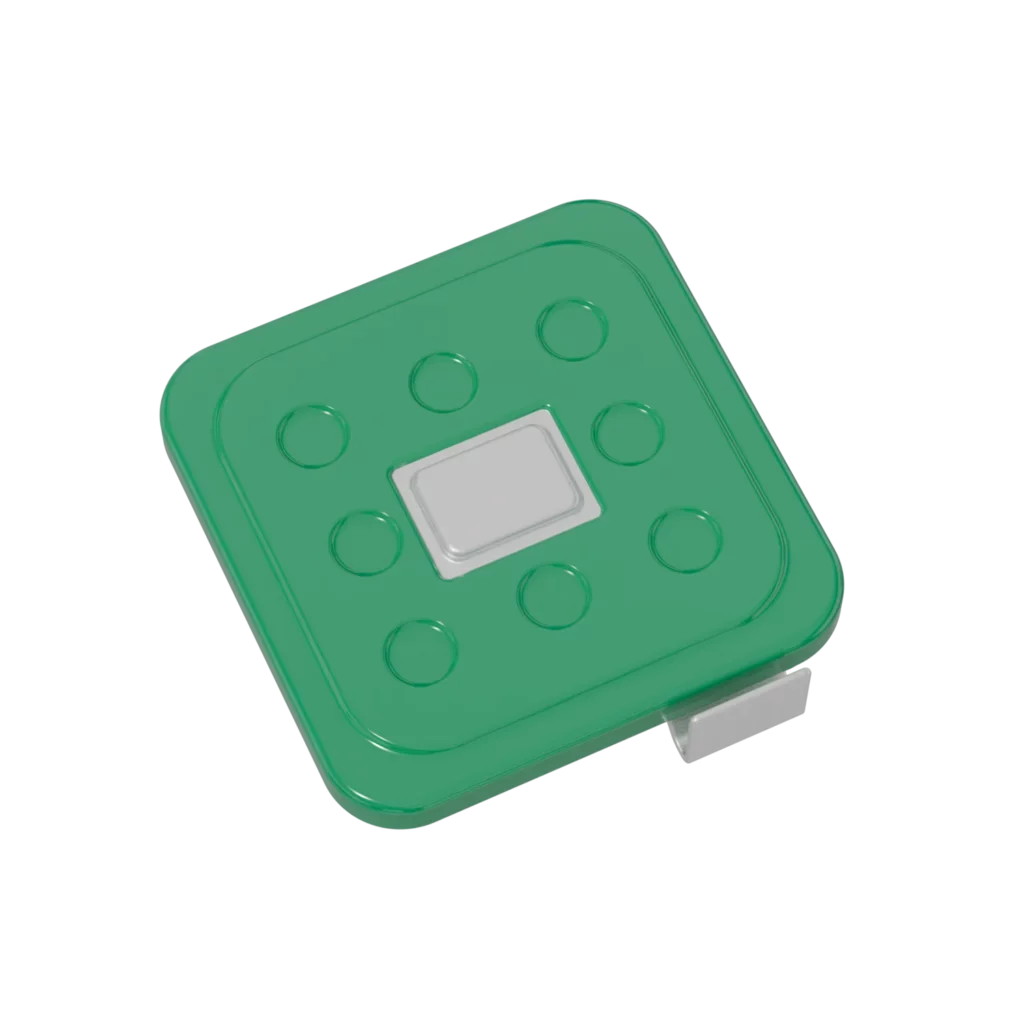

Metal Oxide Varistors (MOVs)
Gas Discharge Tubes (GDTs)
| Component Type | Examples |
|---|---|
| Voltage Limiting Parts | Metal Oxide Varistors (MOVs), TVS Diodes |
| Voltage Switching Parts | Gas Discharge Tubes (GDTs), Spark Gaps |
These parts are tested using standards like UL 1449 and IEC 61643. These tests make sure the SPD can handle surges safely. For example, the Maximum Discharge Current (Imax) shows how much energy the SPD can take without breaking.
A Type 2 SPD works by stopping extra voltage from harming your system. When a surge happens, the SPD notices the sudden rise in voltage. Its parts, like MOVs or GDTs, quickly lower the voltage to a safe level. This stops the surge from damaging your devices.
For example, if lightning strikes near your house, the surge travels through the wires. The Type 2 SPD, placed at the sub-distribution board, catches the surge. It absorbs the extra energy and sends it safely to the ground. This happens in just milliseconds, keeping your devices safe.
Adding a Type 2 SPD makes your home or workplace safer. It protects your family and prevents expensive repairs. It also helps your appliances last longer.
Type 1 SPDs and Type 2 SPDs protect electrical systems differently. Type 1 SPDs act as the first defense. They are installed at the main entrance of power. These devices stop strong surges like direct lightning strikes. Type 2 SPDs are placed at sub-boards. They handle smaller surges from switching or indirect lightning.
The UL 1449 standard shows how these types differ. Here’s a comparison:
| Type SPD | Current Test Level | Short-circuit Current | Limiting Current |
|---|---|---|---|
| Type 1, 1CA, 2, 2CA | Min. 5 kA, Max. 200 kA | 1000 A, 500 & 100 A | 10, 5, 25 & 0.5 A |
| Type 3, 3CA | N/A | 5000*, 3500*, 2000*, 1000* | 5, 2.5, 0.5, 0.125 A |
| Type 4 CA | N/A | N/A | 10, 5, 2.5, 0.5 A |
Type 1 SPDs handle bigger surges, making them good for lightning-prone areas.
Type 2 SPDs protect sensitive devices further down the system. Both are important but serve different needs.
Tip: Look for UL 1449 certification when buying an SPD. It ensures safety and good performance.
Choosing between Type 1 SPDs and Type 2 SPDs depends on where protection is needed. Type 1 SPDs work best in places with direct lightning strikes. For example, factories or buildings with lightning rods use them. Type 2 SPDs are better for homes and offices. They protect devices from smaller surges caused by switching or indirect lightning.
Using surge protection at multiple points gives the best safety. For example:
By knowing these scenarios, you can pick Type 1 SPDs, Type 2 SPDs, or both. This layered setup keeps your system safe.
Note: Homes usually need Type 2 SPDs. In lightning-heavy areas, use both Type 1 SPDs and Type 2 SPDs for better safety.
Picking between Type 1 and Type 2 SPDs depends on your needs. Each type protects electrical systems differently. Knowing their roles helps you choose the right one.
Type 1 SPDs give strong protection. They are placed at the main panel where power enters. These devices stop big surges like direct lightning strikes. If your area has lots of lightning or your building has a lightning rod, you need Type 1 SPDs. They block large surges before they harm your system.
Type 2 SPDs are installed at sub-panels. They guard sensitive devices like TVs, computers, and appliances. Smaller surges from switching or indirect lightning are handled by them. If you want to protect electronics and make them last longer, choose Type 2 SPDs. They add a second layer of safety, keeping voltage spikes away from your devices.
Think about your location and setup to decide. Homes in areas with little lightning may only need Type 2 SPDs. But in stormy regions, using both Type 1 and Type 2 SPDs is best. This layered protection stops both big and small surges.
Always check for UL 1449 or IEC 61643 certifications when buying SPDs. These standards ensure safety and good performance. Ask an electrician to inspect your system and suggest the right SPD.
By learning about Type 1 and Type 2 SPDs, you can pick wisely. Protecting your system starts with the right choice.
Setting up a Type 2 surge protector is simple but needs care. It must be done correctly to keep your system safe. By following the steps, you can protect your devices from damage.
Here’s a simple example of how a Type 2 SPD is wired:
Type 2 Surge Protection Device SLP40-275/2S Wiring Diagram & Installation
If you want to know more details, please click on: https://lsp.global/surge-protection-device-wiring-diagram/
This shows how the protector connects to phase, neutral, and ground wires. Always follow the wiring diagram that comes with your device for exact details.
Installing a Type 2 surge protection device keeps your home or office safe from voltage spikes. This small device helps your appliances last longer and avoids costly repairs.
Tip: If you’re unsure about any step, ask a licensed electrician for help. Safety is the most important thing.
For LSP, all details of every surge protection device (SPD) we manufacture are centered around reliability and safety. SPDs produced by us incorporate high-quality LKD MOVs and Vactech GDTs which together provide unparalleled protection from lightning strikes and other electrical surges. We undertake rigorous testing such as 8/20 and 10/350 waveform tests which guarantee the long term stable operational performance of your equipment. We have tailored our products to provide sufficient protection for residential as well as commercial installations.
Type 2 Surge Protection Device SLP40-275/3S+1
Main Features:
Specification
| Nominal voltage Un | 230V |
| Max. continuous operating voltage Uc | 275V |
| Type | Type 2 / Class II / Class C |
| Nominal discharge current (8/20 μs) In | 20kA @ Type 2 |
| Maximum discharge current (8/20 μs) Imax | 50kA @ Type 2 |
| Voltage protection level (L-N) / (N-PE) Up | 1.5KV / 1.5KV |
| Protective elements | Metal Oxide Varistor (MOV) and Gas Discharge Tube (GDT) |
Type 2 Surge Protection Device SLP40-275/1S
Main Features:
Specification
| Nominal voltage Un | 230V |
| Max. continuous operating voltage Uc | 275V |
| Type | Type 2 / Class II / Class C |
| Nominal discharge current (8/20 μs) In | 20kA @ Type 2 |
| Maximum discharge current (8/20 μs) Imax | 50kA @ Type 2 |
| Voltage protection level (L-N) / (N-PE) Up | 1.5KV / 1.5KV |
| Protective elements | Metal Oxide Varistor (MOV) |
Yes, you need one. A Type 2 surge protection device keeps your electrical system safe from voltage spikes. It protects devices like TVs, computers, and refrigerators from damage. Surges can happen due to indirect lightning or power grid problems. Without this device, your appliances might overheat, stop working, or even catch fire.
The 2020 National Electrical Code (NEC) highlights surge protection’s importance. It requires Type 1 or Type 2 SPDs in all new or updated homes. This includes houses, apartments, and condos. Following this rule makes your home safer and avoids expensive repairs.
Tip: If you’re upgrading your system or moving, ask an electrician to install a Type 2 SPD. It’s a smart investment for long-term safety.
The amp rating of a Type 2 SPD depends on its design. These devices are made to handle different current and voltage levels. Below are common specifications:
| Specification | Value |
|---|---|
| Max. Continuous Operating Voltage Uc | 275, 320, 385, 420 VAC |
| Nominal Discharge Current (8/20 µs) In | 15kA, 20kA |
| Max. Discharge Current (8/20 µs) Imax | 20kA, 30kA, 40kA |
These numbers show how much current the SPD can handle during surges. For example, a device rated at 20kA can manage surges of that size safely. Always check the specs to match the SPD with your system.
Note: Pick an SPD with a fuse or breaker that fits your system. This ensures it works safely and efficiently.
To decide how much surge protection you need, think about your devices and their sensitivity to voltage changes. Items like computers or medical tools need stronger protection. Here’s how to choose:
Layered surge protection stops big surges at the main panel and smaller ones at other points. This method keeps your devices safe and helps them last longer.
Tip: Ask an electrician to check your system and suggest the right SPDs. Proper setup and layering are key for good protection.
Placing a Type 2 Surge Protection Device (SPD) in the right spot keeps your system safe from voltage spikes. These devices work best when installed in key areas of your electrical setup. Put them at sub-distribution boards or near sensitive devices for better protection.
Best Places to Install
Type 2 SPDs are usually placed near service equipment or close to it. This helps stop surges before they harm your appliances. For instance, install them at sub-panels in homes or offices. These spots are great for protecting items like TVs, computers, and refrigerators from smaller surges caused by switching or indirect lightning.
If your system uses DC power or Ethernet cables, add SPDs at both ends of these cables. This prevents surges from damaging connected devices. Also, protect your main AC power source. Installing SPDs here shields the whole system from voltage spikes.
Keeping your home or workplace safe from power surges is important. A Type 2 surge protector helps stop sudden voltage spikes. It protects your electrical system and keeps your devices safe. Using one can save you money on repairs and make your equipment last longer.
Surge protectors do more than just protect devices. They give you peace of mind by guarding against unexpected surges. Surges from indirect lightning or switching can cause big damage. A whole-house surge protector covers your entire system, offering full protection.
The right surge protector depends on what you need. Type 2 SPDs are great for homes and offices. They protect sensitive items like TVs, computers, and fridges. These devices send extra voltage safely to the ground, stopping harm before it happens. This makes them a key part of modern electrical systems.
When choosing a surge protector, check its specs and safety labels. Look for certifications like UL 1449 or IEC 61643. These ensure the protector works well and is safe to use. Also, think about using layered protection. Combining Type 1 and Type 2 SPDs gives the best defense against all types of surges.
Adding a Type 2 SPD is a smart choice. It protects your devices and saves money over time. Surges can happen anytime and cause costly damage. Installing a surge protector is a simple way to keep your home or business safe.
