You can find five hidden features in a 1500v dc surge protector. These features help solar PV and high-voltage DC systems work better:
Advanced thermal disconnection
Remote signaling feature
Replaceable cartridge
High energy handling
Visual status indicators
These features give you stronger protection from surge events. A dc surge protector checks voltage and moves extra energy away. This keeps your equipment safe and working. Picking the right features helps you protect your system. It also makes your system more reliable and helps your equipment last longer.
1. Advanced Thermal Disconnection
Thermal Mechanism
Internal Sensing
A dc surge protector with advanced thermal disconnection gives strong protection from voltage spikes. The inside sensing system checks for quick temperature changes in the device. When a voltage surge happens, the dc surge protector acts fast. It finds overheating before it can hurt anything. This quick action keeps your solar PV system safe.
The thermal mechanism in a 1500v dc surge protector works much faster than old types. You can see the difference in the table below:
Feature | Surge Protective Devices (SPDs) | Lightning Arresters (LAs) |
|---|---|---|
Protection Voltage | Much lower | Higher |
Response Speed | Exceptionally faster | Slower |
Design Focus | Precision clamping | Energy absorption |
Component Optimization | Smaller MOVs with better clamping | Larger components for energy |
Additional Components | Gas Discharge Tubes (GDTs) | Not typically used |
This table shows that surge protection devices like dc surge protectors react to voltage spikes much faster. Your equipment gets better protection.
Circuit Isolation
If the inside sensing finds overheating, the dc surge protector uses circuit isolation to cut off the bad part. This stops electricity from going through broken parts. You stop more damage and keep your system working. Circuit isolation is a main feature that makes advanced dc surge protection device designs special.
Tip: Advanced thermal disconnection lowers risks from electrical arcs and sudden high voltages. Smart designs control how fast the current stops, making sure arcs go out safely. Controlled Magnetic Blow-Out stretches the arc slowly, so the current does not stop too fast. Arc Chute Geometry helps cool the arc and change the voltage, making the current slow down safely.
Safety Benefits
Overheating Prevention
A dc surge protector with advanced thermal disconnection keeps your solar PV system from getting too hot. The device reacts to voltage spikes and stops heat from building up. This stops thermal runaway, which can make hot spots and melting inside the device. You avoid problems like long-lasting arcing and gate damage.
Here is a table showing common ways parts can fail and how advanced features help:
Component | Common Failure Mode | Description |
|---|---|---|
MOV | Thermal runaway | Hot spots lead to melting and holes after many surges. |
GDT | Sustained arcing | Arcing wears down electrodes, causing a short circuit. |

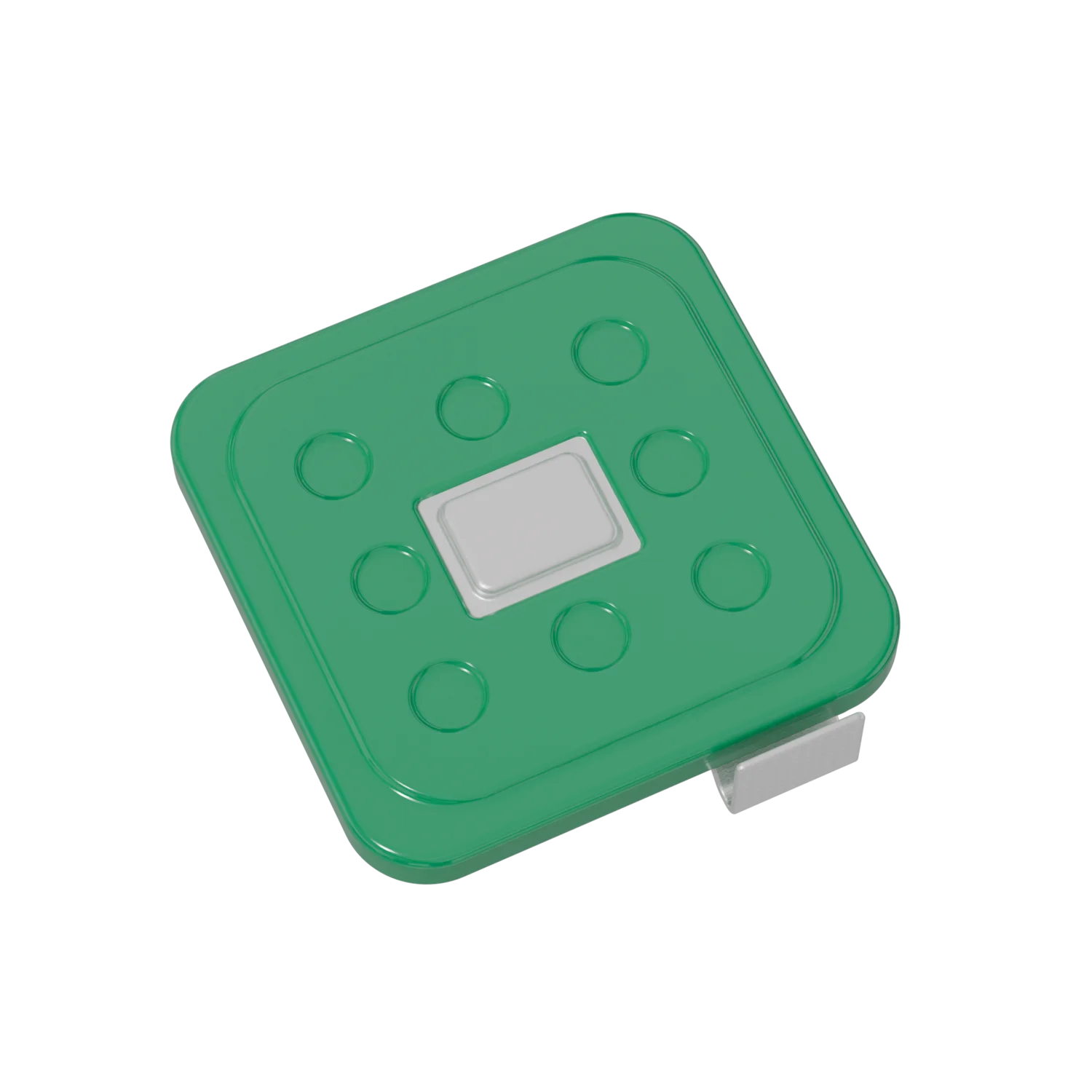

MOV
GDT
Fire Risk Reduction
Advanced thermal disconnection lowers the chance of fire. The dc surge protector cuts off hot parts before they can catch fire. You feel safer knowing your system has strong protection from voltage surges. This feature is very important for solar PV and high-voltage DC systems, where safety is key.
Advanced thermal disconnection helps you:
Stop electrical arcs from starting fires.
Control how fast the current stops for safe use.
Keep your equipment safe during big surges.
You can count on a dc surge protector with advanced thermal disconnection to give you good protection and help your equipment last longer.

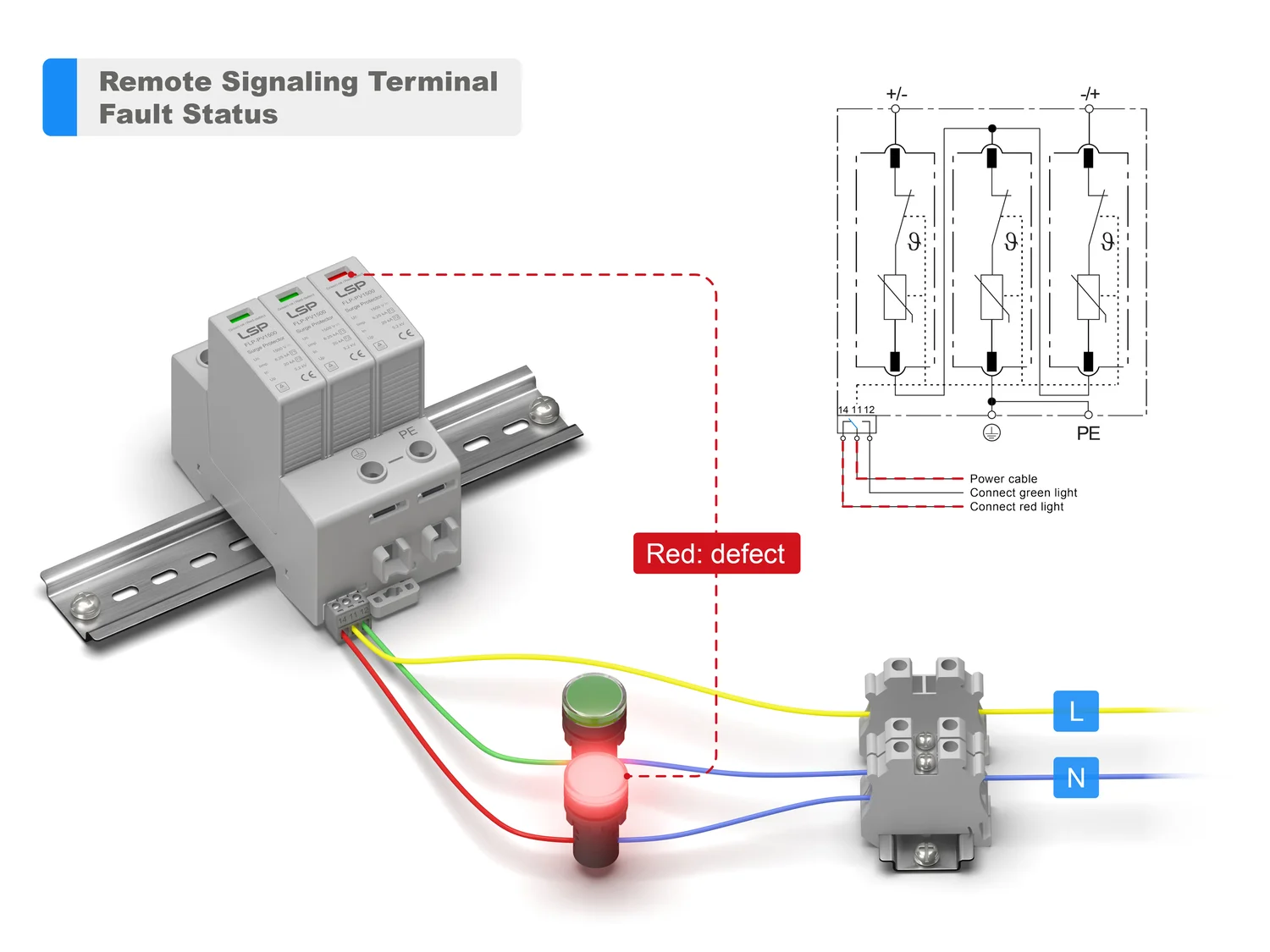

2. Remote Signaling Feature
DC Surge Protector Monitoring
System Integration
You can link a dc surge protector with remote signaling to your control system. This feature lets you check the device’s status right away. You get alerts when the main part of the 1500v dc surge protector is almost worn out. You do not have to look at the device in person. The system sends you warnings and shows a visual sign for its status. This helps you keep your solar PV system safe from voltage spikes.
The DEHNrecord Alert is a good example. It sends updates using Modbus TCP or RTU. You can use these updates to watch your dc surge protector and plan repairs. You do not have to guess when to change a device. The system tells you when you need to act.
Here is a table that shows how remote signaling with control systems makes things more reliable:
Feature | Benefit |
|---|---|
Real-time monitoring | Gives quick info about surge protection device performance, so you have fewer surprises. |
Proactive insights | Helps you do repairs on time, making your system work better. |
Efficient maintenance | Cuts down on downtime by letting you plan repairs from far away. |
Status Alerts
You get alerts from your dc surge protector. These alerts tell you if the device is working or needs help. You can see the alerts on your control panel or get them through your monitoring system. This helps you act fast when there are voltage spikes. You do not have to wait for something to break. You can fix things before your equipment gets hurt.
Tip: Watching your system closely lowers the chance of surprise problems. Real-time info about dc surge protector performance helps you keep your system working well. Good repair planning means less downtime.
Maintenance Advantages
Quick Fault Response
Remote signaling helps you fix problems fast. When your dc surge protector finds a problem, it sends a signal right away. You know which device needs help. You can fix it before it gets worse. This fast action helps protect your solar PV system from voltage spikes.
Here is a table showing maintenance advantages:
Feature | Advantage |
|---|---|
Thermal Disconnect | Shows when there is a problem |
Remote Status Signaling | Lets you check device status from far away |
Maintenance Planning
You can use remote signaling to plan repairs for your dc surge protector. The system collects data while it works. You get alerts about possible problems. This helps you plan repairs before something breaks. You do not have to wait for a breakdown. You can keep your system running well.
Watching wires and insulation all the time helps you do less repair work.
Getting real-time data during normal use warns you about problems, which helps with predictive maintenance.
Using IoT and machine learning lets you keep checking and studying data, making predictive maintenance easier.
You can use a dc surge protection device with remote signaling to help with predictive maintenance. The system checks how things are working and looks at data from important parts. This helps you stop failures and keep your equipment safe from surge events and voltage spikes.

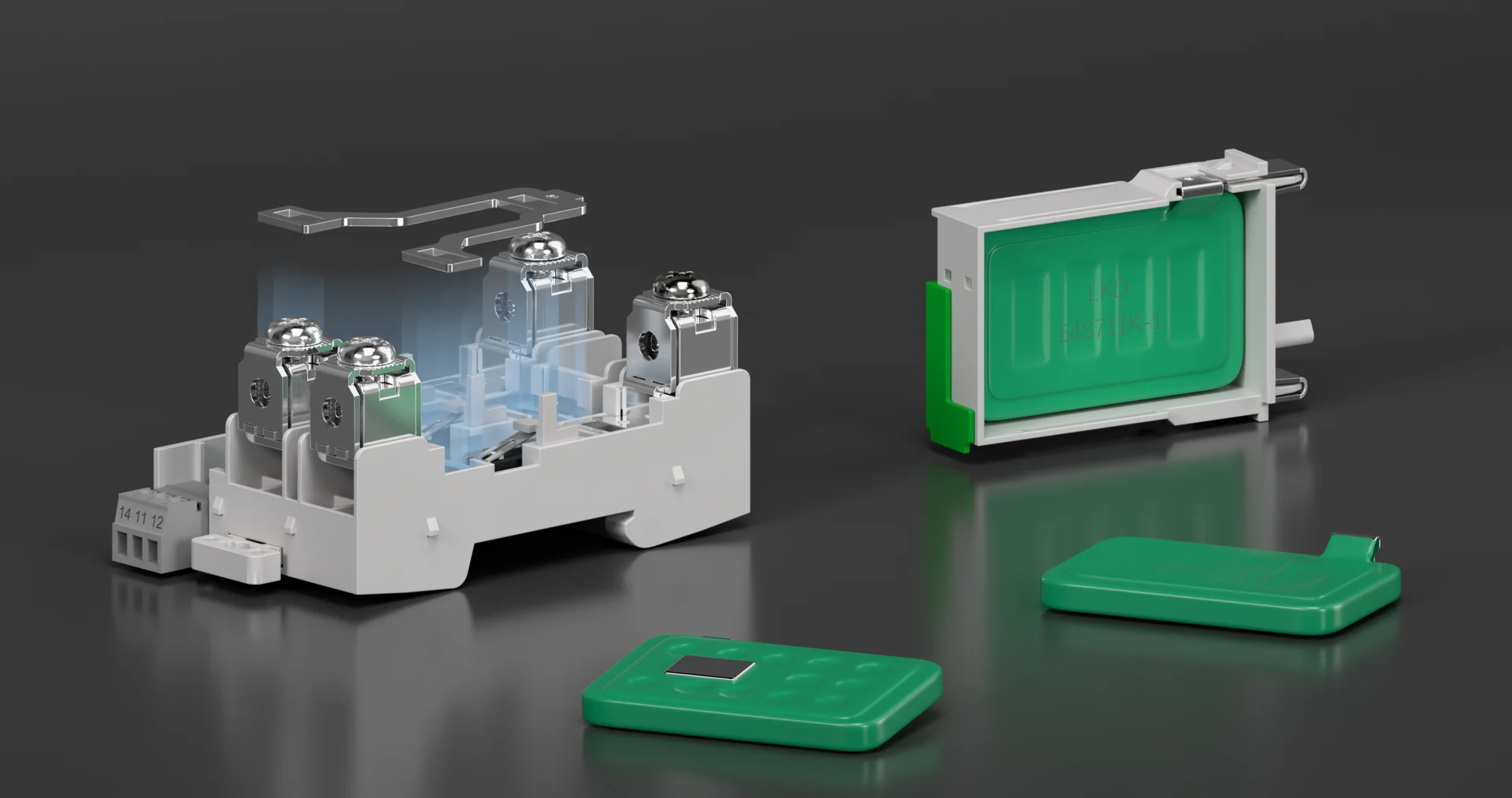

3. Replaceable Cartridge
Key Features
Easy Replacement
Many dc surge protector models have a replaceable cartridge. This design lets you change old or broken modules fast. You do not need any tools. You do not have to take out the whole unit. You do not need to turn off your system. You just pull out the old cartridge. You slide in a new one. This saves you time. It keeps your equipment safe from voltage spikes.
Replaceable cartridges are different from non-replaceable surge protection devices. You get an easy way to take care of your dc surge protector. The table below shows the main differences:
Feature | Replaceable Cartridges | Non-replaceable Designs |
|---|---|---|
Modular Design | Yes, allows for easy replacement of filters | No, entire unit must be replaced |
Cost Structure | Potentially lower long-term costs | Higher costs due to complete replacement |
Quality Assurance | Requires testing of both components and integration | Generally less rigorous testing |
Sourcing Considerations | Involves dual supply chains and interface compatibility | Simpler sourcing process |
Downtime Reduction
You can change a cartridge very quickly. You do not need to turn off the whole panel. You do not need to flip the main breakers. If a module has a problem, you only change that part. This keeps your system working. It lowers downtime. Your solar PV system stays safe from surge events and voltage spikes with less trouble.
Tip: Fast cartridge changes mean you fix problems faster. Your system keeps working. You do not lose money from shutdowns.
User Benefits
Cost Savings
A dc surge protector with replaceable cartridges helps you save money. You do not need to buy a whole new unit if one part breaks. You only change the broken module. This lowers your costs over time. It helps you manage your budget.
Here is a table that shows how you save money:
Cost Factor | Description |
|---|---|
Lifespan indicators | Modules with replaceable cartridges reduce long-term costs. |
Energy efficiency ratings | Low let-through voltage reduces downstream damage costs. |
Extended Lifespan
A replaceable cartridge design helps your dc surge protector last longer. You keep your protection strong by changing worn modules. You do not need to replace the whole dc surge protection device. This makes maintenance easy. It helps your system work for more years.
You only change the broken module.
You do not need to turn off the whole system.
You keep your protection working well.
You make repairs simple and fast.
You get strong surge protection for your solar PV system. Your equipment stays safe from voltage spikes and surge events. You save money and time with easy maintenance.
4. High Energy Handling
If you pick a dc surge protector, check its high energy handling. This helps your equipment survive strong surges. It keeps your system working well.
Surge Protection Features
Absorption Ratings
A dc surge protector with high absorption ratings takes in lots of surge energy. You want a device that can handle many voltage spikes. It should not break down easily. Many surge protectors use gas discharge tubes for extra safety. Gas discharge tubes make a path for extra voltage to leave. They can handle lots of surges and still work. This means your dc surge protector stays strong. It keeps your system safe.
Handles big surges many times with little damage
Keeps your devices safe and working for a long time
Gas discharge tubes add more protection during voltage spikes
Extreme Event Defense
Your dc surge protector should defend against big electrical events. The best ones use many features for full protection. Here is a table that shows what to look for:
Feature | Description |
|---|---|
Combines direct and indirect surge protection for full coverage. | |
8/20 µs Waveform | Shows the device can handle high-energy surges. |
Low Voltage Protection Level (Up) | Keeps the voltage low enough to protect your equipment. |
Nominal Discharge Current (In) | Higher values mean better surge diversion. |
Maximum Discharge Current (Imax) | Tells you the biggest surge the device can handle. |
Remote Signaling Terminals | Makes it easy to check and replace the device when needed. |
System Reliability
Large-Scale Support
High energy handling is very important for big solar PV and industrial systems. You need to size your system for peak loads. Good energy handling helps match power use and production. Many big systems use battery storage to help with energy. In solar PV setups, combiners and inverters need low voltage power. These parts get power from the 1500 Vdc line. The voltage can change a lot. Your dc surge protector must work with these changes. It keeps everything safe.
Helps with peak loads in factories and plants
Supports battery storage and energy management
Works with wide voltage ranges in solar PV systems
Consistent Performance
You want your dc surge protector to work well all the time. It should work even in tough conditions. Devices with high energy handling keep your system running. Here is a table that shows features for reliable performance:
Feature | Description |
|---|---|
Power Conversion Efficiency | Gives you steady power in large installations. |
MPPT Channels | Lets your system work well with different solar designs. |
Robust Structure | Keeps working in bad weather or tough places. |
Advanced Cooling Systems | Stops overheating and keeps the device reliable. |
A 1500v dc surge protector with high energy handling gives strong protection. It keeps your equipment safe from surges and voltage spikes. You get a surge protector that lasts longer. This feature is important for anyone who wants a reliable solar PV or industrial system.
5. Visual Status Indicators
Visual status indicators let you check your surge protection devices fast. You do not need any special tools or training. You can see the device’s health right away. This feature makes maintenance easier and quicker.
Key Features
LED Lights
Many dc surge protector models have LED lights for status. A green light means the device works fine. A red light means you should replace the unit. These lights give you instant feedback. You do not have to guess if your protection is working. LED lights help you find problems before voltage spikes hurt your system.
Mechanical Windows
Some surge protection devices have mechanical windows. You look through the window to check the device’s condition. The window shows a clear sign if the surge protector needs help. You do not need to open the panel or touch wires. Mechanical windows make inspections safe and easy.
Here is a table that lists common visual status indicators and what they do:
Indicator Type | Description |
|---|---|
Visual Status Windows | Shows if the surge protector is working or not. |
Remote Alarm Contacts | Lets you get alerts and check status from far away. |
User Experience
Quick Checks
You can check your surge protection devices in seconds. Each unit has a clear status window. A green light means everything is normal. A red light means you need to replace the device. This simple system helps you keep your protection strong. You do not waste time looking for problems.
You finish inspections faster than with manual checks.
You avoid missing problems that could cause surge damage.
You save money by finding issues early.
Diagnostic Speed
Visual status indicators help you find problems quickly. You spot issues before they get worse. You do not have to wait for equipment to break. Fast checks help you plan repairs and keep your system safe from voltage spikes.
Computer vision checks finish tasks much faster than manual checks.
Predictive maintenance systems lower surprise failures by a lot.
One solar owner saved over $380,000 in a year by using visual checks.
Tip: Use visual status indicators to keep your surge protection devices working well. Quick checks and fast problem finding help you avoid costly downtime and keep your equipment safe from surge events.
You get strong protection and easy maintenance with visual status indicators. You keep your solar PV system safe and reliable.
Comparison Table of Key Features
Feature Overview
It is important to pick the right surge protection devices for your solar PV system. Each feature gives a special kind of protection. The table below shows the five hidden features. You can see what each one does and how it helps keep your equipment safe from voltage spikes.
Feature | What It Does | How It Helps You | User Advantage |
|---|---|---|---|
Advanced Thermal Disconnection | Senses heat and disconnects quickly | Stops overheating and lowers fire risk | Keeps your system safe |
Remote Signaling Feature | Sends status alerts to your control system | Lets you monitor and plan maintenance | Fixes problems faster |
Replaceable Cartridge | Lets you swap out worn modules easily | Reduces downtime and saves money | Extends device lifespan |
High Energy Handling | Absorbs strong surges and extreme events | Protects against big voltage spikes | Works well in large systems |
Visual Status Indicators | Shows device health with lights or windows | Speeds up checks and troubleshooting | Makes inspections simple |
Quick Reference
This table is a quick guide for you. If you want to know which feature helps with protection, look at the “How It Helps You” column. If you want to save time or money, check the “User Advantage” column. This makes it easy to compare and pick the best dc surge protector for your needs.
Advanced thermal disconnection keeps your system safe from heat and fire.
Remote signaling tells you when you need to do something.
Replaceable cartridges let you fix problems without turning off your system.
High energy handling protects your equipment from strong surges.
Visual status indicators make checks fast and easy.
Tip: Use this table when you shop for surge protection devices. You can match the features to your system’s needs and get the best protection for your solar PV setup.
User Advantages
You get many good things when you pick a dc surge protector with these features. Your equipment is safe from voltage spikes. You save money because maintenance is easy. You spend less time checking your devices. Your system works longer.
You lower the risk of fire and damage.
You fix problems before they get worse.
You make inspections quick and simple.
You keep your solar PV system reliable.
Each feature gives you a clear benefit. You can see which ones are best for your setup. You make better choices and get stronger protection for your equipment.
You now know about five hidden features that make a dc surge protector a good pick for solar PV and high-voltage DC systems. These features help make your system safer, more reliable, and easier to take care of. Surge protection devices stop problems when a power surge or too much voltage messes up your solar panel system. If you install and take care of dc spd for solar, your equipment gets better protection.
Here is how these features help keep things safe:
Feature | Impact on Safety |
|---|---|
AFCI | Finds and reacts to DC arc faults with 99% accuracy, so fire risks go down. |
RSD | Quickly drops voltage to less than 30V, which makes shocks less likely in emergencies. |
Integration | Uses both technologies together for double protection, making the whole system safer. |
Knowing about these features helps you protect your system better:
Solar arrays are big, so lightning can hit them more often.
DC lines can act like antennas and bring surge voltage inside.
Modern electronics are delicate and need strong protection.
Solar systems work all day, so surges can happen anytime.
Higher voltages make sudden events more risky.
You can tell your stories or ask questions about surge protection in the comments. Your ideas help others learn how to keep their systems safe.
FAQ
1. What does a 1500V DC surge protector do?
A 1500V DC surge protector keeps your solar system safe from sudden voltage spikes. It blocks extra energy and stops damage to your equipment.
2. How do you know when to replace a surge protector?
You check the visual status indicators. If you see a red light or a warning window, you need to replace the cartridge. Quick checks help you avoid problems.
3. Can you install a surge protector by yourself?
You can install some surge protectors if you follow the instructions. Always turn off the power first. For complex systems, ask a professional for help.
4. Why is remote signaling important?
Remote signaling lets you monitor your surge protector from far away. You get alerts when something goes wrong. This helps you fix issues fast and keep your system running.
5. What happens if you ignore surge protector warnings?
If you ignore warnings, your equipment can get damaged by voltage spikes. You risk losing power and facing expensive repairs. Always act when you see alerts.
6. How does a replaceable cartridge save you money?
You only change the worn part, not the whole device. This lowers your maintenance costs and keeps your system working longer.
7. Do surge protectors work in bad weather?
Surge protectors with high energy handling protect your system during storms and lightning strikes. They absorb strong surges and keep your equipment safe.
8. What is the best way to check surge protector health?
Look for LED lights or mechanical windows. Green means good. Red means replace. Fast checks help you keep your system safe.
