A 3 phase surge protector for distribution boards is not selected simply by choosing the highest Imax rating. When selecting an SPD, you need to consider the system voltage, earthing arrangement, installation location, lightning exposure, equipment withstand level, connection topology, backup protection, and coordination with other SPDs.
For you, the key question is not “Which SPD has the biggest current rating?” but “Which SPD configuration matches your exact three-phase system?”
This guide walks you through the selection process in practical engineering terms, including 3P and 4P connection logic, TN-C/TN-S/TT system selection, Type 1 versus Type 2 parameters, Uc, Up, Iimp, In and Imax, backup protection, wiring length, coordination, and practical LSP product examples.
What Is a 3 Phase Surge Protector for a Distribution Board?
A 3 phase surge protector for a distribution board is a Surge Protective Device (SPD) designed to protect three‑phase electrical installations by clamping transient overvoltages and diverting surge current safely to earth across all three live conductors (L1, L2, L3) and neutral.
What is 3 Phase Surge Protector does
In a typical 230/400 V three‑phase system, surges can appear:
- Line‑to‑line (L–L, ~400 V)
- Line‑to‑neutral (L–N, ~230 V)
- Line/neutral‑to‑earth (L/N–PE)
A 3 phase SPD covers all these paths at once, limiting the voltage seen by downstream equipment and shunting excess energy to the protective earth (PE) conductor.
Why Does a Distribution Board Need 3 Phase Surge Protection?
A three-phase distribution board can provide a path for surge energy to reach multiple downstream circuits simultaneously. Protection at the distribution board can reduce the transient stress applied to breakers, control equipment, power supplies, motors, and sensitive electronics.
However, the SPD should be treated as one layer of a coordinated protection system. A large installation may use Type 1 or Type 1+2 protection at the service entrance, Type 2 protection at downstream distribution boards, and Type 3 protection close to particularly sensitive loads.
How to Select a 3 Phase Surge Protector
Step 1 — Confirm the System Voltage
A common low-voltage three-phase system is 230/400 V. For a 230/400 V system, 230 V is the nominal line-to-neutral voltage. Uc is the maximum continuous operating voltage of the SPD protection mode and is not simply another name for nominal voltage.
When selecting an SPD, you should understand that Uc and Un are closely related. Uc should generally provide an appropriate margin above the system’s nominal operating voltage. As a practical engineering guideline, you can estimate the minimum Uc using the following formula:
Uc,min ≥ 1.1 × Un
For a 230 V line-to-neutral system:
Uc,min ≥ 1.1 × 230 V = 253 V
Therefore, when you select an SPD, you can consider a product with Uc = 255 V or 275 V.
For example, LSP offers SPD products with 275 V Uc for 230 V line-to-neutral applications. However, when you make your final selection, you should consider the SPD connection, earthing arrangement, voltage tolerance, temporary overvoltage conditions, and the manufacturer’s specified application.
Step 2 — Identify the Earthing System
The earthing system determines the conductors available at the SPD installation point and therefore strongly influences the protection topology.
TN-C / TN-C
In a TN-C system, you have a combined PEN conductor that performs both neutral and protective functions. When you select a three-phase SPD for this arrangement, you commonly use L-PEN protection.
3P SPD in a TN-C System
When you install a 3P SPD in a TN-C system, you connect the three phase conductors L1, L2, and L3 to the three SPD protection paths, with the PEN conductor serving as the common reference, according to the SPD’s circuit topology.
Circuit diagram
L1 ─────┐
L2 ─────┤── 3P SPD ── PEN
L3 ─────┘
For example, when you need Type 1/Class I surge protection for a TN-C system, you can select LSP’s FLP25-275/3S, which is specified for L-PEN protection.
TN-S / TN-S
When you work with a TN-S system, you have separate PE and N conductors. Therefore, when you select an SPD, you commonly use protection modes involving L-PE and N-PE. When you connect the three phases and neutral to the SPD protection network individually, you can use a four-pole arrangement.
4P SPD in a TN-S System
When you install a 4P SPD in a TN-S system, you connect L1, L2, L3, and N individually to the SPD protection network, while the SPD connects these conductors to PE through its internal protection arrangement.
Circuit diagram
L1 ─────┐
L2 ─────┤
L3 ─────┤── 4P SPD ── PE
N ─────┘
When you need Type 1 surge protection for a TN-S system, you can choose LSP’s FLP25-275/4S, which provides L-PE and N-PE protection. See the LSP FLP25-275/4S product page for detailed specifications.
TN-C-S / TN-C-S
When you work with a TN-C-S system, you have a PEN section upstream and separate PE and N conductors downstream. Therefore, you need to identify the exact position of the PEN separation point before selecting and wiring the SPD. Do not copy a TN-C connection into the downstream TN-S section without checking your actual conductor arrangement and the SPD manufacturer’s wiring diagram.
TT / TT
In a TT system, you have an installation earth that is independent of the supply neutral earthing arrangement. When you select an SPD, you need to provide the appropriate phase-to-neutral and neutral-to-earth protection paths. You also need to ensure that the SPD operates correctly with your residual-current protection device (RCD).
3P+N / 3S+1 in TN-S or TT
When you need to protect three phase conductors plus the neutral-to-earth path, you can use a 3P+N or 3S+1 configuration. With this topology, you treat L-N protection and N-PE protection separately.
Circuit diagram
L1 ── SPD ── N
L2 ── SPD ── N
L3 ── SPD ── N
N ── SPD ── PE
When you need Type 2 surge protection for a TT or TN-S system, you can choose LSP’s SLP40-275/3S+1, which uses separate L-N and N-PE protection paths. It has an In of 20 kA, an Imax of 40 kA, and an Up of ≤1.5 kV. See the LSP SLP40-275/3S+1 product page for detailed specifications.
TN-C vs TN-S vs TT: 3 Phase SPD Selection Table
| Earthing system | Conductors at SPD point | Typical protection concept | LSP example |
| TN-C | L1, L2, L3, PEN | L-PEN; commonly 3P for the three phases | FLP25-275/3S; SLP40-275/3S |
| TN-S | L1, L2, L3, N, PE | L-PE plus N-PE; often a 4P configuration | FLP25-275/4S; FLP12,5-275/4S |
| TN-C-S | Depends on SPD location relative to PEN separation | Follow the actual conductor arrangement at the installation point | Select the matching TN-C or TN-S configuration |
| TT | L1, L2, L3, N, PE | L-N plus N-PE protection; often 3P+N / 3S+1 topology | SLP40-275/3S+1; FLP12,5-275/3S+1 |
Important: this table is a selection aid, not a substitute for the applicable installation standard or the manufacturer’s wiring diagram. The exact internal circuit topology of a 3P, 3P+N, or 4P SPD can differ between products.
Step 3 — Choose Type 1, Type 2, or Type 1+2
The SPD type should be selected according to the installation location, lightning-current exposure, and overall protection concept.
Type 1 SPD
Type 1 SPDs are intended for applications where part of the lightning current may enter the installation. They are tested using the 10/350 μs impulse current, and the key current parameter is Iimp.
LSP’s FLP25 Type 1 series uses a 25 kA Iimp rating and is designed for main distribution boards. For example, the FLP25-275/4S is specified at Iimp = 25 kA, In = 25 kA, and Up ≤1.5 kV.
Type 2 SPD
Type 2 SPDs are commonly used at main or downstream distribution boards to limit induced lightning surges and switching transients. Their principal discharge-current parameters are In and Imax, tested using the 8/20 μs waveform.
LSP’s SLP40-275/3S is a Type 2 SPD for TN-C systems with In = 20 kA, Imax = 40 kA and Up ≤1.5 kV.
Type 1+2 SPD
Type 1+2 SPDs combine Type 1 and Type 2 test characteristics. They are particularly useful at main distribution boards where both lightning-current capability and Type 2 surge protection are required.
LSP’s FLP12,5-275/4S is a TN-S Type 1+2 SPD with Iimp = 12.5 kA, In = 20 kA, Imax = 50 kA and Up ≤1.5 kV.
Type 1 vs Type 2 SPD Parameter Comparison
| Parameter | Type 1 | Type 2 | Why it matters |
| Main test waveform | 10/350 μs | 8/20 μs | Represents different surge-current test conditions |
| Key current parameter | Iimp | In / Imax | Shows the applicable discharge capability |
| Typical installation | Service entrance / main distribution board | Main or sub-distribution board | Depends on the lightning protection concept |
| Typical purpose | Handle part of lightning current entering the installation | Limit induced lightning and switching transients | Defines the protection role |
| Typical LSP example | FLP25-275/3S or FLP25-275/4S | SLP40-275/3S or SLP40-275/3S+1 | Configuration must match earthing system |
Do not interpret this table as meaning that Type 1 is always installed only at the main board or Type 2 is never used there. The correct choice depends on the building’s lightning protection concept and the installation requirements.
Step 4 — Determine Uc
Uc is the maximum continuous operating voltage of the SPD protection mode. It must be high enough to withstand the continuous voltage and relevant temporary overvoltage conditions but not unnecessarily high.
If Uc is too low, the SPD may conduct during normal or temporary voltage conditions, causing unwanted operation or degradation. If Uc is excessively high, voltage limitation can become less effective.
For a 230 V line-to-neutral application, LSP offers products with 275 V Uc. The exact Uc and the Uc of the N-PE path must be checked in the product datasheet for the chosen topology. For example, LSP’s FLP12,5 series documentation specifies 275 V for L-N and 255 V for the N-PE mode in applicable 230 V configurations.
Step 5 — Check Up Against Equipment Withstand
Up is the voltage protection level of the SPD under specified test conditions. The objective is to ensure that the protection level is sufficiently below the impulse withstand capability of the equipment.
Do not select an SPD solely because it has the lowest catalogue Up. The actual voltage appearing at the equipment can be higher because of conductor inductance and installation geometry.
This is why the SPD should be installed as close as practical to the point being protected and its conductors should be kept short and direct.
Step 6 — Determine Iimp, In, and Imax
Before determining the appropriate Iimp, In, and Imax values for an SPD, it is important to understand what each parameter represents and which test waveform and application it relates to. These parameters indicate the SPD’s discharge capability under different surge conditions and are important for selecting the appropriate SPD type and evaluating its ability to handle lightning and surge currents.
Iimp
Iimp is the impulse discharge current associated with Type 1 testing using the 10/350 μs waveform. It is important when the SPD must handle part of a lightning current.
In
In is the nominal discharge current associated with the Type 2 test. It provides a reference for the SPD’s discharge capability under the specified 8/20 μs test condition.
Imax
Imax is the maximum discharge current specified for the SPD under the relevant test conditions. It is useful for comparing Type 2 discharge capability but should not be treated as a direct measure of protection quality.
For example, an SPD with higher Imax can still have an unsuitable Uc, incorrect protection topology, or inadequate coordination for a particular installation.
Step 7 — Check SPD Backup Protection
Because an SPD is connected directly to the electrical distribution system, the installation must account for short-circuit protection and safe isolation.
The permitted backup fuse or circuit breaker depends on the SPD design. LSP’s product documentation specifies maximum backup protection for individual models. For example, FLP12,5-275/4S specifies a maximum 160 A gG backup fuse, while SLP40-275/3S specifies a maximum 125 A gG backup fuse.
SPD With Integrated Backup Fuse
Some LSP SPD series integrate backup-fuse technology. This can simplify panel architecture by reducing the number of separate components, but the product must be specifically rated for the intended application. Integrated protection does not mean that the installation can ignore the manufacturer’s short-circuit and backup-protection requirements.
Step 8 — Keep SPD Connection Conductors Short
Fast surge currents create an inductive voltage across connection conductors. Therefore, the voltage at the equipment can be higher than the SPD’s declared Up if the wiring is long or poorly routed.
A practical installation principle is to keep the total connection path short, avoid unnecessary loops, and route the phase/neutral and PE conductors directly. LSP installation documentation for selected products specifies maximum conductor arrangements; for example, the FLP12,5VG-275/3S+1 documentation specifies a total conductor length requirement of less than 50 cm for the indicated installation arrangement.
SPD Coordination: Why One SPD May Not Be Enough
A large electrical installation may need several layers of surge protection. A typical arrangement can use a Type 1 or Type 1+2 SPD at the service entrance, a Type 2 SPD at a downstream distribution board, and Type 3 protection near sensitive equipment.
These devices should be coordinated rather than selected independently. Coordination can involve installation distance, discharge capability, Up, energy sharing, and the manufacturer’s recommended combinations.
The goal is to prevent a downstream SPD from being exposed to surge energy beyond its intended capability while maintaining an appropriate protection level for the final equipment.
Practical LSP 3 Phase SPD Selection Examples
Example 1 — TN-C Main Distribution Board: FLP25-275/3S
Consider a 230/400 V TN-C main distribution board where Type 1 protection is required.
The LSP FLP25-275/3S is specified for TN-C, L-PEN protection and Type 1/Class I operation. Its published rating includes Iimp = 25 kA (10/350 μs). This makes it an example of a 3-pole Type 1 solution where the system uses a PEN conductor.
The selection process is: confirm TN-C → confirm Type 1 requirement → verify 275 V Uc → check Iimp and Up → verify backup protection → follow the 3P L-PEN wiring diagram.
Example 2 — TN-S Main Distribution Board: FLP25-275/4S
For a 230/400 V TN-S system requiring Type 1 protection, the FLP25-275/4S provides a four-pole configuration for the three phases and neutral, with L-PE and N-PE protection. The product is specified at Iimp = 25 kA and Up ≤1.5 kV.
This illustrates why the same three-phase voltage can require a different SPD configuration when the earthing system changes from TN-C to TN-S.
Example 3— TN-C Sub-Distribution Board: SLP40-275/3S
For a downstream TN-C distribution board where Type 2 protection is appropriate, LSP’s SLP40-275/3S is specified with L-N/PEN protection, Uc = 275 V, In = 20 kA, Imax = 40 kA and Up ≤1.5 kV. The maximum backup fuse is 125 A gG.
Example 4 — TN-S or TT Sub-Distribution Board: SLP40-275/3S+1
For a TN-S or TT downstream board requiring Type 2 protection, the SLP40-275/3S+1 provides L-N and N-PE protection. Its published ratings include Uc = 275 V, In = 20 kA, Imax = 40 kA and Up ≤1.5 kV, with a maximum 125 A gG backup fuse.
Type 1 / Type 1+2 / Type 2: LSP Model Comparison
| LSP model | Type | System | Uc | Current rating | Up | Typical location |
| FLP25-275/3S | Type 1 | TN-C | 275 V | Iimp 25 kA | Check model datasheet | Main distribution board |
| FLP25-275/4S | Type 1 | TN-S | 275 V | Iimp 25 kA | ≤1.5 kV | Main distribution board |
| SLP40-275/3S | Type 2 | TN-C | 275 V | In 20 kA; Imax 40 kA | ≤1.5 kV | Sub-distribution board |
| SLP40-275/3S+1 | Type 2 | TN-S / TT | 275 V | In 20 kA; Imax 40 kA | ≤1.5 kV | Sub-distribution board |
Common 3 Phase SPD Selection Mistakes
Choosing Only by Imax
A high Imax does not automatically mean better protection. Uc, Up, SPD type, topology, short-circuit capability and coordination also matter.
Choosing Uc as if It Were the Nominal Voltage
230 V nominal line-to-neutral voltage does not mean Uc should simply be 230 V. The actual protection mode and system conditions must be considered.

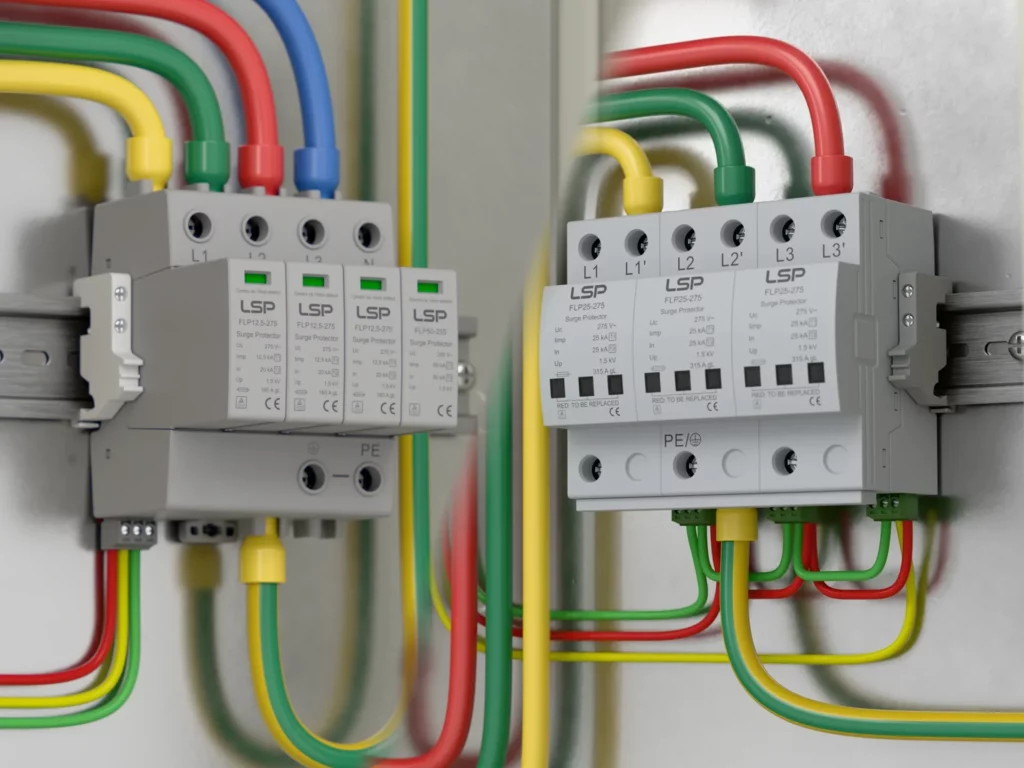

Using a 3P SPD on a TN-S System Without Checking the Circuit
A 3P TN-C L-PEN device and a 4P TN-S L-PE/N-PE device may be intended for different electrical arrangements even when the nominal system voltage is identical.
Assuming 4P Is Always Better Than 3P
More poles do not automatically mean better protection. The configuration must match the system and the protection modes required.
Ignoring the Neutral-to-Earth Protection Path
This is particularly important in TN-S and TT systems, where N-PE protection can be a critical part of the SPD topology.
Ignoring Wiring Length
Long conductors can increase the effective voltage seen by downstream equipment during a fast surge.
3 Phase SPD Selection Checklist for Engineers and Panel Builders
| Selection factor | Question to verify |
| System voltage | What are the phase-to-phase and phase-to-neutral voltages? |
| Earthing system | TN-C, TN-S, TN-C-S, TT, or another arrangement? |
| SPD location | Service entrance, main board, sub-board, or equipment level? |
| SPD type | Type 1, Type 1+2, Type 2, or a coordinated combination? |
| Topology | 3P, 3P+N, or 4P? |
| Uc | Is Uc suitable for every protection mode? |
| Up | Is the protection level coordinated with equipment withstand? |
| Iimp | Is Type 1 lightning-current capability required? |
| In / Imax | Are Type 2 discharge-current ratings appropriate? |
| Backup protection | What maximum fuse or circuit breaker is permitted? |
| Wiring | Are the SPD conductors short, direct and correctly routed? |
| Coordination | Is the SPD coordinated with other SPDs in the installation? |
Conclusion
Selecting a 3 phase surge protector for distribution boards requires more than comparing Imax values. Start with the system voltage and earthing arrangement, then identify the installation location and required SPD type.
LSP specializes in surge protective devices for AC and DC electrical systems and provides solutions for distribution boards, industrial panels, photovoltaic applications, data centers, and other low-voltage installations.
LSP’s AC SPD range includes Type 1, Type 1+2, Type 2 and combined protection solutions, with different network configurations such as TN-C, TN-S and TT. The product portfolio includes monobloc and pluggable designs, multiple pole configurations, remote signaling options, and selected products with integrated backup-fuse technology.
Need help selecting a 3 phase surge protector? Send LSP your system voltage, earthing arrangement, main breaker rating, SPD installation location, required SPD type, and project requirements. LSP can help identify the appropriate configuration and product model.
Frequently Asked Questions About 3 Phase Surge Protectors
What type of SPD is best for a 3 phase distribution board?
For a 3-phase distribution board, the best SPD depends on the board location and lightning exposure. Type 1 or Type 1+2 SPD is suitable for main distribution boards where direct lightning current may enter, especially with an external lightning protection system. Type 2 SPD is typically used at downstream distribution boards with upstream protection and lower lightning exposure.
Should I use a 3P or 4P SPD?
Whether you need a 3P or 4P SPD depends on the earthing system. Use a 3P SPD for TN-C systems, where the neutral and protective functions share a PEN conductor. Use a 4P SPD for TN-S systems, where neutral and PE are separate. For TT systems, a 3+1 SPD configuration with a dedicated N-PE protection element is generally preferred.
Do I need a 3P+N SPD for a TT system?
Yes, a 3P+N SPD is generally required for a TT system, but the configuration matters. A 3+1 SPD arrangement is typically preferred, using three protection modes from the phases to PE plus a dedicated N-PE protection element. This provides appropriate protection for both the phase conductors and the neutral-to-earth path in TT installations.
What kA rating should a 3 phase SPD have?
There is no universal kA rating for a 3-phase SPD. The appropriate In rating for a Type 2 SPD, or Iimp rating where Type 1 duty applies, depends on the installation, lightning exposure, and required protection level. Selection should follow the site’s risk assessment and applicable standards rather than simply choosing the highest available kA rating.
Where should a 3 phase SPD be installed?
A 3-phase SPD should be installed as close as practical to the equipment or distribution board it protects. Type 1 or Type 1+2 SPDs are typically installed at or near the service entrance or main distribution board. Type 2 SPDs are commonly installed at downstream distribution boards. Keep connection leads short and direct to minimize additional inductive voltage drop.
