Wiring a 3 phase isolator switch requires careful attention to detail and strict adherence to safety standards. The Isolator Switch allows users to safely disconnect power during maintenance or emergencies. Always use the correct 3 Phase Isolator Switch Wiring Diagram. The isolator switch plays a critical role in protecting equipment and people in three phase systems. Isolator switches provide a secure way to isolate circuits before working on them. Each isolator switch must be installed according to manufacturer instructions. The isolator switch should always be locked in the off position during maintenance. Isolator switches help prevent electrical accidents and equipment damage. The isolator switch ensures only authorized personnel can restore power.
3 Phase Isolator Switch Wiring Diagram Basics
What Is a 3 Phase Isolator Switch?
A 3 phase isolator switch is a device that disconnects electrical circuits from the main power source in a three-phase system. The main purpose of an isolator is to ensure safety during maintenance or repair. When looking at a 3 phase isolator switch wiring diagram, you will see how the isolator separates the circuit from the three phase power supply. This separation prevents accidental electric shocks and equipment damage. The isolator switch is not designed to interrupt load current but to provide a visible break in the circuit. This visible break is important for confirming that the circuit is safe to work on.
Tip: Always refer to the wiring diagram before starting any installation or maintenance. This ensures that each isolator switch is connected correctly and safely.
Key Functions in Three Phase Power Supply
The three phase power supply is common in industrial and commercial settings. It delivers power efficiently to heavy machinery and large buildings. The isolator switch plays a critical role in these environments. It allows workers to safely disconnect the power before performing any work. The 3 phase isolator switch wiring diagram shows the connection points for each phase—L1, L2, and L3. By following the wiring diagram, you can see how the isolator switch separates each phase from the load. This function is essential for preventing electrical accidents. The isolator also helps in routine inspections and emergency shutdowns. Without a proper isolator switch, the risk of injury or equipment failure increases.
The isolator switch ensures that only authorized personnel can restore power.
The wiring diagram provides a clear guide for safe installation and operation.
The isolator switch supports compliance with safety regulations in three phase power supply systems.
Isolator Switch Features
Modern isolator switches come with several important features. These features enhance safety and reliability in three phase power supply systems. When studying a 3 phase isolator switch wiring diagram, you will notice that each switch has dedicated terminals for L1, L2, and L3. The isolator often includes a lockable handle. This prevents accidental operation during maintenance. Flame-retardant materials are used in the construction of the isolator switch. This reduces the risk of fire in case of electrical faults. The wiring diagram also highlights the position of the neutral and earth connections. Proper use of the wiring diagram ensures that all connections are secure and meet safety standards.
Note: Always check the wiring diagram for the correct placement of each wire. This step is vital for the safe operation of the isolator switch.
The isolator switch is a key component in three-phase systems. It provides a reliable way to disconnect the three phase power supply. The wiring diagram acts as a roadmap for safe and effective installation. Understanding the isolator switch features and their importance helps prevent accidents and ensures long-term system reliability.
Tools and Materials for Wiring
Before starting any electrical wiring installation, it is important to gather all the necessary tools and materials. Having the right equipment ensures a safe and efficient installation and wiring process. This section explains why each tool and material is essential for a successful three phase isolator switch wiring project.
Essential Tools List
Selecting the correct tools is the first step in any electrical wiring installation. Each tool serves a specific purpose and helps prevent mistakes during installation and wiring. Here is a list of essential tools and why they are needed:
Screwdrivers (Flathead and Phillips): Used for tightening and loosening terminal screws during wiring.
Wire Strippers: Necessary for removing insulation from wires, which is a key part of electrical wiring installation.
Pliers (Needle-nose and Combination): Help grip, twist, and bend wires for secure wiring connections.
Voltage Tester or Multimeter: Checks for live circuits before installation and wiring, ensuring safety.
Insulation Tape: Provides extra protection for wiring joints and prevents accidental contact.
Cable Cutters: Used to cut wires to the correct length for electrical wiring installation.
Drill and Bits: Required for mounting the isolator switch enclosure during installation.
Torque Wrench: Ensures that terminal screws are tightened to the correct specification, which is vital for safe wiring.
Tip: Always use insulated tools to reduce the risk of electric shock during electrical wiring installation.
Materials Needed for Installation
Choosing the right materials is just as important as selecting the right tools. Each material plays a role in the safety and reliability of the installation and wiring process. The following table outlines the key materials and their importance in electrical wiring installation:
Material | Purpose in Installation and Wiring |
|---|---|
Isolator Switch | Main device for disconnecting power during wiring |
Three Phase Cables | Carry L1, L2, and L3 phases for electrical wiring |
Neutral Wire | Provides return path in electrical wiring installation |
Earth Wire | Ensures safety by grounding the system |
Cable Lugs/Connectors | Securely attach wires to terminals during wiring |
Mounting Enclosure | Protects the isolator switch after installation |
Cable Glands | Seal cable entries and prevent dust or moisture |
Warning Labels | Identify circuits and enhance safety during wiring |
Each material supports the overall safety and effectiveness of the electrical wiring installation. Using high-quality cables and connectors reduces the risk of overheating and electrical faults. Proper enclosures and cable glands protect the wiring from environmental hazards. Warning labels help maintenance personnel identify circuits during future installation and wiring tasks.
Note: Double-check all tools and materials before starting the electrical wiring installation. Missing items can delay installation and increase the risk of errors.
Understanding why each tool and material is necessary helps ensure a smooth installation and wiring process. Careful preparation leads to a safer and more reliable electrical wiring installation for any three phase isolator switch.
Safety Precautions for Three Phase Power Supply
Electrical Safety Guidelines
Safety standards protect people and equipment in three phase power supply systems. Isolator switches play a vital role in maintaining these standards. Workers must always disconnect the isolator switch before starting maintenance. The isolator switch prevents accidental contact with live wires. Electrical safety guidelines require clear labeling of each switch and isolator. Warning signs help identify the isolator switch during emergencies. Insulated tools reduce the risk of electric shock. Flame-retardant materials in isolator switches lower fire hazards. Safety standards demand regular inspection of each isolator switch. Proper training ensures workers understand the isolator switch operation. Following these guidelines minimizes accidents and supports emergency isolation.
Note: Always check the isolator switch for visible damage before use. Damaged isolator switches can fail during emergencies.
Lockout and Tagout Procedures
Lockout and tagout procedures ensure that the isolator switch stays off during maintenance. These procedures prevent unauthorized operation of the isolator switch. Workers attach a lock to the isolator switch handle. The lock keeps the switch in the off position. A tag shows who locked the isolator switch and why. This process protects workers from unexpected power restoration. Lockout and tagout procedures follow strict safety standards. Each isolator switch must have a lock hole for secure locking. The isolator switch should not be turned on until all tags are removed. Emergency situations require quick identification of locked isolator switches. These procedures support safe maintenance and emergency response.
Tip: Always use a lock and tag when working with isolator switches. This step prevents accidental switch operation and supports safety standards.
Safety Innovations
Modern isolator switches include several safety innovations. Flame-retardant materials protect the isolator switch from fire risks. The lock hole feature allows secure lockout during maintenance. Extended push cards make installation easier and safer. These innovations improve the reliability of each isolator switch. Emergency situations demand quick and safe operation of the isolator switch. Safety standards require isolator switches to withstand high temperatures. The isolator switch must provide clear visual indication of its position. Emergency isolation depends on these safety features. Innovations in isolator switches help prevent accidents and support compliance with safety standards.
Safety Feature | Why It Matters in Three Phase Power Supply |
|---|---|
Flame-retardant Material | Reduces fire risk during electrical faults |
Lock Hole | Enables secure lockout and tagout procedures |
Extended Push Card | Simplifies installation and improves safety |
Visual Indicator | Shows switch position for emergency identification |
Isolator switches with advanced safety features protect workers and equipment. These innovations support emergency response and maintain safety standards in three phase systems.

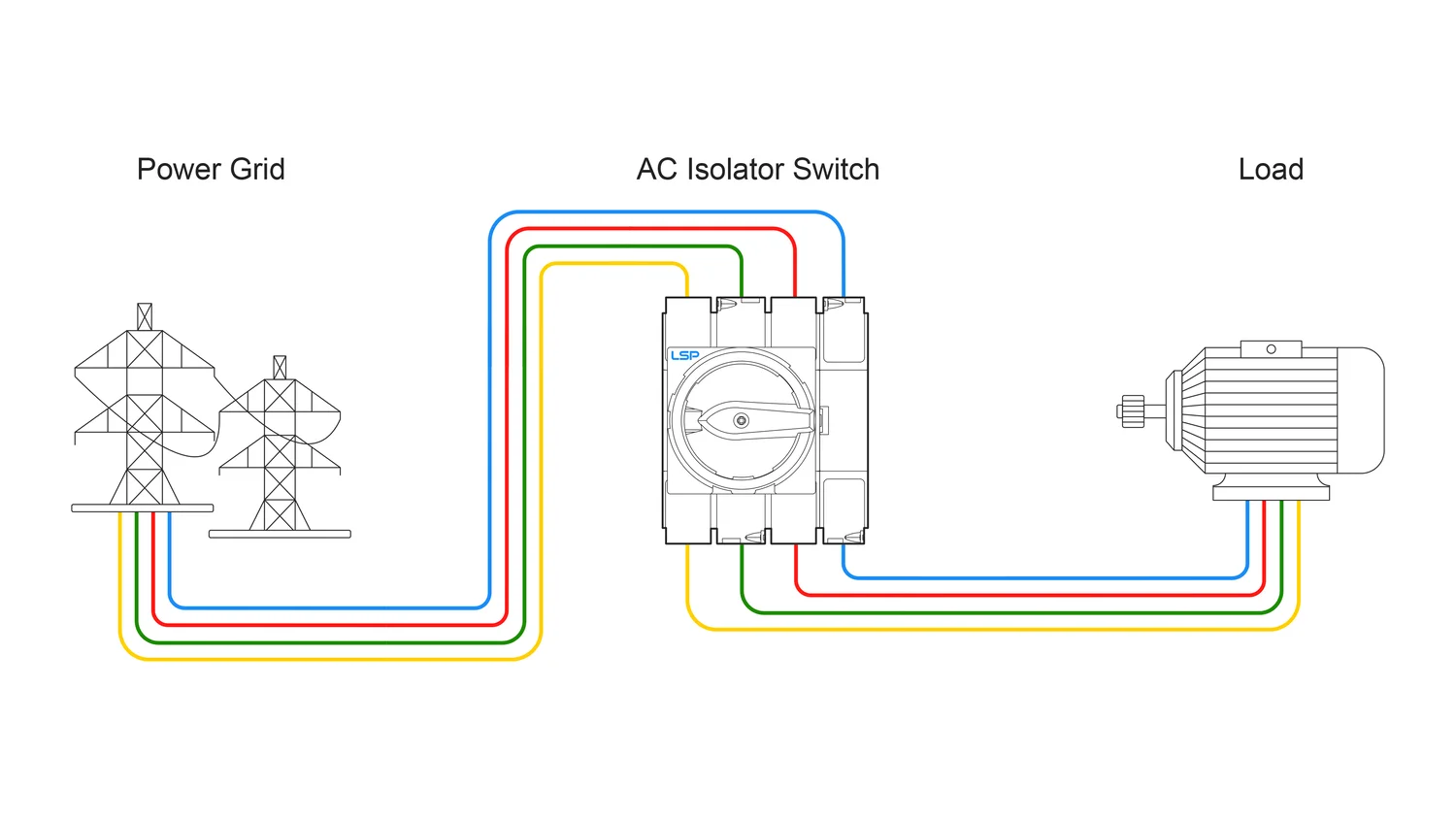

Understanding the 3 Phase Isolator Switch Wiring Diagram
Diagram Symbols and Terminal Labels
A clear understanding of the electrical wiring diagram is essential for anyone working with isolator switches. The diagram uses symbols to represent each isolator and switch. Each isolator has three main terminals labeled L1, L2, and L3. These labels show where to connect the three phase wires. The switch symbol often appears as a break in the line, which means the isolator can disconnect the circuit. The earth and neutral terminals are also marked. Reading these symbols helps prevent mistakes during wiring. The isolator switch diagram shows the path of electricity from the supply to the load. Each isolator must have a visible break when the switch is off. This feature ensures safety during maintenance. Terminal labels guide users to connect each wire to the correct point. Understanding these symbols and labels is the first step in safe wiring.
Tip: Always check the diagram for the correct position of each isolator and switch before starting work.
Three Phase Distribution Board Connections
The three phase distribution board is the central point for power in many buildings. Each isolator switch connects the incoming supply to the three phase distribution board. The wiring diagram shows how L1, L2, and L3 from the supply enter the isolator. The switch then connects these phases to the distribution board. This setup allows the isolator to disconnect all three phases at once. The isolator switch must be wired so that each phase passes through the switch before reaching the three phase distribution board. This method ensures that the isolator can cut power to the entire system. The wiring diagram also shows the path of the neutral and earth wires. Proper wiring at the distribution board prevents overloads and faults. The isolator switch provides a safe way to isolate the three phase distribution board during repairs or emergencies.
Each isolator switch should be installed close to the three phase distribution board.
The wiring must follow the diagram to ensure all phases are isolated together.
The switch position should be easy to access for quick disconnection.
Neutral and Earth Considerations
Neutral and earth connections are vital for safety in any wiring system. The isolator switch wiring diagram shows where to connect the neutral and earth wires. The neutral wire returns current to the source, while the earth wire protects against electric shock. Each isolator must have a secure earth connection. The switch should never break the earth wire. The wiring diagram marks the earth terminal with a special symbol. Proper wiring of the neutral and earth ensures the isolator switch works as intended. If the earth or neutral is not connected correctly, the isolator may not protect users during a fault. The isolator switch must always provide a clear path for earth and neutral. This setup reduces the risk of electric shock and equipment damage. Following the wiring diagram for neutral and earth is a key part of safe installation.
Note: Double-check all neutral and earth connections before finishing the wiring. Safe isolator switches depend on correct wiring of these wires.
Step-by-Step Wiring Guide
Power Off and Verification
Safety is the first priority in any wiring project. Turning off the power supply prevents electric shock and protects equipment. The isolator switch must be in the off position before starting installation. Workers should use a voltage tester to confirm that no current flows through the circuit. This step ensures that the isolator and all connected wires are safe to handle. The switch should display a clear indicator showing its status. Verification prevents accidental contact with live wires. Each isolator switch must be locked to avoid unauthorized operation during wiring. The lockout procedure keeps the switch off until installation is complete. This process reduces the risk of injury and equipment damage.
Tip: Always check the isolator switch for visible signs of wear or damage before beginning wiring. Damaged switches can fail during operation.
Connecting L1, L2, L3 Wires
The three phase system uses three separate wires labeled L1, L2, and L3. Each wire carries a different phase of electrical power. The isolator switch has dedicated terminals for each phase. Proper wiring ensures balanced power distribution and prevents overloads. Workers must strip the insulation from each wire before connecting it to the isolator. The switch terminals should be clean and free from corrosion. Secure connections prevent loose wires and electrical faults. Each wire must be inserted into the correct terminal according to the wiring diagram. Tightening the terminal screws with a torque wrench ensures a firm connection. The isolator switch must isolate all three phases at once. This feature allows safe maintenance and emergency shutdowns. Incorrect wiring can cause equipment failure or unsafe conditions.
Note: Double-check the wiring diagram before connecting L1, L2, and L3. Mistakes in wiring can lead to dangerous situations.
Securing Neutral and Earth
Neutral and earth wires play a critical role in electrical safety. The neutral wire provides a return path for current. The earth wire protects against electric shock by grounding the system. The isolator switch wiring diagram shows the correct placement for these wires. Workers must connect the neutral wire to its designated terminal. The earth wire should be attached to the earth terminal, which is often marked with a special symbol. Secure wiring prevents accidental disconnection and ensures reliable operation. The switch must never break the earth connection. This rule maintains a safe path for fault currents. Proper installation of neutral and earth wires reduces the risk of electrical hazards. Each isolator switch must provide a clear and uninterrupted path for these wires.
Wire Type | Purpose | Connection Point |
|---|---|---|
Neutral | Returns current | Neutral terminal |
Earth | Grounds the system | Earth terminal |
Alert: Always inspect the neutral and earth connections after wiring. Loose or incorrect connections can compromise the safety of the isolator switch.
Final Checks and Testing
Final checks and testing are critical steps in the wiring process. These steps help ensure that the isolator switch works safely and reliably. Skipping these steps can lead to electrical hazards or equipment failure. Understanding why each check matters can prevent costly mistakes and protect both people and property.
Why Perform Final Checks?
Final checks confirm that all connections are secure and correct.
These checks help identify loose wires or incorrect wiring before power is restored.
Testing ensures the isolator switch operates as intended under real conditions.
Key Steps for Final Checks and Testing
Inspect All Connections
Examine each terminal for tightness. Loose connections can cause overheating or arcing.
Check that L1, L2, and L3 wires are in the correct terminals. Mistakes here can damage equipment.
Verify that neutral and earth wires are properly secured. Incorrect connections can create shock hazards.
Review the Wiring Diagram
Compare the actual wiring with the diagram. This step helps catch any errors made during installation.
Confirm that all wires follow the correct path from supply to load.
Check for Exposed Conductors
Look for any bare wires or exposed copper. Exposed conductors can cause short circuits or electric shock.
Use insulation tape to cover any exposed areas.
Test the Isolator Switch Mechanically
Operate the switch handle several times. Smooth operation means the switch is installed correctly.
Listen for any unusual sounds, such as clicking or grinding. These noises can signal mechanical issues.
Verify Lockout Mechanism
Ensure the lock hole aligns properly. The lockout feature must work to prevent accidental operation during maintenance.
Electrical Testing
Use a multimeter to check for continuity. This test confirms that the switch breaks all three phases when in the off position.
Test for voltage at the load side with the switch off. There should be no voltage present.
Turn the switch on and check that voltage appears at the load side. This step confirms proper operation.
Tip: Always perform electrical tests with insulated tools and wear appropriate safety gear.
Why Testing Matters
Testing verifies that the isolator switch will disconnect power in an emergency.
It ensures that the system is safe for future maintenance or repairs.
Proper testing prevents unexpected failures when the system is in use.
Common Issues Found During Final Checks
Issue | Why It Matters | What to Do |
|---|---|---|
Loose terminal screws | Can cause overheating or arcing | Tighten screws to specification |
Incorrect wire placement | May damage equipment or cause hazards | Rewire according to the diagram |
Faulty lockout mechanism | Allows accidental operation | Adjust or replace as needed |
Exposed conductors | Increases risk of shock or short | Insulate with tape or covers |
Final checks and testing are not just routine steps. They are essential for ensuring the safety and reliability of the entire electrical system. Taking the time to perform these actions can prevent accidents and extend the life of your equipment.
Note: Never skip final checks and testing. These steps are your last line of defense against electrical hazards.
Common Mistakes and Troubleshooting
Frequent Wiring Errors
Mistakes during wiring can lead to unsafe conditions and unreliable operation. Understanding why these errors happen helps prevent them in future installation projects. Many errors occur because workers rush the process or overlook the wiring diagram. Incorrect placement of wires often results in unbalanced power distribution to the three phase load. Loose connections can cause overheating and arcing. Failure to secure the earth wire leaves the system vulnerable to electric shock. Sometimes, the neutral wire is not connected properly, which affects the return path for current. Using the wrong cable size increases the risk of faults. Workers may forget to check the lockout mechanism, which can allow accidental operation during maintenance. Missing warning labels make it difficult to identify circuits during future wiring tasks.
Tip: Always review the wiring diagram before starting installation. This step helps avoid common mistakes and ensures safe operation.
Common Wiring Errors Table
Error | Why It Happens | How to Avoid |
|---|---|---|
Incorrect wire placement | Misreading diagram | Double-check diagram |
Loose terminal screws | Rushing installation | Use torque wrench |
Missing earth connection | Overlooking safety steps | Inspect earth terminal |
Wrong cable size | Lack of planning | Select cables based on load |
Unlabeled circuits | Skipping labeling | Apply warning labels |
Troubleshooting Steps
Troubleshooting is essential when the three phase load does not operate as expected after wiring. Knowing why to follow these steps ensures a safe and reliable installation. Start by inspecting all wiring connections. Look for loose wires or incorrect placement. Use a multimeter to check for continuity across the isolator switch. If the three phase load fails to start, verify that L1, L2, and L3 are connected to the correct terminals. Examine the neutral and earth wires for secure attachment. If overheating occurs, check the cable size and terminal tightness. Sometimes, the lockout mechanism does not engage properly. Adjust the switch handle and lock hole to restore function. If warning labels are missing, add them to prevent confusion during future maintenance.
Alert: Always turn off the power supply before troubleshooting. This step protects workers and equipment from electric shock.
Troubleshooting Steps List
Inspect all wiring connections for tightness and correct placement.
Use a multimeter to test continuity and voltage at each terminal.
Verify that the three phase load receives balanced power from L1, L2, and L3.
Check neutral and earth wires for secure connections.
Examine the lockout mechanism for proper operation.
Review warning labels and add them if missing.
Troubleshooting helps identify and resolve issues that arise during installation. Following these steps ensures the three phase load operates safely and efficiently. Regular inspection and testing prevent future wiring problems and support reliable system performance.
Why Choose LSP Isolator Switch
Product Advantages and Certifications
LSP stands out as a leader in the field of isolator switches. The company has built a reputation for quality and reliability. Each isolator switch from LSP uses advanced technology to ensure safe wiring and dependable operation. The isolator switch features flame-retardant materials that help protect against fire risks during electrical faults. The lock hole design on every switch allows for secure lockout during maintenance. This feature supports safe installation and prevents accidental operation.
LSP isolator switches undergo strict testing in advanced facilities. The company follows international standards for every isolator switch. each isolator meets high safety and performance requirements. These give users confidence in the isolator switch during every wiring and installation project. LSP also offers customization options for isolator switches to meet specific needs. The company’s commitment to quality means that each isolator switch will perform reliably in demanding environments.
Note: LSP’s isolator switches are trusted by over 1200 companies in 35 countries. This trust comes from consistent product quality and excellent customer support.
Application in Three Phase Distribution Boards
LSP isolator switches are designed for use in three phase distribution boards. The isolator switch provides a safe way to disconnect power during wiring or maintenance. Each isolator switch fits easily into standard distribution boards, making installation simple and efficient. The isolator switch supports both AC and DC systems, which makes it suitable for many types of electrical installations.
The isolator switch ensures that all three phases can be disconnected at once. This function is important for safe wiring and reliable operation. The isolator switch also includes a clear visual indicator to show the switch position. This helps workers identify the status of the isolator during installation or maintenance. The isolator switch works well in industrial, commercial, and residential settings.
LSP provides detailed wiring diagrams and installation guides with every isolator switch. These resources help users complete wiring tasks safely and correctly. The isolator switch is built to last, even in harsh environments. LSP’s focus on innovation means that each isolator switch includes the latest safety features.
Wiring an isolator switch protects people and equipment. Each isolator must disconnect power before work begins. Isolator switches prevent accidents and keep systems reliable. Always follow the isolator switch wiring diagram. Check every isolator and switch for secure connections. Isolator switches use lockout features for safety. Testing each isolator switch ensures proper function. Use isolator switches to meet safety standards. Isolator switches reduce risks during maintenance. Choose isolator switches for dependable isolation.
Always review the isolator switch diagram before installation. Safe isolator switches protect everyone.
FAQ
Why is an isolator used in three phase systems?
In three-phase systems, an isolator provides a visible air gap to fully disconnect all live conductors for safe maintenance. It operates only under no-load conditions after upstream interruption, eliminating arc flash risks and backfeed hazards. This secure lockout ensures complete de-energization of industrial equipment, preventing single-phasing and guaranteeing personnel safety during servicing.
Why should you always follow the isolator switch wiring diagram?
Strict adherence to the wiring diagram prevents catastrophic failure and shock hazards. It ensures correct terminal identification, especially for DC polarity or three-phase sequence, avoiding short circuits or reverse power flow. Proper routing maintains the visible air gap integrity and safe no-load isolation. Ignoring the diagram risks arc flash and equipment damage.
Why do isolator switches have lockout features?
Lockout features enforce strict safety protocols by physically preventing accidental re-energization during maintenance. They allow workers to attach personal padlocks, ensuring the isolator remains off until all personnel clear the area. This eliminates risks of sudden start-ups or arc flashes, complying with LOTO regulations and guaranteeing a zero-energy state for absolute protection.
Why is it important to secure the earth wire on an isolator switch?
Securing the earth wire ensures metallic enclosures cannot become live during a fault, preventing fatal electric shock. It provides a low-resistance path for fault currents, triggering upstream protection to clear the hazard instantly. A loose earth connection negates this safety barrier, leaving the isolator chassis energized and creating a silent, lethal risk for operators.
Why do isolator switches use flame-retardant materials?
Flame-retardant materials prevent fire propagation if internal arcing or overheating occurs. These self-extinguishing enclosures contain sparks and thermal events within the switch, stopping ignition of surrounding components. By resisting combustion, they maintain structural integrity during faults, reduce toxic smoke release, and ensure compliance with strict electrical safety standards.
Why should isolator switches be tested after installation?
Post-installation testing verifies the isolator establishes a full visible air gap and proper contact alignment under no-load conditions. It confirms correct polarity in DC systems and phase sequence in AC, preventing arc flash risks during future operation. Testing also ensures the lockout mechanism functions securely, guaranteeing the switch safely de-energizes equipment for maintenance compliance.
Why is the isolator switch position important in a distribution board?
Strategic positioning near the incoming supply ensures complete downstream de-energization for board maintenance. It creates a single, accessible lockout point isolating all branch circuits simultaneously, preventing backfeed risks. Proper placement also maintains segregation from live components, allowing safe visual confirmation of the air gap before accessing internal wiring or breakers.
Why do isolator switches need regular inspection?
Regular inspection detects contact wear, corrosion, and thermal stress before they compromise the visible air gap. Dust or moisture ingress can degrade insulation, increasing arc flash risks during no-load operation. Mechanical checks verify lockout integrity and smooth handle action, ensuring reliable isolation and continued compliance with safety standards for personnel protection.
