You can have big problems from lightning and switching surges in high-voltage DC systems. A 1500v dc surge protector helps by stopping voltage spikes. It keeps your equipment safe from harm. In solar and industrial places, protecting equipment is important for reliability. DC surge protection helps you avoid expensive downtime. It keeps your system working well. Certified surge protectors meet tough safety rules.
Surge protectors make systems more reliable and protect equipment from voltage spikes.
More companies want better protection, so the market is growing. Regulators also ask for higher safety.
1500V DC Surge Protector Basics
Device Function
A 1500v dc surge protector helps keep your equipment safe. It protects against voltage spikes from lightning or switching. The protector works very quickly. It finds a surge and sends extra energy to the ground. This fast action keeps your devices from getting hurt. You do not need to worry about sudden voltage spikes breaking your system.
Here’s what happens during a surge:
The surge protector finds the high voltage.
It takes in and moves the extra energy away.
It keeps the voltage at a safe level.
It uses grounding to get rid of the energy.
This process saves you money on repairs and stops downtime. Your dc system keeps working well.
Key Components
MOVs and GDTs
Most surge protectors have two main parts inside. These are Metal Oxide Varistors (MOVs) and Gas Discharge Tubes (GDTs). Each part helps protect your equipment in a special way.
Component | Role |
|---|---|
Gas Discharge Tube | Makes a path for current when voltage is too high. It stops overvoltage and keeps your electronics safe. |
Varistor | Changes resistance when voltage goes up. It lets current flow only during spikes, stopping surges from hurting your gear. |

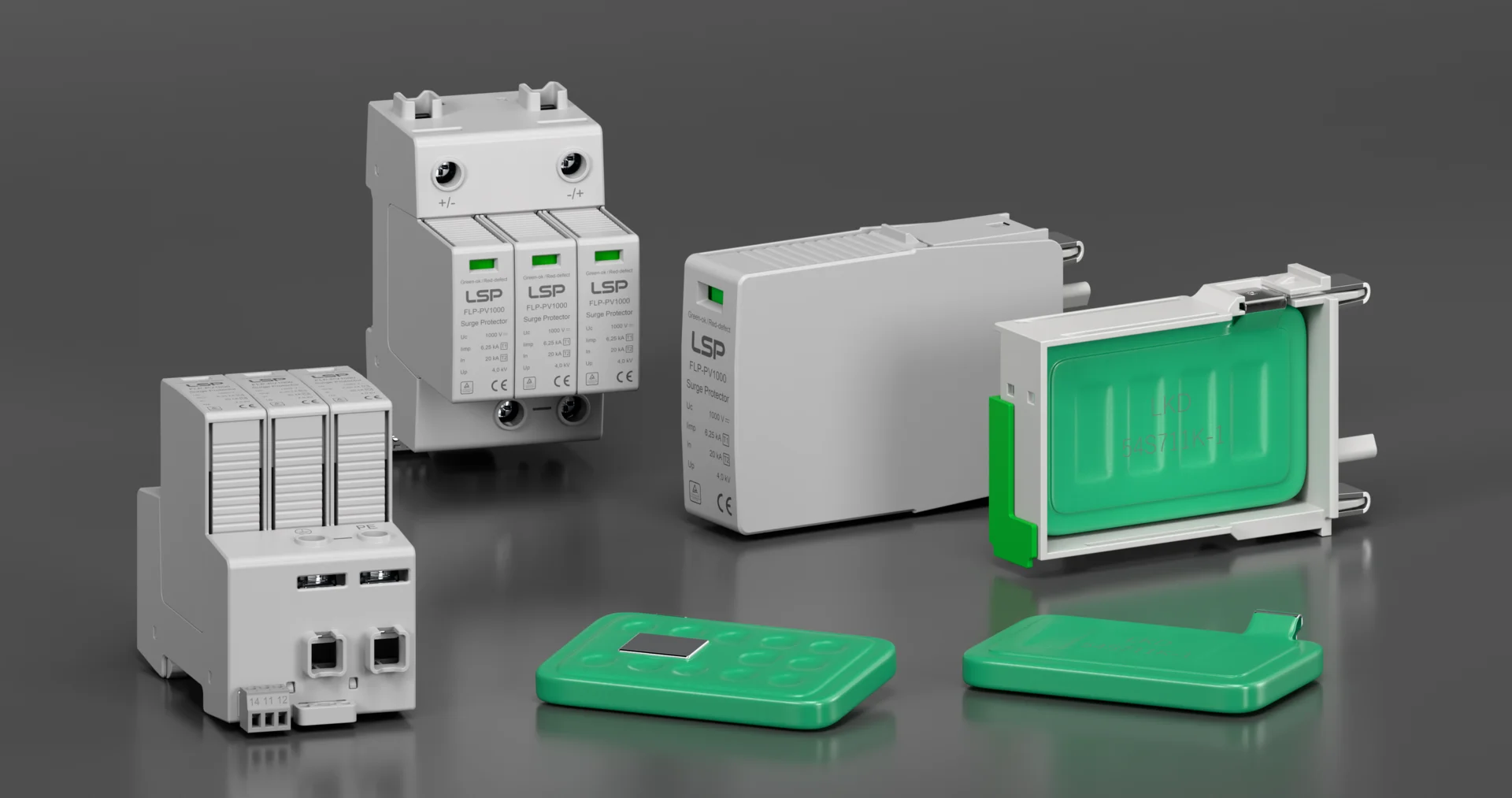

MOV
GDT
These parts work together to stop both small and big surges. Your dc equipment gets strong protection.
Grounding Path
A surge protector needs good grounding to work right. When a surge happens, it sends extra current safely into the earth. This step is very important. Without grounding, the surge could stay in your system and cause damage. Always make sure your surge protector has a good grounding path.
How Surge Protectors Limit Voltage
You may wonder how a 1500v dc surge protector stops voltage spikes. It does this with fast action and smart design.
Mechanism | Description |
|---|---|
Arc Discharge | If voltage gets too high, an arc forms in the gas tube. This makes a short circuit very quickly. |
Surge Current Flow | The gas tube lets all the surge current pass through, removing the spike. |
Return to High Impedance | After the surge, the device blocks current again, keeping your system safe. |
This cycle happens every time a surge threatens your dc system. You can feel safe knowing your equipment is protected, even during sudden voltage spikes.
Types of Surges: Lightning and Switching
Lightning Surges
Many people think lightning only hits tall things. But lightning can strike anywhere, not just towers. When lightning hits, it sends a lot of energy into your dc system. These surges have much more current and higher voltage than your equipment can handle. If a lightning surge happens, it can break things right away. Sensitive devices, like inverters and battery management systems, can stop working fast if you do not use the right surge protection devices.
Tip: Always make sure your 1500v dc surge protector is made for lightning strikes. This helps stop sudden problems and keeps your system safe.
Here is why lightning surges are so risky:
Lightning makes huge voltage spikes.
The surge moves quickly and can jump far.
Most electronic systems cannot handle this much energy.
Switching Surges
Switching surges start inside your system. You get them when you turn things on or off. They also happen when there is a problem, like a short circuit or overload. These surges are not as big as lightning, but they still cause issues. Fast switching can make voltage spikes because energy in inductive loads comes out quickly. Problems like overloads also cause sudden surges.
Here are the main reasons for switching surges:
Turning devices on or off makes load transients.
Problems, like short circuits, send too much voltage into your system.
Inductive loads let out energy fast during quick switching.
Switching surges are usually smaller than lightning surges, but they happen more often. If you ignore them, your equipment can get weaker over time.
Impact on Equipment
Surges from lightning or switching can hurt your equipment in different ways. Sometimes, sensitive devices like inverters, battery management systems, and telecom boards stop working right away. Even small spikes can make your electronics wear out faster. If you do not use surge protection devices, you might have to pay for repairs and lose time.
Type of Equipment | Vulnerability to Surges |
|---|---|
Inverters | High risk of instant failure |
Battery Management Systems | Sensitive to voltage spikes |
Telecom Boards | Easily damaged by surges |
Note: Protecting your dc equipment from both lightning and switching surges is very important. A good 1500v dc surge protector helps stop damage and keeps your system working well.
Lightning Protection Mechanisms
Fast Response
When lightning hits, surge protection devices must act quickly. You need to stop voltage spikes before they hurt your equipment. Most 1500v dc surge protector models work in less than 25 nanoseconds. They catch transient voltage and spikes almost right away. The table below shows how fast these protectors work:
Product Name | Response Time |
|---|---|
HCDSP3-1500 T1+2 DC Surge Protection Device | <25ns |
DC SPD Type 1+2 1500V BUD-S1500 IEC | ≤25ns |
Jinli surge protector 40ka spd 1500V type 2 | ≤25ns |
You do not need to worry about slow reactions. The protector senses a surge and acts before damage happens. Fast response is very important for lightning protection in dc systems.
Tip: Always look at the response time when picking a surge protection device. Faster response helps stop voltage spikes better.
Diverting Excess Energy
You want to keep your equipment safe from transient voltage and spikes. Surge protection devices send extra energy away from your system. When lightning causes a surge, the protector moves the extra current to grounding. This keeps voltage spikes away from sensitive electronics.
Here are ways to make sure your system diverts energy well:
Use a surge protector with strong grounding.
Make sure all connections are tight and clean.
Put the protector close to the equipment you want to protect.
If you do these things, you lower the risk of damage from transient surges. Your dc system keeps working well.
Equipment Protection
You want your equipment to last a long time. Lightning protection helps you avoid expensive repairs and downtime. A good surge protection device blocks voltage spikes and keeps transient voltage away from your electronics. You protect inverters, battery management systems, and telecom boards from sudden surges.
Note: Check your surge protector and grounding system often. You find problems early and keep your protection strong.
You can use a checklist to keep your protection reliable:
Check surge protection devices every few months.
Test grounding connections.
Change protectors if you see damage or wear.
If you do these tasks, you get better lightning protection and longer equipment life. You stop voltage spikes and transient surges before they cause problems.
Importance of Equipment Protection in DC Systems
Solar and Industrial Applications
If you use solar power or work in factories, you need strong protection. Both places use high dc voltage. Surges can happen at any time. Without a 1500v dc surge protector, your equipment is at risk. Solar panels and inverters are often outside. They can get hit by lightning or switching spikes. Machines in factories run all day. They can face sudden surges from switching or faults.
Here are ways to protect your system:
Put surge protection devices near your main equipment.
Check wires often for loose spots or rust.
Use protectors made for high dc voltage.
This keeps your solar and industrial machines safe. You avoid downtime and save money on repairs.
Tip: Pick a surge protector made for your job. This gives you the best protection for your dc system.
Safety and Standards
You want your system to follow safety rules. Surge protection devices must meet strict standards. These rules make sure your protector works well. They help keep your equipment safe. The table below shows which standards are for 1500v dc surge protectors in solar and industrial places.
Standard | Description |
|---|---|
IEC 61643-11 | Global benchmark for surge protective devices (SPDs) with classifications for different applications. |
UL 1449 | Focuses on surge protection safety in the USA. |
IEEE C62.41 | Specifies surge environments in power systems. |
ANSI/CSA | Regulation-specific requirements for surge protection. |
TUV, CB, CE, CQC, UKCA | Various international certifications for quality assurance in surge protection devices. |
Always look for these marks when you buy a surge protector. They show your device meets safety and quality rules. You feel better knowing your protection is certified.
Longevity and Reliability
You want your dc equipment to last a long time. Surge protection helps you reach this goal. Using a surge protector stops spikes from causing damage. Your system runs longer and stays reliable.
Here is what surge protection devices do:
Stop damage to sensitive parts by clamping voltage spikes.
Move harmful energy away from equipment to keep it working.
Make things safer by stopping electrical fires from overvoltage.
Your system runs smoothly. You avoid sudden breakdowns and big repair bills. Checking and caring for your protection keeps it strong.
Note: Check your surge protector and wires often. You find problems early and keep your dc system safe.
Choosing a 1500V DC Surge Protector
Assessing System Needs
You need the right protection for your dc system. First, look at your system and what it needs. Think about voltage, current, and how often surges happen. Check where you will put the surge protection devices. Some places get more lightning or more switching surges. If your system is outside or in a busy factory, you need stronger protection.
Here’s an easy way to check your system needs: 1. Find your system’s highest voltage and current. 2. See how often surges happen in your area. 3. Decide what protection level your equipment needs. 4. Make sure the surge protector matches your system’s voltage. 5. Look for devices that meet safety rules. 6. Pick a protector that can handle the surges you expect. 7. Choose a product from a trusted company.
Tip: Always match the surge protector to your system’s voltage and current. This helps you avoid problems later.
Selection Criteria
You want to pick the best surge protection devices for your setup. Focus on three things: voltage rating, surge capacity, and response time.
Voltage Rating
The voltage rating shows how much voltage the surge protector can handle. You need a protector that matches or is higher than your system’s highest voltage. If you pick a device with a lower rating, it might not work during a surge. Always check the voltage rating before you buy.
System Voltage | Recommended Protector Voltage Rating |
|---|---|
1200V DC | 1500V DC |
1500V DC | 1500V DC or higher |
Surge Capacity
Surge capacity means how much surge current the device can take. If your area gets strong lightning or big switching surges, you need a protector with high surge capacity. Look for the surge current rating in the product details. This helps your equipment stay safe during big surges.
Expected Surge | Suggested Surge Capacity |
|---|---|
Small spikes | 20-40 kA |
Large surges | 40-60 kA |
Note: Pick a surge protector with enough surge capacity for your system. This keeps your equipment safe during strong surges.
Response Time
Response time shows how fast the surge protection device reacts. Fast response means less risk for your equipment. You want a device that works in nanoseconds. Quick action stops damage before it starts.
Device Type | Typical Response Time |
|---|---|
MOV-based SPD | <25 ns |
GDT-based SPD | <25 ns |
Installation Tips
Good installation helps your surge protector work better. Always follow the manufacturer’s instructions. Here are some steps to help you: 1. Turn off all electrical devices before you start. 2. Find your main electrical panel and turn off the power. 3. Install the surge protection device with short, direct wires for better results. 4. Make sure you have good grounding. 5. Test the surge protection device after you install it. 6. Use products from trusted brands. 7. Keep records of your installation and tests.
Tip: Avoid long wires and bad grounding. These mistakes can make your surge protector work less well.
If you follow these steps, you get strong protection for your dc system. Your equipment stays safe from surges, and your system runs smoothly.
Maintenance Practices
You want your 1500V DC surge protector to last a long time. Doing regular checks helps you find problems early. This keeps your system safe. If you skip these steps, your equipment could get damaged. You might also have downtime. Here are some things you should do to keep your surge protector working well.
Start with a visual inspection. Look at your surge protector every few months. Check for damage, rust, or anything that looks wrong. If you see a problem, change the device right away. Make sure all wires are clean and tight.
Pay attention to the grounding system. Good grounding is very important for surge protection. Put the PE conductor next to the DC path. This keeps your system safe during a surge. Place the main PE bar close to the surge protector and DC busbars. Use short, thick wires between the surge protector and the PE bar. This setup lowers voltage stress. It also sends extra energy to the ground fast.
Keep leads short and avoid loops. Long wires and sharp turns can cause trouble. They make it harder for the surge protector to work fast. Use gentle bends and do not make loops. Short wires help the device stop voltage spikes quickly.
Bond all enclosure parts. Sometimes, fault current can go through the enclosure. Make sure every part that might carry current is bonded well. Check these bonds every time you inspect.
Coordinate with protection devices. Your surge protector works best with MCBs and fuses. Test these devices often. If you change your surge protector, check that the other devices still fit your system.
Keep a maintenance log. Write down every check, test, and change. This helps you see patterns and plan future checks.
Here’s a simple checklist to help you:
Maintenance Task | How Often | What to Look For |
|---|---|---|
Visual inspection | Every 3 months | Damage, rust, loose wires |
Grounding check | Every 6 months | Tight bonds, short wires |
Enclosure bonding | Every 6 months | Good connections |
Protection device test | Once a year | Right coordination |
Maintenance log update | Every visit | Write what you find and do |
Tip: Always follow the manufacturer’s instructions for installation and care. If you are not sure, ask a trained electrician.
If you do these things, your surge protector will work well. Your equipment stays safe and you save money on repairs. Regular care makes your DC system safer and more reliable.
Best Practices for Protection
Proper Placement
You want your surge protection devices to work well. Where you put them is very important. If you install them in the right places, your DC system gets better protection. Use this guide to help you choose the best spots:
Location | Main Purpose |
|---|---|
Array Junction Box | Protects panel strings |
Combiner Box | Shields multiple strings |
Inverter Input | Guards inverter electronics |
Put surge protection devices at these main points. This helps protect your solar panels, combiner boxes, and inverter electronics from lightning and switching surges. Good placement keeps your equipment safe and your system working.
Tip: Always follow the manufacturer’s instructions for installation. Use short wires and strong grounding to help your surge protection work faster.
Routine Inspection
You need to check your protection devices often. Routine inspection helps you find problems early and keeps your system safe. Most experts say you should inspect your surge protection devices every 3 to 5 years. If a big surge happens, check them right away.
Here’s what you should do during inspections:
Look for damage, rust, or loose wires.
Check status indicators and surge counters.
Test ground resistance and insulation.
Scan for hot spots with a thermal camera.
Use this table to plan your inspection schedule:
Frequency | Inspection Activities |
|---|---|
Monthly | Check status indicators, read surge counters, scan connections for heat |
Quarterly | Test insulation resistance, measure ground impedance, check protection coordination |
Annually | Do a full electrical safety check, think about replacing SPDs, update protection study |
Note: Always write down your inspection results. This helps you see patterns and plan future checks.
Troubleshooting
If your surge protection devices stop working, you need to fix them quickly. Troubleshooting helps you find and solve problems before they hurt your system. Use this checklist to help you:
Visual Inspection: Look for burned parts or broken wires.
Varistor Check: Measure resistance and look for swelling or cracks.
Gas Discharge Tube Inspection: Check for carbon marks or damage in the gap.
Thermal Fuse Check: See if the fuse is blown and change it if needed.
Circuit Connections: Make sure all connections are tight and clean.
If you find a problem, replace the damaged part or the whole device. Always use surge protection devices that match your system’s voltage and current. Train your team so everyone knows how to spot trouble and keep your protection strong.
Tip: Regular checks and fast fixes keep your DC system safe from surges. You avoid downtime and save money on repairs.
You need strong protection for your dc system. A 1500v dc surge protector helps keep your equipment safe from lightning and switching surges. It stops damage and helps your solar farm keep working. If you choose the right protector and check it often, you get better safety and less downtime. Here are some things you should do:
Put surge protectors close to where surges start.
Use short wires and make sure grounding is good.
Check and test your protection devices often.
Be careful and follow these steps to keep your system safe.
Benefit | What You Get |
|---|---|
Stop damage | Equipment works well |
Less downtime | Safer system |
Make system last longer | Stronger protection |
FAQ
How do I know if my 1500V DC surge protector is working?
Look at the status light on your device. Green means your surge protector works. Red or no light means you should replace it. Test your device after a big surge.
Where should I install my surge protector for best results?
Put your surge protector close to the equipment you want to protect. Use short wires and make sure grounding is strong. Good places are the array junction box, combiner box, or near the inverter input.
How often should I inspect my surge protection device?
Check your surge protector every three months. Look for damage, rust, or loose wires. Test the grounding and check the status light. Write down what you find in a log.
Can I install a surge protector myself?
You can install a surge protector if you know basic electrical safety. Always turn off the power before you start. Follow the instructions from the manufacturer. If you are not sure, ask a licensed electrician for help.
What happens if I ignore surge protection in my DC system?
Your equipment can get damaged and stop working. You might have downtime and pay for repairs. Surges can break inverters, battery systems, and telecom boards. Protecting your system saves money and keeps things running.
How do I choose the right surge protector for my system?
Pick a surge protector with the right voltage rating for your system. Check the surge capacity and response time. Look for certifications like IEC or UL. Choose a trusted brand for better safety.
Do surge protectors need maintenance?
Yes, you need to check surge protectors often. Look for damage, test grounding, and check connections. Replace the device if you see wear or after a big surge. Keep a log of your checks.
What certifications should I look for when buying a surge protector?
Look for IEC 61643-11, UL 1449, and CE marks. These show your surge protector meets safety rules. Certified devices give you better protection and peace of mind.
